capsman set tx power can't up to more then 20dbm

RouterOS Wireless Networking
1

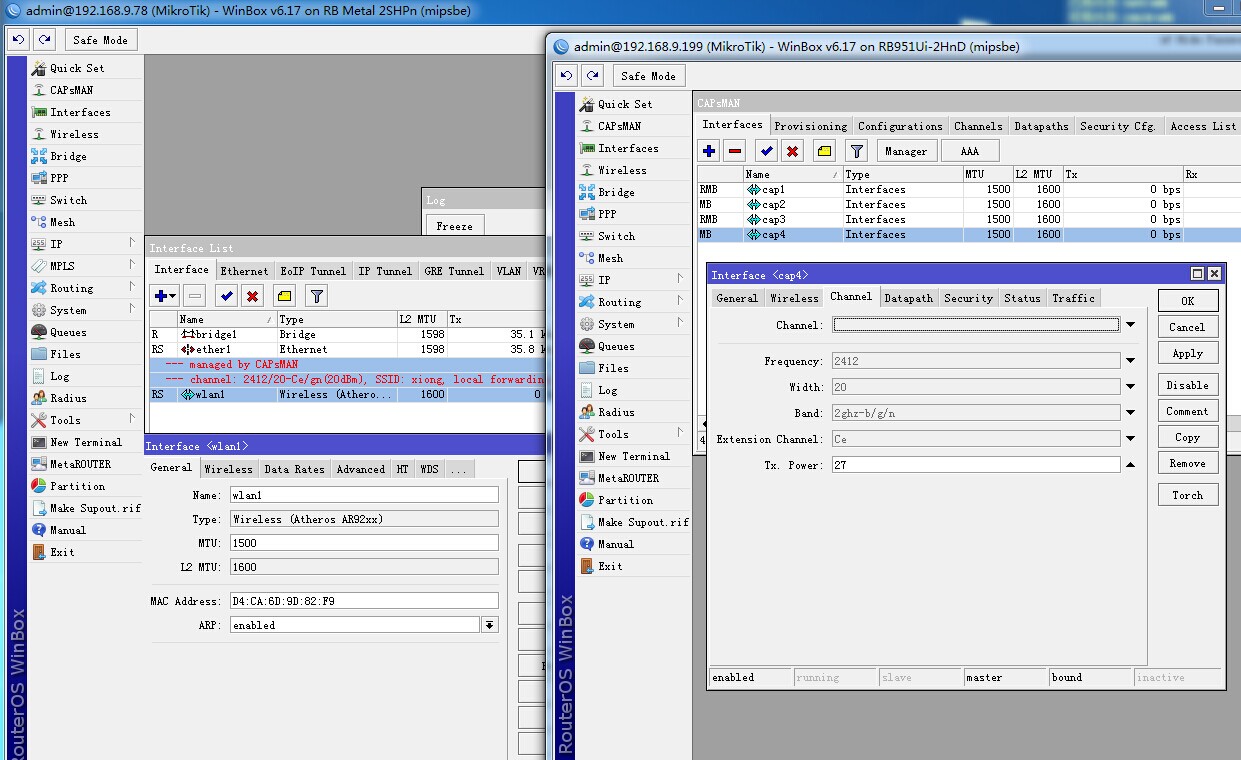

if set 17dbm is ok.if set 27dbm,30dbm,32dbm all can’t.
this wire card can work on 32dbm.but in capsman can’t.

2

I’m new, but maybe I can help you..
maybe you specified a “regulatory-domain” in your wireless settings?

3

thanks！just you say！

4

Just keep in mind you should not be over your country limitations..

5

hi, I set superchannel with CapsMan??

the option does not exist in capsman!!!

Thanks…

6

I know this is an old post but I’m posting if anyone is still looking for an answer.
I had the same problem and the cause for my problem was that I had selected the country.
When I deselected the tx power went above the limit
I hope this helps to you as well

7

You should not use your devices in production without properly set country and enabled regulatory domain. There are laws about RF spectrum limiting maximum power.
Possibility to remove these restriction is only for laboratory/testing purposes.

8

That doesn’t work for me in 5 GHz :frowning: Looks like the limit is got from “no_country_set” domain. It allows up to 30 dBm got 2GHz, and only up to 17 dBm for 5 GHz.

Does anybody know how to increase tx-power limit for 5 GHz with CAPsMAN? It’s in controlled isolated environment :slight_smile:
