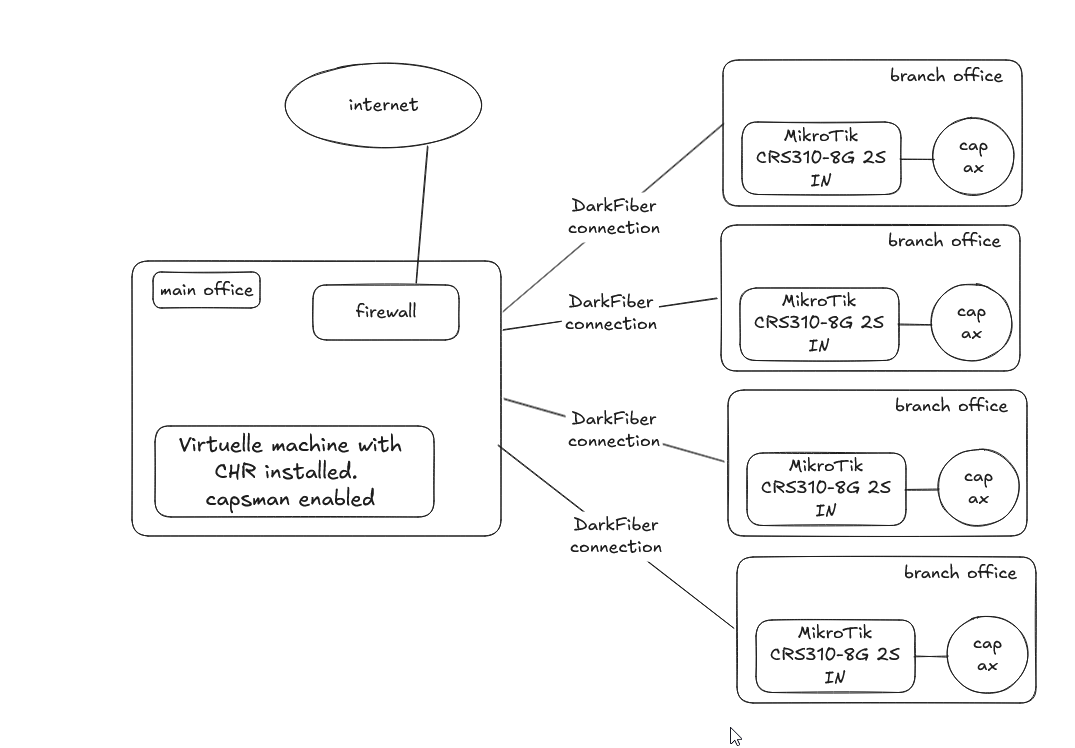

The image is meant to reflect the idea I want to implement. But I have some questions.
The CHR is installed in the main office. I have several branch offices. These are connected to the main office via “dark fiber.” At each branch office, a MikroTik switch and several Cap AX access points are to be put into operation. There are two VLANs (employees and guests) that are to be broadcast via the access points. Each branch office has different IP address ranges for the employee and guest VLANs.Each branch office should connect to the Internet via the main office.
Where do I configure the different IP address ranges and VLANs for the remote locations? On the CHR, with a separate configuration for each VLAN that is then provisioned to the respective access point?
Is this even possible in this way?
Thank you in advance…
Please consider using a management VLAN for management (duh...), also CAPsMAN-CAP communication can be handled.
In regards to your question:
In datapath you can set the VLAN, your site requires (at least) 2 configurations: 1 for the branch office and 1 for guest.

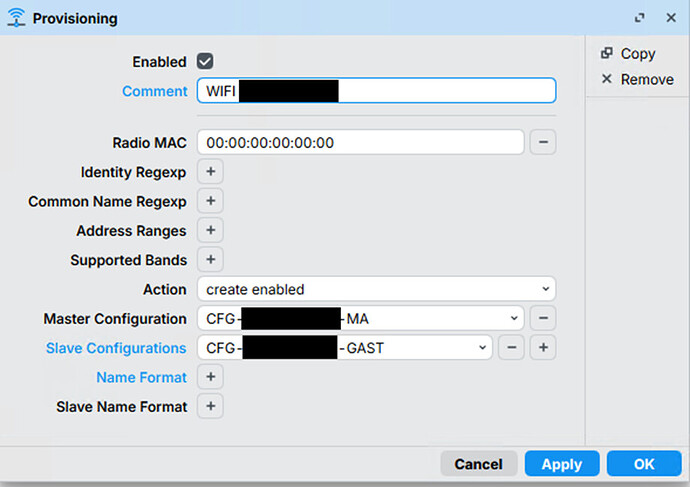

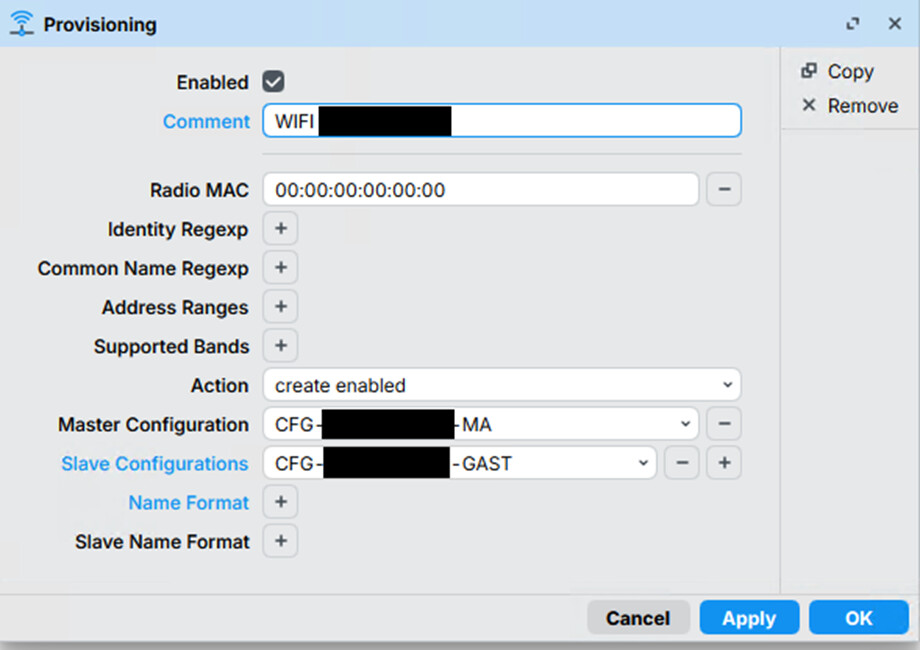

You should create at least 1 provision rule per office to properly provision the CAPS.
VLAN's should be created on the main office, as well as all the DHCP pools.
Are you the one responsible for the network?
Is the dark fiber L2 or L3?
Hello,
Thank you for your reply.
The dark fiber is Layer 3 and there is a management VLAN.
If I understand correctly, since the Capsman isn't on the same network, I need to configure the CAPs so that all network traffic is processed on the CAPs.

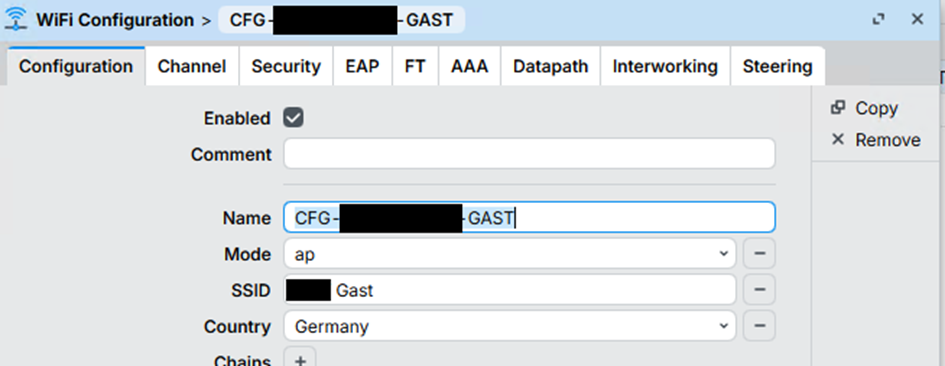

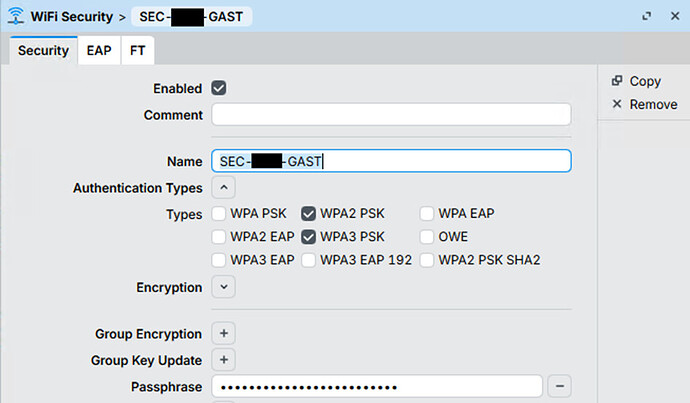

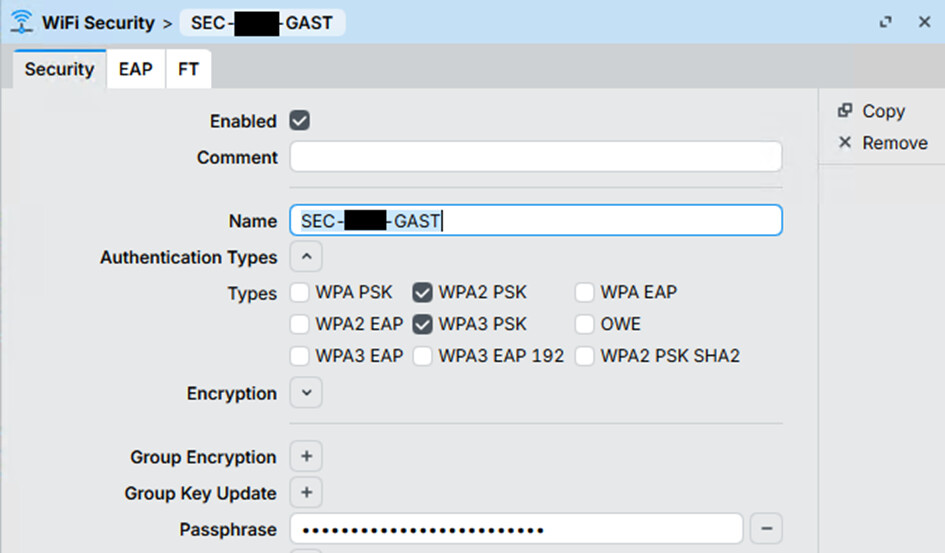

I've configured it as follows:

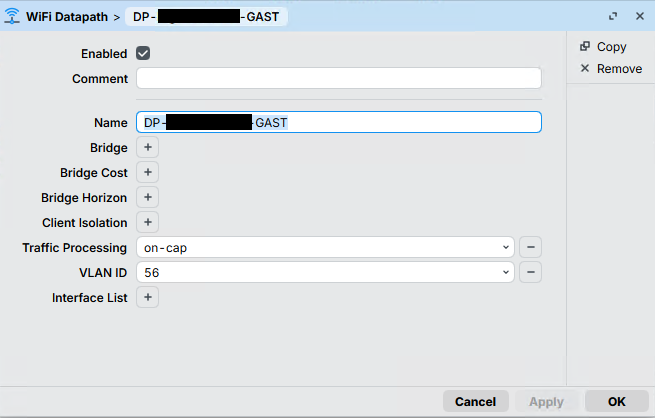

First, I created a datapath for both the employee and guest Wi-Fi network. The key setting here is “Traffic Processing.” With this setting, I configure the system so that all network traffic is processed on the CAP. Did I understand that correctly?
Better use Winbox 4 instead of 3, there are some quirks with the older version.
Also, when sharing settings, please use export (i.e. /interface/wifi/security export)
