Is there a case for RBM33G, which supports mounting 4x LTE antennas? CA433U only supports 3 antennas. Thanks.
Do you have 3d printer? https://www.thingiverse.com/thing:3561672
3D model of box for RBM33G. Thanks to mrkrash.
https://rfelements.com/products/integration-platforms/stationbox-alu/stationbox-s-carrier-class-2/
I use this

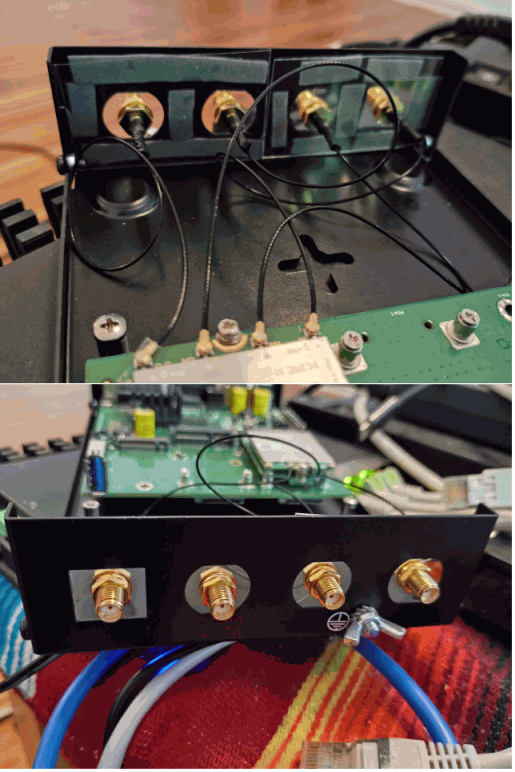

Also I drilled the CA433 with 4 holes and putted the 4 SMA pigtails.
Regards.
Hi there
We need rack mount case for rbm33g and rm953gs and could not find any. So we make our own.
https://photos.app.goo.gl/QbSX9XDzjbNaydPTA
it also has space already cut for 1 Ethernet port and 2 aerial port
Regard
Jonathan X Peers
hi,
how do you cut the sim card slots, on the bezel?
Lazer cut
: |
just unboxed my ca433u …
unfortunately all our Jedi-Knife guys are on vacation …
… I’m a little bit disenchanted that the ca433u not even support 6mm diameter SMA/RP-SMA-antenna-pigtails …
.
… why not a self-ad stencil for inside and outside the antenna-side (like the ones that are part of the set for the cable-side ) … should be stable enough …

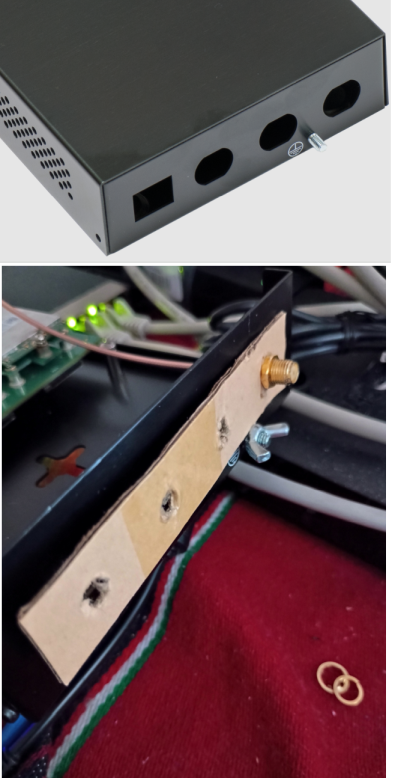

… so it’s MacGyver-style again … MacGyver-style works … but a MacGyver-episode … lasts ? … 40 minutes ? … ( and it needs days of sizzling for these 40 minutes : \ )
.
or … a second set of bungs … which supports sma-connector diameter …
.
or a version for self-drilling !? … ( btw.: is this one for NYM-J-cable ? )
.
.
so … guess every semi-pro case modder will give me the very long face for it …
but homeland-networks ltd. is working on very tight budgets.
the acrylic tiles came from a coarse-cut QSFP-case (Fibershop … real McGyver quality ! … the acrylics … not the shop)
connected to the case with patches of mirror tape … case closed : )
.
Feel free to try this
https://makerworld.com/models/1004072
