CCR-1016 Kernel Panic

Hardware MikroTik hardware general
1

Just after a normal reboot, the device got stuck in “loading kernel from NAND” status. Connected to serial terminal that’s what i get:

RouterBOOT booter 3.13

CCR1016-12G

CPU frequency: 1200 MHz
  Memory size: 2048 MiB
    NAND size: 512 MiB

Press any key within 2 seconds to enter setup..

loading kernel from nand... OK
setting up elf image... OK
jumping to kernel code
Could not mount ubifs filesystem: Structure needs cleaning
opendir: No such file or directory
opendir: No such file or directory
ERROR: no system package found!
Kernel panic - not syncing: Attempted to kill init!

Starting stack dump of tid 1, pid 1 (init) on cpu 15 at cycle 15173358619
  frame 0: 0xfffffff7004ef9e8 dump_stack+0x0/0x20 (sp 0xfffffe003d26fc08)
  frame 1: 0xfffffff7004e8c68 panic+0x168/0x388 (sp 0xfffffe003d26fc08)
  frame 2: 0xfffffff700050e68 do_exit+0x1c8/0xd48 (sp 0xfffffe003d26fcb0)
  frame 3: 0xfffffff700051b30 do_group_exit+0xf0/0x1e8 (sp 0xfffffe003d26fd78)
  frame 4: 0xfffffff700051c48 __wake_up_parent+0x0/0x18 (sp 0xfffffe003d26fdb0)
  frame 5: 0xfffffff7004f05c0 handle_syscall+0x210/0x2d0 (sp 0xfffffe003d26fdc0)
  <syscall while in user mode>
  frame 6: 0x735d0 0x735d0 (sp 0x7fa8faa8)
Stack dump complete
Client requested halt.

Solutions?

Netinstall
2

Please use the Netinstall utility to reinstall RouterOS. This time use RouterOS v6.18 and the device should return to normal

3

Is happened to me.
The solution is ok, but what is the problem?
Is a particular version of RouterOS?

Thanks in advance.

4

There was a problem in one of the earlier versions, in RouterOS v6.18 it should be fixed.

What’s new in 6.17 (2014-Jul-18 15:14):
*) CCR1009 - fixed crash;

What’s new in 6.16 (2014-Jul-17 13:12):
*) CCR - fixed rare file system corruption when none
of configuration could be changed or some of it disappeared;

5

The same problem after a reboot in my CCR-1009-8G-1S-1S+
I tried with netinstall v6.18 but the same errors !!!
Please help…

6

Please contact support with a supout.rif file and console output attached, our developers will analyse this.

7

how to make support.rif if i can’t login to the router?

8

Sorry, in this case, full console output. If you device doesn’t operate, always contact support or seller. In the community forum, other users will not be able to help with such issues.

9

I already contact my reseller for RMA.
But what if in my new CCR, happens the same?
As i see it’s 6xx version the problem. 6.18 didn’t fix this problem.

10

i have the same problem with version 6.19 , i downgraded to 6.18 but still having ccr reboots hazardiously , i have changed the queue interface from only-hardware to ethernet-default but with no luck .
i have sent a suppout.rif file to the support and waiting for reply , hope the problem will be fixed

11

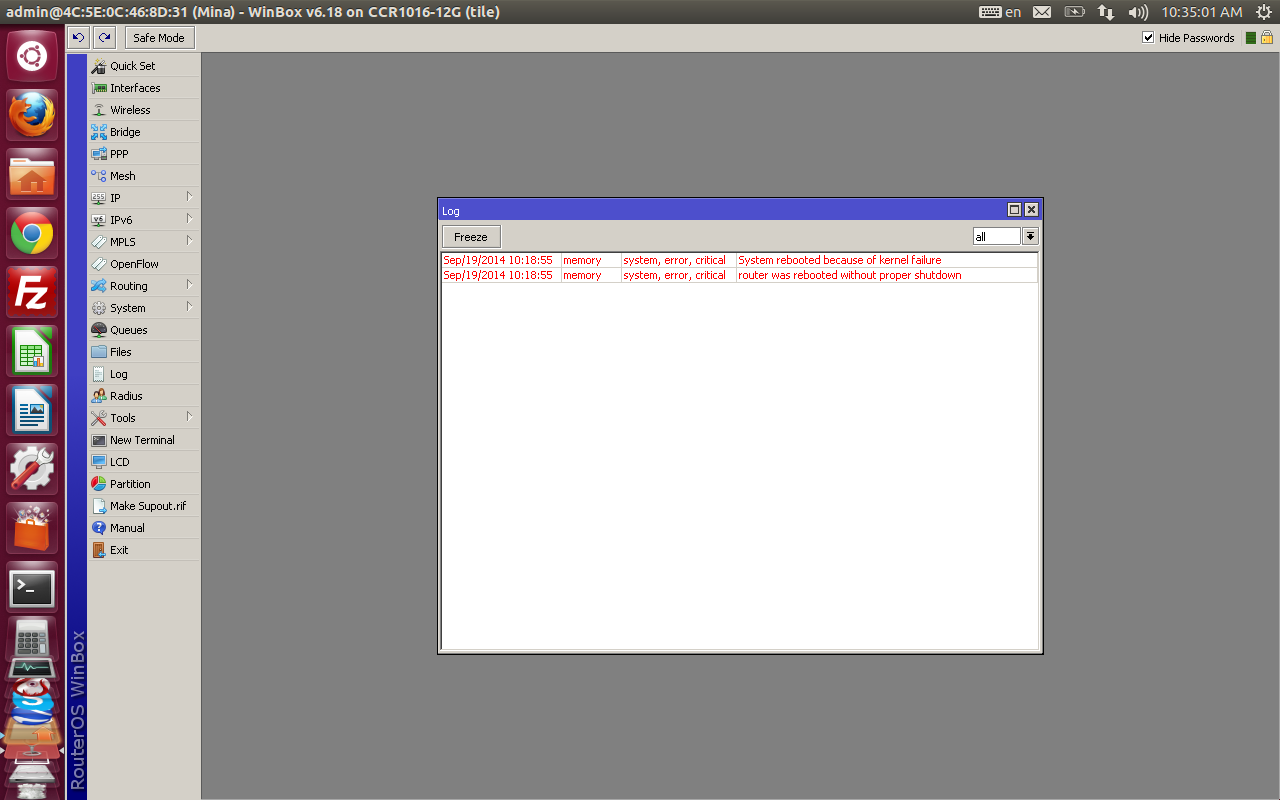

this is a screenshot of the CCR 16 core log

12

upgrade to ROS 6.19 then upgrade routerboot

13

Did you seem to get the problem fixed? Im having same issue but mine runs for a few hours then has kernal failure and then reboots 4 or 5 times…then runs a few hours again…dont understand.
