CCR-1036-12G-4S and 1000T SFPs

Hardware MikroTik hardware general
1

I am having a hard time finding working 1000T SFPs for the CCR-1036. The Cisco SFPs we have been using with the RB2011 UAS-RMs are not working (no link with a MikroTik 750GL on the other end).

Are there any known 1000T SFP issues with the CCR?

Cisco SFP info: SFP-GE-T EXT / 30-1421-01

I took six different 1000T SFPs, we had lying around, from different vendors and only one worked: FCMJ-8521-3-MD (looks like a Finisar clone, here is a link: http://memorydealers.com/transceiver/sfp/fclf-8521-3-100-finisar-compatible.html)

Thoughts?

  • Marcus
2

Did you try hard coding speed and duplex on the 750 interface?

3

I have a CCR1009, and im using 1000BaseT adapters in both the SFP+ and SFP port. Works great!

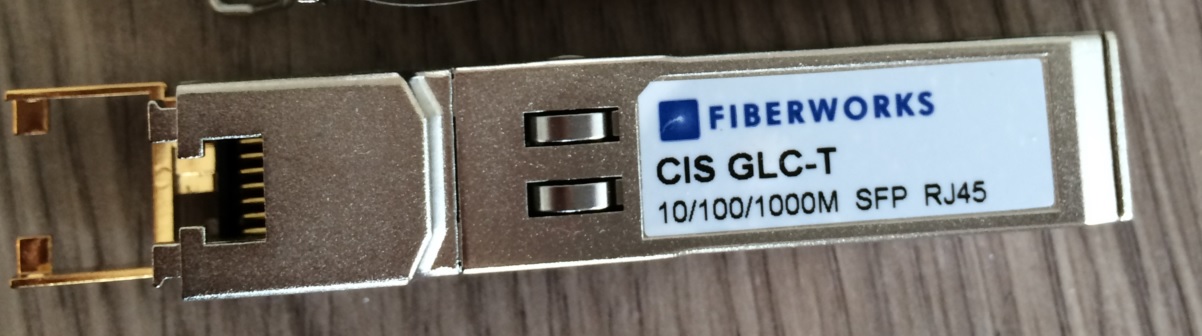

The type I use is a Fiberworks GLC-T. And its essentially uoriginal SFP, thats programmet to work with Cisco switches. (on Ciscos 3750 switches it shows up as a original Cisco SFP).

Regards
ATG
SFP-1000Base-TX.pdf (128 KB)

4

You can also try our SFP modules, check the Interfaces section here: http://routerboard.com

5

@normis

Any chance you will start selling the Mikrotik RJ-45 Copper SFP Adapters.

The flexibility of accessing a CCR1036 which is full on copper but has an SFP Free

Or using the copper port that came with my CCR1016-12S-1S+ and then still coming in locally to manage it

Or that same box wanting to connect a second copper customer rather than buy another whole box we can just make another copper port.

So many things that would help us out.

Regards
Alexander

6

Technically, because RouterOS does not validate the chipset of the SFP’s, any SFP should work albeit some better than others.

Are you using a 4 pair Ethernet cable or 2 pair? Just thought Id ask, its always possible. 2 pair definetly wont work with a copper SFP.
