Why is there more that one ddr type listed? Are they all 1200Mhz, DDR1600 now?
I see the spec sheet speed test shows:
Tile 72 Core (1200Mhz, DDR1333) Max possible throughput
Tile 72 Core (1200Mhz, DDR1600) Max possible throughput
Tile 72 Core (1000Mhz, DDR1333) Max possible throughput
Tile 72 Core (1000Mhz, DDR1600) Max possible throughput
DDR1333 and DDR1600 have different latencies. MikroTik is providing throughput details for the CPU clocked at either 1GHz or 1.2GHz, using DDR3 1333 or DDR3 1600.
Sorry, I guess I was not clear. Do the 1072’s ship with DDR3 1333 or 1600?
CCR supports downclocking of RAM frequency. Default is 800MHZ (DDR1600), but some tests are done with downclocked RAM a well.
Downclocked rams?
That is what I said
It means the downgraded ones right?
We don’t sell such. Simply we have done two kinds of tests. With standard RAM frequency, and with downclocked frequency
If down clocking wouldnt the ram be 1200mhz ddr1600
Sorry for asking again, its still not clear to me.

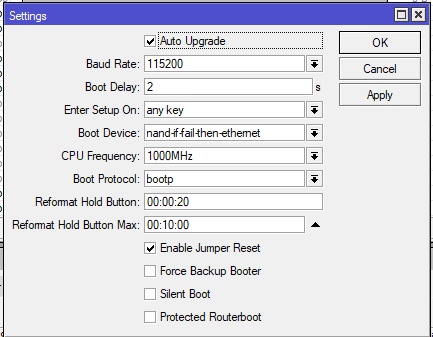

We run a few CCR1072 with standard settings:
Is this a DDR1333 or DDR1600? And where can i verify or change settings regarding RAM?
Thanks
It is DDR1600.
"/system routerboard settings set memory-frequency= "
https://wiki.mikrotik.com/wiki/Manual:RouterBOARD_settings#Settings
