CCR2004-16G-2S+PC version's technical inquiry - Temperature

[aliaskorea]

Hi,

First, Please understand my english skill.

I have a CCR2004-16G-2S+PC version’s technical inquiry.
Incluse users who are using CCR2004-16G-2S+PC, please reply.

Please will uploading a captured image. - /system health print

I have a CCR1009-7G-1C-1S+PC and 6 May purchased CCR2004-16G-2S+PC

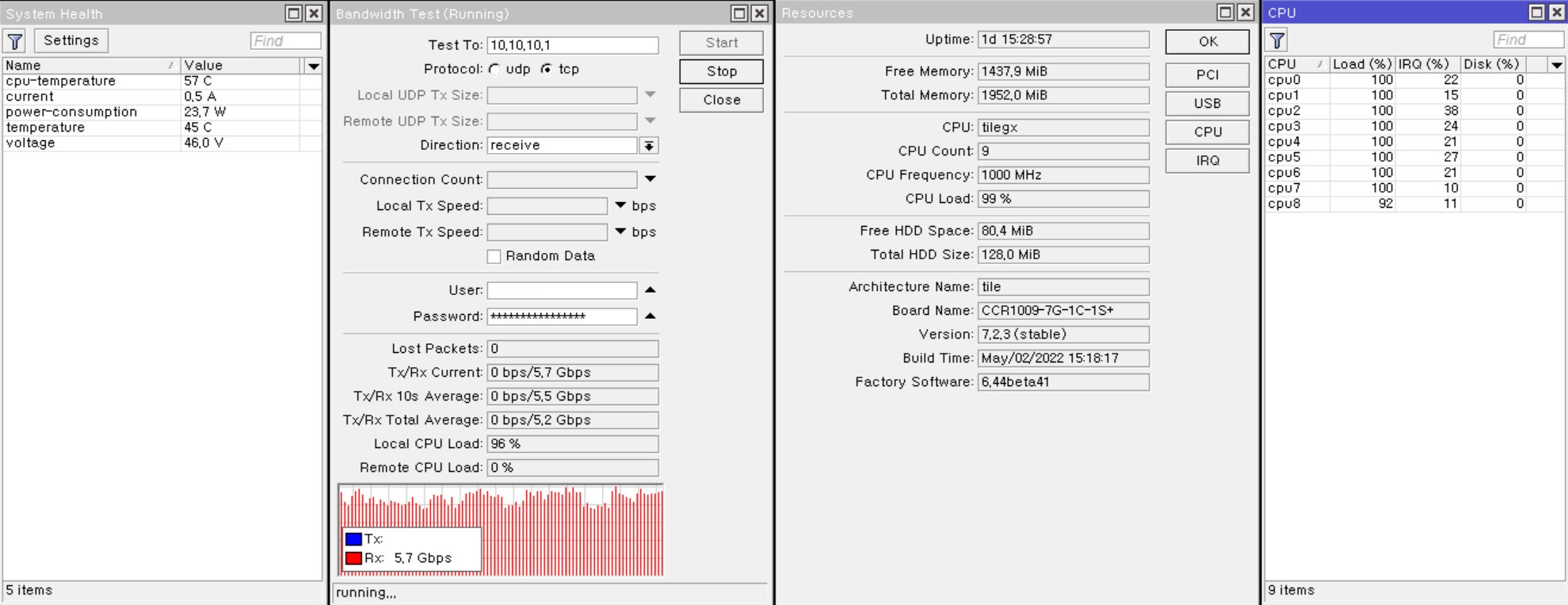

CCR1009 is about 57’C in full load but not more than heat CCR2004.

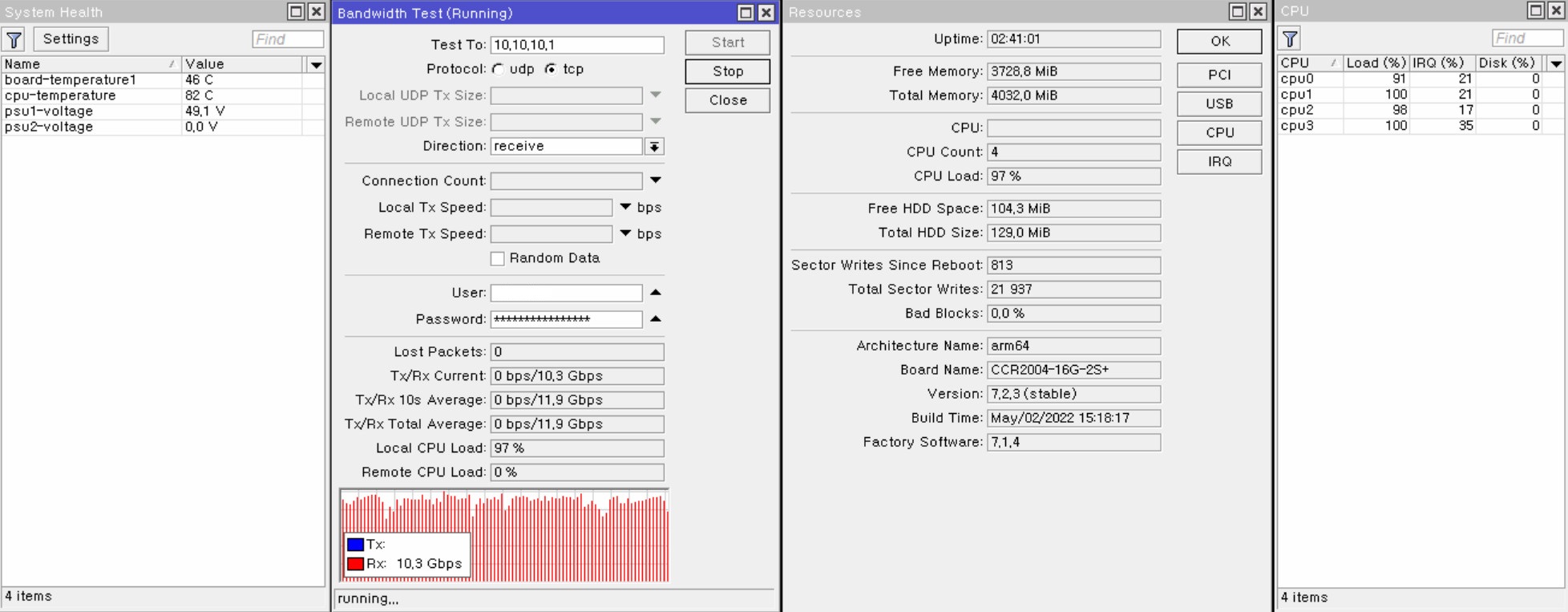

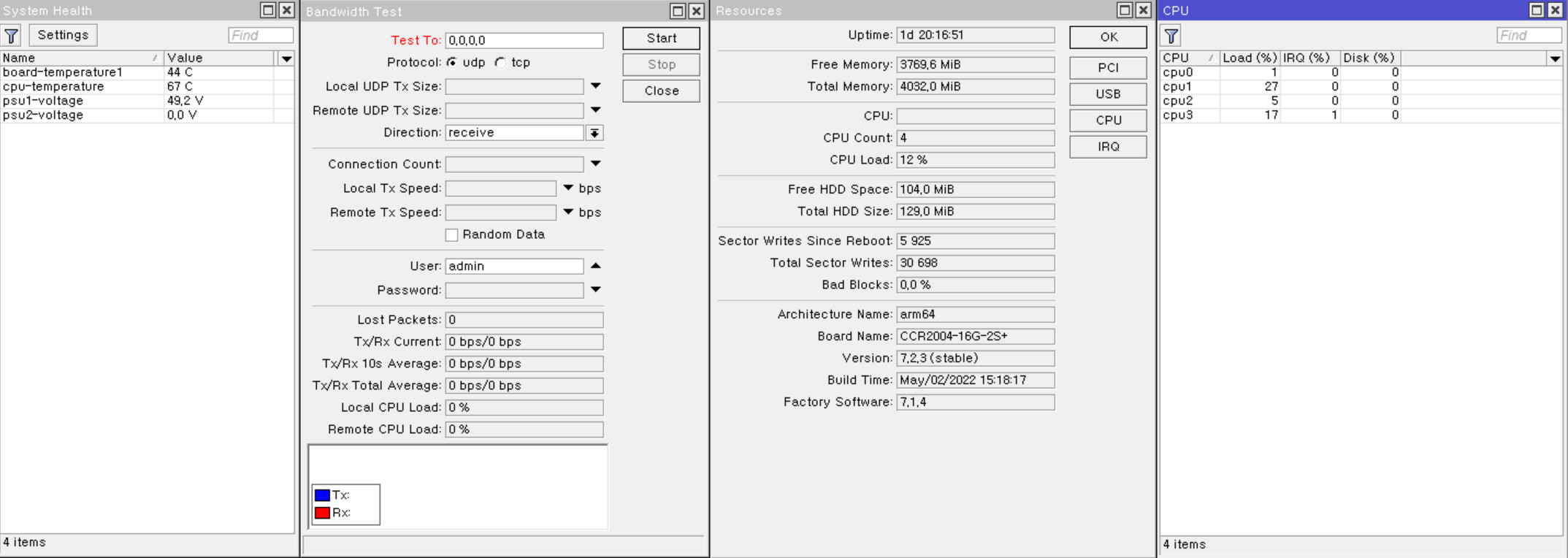

CCR2004 full load 82’C, Idle 67’C

Will there be any problems in use?

I think CCR2004’s CPU temperature is some high.

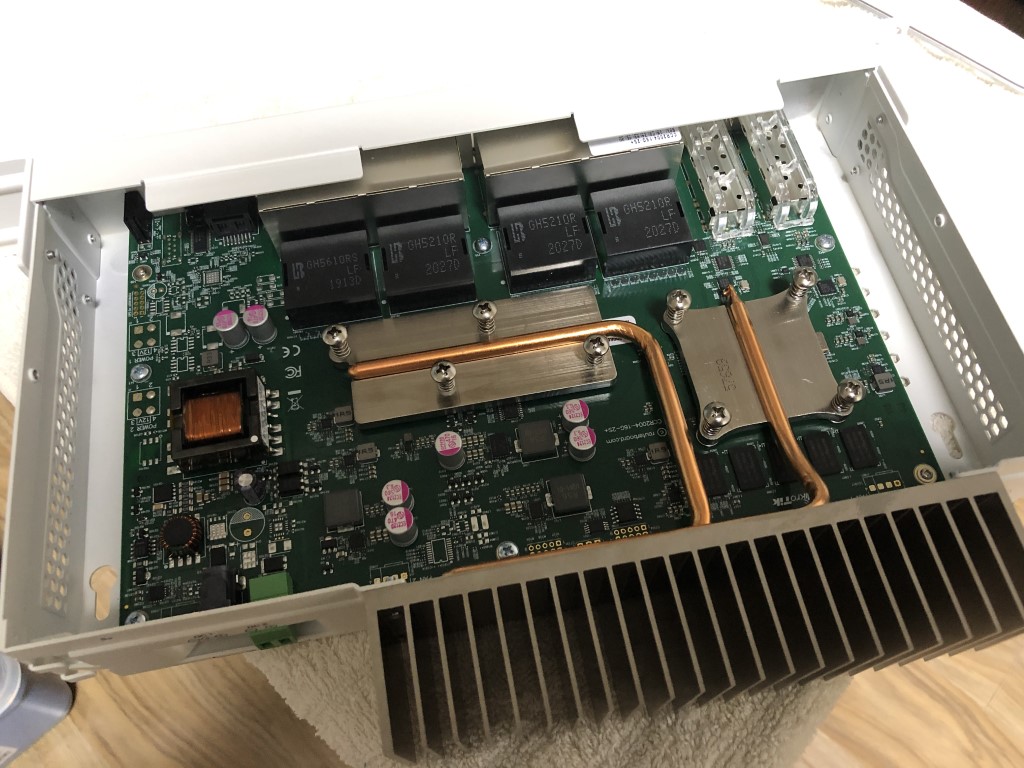

CCR2004 is high CPU temperature, but the heatsink is not high warm.

May it seems an assembly problem, such as a heatsink installation problem or a thermal grease problem?
(ex/ Heat sink and CPU is not stick close)

I’m a little worried because I asked a technical inquiry about the heat problem of the CCR1009 of a similar form factor in the 2018 year.

The CCR1009, I use now has no issues and was new purchased at last year. (Exchange from CCR1036)

Fortunately, CCR2004 is good working yet just only have high temperature.

If it have a system issue, it must be replaced within about 2 weeks from the seller.
But when RMA unfortunately, I will may pay return cost, so need an exact answer please.


Thanks.

[chechito]

i think 80+ °C its a worrisome temperature

if back heatsink fins are not hot definitibly there is a problem with thermal interface between chip and heatsink

in /system routerboard have you updated bios/firmware to same version as routeros ?

[aliaskorea]

I am solved. The thermal grease was reapplied after MikroTik support.
The temperature is down max 10~20’C

I leave a feedback about this.

Thank you so much.

[aliaskorea]

i think 80+ °C its a worrisome temperature

if back heatsink fins are not hot definitibly there is a problem with thermal interface between chip and heatsink

in /system routerboard have you updated bios/firmware to same version as routeros ?

I am solved. firmware is updated.

Thanks.

[chechito]

thank you for sharing so detailed info

can you please confirm CPU clock configured on /system routerboard ?

[rextended]

thank you for sharing so detailed info

can you please confirm CPU clock configured on /system routerboard ?

Smart question!

[aliaskorea]

thank you for sharing so detailed info

can you please confirm CPU clock configured on /system routerboard ?

routerboard: yes
model: CCR2004-16G-2S+
serial-number:
firmware-type: al64
factory-firmware: 7.1.4
current-firmware: 7.1.4
upgrade-firmware: 7.2.3

CPU clock is not appeared.

[rextended]

/system routerboard settings print

[aliaskorea]

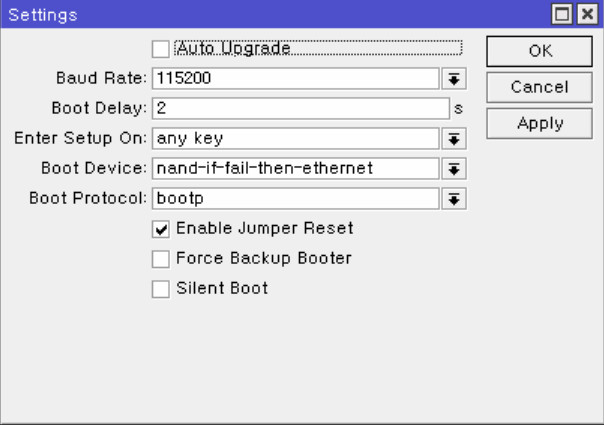

/system routerboard settings print

It's same.

auto-upgrade: no
baud-rate: 115200
boot-delay: 2s
enter-setup-on: any-key
boot-device: nand-if-fail-then-ethernet
boot-protocol: bootp
enable-jumper-reset: yes
force-backup-booter: no
silent-boot: no
protected-routerboot: disabled
reformat-hold-button: 20s
reformat-hold-button-max: 10m

[rextended]

If nothing appear, or is the default cpu value, or is auto, or the device do not support multiple cpu frequencies.

[rextended]

I am solved. firmware is updated.

Is NOT updated, still 7.1.4

/sys routerboard upgrade

[MrV98]

I would be very interested to know whether one could actually clock the PC version of the CCR2004 to 1.7Ghz like the Actively cooled version

[aliaskorea]

I would be very interested to know whether one could actually clock the PC version of the CCR2004 to 1.7Ghz like the Actively cooled version

The menu seems not appeared.

[CoMMyz]

We have had the same exact router model - and the CPU was overheating 103C at IDLE !!!

After reapplying thermal paste now the CPU is at 77C - a huge improvement.

We will replace paste with thermal pads for added efficiency.

[cdemers]

We will replace paste with thermal pads for added efficiency.

It’s actually better to use a high quality thermal paste than pads. (Be it silver or ceramic based, would not recommend any of the liquid metal products for use in a router as there can possibly be issues with reactions with the metals)

Pads are normally used when there is a bit of a gap between the heat sink and the component to be cooled (often used on ram chips to help cool them as they don’t normally generate excessive heat). Pads also have a lower heat transfer ability.

The alternative to pads if you want there are thermal sheet products that are reusable, but I wouldn’t recommend them mostly for their cost, and a high quality paste is usually more effective.

[jimlill]

I just received s/n HD4086ZNPMY/236 and it shuts dwon after a short period of use. So soon I have no tbeen able to log in.

[CoMMyz]

We will replace paste with thermal pads for added efficiency.

It’s actually better to use a high quality thermal paste than pads. (Be it silver or ceramic based, would not recommend any of the liquid metal products for use in a router as there can possibly be issues with reactions with the metals)

Pads are normally used when there is a bit of a gap between the heat sink and the component to be cooled (often used on ram chips to help cool them as they don’t normally generate excessive heat). Pads also have a lower heat transfer ability.

The alternative to pads if you want there are thermal sheet products that are reusable, but I wouldn’t recommend them mostly for their cost, and a high quality paste is usually more effective.

You are probably right - currently we are using thermal pads and temps are 44board and 57Ccpu on idle - again a bigger improvement than 77C and 103C on idle

[aliaskorea]

It’s actually better to use a high quality thermal paste than pads. (Be it silver or ceramic based, would not recommend any of the liquid metal products for use in a router as there can possibly be issues with reactions with the metals)

Pads are normally used when there is a bit of a gap between the heat sink and the component to be cooled (often used on ram chips to help cool them as they don’t normally generate excessive heat). Pads also have a lower heat transfer ability.

The alternative to pads if you want there are thermal sheet products that are reusable, but I wouldn’t recommend them mostly for their cost, and a high quality paste is usually more effective.

You are probably right - currently we are using thermal pads and temps are 44board and 57Ccpu on idle - again a bigger improvement than 77C and 103C on idle

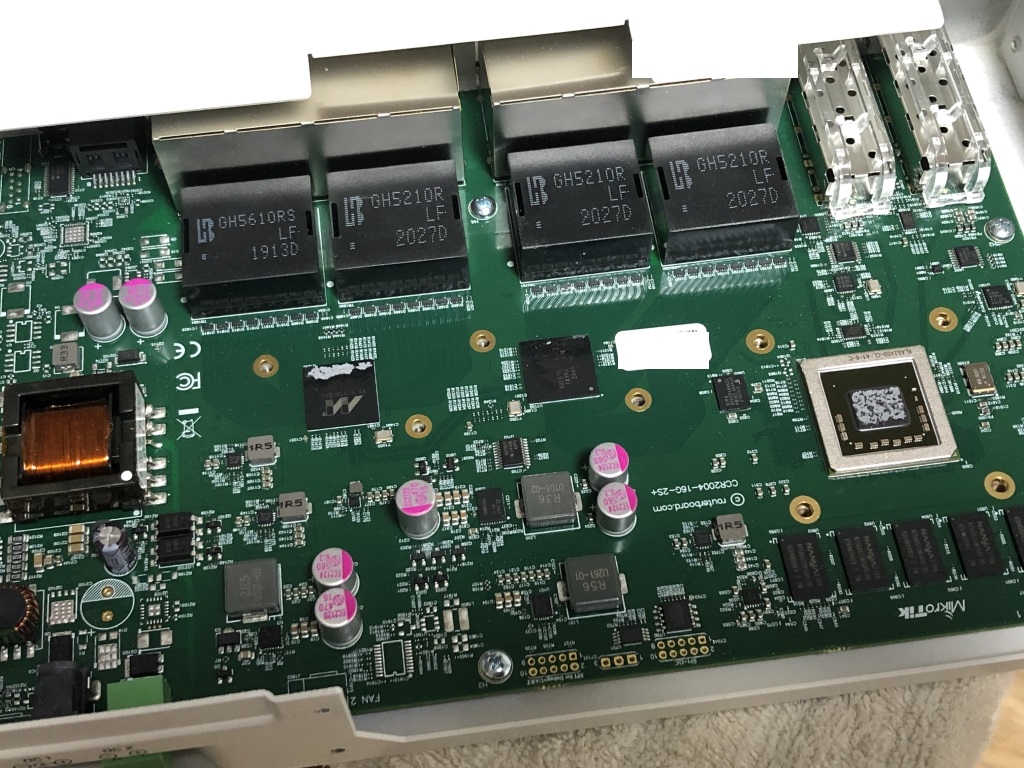

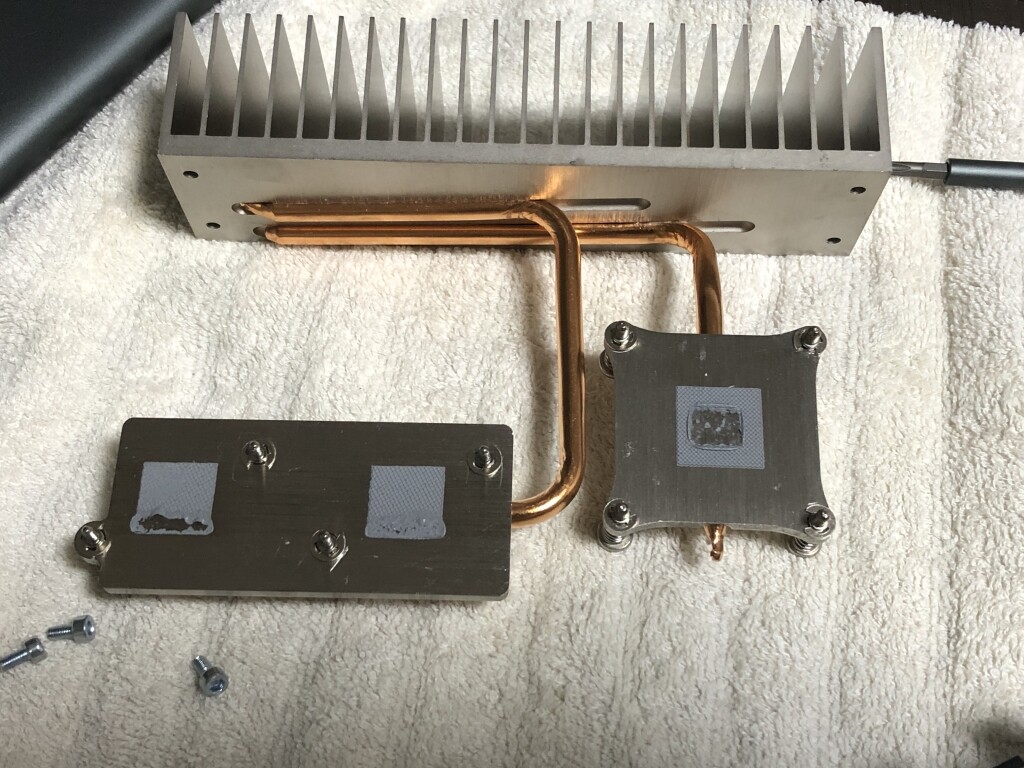

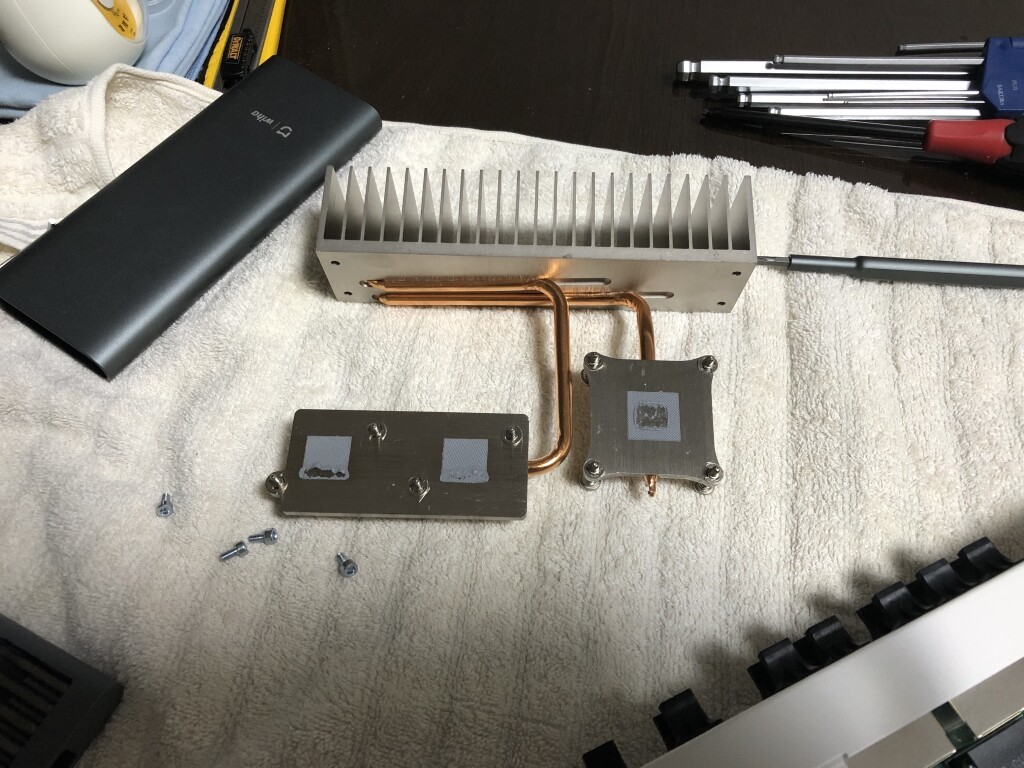

When I first exracted the heatsink, the thermal pad was not attached and the thermal paste was hardened.

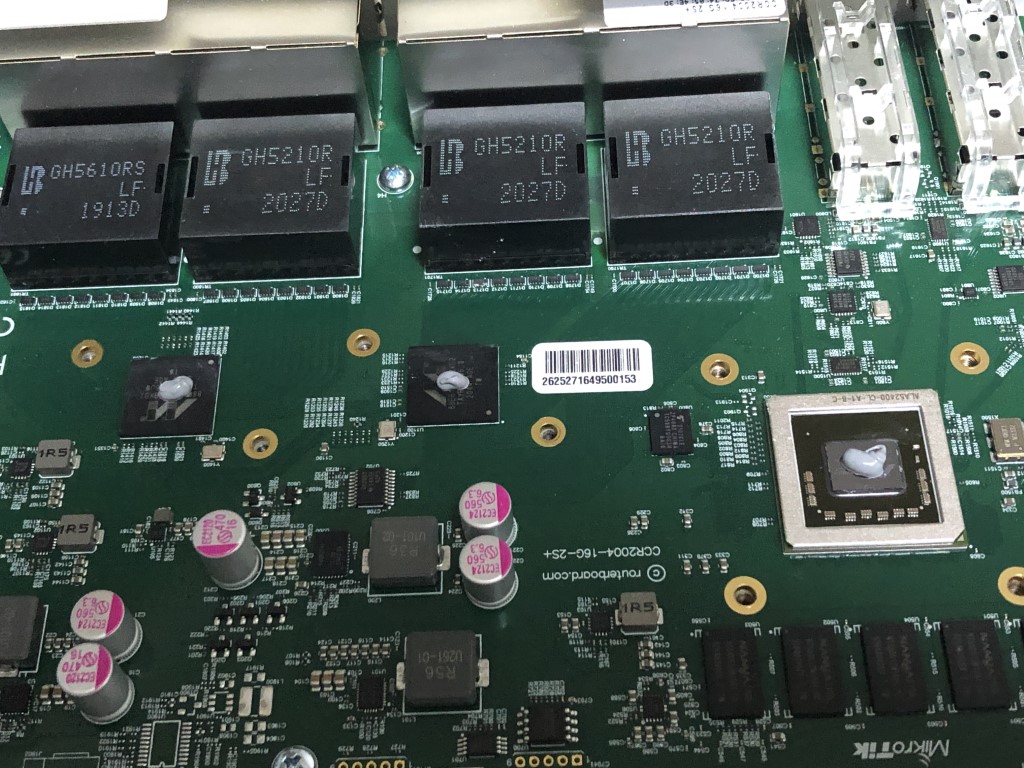

I think, The thermal paste application seems to be correct and I used MX-4.
