I have a newer CCR2004 (latest revision) and am seeing some strange freezing issues that are presenting and I ultimately noticed in zoom conference sessions as I work from home and manifesting as lost packets/timeouts.
Quick background -
- Newest CCR revision
- Homelab/residential implementation, occurs with only me using the network, while CPU is nearly always below 5%
- CCR is on 7.20.3 rOS and Firmware - occurred also on 7.20.2
- I have 4G symmetrical fiber connection, with mikrotik rj+s10 module in sfp+ 1 as WAN
- I have a 10g trunk going to a CRS305 switch, which serves a nas at 10g, desktop machine at 10g, and a brocade icx 6450 gigabit switch with 10g connection
- No other ports used on CCR2004.
- I have rebuilt the configuration already from scratch, using netinstall to reinstall both ccr and crs, which much less set up on it (no wireguard, minimal firewall rules, etc) - issue still occurs
- I have removed CRS and Brocade switch to isolate to the CCR, still occurs.
- I have used an old netgear nighthawk r7000 router, problem goes away completely.
- Upon rebuild, I tried creating a zoom specific traffic prioritization simple queue, still occurs.
- I also created an interface level cake queue to be able to utilize fasttrack firewall rule, still occurs. Bufferbloat score on waveform test is A+.
- Occurs with no firewall rules running.
- No useful info in log.
- Have tried different SFP+ modules, occurs on all three including Mikrotik branded one.
- Tried clamping the MSS right before posting this (you will see a mangle rule below for this) to see if I had an MTU issue, but doesn’t seem like that’s it either.
How this presents -
-
When in zoom, I’m getting periodic freezes in audio/video.
-

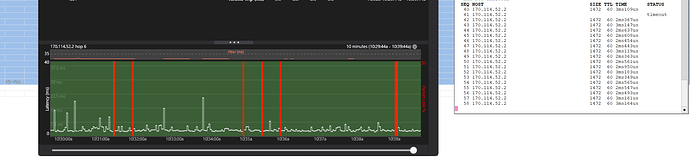

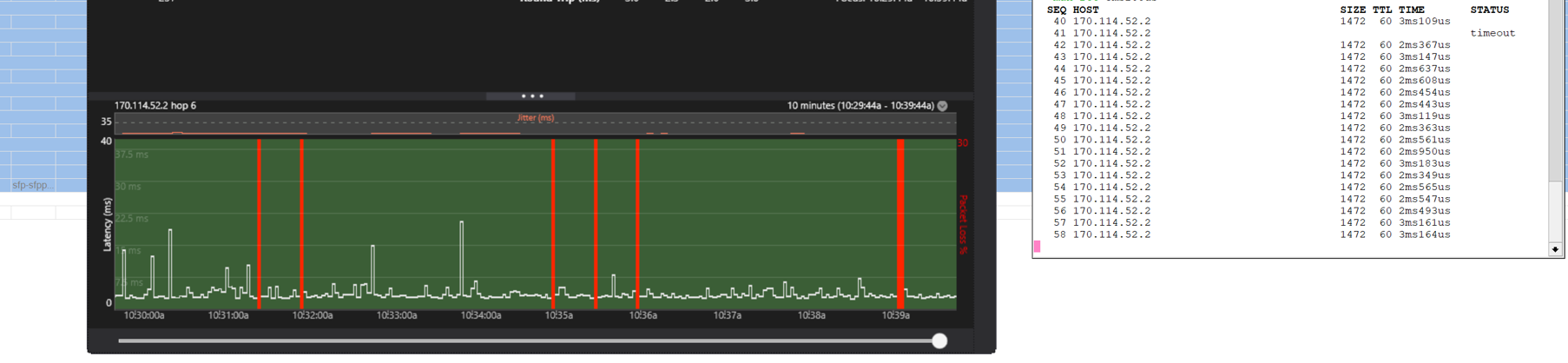

When this happens, I can see if I’m running a pingplotter from another machine to zoom that I’m getting packet loss at the same time with a lost ping packet. (I know pingplotter can be misleading, however using old router I see absolutely zero packet loss doing the same test from the same endpoint)
-
If I ping zoom from the CCR, I also see timeouts at the same time that this happens
-

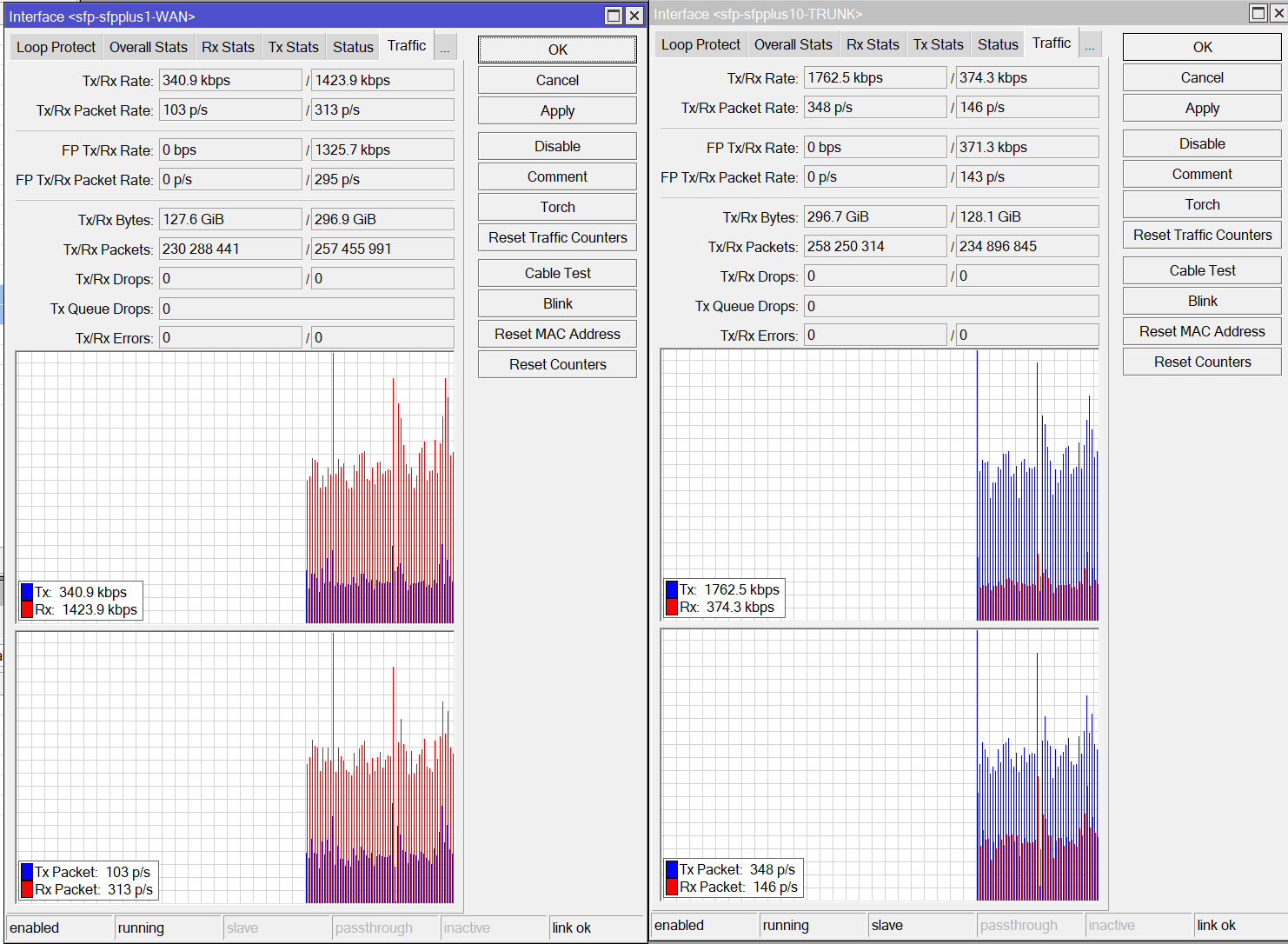

If I look at the queue traffic, as well as WAN/LAN interfaces, I also see it present there with gaps in the traffic graph, where it occurs across ALL interfaces (see attached screenshot for the blank line almost in middle) - note that this blank line in the graphs does not show as tx/rx drops or errors in either interface.
Config Export - (not sure why some text got bigger, sorry!)
2025-12-01 14:29:18 by RouterOS 7.20.3
software id = 11HY-RQZL
model = CCR2004-1G-12S+2XS
serial number = XXXXXXXXX
/interface bridge
add name=LAN_BRIDGE
/interface ethernet
set [ find default-name=sfp-sfpplus1 ] comment=WAN name=sfp-sfpplus1-WAN
set [ find default-name=sfp-sfpplus10 ] comment="TRUNK TO CRS" name=sfp-sfpplus10-TRUNK
/interface list
add name=LAN
/ip pool
add name=dhcp_pool0 ranges=192.168.0.20-192.168.0.200
/ip dhcp-server
add address-pool=dhcp_pool0 interface=LAN_BRIDGE lease-time=8h name=dhcp1
/port
set 0 name=serial0
/queue type
add cake-bandwidth=4.0Gbps cake-diffserv=diffserv4 cake-nat=yes cake-overhead=18 cake-rtt-scheme=internet kind=cake name=Cake-Up
add cake-bandwidth=4.0Gbps cake-diffserv=diffserv4 cake-overhead=18 cake-rtt-scheme=internet kind=cake name=Cake-Dn
/queue interface
set sfp-sfpplus1-WAN queue=Cake-Up
set sfp-sfpplus2 queue=Cake-Dn
set sfp-sfpplus3 queue=Cake-Dn
set sfp-sfpplus4 queue=Cake-Dn
set sfp-sfpplus5 queue=Cake-Dn
set sfp-sfpplus6 queue=Cake-Dn
set sfp-sfpplus7 queue=Cake-Dn
set sfp-sfpplus8 queue=Cake-Dn
set sfp-sfpplus9 queue=Cake-Dn
set sfp-sfpplus10-TRUNK queue=Cake-Dn
set sfp-sfpplus11 queue=Cake-Dn
set sfp-sfpplus12 queue=Cake-Dn
set sfp28-1 queue=Cake-Dn
set sfp28-2 queue=Cake-Dn
/queue simple
CAKE type with bandwidth setting detected, configure traffic limits within queue itself
add disabled=yes max-limit=4G/4G name=Parent_Queue queue=Cake-Up/Cake-Dn target=192.168.0.0/24
CAKE type with bandwidth setting detected, configure traffic limits within queue itself
add disabled=yes max-limit=500M/500M name=Zoom-Queue packet-marks=Zoom-Packets parent=Parent_Queue priority=1/1 queue=Cake-Up/Cake-Dn target=192.168.0.0/24
CAKE type with bandwidth setting detected, configure traffic limits within queue itself
add disabled=yes max-limit=3500M/3500M name=Other-Queue packet-marks=no-mark parent=Parent_Queue queue=Cake-Up/Cake-Dn target=192.168.0.0/24
/interface bridge port
add bridge=LAN_BRIDGE interface=sfp-sfpplus2
add bridge=LAN_BRIDGE interface=sfp-sfpplus3
add bridge=LAN_BRIDGE interface=sfp-sfpplus4
add bridge=LAN_BRIDGE interface=sfp-sfpplus5
add bridge=LAN_BRIDGE interface=sfp-sfpplus6
add bridge=LAN_BRIDGE interface=sfp-sfpplus7
add bridge=LAN_BRIDGE interface=sfp-sfpplus8
add bridge=LAN_BRIDGE interface=sfp-sfpplus9
add bridge=LAN_BRIDGE interface=sfp-sfpplus10-TRUNK
add bridge=LAN_BRIDGE interface=sfp-sfpplus11
add bridge=LAN_BRIDGE interface=sfp-sfpplus12
add bridge=LAN_BRIDGE interface=sfp28-1
add bridge=LAN_BRIDGE interface=sfp28-2
/ipv6 settings
set disable-ipv6=yes
/interface list member
add interface=LAN_BRIDGE list=LAN
/ip address
add address=192.168.0.1/24 interface=LAN_BRIDGE network=192.168.0.0
/ip dhcp-client
add default-route-tables=main interface=sfp-sfpplus1-WAN use-peer-dns=no use-peer-ntp=no
/ip dhcp-server lease
add address=192.168.0.35 mac-address=DC:0E:A1:69:43:02
/ip dhcp-server network
add address=192.168.0.0/24 dns-server=192.168.0.1 gateway=192.168.0.1
/ip dns
set allow-remote-requests=yes servers=192.168.0.35
/ip firewall address-list
add address=192.168.0.0/24 list=ALLOWED_HOSTS
add address=3.7.35.0/25 list=Zoom
add address=3.235.82.0/23 list=Zoom
add address=3.235.96.0/23 list=Zoom
add address=4.34.125.128/25 list=Zoom
add address=4.35.64.128/25 list=Zoom
add address=8.5.128.0/23 list=Zoom
add address=15.220.80.0/24 list=Zoom
add address=15.220.81.0/25 list=Zoom
add address=18.254.23.128/25 list=Zoom
add address=18.254.61.0/25 list=Zoom
add address=20.203.158.80/28 list=Zoom
add address=20.203.190.192/26 list=Zoom
add address=50.239.202.0/23 list=Zoom
add address=50.239.204.0/24 list=Zoom
add address=52.61.100.128/25 list=Zoom
add address=64.125.62.0/24 list=Zoom
add address=64.211.144.0/24 list=Zoom
add address=64.224.32.0/19 list=Zoom
add address=65.39.152.0/24 list=Zoom
add address=69.174.57.0/24 list=Zoom
add address=69.174.108.0/22 list=Zoom
add address=101.36.167.0/24 list=Zoom
add address=101.36.170.0/23 list=Zoom
add address=103.122.166.0/23 list=Zoom
add address=111.33.115.0/25 list=Zoom
add address=111.33.181.0/25 list=Zoom
add address=115.110.154.192/26 list=Zoom
add address=115.114.56.192/26 list=Zoom
add address=115.114.115.0/26 list=Zoom
add address=115.114.131.0/26 list=Zoom
add address=120.29.148.0/24 list=Zoom
add address=121.244.146.0/27 list=Zoom
add address=134.224.0.0/16 list=Zoom
add address=137.66.128.0/17 list=Zoom
add address=144.195.0.0/16 list=Zoom
add address=147.124.96.0/19 list=Zoom
add address=149.137.0.0/17 list=Zoom
add address=156.45.0.0/17 list=Zoom
add address=159.124.0.0/16 list=Zoom
add address=160.1.56.128/25 list=Zoom
add address=161.199.136.0/22 list=Zoom
add address=162.12.232.0/22 list=Zoom
add address=162.255.36.0/22 list=Zoom
add address=165.254.88.0/23 list=Zoom
add address=166.108.64.0/18 list=Zoom
add address=168.140.0.0/17 list=Zoom
add address=170.114.0.0/16 list=Zoom
add address=173.231.80.0/20 list=Zoom
add address=192.204.12.0/22 list=Zoom
add address=198.251.128.0/17 list=Zoom
add address=202.177.207.128/27 list=Zoom
add address=203.200.219.128/27 list=Zoom
add address=204.80.104.0/21 list=Zoom
add address=204.141.28.0/22 list=Zoom
add address=206.247.0.0/16 list=Zoom
add address=207.226.132.0/24 list=Zoom
add address=209.9.211.0/24 list=Zoom
add address=209.9.215.0/24 list=Zoom
add address=213.19.144.0/24 list=Zoom
add address=213.19.153.0/24 list=Zoom
add address=213.244.140.0/24 list=Zoom
add address=221.122.63.0/24 list=Zoom
add address=221.122.64.0/24 list=Zoom
add address=221.122.88.64/27 list=Zoom
add address=221.122.88.128/25 list=Zoom
add address=221.122.89.128/25 list=Zoom
add address=221.123.139.192/27 list=Zoom
add address=192.168.0.0/24 list=LanBridge
/ip firewall filter
add action=fasttrack-connection chain=forward comment="Fasttrack established connections" hw-offload=yes
add action=accept chain=input src-address-list=ALLOWED_HOSTS
add action=drop chain=input connection-state=!established
/ip firewall mangle
add action=add-dst-to-address-list address-list=Zoom address-list-timeout=4d chain=prerouting comment="Zoom TCP Add new server to zoom address list" disabled=yes dst-port=
3478,3479,5090,5091,8801-8810 protocol=tcp
add action=add-dst-to-address-list address-list=Zoom address-list-timeout=4d chain=prerouting comment="Zoom UDP Add new server to zoom address list" disabled=yes dst-port=
3478,3479,5090,5091,8801-8810 protocol=udp
add action=mark-connection chain=prerouting comment="Zoom Mark connections to zoom servers - TCP" disabled=yes dst-address-list=Zoom dst-port=3478,3479,5090,5091,8801-8810
new-connection-mark=Zoom-Connection protocol=tcp
add action=mark-connection chain=prerouting comment="Zoom Mark connections to zoom servers - UDP" disabled=yes dst-address-list=Zoom dst-port=3478,3479,5090,5091,8801-8810
new-connection-mark=Zoom-Connection protocol=udp
add action=mark-connection chain=prerouting comment="Zoom Mark connections to zoom servers - HTTPS" disabled=yes dst-address-list=Zoom dst-port=80,443 new-connection-mark=
Zoom-Connection protocol=tcp
add action=mark-packet chain=prerouting comment="Zoom - Mark Zoom Packets" connection-mark=Zoom-Connection disabled=yes new-packet-mark=Zoom-Packets passthrough=no
add action=change-ttl chain=postrouting comment="TTL set" disabled=yes new-ttl=set:64 out-interface=sfp-sfpplus1-WAN
add action=change-mss chain=forward new-mss=clamp-to-pmtu out-interface=sfp-sfpplus1-WAN protocol=tcp tcp-flags=syn
/ip firewall nat
add action=masquerade chain=srcnat out-interface=sfp-sfpplus1-WAN
/ip service
set ftp disabled=yes
set telnet disabled=yes
set www disabled=yes
/system clock
set time-zone-name=America/Denver
/system identity
set name=CCR
/system ntp client
set enabled=yes
/system ntp client servers
add address=us.pool.ntp.org
/system routerboard settings
set enter-setup-on=delete-key
/tool mac-server
set allowed-interface-list=LAN
