cell lock on CHATEAU LTE12 - output error

RouterOS Beginner Basics
1

Super newbie here.
I have been using for a year a CHATEAU LTE12 without problems. Excellent modem/
I have been running RouterOS v7.2.3 and LTE modem Model EG12-EA with fw EG12EAPAR01A11M4G

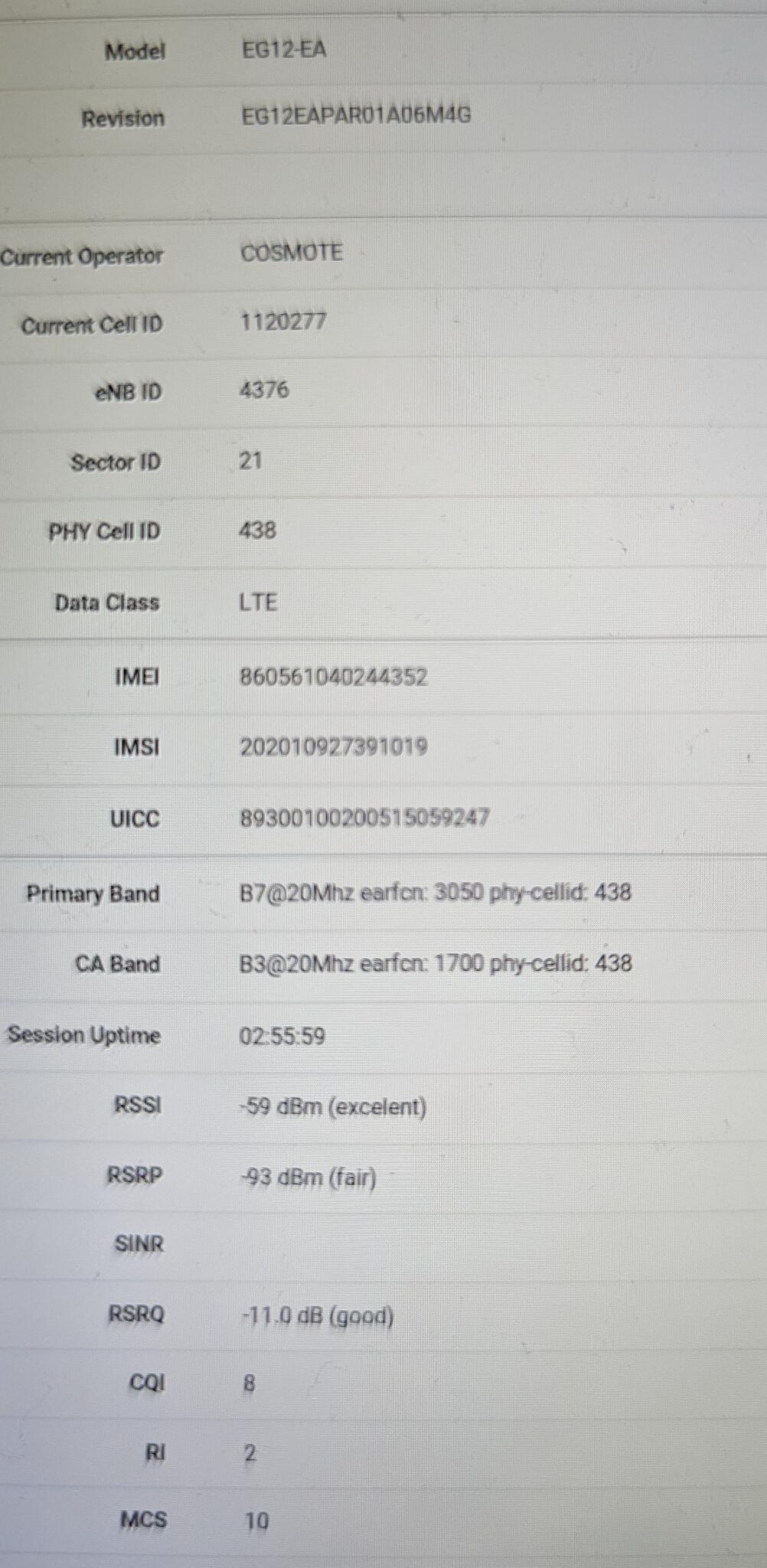

I want to lock my CHATEAU on the specific cells (see screenshot)
Primary Band B7@20Mhz earfcn: 3050 phy-cellid: 438
CA Band B3@20Mhz earfcn: 1700 phy-cellid: 438

When i enter the following command i get output error

interface/lte/at-chat lte1 input=“at+qnwlock=“common/4g”,1,3050,438”
output: ERROR

When i type for example the following (which to be honest i have no idea what it does, it seems like a help command?) i do get a response

[admin@MikroTik] > interface/lte/at-chat lte1 input=“at+qnwlock=?” wait=yes
response:
output: +QNWLOCK: “common/4g”,,[[,],…]

What am i doing wrong?

2

I guess you have to escape the inner quotes:


/interface/lte/at-chat lte1 input="at+qnwlock=\"common/4g\",1,3050,438"
3

one additional info.

/interface/lte/at-chat lte1 input=“at+qnwlock="common/4g",1,3050,438”

Cell Lock to 1 specific tower & “antenna”


/interface/lte/at-chat lte1 input=“at+qnwlock="common/4g",2,3050,438,1700,438”
/interface/lte/at-chat lte1 input=“at+qnwlock="common/4g",2,1700,438,3050,438”

Remember that order is not important and both command do the same. Module select one with best signal and that start to be primary-band. When you put more “CellLocks” then you not know with one it will be connected, the signal is a selector here.

You can select by Cell Lock the Primary band, but all other CA are automatically. Only limiting the active bands can do some help to select proper ca.

4

stupid me. Thanks a lot guys. Cell lock is successful now.
And SIB thanks for the extra info regarding carrier aggregation.

One more question. Is the cell lock still valid in case of a reboot on the CHATEAU ?

5

cptbill write

in 95% yes, check it becasue I not remember each lte module :slight_smile:
