Central CAPsMAN with multiple sites with LOCAL networks

RouterOS Wireless Networking
1

All,
I’ve got several CAPsMAN setups going, and all works quite well.
I need to however get a new setup going which has multiple LOCAL networks that we don’t want to send all traffic back to the central CAPsMAN.

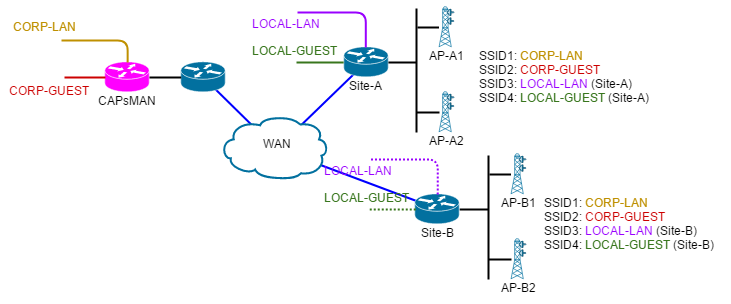

  • CAPsMAN at central site
  • Multiple sites with multiple WAP’s at each site
  • Multiple SSID’s / VAP’s at each location, bridged to different central networks
  • Require multiple LOCAL networks too
  • Each site requires multiple LOCAL networks
  • Have to AVOID LOCAL networks being tunneled back to CAPsMAN only to come back!

Any thoughts on how to configure this?
Thanks all!

2

That should be as simple as checking “Local forwarding” on the capsman configurations that should be local (Local-LAN and Local_Guest).

3

Yeah, but to what? What does that local forward option forward to?
I currently have all my WAP’s (CAPs) setup with a local-forward option, which basically bridges to the local LAN brdige.

Normally that would be fine, but in this instance I need multiple local networks.

I can can get a VLAN to each of the WAP’s, but the question really is, how to tell each particular VAP (SSID), to bridge a particular VLAN at each WAP?

Thanks again.

4

Have you tried the VLAN settings on each SSID configuration?
