Does anyone know about 20/40Hz Ce and 20/40 Hz eC, or any link will be great. (or about all the features in this box)
Thanks
eC and Ce indicates where the channel center is located.
For example if you would have a card that supports 5000-5500MHz, and would want to use 5500, you would have to use Ce, so that the center is away from the frequency edge.
Because your channel width is 20MHz, it would mean that center is at 5480 and operation will take up 5480-5500. eC in this case would also not work, if your country regulation specifies frequency range and you can’t go outside it.
if I understand, dipence of which frequency i would like to choose? dipence of that im going to chouse betwene 20Mhz or Ce/eC,right?
Yes. If you use frequency not near the end of range, it does not matter eC or Ce

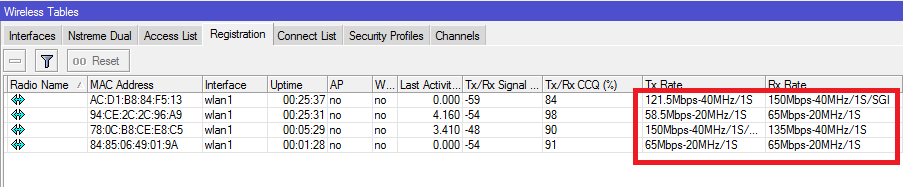

Normis, at the beginning i was scary to implement Ce or eC. Now i did, see the result
