Chateau 5G AX - lte disconnections - error: MAX_ACTIVATED_CONTEXTS

RouterOS General
1

Hi,

I have a new Chateau 5G AX (S53UG+M-5HaxD2HaxD) running version 7.17beta4 (testing) and LTE firmware RG502QEAAAR11A06M4G (Queltec RG502Q-EA)
I noticed that it has 9 LTE disconnections in last 4 days.
I enabled a watchdog to reboot the router after 1 min of connectivity lost to 8.8.8.8 and activated the logs to disk.
Here are the related logs from the last disconnection, just before the watchdog reboot:

Oct/28/2024 12:24:46 interface,info lte1 link down
Oct/28/2024 12:24:47 lte,error lte1 mbim: >>> E #24 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:48 lte,error lte1 mbim: >>> E #25 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:49 lte,error lte1 mbim: >>> E #26 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:50 lte,error lte1 mbim: >>> E #27 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:52 lte,error lte1 mbim: >>> E #28 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:53 lte,error lte1 mbim: >>> E #29 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:54 lte,error lte1 mbim: >>> E #30 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:55 lte,error lte1 mbim: >>> E #31 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:56 lte,error lte1 mbim: >>> E #32 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:57 lte,error lte1 mbim: >>> E #33 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:58 lte,error lte1 mbim: >>> E #34 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:24:59 lte,error lte1 mbim: >>> E #35 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:00 lte,error lte1 mbim: >>> E #36 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:01 lte,error lte1 mbim: >>> E #37 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:02 lte,error lte1 mbim: >>> E #38 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:03 lte,error lte1 mbim: >>> E #39 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:04 lte,error lte1 mbim: >>> E #40 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:05 lte,error lte1 mbim: >>> E #41 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:06 lte,error lte1 mbim: >>> E #42 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:07 lte,error lte1 mbim: >>> E #43 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:08 lte,error lte1 mbim: >>> E #44 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:09 lte,error lte1 mbim: >>> E #45 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:10 lte,error lte1 mbim: >>> E #46 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:11 lte,error lte1 mbim: >>> E #47 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:12 lte,error lte1 mbim: >>> E #48 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:13 lte,error lte1 mbim: >>> E #49 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:14 lte,error lte1 mbim: >>> E #50 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:15 lte,error lte1 mbim: >>> E #51 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:16 lte,error lte1 mbim: >>> E #52 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:17 lte,error lte1 mbim: >>> E #53 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:18 lte,error lte1 mbim: >>> E #54 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:19 lte,error lte1 mbim: >>> E #55 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:20 lte,error lte1 mbim: >>> E #56 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:21 lte,error lte1 mbim: >>> E #57 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:22 lte,error lte1 mbim: >>> E #58 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:23 lte,error lte1 mbim: >>> E #59 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:24 lte,error lte1 mbim: >>> E #60 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:25 lte,error lte1 mbim: >>> E #61 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:26 lte,error lte1 mbim: >>> E #62 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:27 lte,error lte1 mbim: >>> E #63 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:28 lte,error lte1 mbim: >>> E #64 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:29 lte,error lte1 mbim: >>> E #65 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:30 lte,error lte1 mbim: >>> E #66 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:31 lte,error lte1 mbim: >>> E #67 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:32 lte,error lte1 mbim: >>> E #68 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:34 lte,error lte1 mbim: >>> E #69 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:35 lte,error lte1 mbim: >>> E #70 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:36 lte,error lte1 mbim: >>> E #71 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:37 lte,error lte1 mbim: >>> E #72 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:38 lte,error lte1 mbim: >>> E #73 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:39 lte,error lte1 mbim: >>> E #74 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:40 lte,error lte1 mbim: >>> E #75 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:41 lte,error lte1 mbim: >>> E #76 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:42 lte,error lte1 mbim: >>> E #77 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:43 lte,error lte1 mbim: >>> E #78 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:44 lte,error lte1 mbim: >>> E #79 - connect: connect, error: MAX_ACTIVATED_CONTEXTS
Oct/28/2024 12:25:44 watchdog,error,critical watchdog cannot ping address 8.8.8.8, rebooting
Oct/28/2024 12:25:48 system,error,critical System rebooted because of ping watchdog timeout

Have you ever seen this problem again ? Is there any solution/workaround for this ?

2

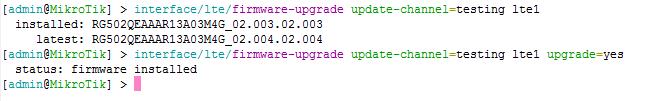

My problem solved after upgrade to the latest beta modem firmware RG502QEAAAR13A03M4G_02.004.02.004



3

This first started happening to me on a similar device since yesterday, twice during my presence, so I simply toggled the LTE interface both times. which seems to fix it immediately. But according to the logs, it happened more, in 3 hour intervals. At least the interface seems to recover by itself after 2 minutes of error spam.
I’ve been using the Chateau 5G R16 (D53G-5HacD2HnD) for over 2 years now. The only thing I changed recently is update the router from 7.17.x to 7.18.2, and that was several days (if not a few weeks) before the first occurrence of this problem.

  • LTE Firmware Version: EG12EAPAR01A15M4G_01.203.01.203 (latest)
  • RouterOS Version: 7.18.2 (latest stable)

Full logs attached. Any clues what could this be caused by?
mikrotik log.txt (38.8 KB)

4

Is there any solution to this problem? I am also getting MAX_ACTIVATED_CONTEXTS error.
