Cisco Trunk / Vlan routing

RouterOS General
1

HI all,

I have following problem:

I have a Cisco switch with multiple VLAN’s & 1 trunk to the Mikrotik routerboard (3011)

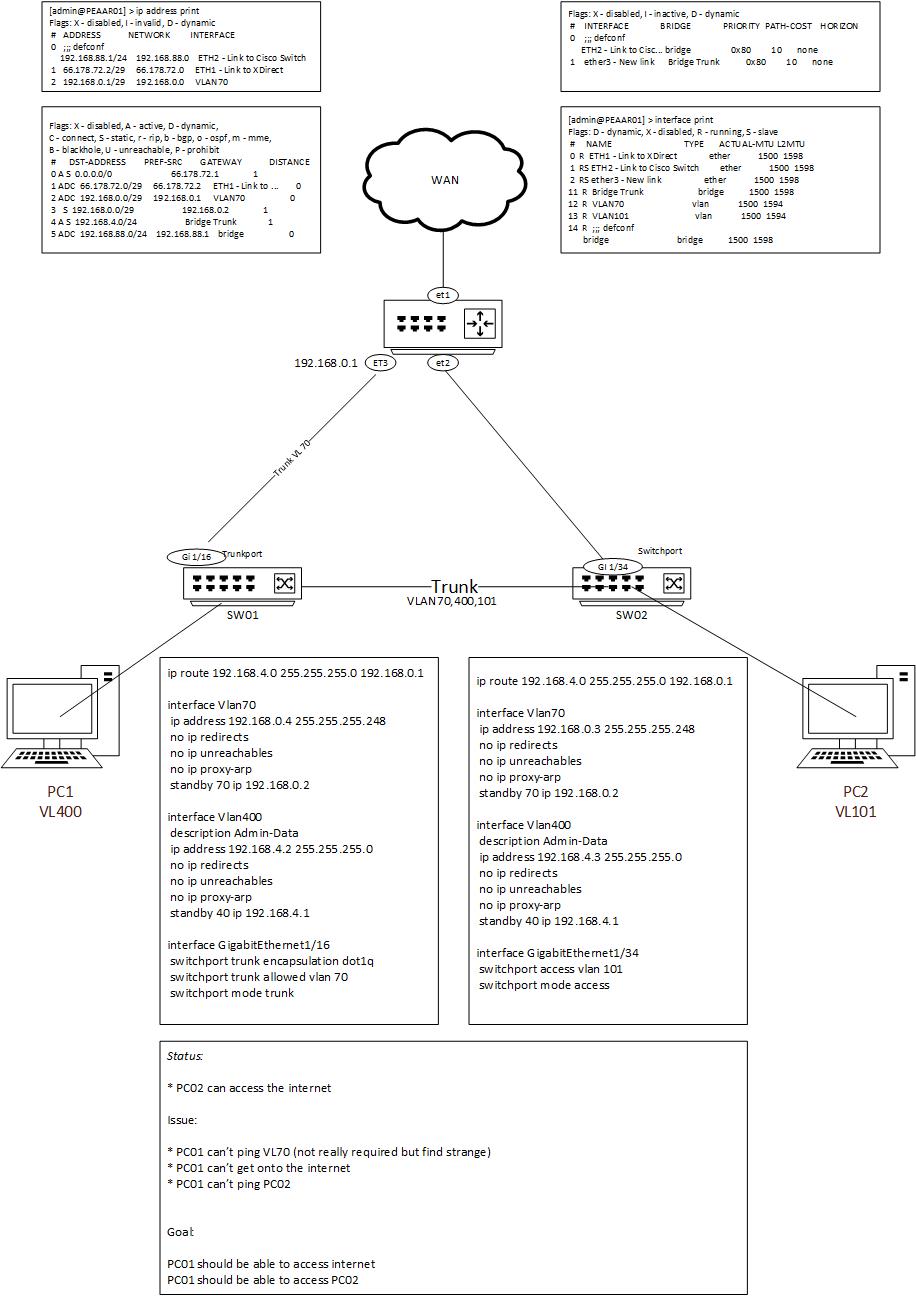

Setup:

RB → Cisco

I have 2 problems:

  1. I can’t speak between the 2 subnets: I have the default subnet from RB : 192.168.88.0/24
  2. Vlan 400 can’t access the internet / nor the 192.168.88.0/24 (the original subnet)

Final goal is to have multiple vlans defined on the cisco switches & just forward them with a static route … (pretty straight forward with a regullar Cisco router, but can’t get it working on the RB … :frowning:((

2

Solved,

Missing ounbound static route on 2nd switch :frowning:((
