Configuration help. Is this possible?

RouterOS Beginner Basics
1

Hello,

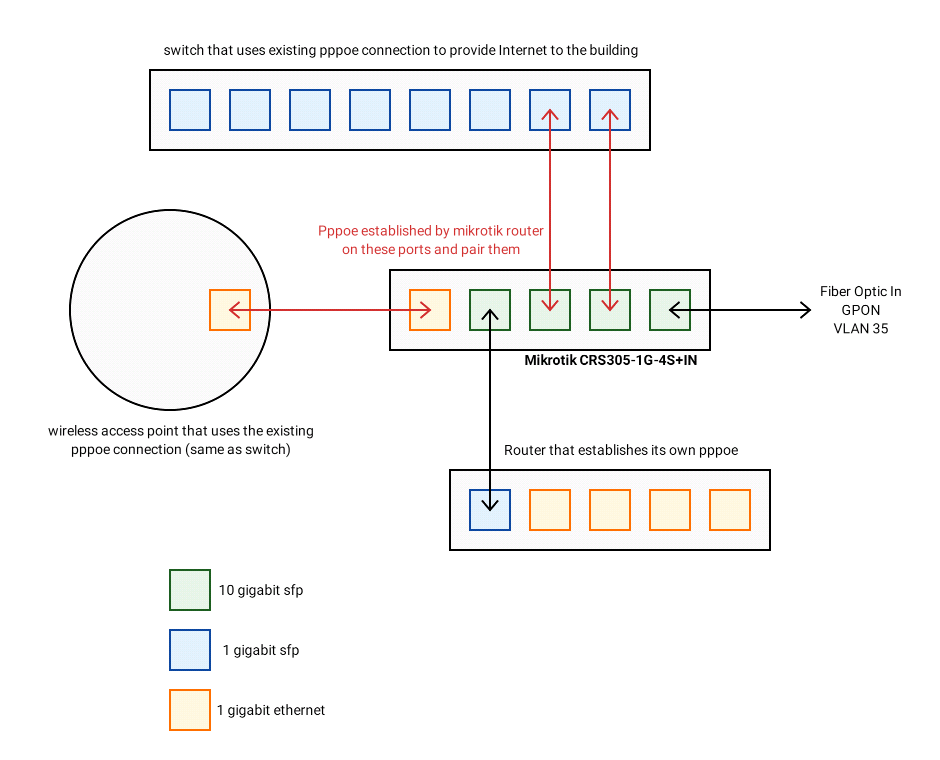

I have a Mikrotik CRS305-1G-4S+IN and wondering if it’s possible to have it setup like this diagram below.

I essentially want it to establish a pppoe connection for a pair of ports to a switch, as well as offer a connection for another router to establish its own pppoe (bridge, mirror?).

Any help would be greatly appreciated.

2

Hi

While CRS305 technically can do what you propose, it’s not meant to do that: it can do pppoe but not at speed, as it’s not fast enough on cpu side.

3

What are the realistic capabilities of this device?

Is there a better device you recommend?

The speed from the provider is 1.75gbps

Thanks!

4

bad idea

use CRS as Switch, the only purpose to do pppoe or any other Layer 3 configuration will be management purposes not for live traffic

5

Ok. I appreciate the advice guys.

Thank you!
