Hello all,

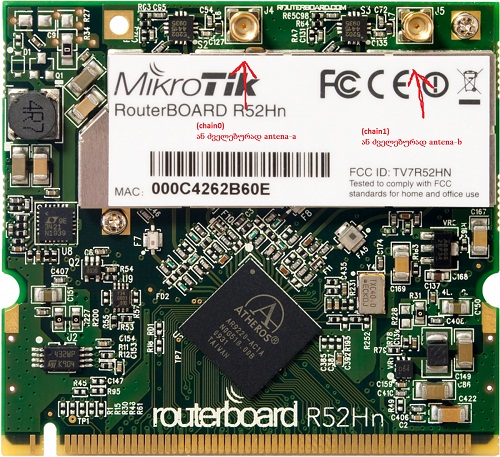

I have router board RB600A and mini PCI card R52Hn. I want configure antenna-mode and set it to ant-b value.
When I trying set antenna-mode=ant-b (telnet using) after giving command, RouterOS ask me a Numbers:.
What does mean Numbers parameter?
thank you!
on N use chains
He ask number over there device name. Antenna mode settings is not active for this wireless card. Each chain have only one antenna output. Use ht-rx/tx chain= to configure antenna-mode.
Hi,
it not so simple. When we use V4.5 or V4.6 with 1 Antenne on J4 and setting HT-rx / HT-tx = 0 ist dosn’t work !!!
When we set HT-rx / HT-tx = 0 and 1 it works fine. Where is the Problem ???
dingsingo
What band settings you use? I just test it on 411 with 4.6 RouterOS in indoor setup each chain conform chain settings. When you set RX/TX =0 J4 working in both directions. When you set RX/TX = 1 both directions working over J5.
Set is only 802.11a with a vertical and a horizontal Antenna. Other Side ist was a R5H only vertikal Antenna.
set only 0 or 1 not work. RX 0 & 1 , TX 0 or 1 not work. Setting RX 0 & 1 - TX 0 & 1 works by signal 30 dB.
dingsingo
