Hi, I have been playing around with mikrotiks in the office for a while now and am quite enjoying getting into it but am still quite new to it.

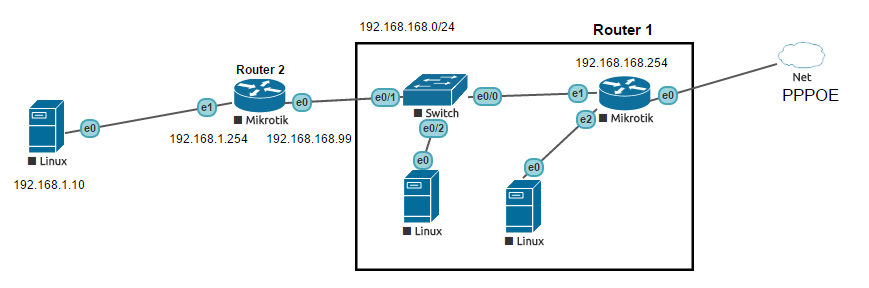

I have 1 mikrotik which handles internet and the base networks
- ether1-wan
- ether2-lan (DHCP) 192.168.168.0/24
- wlan1 (part of the subnet above with full access)
- wlan3 (DHCP) 192.168.3.0/24 (Shares PPPOE but isolated from the rest)
I have another mikrotik which has been used to create another network. This is downstream of the first mikrotik via a switch.
- ether1 (Static IP) Connected to 192.168.168.0/24
- ether2 (DHCP) 192.168.1.0/24
What i am ‘trying’ to do is
- make the 192.168.1.0/24 subnet reach the computers on 192.168.168.0/24
- Reach the internet (PPPOE on router1) from 192.168.1.0/24
I have tried a bridging the ports without success, masquerading the port, natting, and a few other combinations based on a similar search through the forums although they tend to be either:
a) 2 subnets on the the same router
b) 2 Routers directly connected. (May be applicable but i could not make it work)
Any help or pointers would be great!
