Connection between subnets

RouterOS The Dude
1

Dear forum members,

I am writing to seek your assistance in configuring my MikroTik network. Currently, I have the Ether1 interface with the IP address 192.168.8.6/24 and the Ether4 interface with the IP address 192.168.10.1/24. I would like both networks to be able to communicate with each other without creating a bridge. Is there any other way to achieve this?

I would appreciate it if someone could provide me with information or guidance on how to properly configure my network so that both networks can communicate with each other.

Thank you very much in advance for your attention and help.

2

What you mean for “both networks can communicate with each other”?

If you can ping from one device on network A, one device on network B, you have already done.

3

I connect to ether1, setting the pc to ip 192.168.8.50/24
and on ether2 a pc with ip 192.168.10.5/24 and they do not ping each other

4

ether2? not ether4?

still not clear what you want obtain.

put the /export of the config on the forum with a network diagram

5

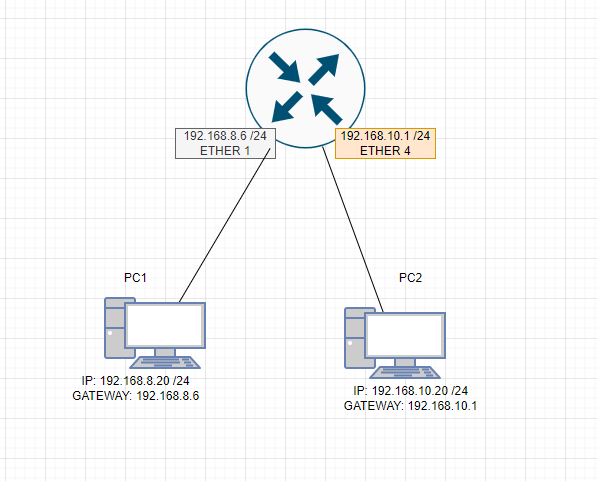

I attach the topology, PC1 has no connection to PC2

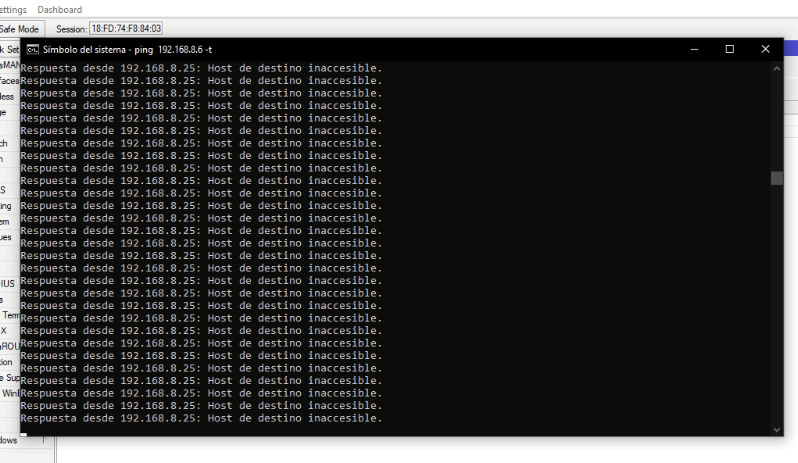

attached ping from PC2 to PC1

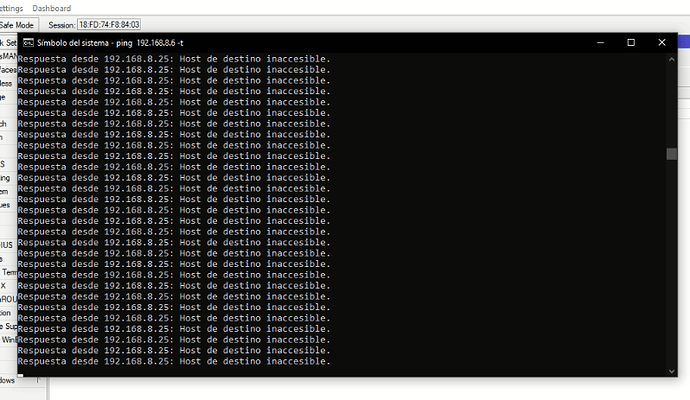

PC2 A PC1.png
PC2 A PC1.png798×463 168 KB

TOPOLOGIA.png597×481 16.7 KB

6

/interface set ether1 address=192.168.8.6/24
/interface set ether4 address=192.168.10.1/24

7

Usually the router do it’s work… routing, and if PC firewall do not block nothing, ping is possible.
But… if you have modified the default configuration on the router… or you leaved the default and ether1 is the wan interface…

Better you post the /export for see how the device is configured.
Censore sensitive data on the export.

8

literally has nothing else.

jan/02/1970 00:04:44 by RouterOS 6.48.6

software id = xxxx

model = CRS312-4C+8XG

serial number = xxxx

/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=hotspot
/ip address
add address=192.168.8.6/24 interface=ether1 network=192.168.8.0
add address=192.168.10.1/24 interface=ether4 network=192.168.10.0
/system identity
set name=RouterOS
/system routerboard settings
set boot-os=router-os
configuration.txt.rsc (528 Bytes)

9

I don’t see any errors, find the problem on PCs, is something missing, like correct subnet, gateway or firewall enabled?
Or is there another device in the middle that is interfering…

PC is once 8.50, then 8.20, why ping 8.25?
And one time it’s ether2, the other time ether4…
What a mess…

10

PC is once 8.50, then 8.20, why ping 8.25?

On the screen we see that ping is done to the 8.6 and reply is from 8.25. Theoretically should be from 8.20?

@diegoncho, can you please check if you can ping both PC’s from the Mikrotik? It will help to identify if something is related to their firewalls.
