Could anyone help me to configure Mikrotik Hap AC lite TC working as switch?

RouterOS General
1

I am a new mikrotik user. thanks for any help.

2

Start with a reset
System->Reset configuration->No default configuration
Reboot

Create a Bridge
Bridge->Bridge->±>OK

/interface bridge
add fast-forward=no name=bridge1

Add all ports to that bridge.
Bridge->Port->±>Ethernet1/Bridge1
Bridge->Port->±>Ethernet2/Bridge1
Bridge->Port->±>Ethernet3/Bridge1
Bridge->Port->±>Ethernet4/Bridge1
Bridge->Port->±>Wan1/Bridge1

/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=ether2
add bridge=bridge1 interface=ether3
add bridge=bridge1 interface=ether4
add bridge=bridge1 interface=wlan1

If you like the switch to get an IP
IP->DHCP Client->±>Interface:Bridge1->OK

/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=bridge1

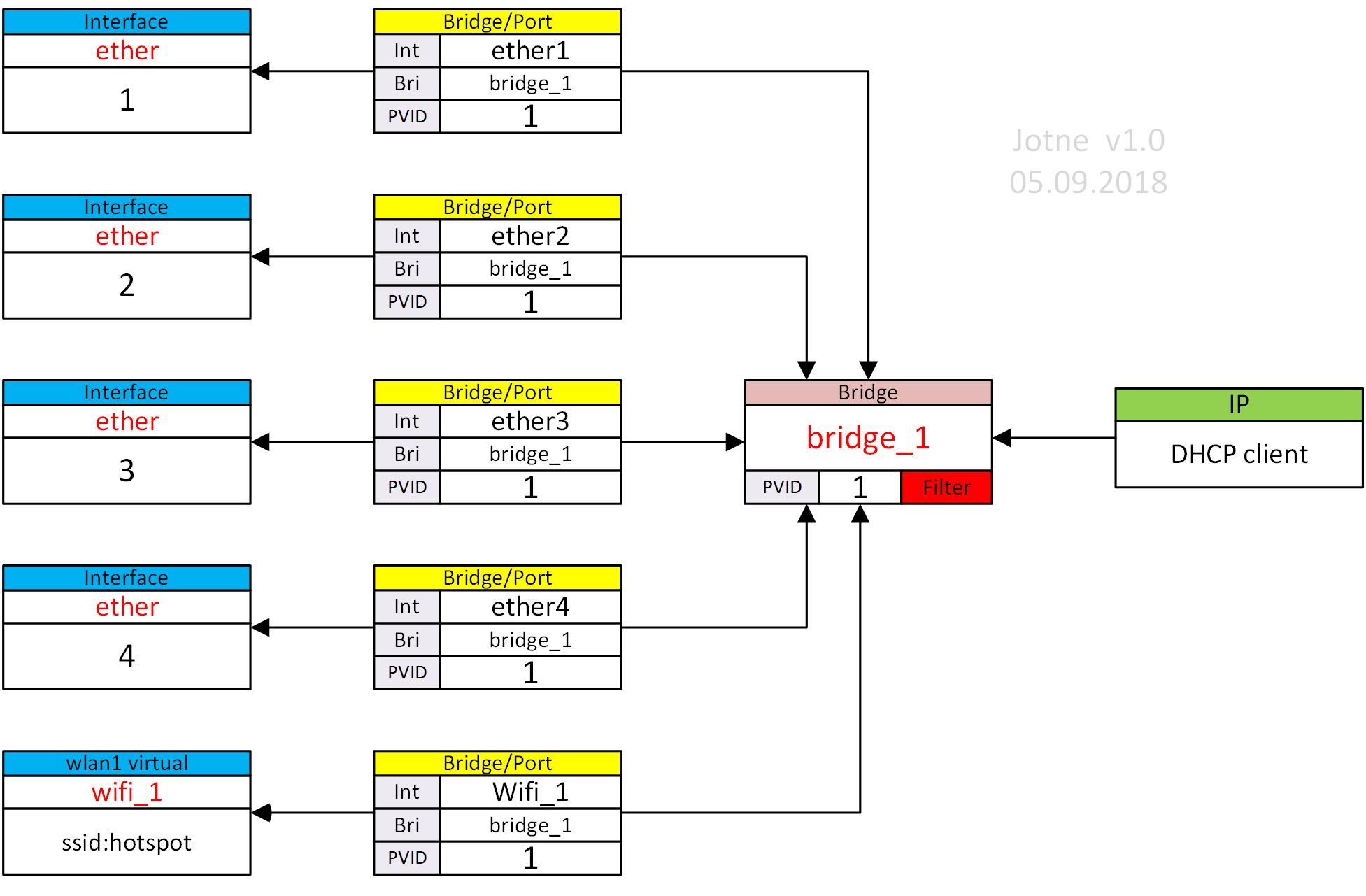

This is how it looks like.
Basic Switch.jpg

3

Hi @Jotne,

Thanks alot @Jotne, It is working now. Could you help me for another link: http://forum.mikrotik.com/t/could-anyone-help-me-to-configure-untagged-vlan-with-trunk/122960/1

Sent from my PLE-701L using Tapatalk

4

I just answer your other post.
PS no need to quote post above you, click post reply under the post.
