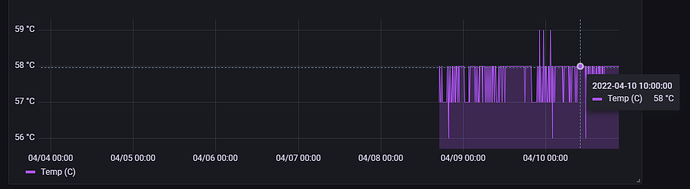

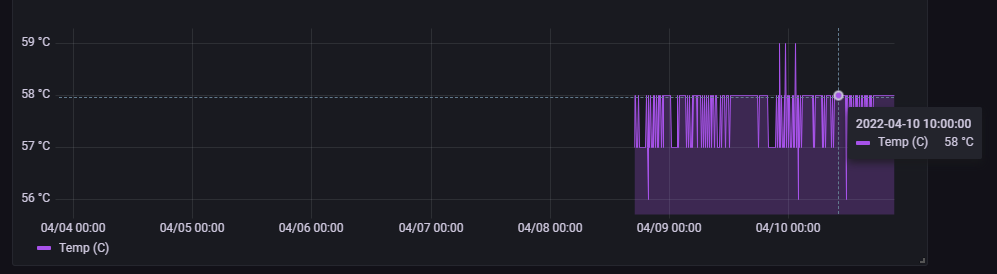

I just got a CCR2216-1G-12XS-2XQ up and running in my lab. I noticed the CPU temperature has been around 58-60 degrees Celsius. Based on the data sheet, it looks like that is on the boarder of upper-end of the operating temperature.
I was curious if anyone else has a CCR2216 or 2116 and is seeing the same cpu temps. Ambient temperature is 20 Celsius.
operating temperature on datasheet refers to ambient temperature suitable for operation
Ah, thank you. So there isn’t any concern that the cpu is around 60 Celsius.
i think for any modern CPU 60 C° its ok
normally in a MikroTik router we dont see CPU deep sleeping on the CPU when not loaded to achieve low temps when the load is low so this temperature is normal even when not heavy loaded
We will see with a heavy workload how much it rise
Looking the images of the thermal solution on ccr2216 i dont expect to have temperature problems
Here’s what the temps are on the two CCR2216s I have in my lab
[zuul@ccr2216-01.test.lab.ipa] > system/health/print
Columns: NAME, VALUE, TYPE
# NAME VALUE TYPE
0 temperature 38 C
1 cpu-temperature 58 C
2 sfp-temperature 38 C
3 switch-temperature 48 C
4 fan1-speed 5160 RPM
5 fan2-speed 5190 RPM
6 fan3-speed 5250 RPM
7 fan4-speed 5190 RPM
8 board-temperature1 33 C
9 board-temperature2 34 C
10 psu1-state ok
11 psu2-state fail
[zuul@ccr2216-02.test.lab.ipa] > system/health/print
Columns: NAME, VALUE, TYPE
# NAME VALUE TYPE
0 temperature 37 C
1 cpu-temperature 57 C
2 sfp-temperature 37 C
3 switch-temperature 48 C
4 fan1-speed 4830 RPM
5 fan2-speed 4980 RPM
6 fan3-speed 4980 RPM
7 fan4-speed 4920 RPM
8 board-temperature1 35 C
9 board-temperature2 35 C
10 psu1-state ok
11 psu2-state fail
Maybe they use low quality thermal paste ?
Okay cool! We are both seeing same results. Thanks for the feed back everyone!
[admin@wildcats.rtr01] > system health print
Columns: NAME, VALUE, TYPE
# NAME VALUE TYPE
0 temperature 30 C
1 cpu-temperature 58 C
2 sfp-temperature 30 C
3 switch-temperature 35 C
4 fan1-speed 3390 RPM
5 fan2-speed 3510 RPM
6 fan3-speed 3510 RPM
7 fan4-speed 3540 RPM
8 board-temperature1 23 C
9 board-temperature2 22 C
10 psu1-state ok
11 psu2-state ok
