I had high hopes for this device but I believe I should have purchased something else.
I posted a similar thread but on a lesser used sub-forum and hope to get more feedback here in the General forum.
I purchased the CRS310-8G-2S±IN but am only getting around 500Mbit/s internet/WAN throughput when connected to my cable modem using a dhcp lease. I was expecting more given it’s all 2.5/10 gigabit ports but I may not have set up the device properly. I am using a basic WAN on eth1 and then PCs on the other ports that are bridged together. The firewall walls are basic pulled from public sources with fasttrack enabled. I get much faster internet performance on my cheap TP Link Wifi “router.”
Is 500Mbit the expected maximum performance for the CRS310? Any pointers or guides on how to optimally configure it to get faster throughput to the internet is appreciated in advance.
You should have bought something else. CRSes are switches first, not routers, even if they can do routing. With the advent of L3 hardware offload they can route at wirespeed, but not all can also do L3 offload for NAT and firewalling, and the CRS310 can’t.

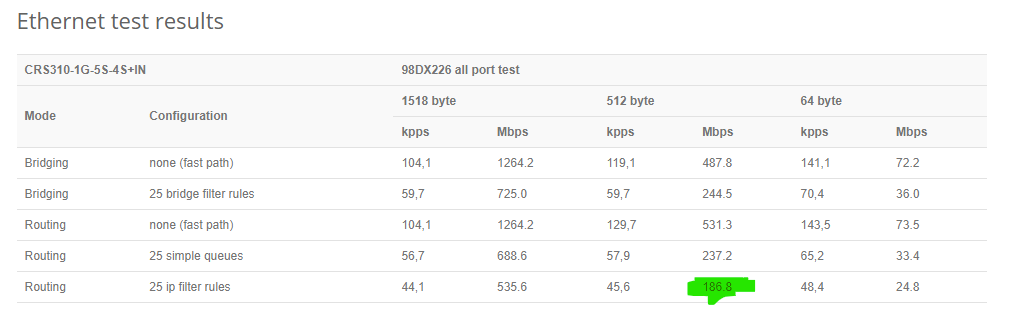

Looking at the test results, 500M is about as good as it’s going to get in software.
I will!
What do you recommend that can get me 2 gigabit internet performance without a doubt? I got recommendations from the one poster in the other less used sub forum but am looking for confirmation or other suggestions.
Also, the CRS310 can work as a managed switch at 10 gigabit throughput, right?
For 2.5gig ethernet throughput or two 1 gig connections, look no further than the RB5009. It has 1x 2.5gbe port and 1x sfp+ port as well.
Throughput capable on the wan side on the RB5009 of around 3gigs throughput. Competitively priced at $219.
( next up is the CCR2004-16G-2S+ with around 4.5gigs throughput, priced at $465, comes with 2x SFP+ ports )
( flagship model CCR2116-12G-4S+ with around 16 gigs throughput priced at $995, comes with 4x SFP+ ports )
I am looking at the same switch 310-8g-2S-IN due to the number of copper ethernet ports rated at 2.5Gbps. I am getting an NAS with 4x 2.5gb internet connections so this is perfect and will LACP them together. i can use the other sfp+ ports to another managed switch or perhaps the router which has one.
My question on this switch is what will happen if I plug one of the copper ethernet ports rated at 2.5gb to a standard 1gig switch port on another switch.
Will traffic flow or not?
The rb5009 should handle the 2gbit Internet fine, if you want more than one sfp+ port, upgrade to a ccr2004-16g-2s+.
The crs310 can definitely switch 10gbit worth of traffic over the sfp+ port. It’s managed so you can configure vlans, rstp, etc. You just need a good router to handle that traffic.
Turning on NAT fasttrack allows my CRS310 to happily route 1Gbit from my GPON network to my TrueNAS machine.
[admin@emarhavil-crs310-core] /ip/firewall/filter> print
Flags: X - DISABLED, I - INVALID; D - DYNAMIC
0 D ;;; special dummy rule to show fasttrack counters
chain=forward action=passthrough
1 chain=forward action=fasttrack-connection hw-offload=yes connection-state=established,related
2 chain=forward action=accept connection-state=established,related
3 chain=forward action=drop connection-state=invalid
4 ;;; defconf
chain=input action=drop in-interface-list=!LAN
Before that, I was achieving about 475Mbit/sec NAT'ed from one port to another. I can now saturate my GPON ONT (925 Mbit/sec), with no other routing hardware needed.
biomesh gives good advice,
If you expect to get higher than 1gig from your ISP in the future, then you will want at least two SFP+ port device, one to connect to the ISP and one to connect to the CR310 ( an excellent switch for your network ).
Same reason I got the ccr2004-16g-2s, which I use an XGS-pon to get 1.5 gig now ( up to 9 gig in a few years likely ) and the other sfp_ port feeds into my 310.
Its a chinese brand recommended on 8311 Discord channel, delivery was decent in terms of timeframe and already came with the correct firmware ( but I flashed it with the 8311 sourced firmware just to be on the safe side ). Bought on alibaba –> Yunvo 10G SFP Module...There is one site that has a one unit purchase option. Shenzhen Yunvo Communication Co., Ltd.
