CRS326-24G-2S+RM Switch chip features

[sgunin]

Hi all !

Please help me find Switch-chip description for CRS326-24G-2S+RM.

Microtik Wiki - Manual:Switch Chip Features does not provide information on this platform, such as

• Which ports are included in the switch group (only ether1-ether5)
• How many switch groups can be set up (switch block diagram https://i.mt.lv/routerboard/files/CRS326-170630155516.png contain 3 links for ethernet ports and one for sfp ports)

[pukkita]

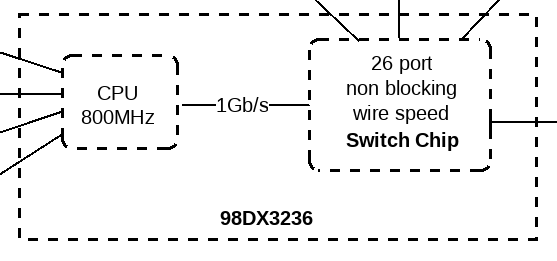

As it’s a CRS, i.e. a switch, it has one switch chip.

All ports are connected to this switch chip:

[sgunin]

It is possible to combine the ports into 4 independent switch groups, in accordance with the number of links in the picture, or the group can be only one

[pukkita]

Don’t think that’s possible, because there’s only one switch chip.

FYI, 6.41RC has a new bridge/switch chip implementation, where hardware offloading is used to accelerate switching/bridging when possible.

Haven’t tested it yet, and don’t know which specific circumstances need to be met for HW offload to kick in, but it may be possible to have 4 bridges and use HW Offload on them.

[sgunin]

As the master-port, i can specify any of the 24 ether ports or any of the 2 SFP ports?

[pukkita]

Yes.
