CRS328-24P-4S to Cisco 3504 WLC

RouterOS Wireless Networking
1

Hi everyone,

I have a question for those that have tried to connect a Cisco wireless lan controller to a Mikrotik switch

In the Cisco world a wireless lan controller would connect to a distribution cisco switch in this way:

Int Gi0/1
switchport
channel-group 1 mode on
no shut

Int Gi0/2
switchport
channel-group 1 mode on
no shut

interface port-channel 1
switchport
switchport trunk encap dot1q
switchport trunk native vlan 301
switchport trunk allowed vlan all
switchport mode trunk
no shutdown

Now the question is how I can achieve the same setup but with a Mikrotik switch since I have the wireless lan controller connected, I have tried to create bonding, trunk ports, etc but none of them have been a success so far :frowning:

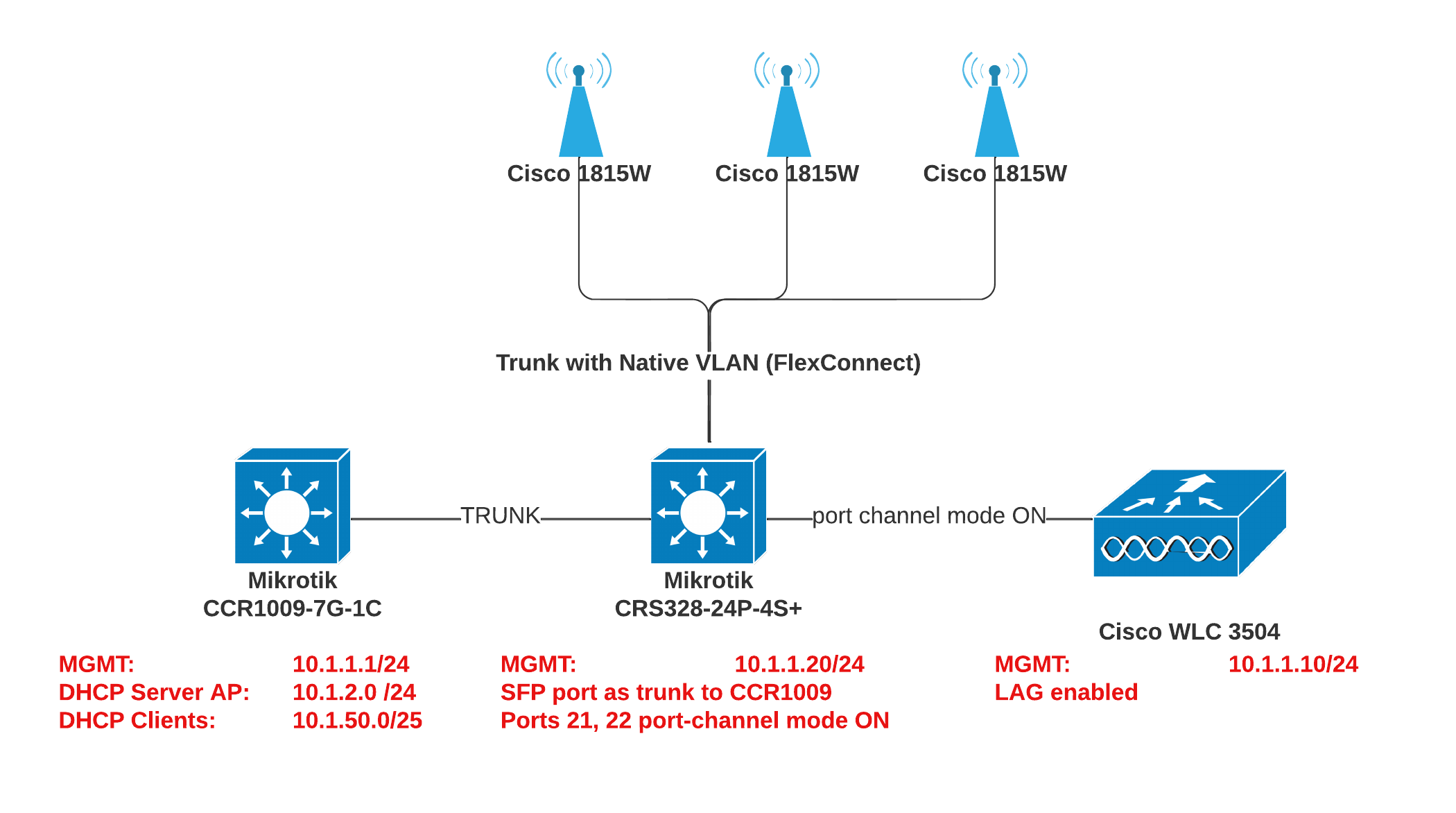

The topology I have is the one attached to this message, let me know please if you had the same issues and how did you solve to connect a Cisco wireless lan controller to a RouterOS switch like CRS328, the one I have.

2

https://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/8-5/b_WLC_3504_Release_8_5_Deployment_Guide.html#concept_E7054E9C0E404657A6E5C7F6D1EDA9A4

https://community.cisco.com/t5/wireless/cisco-3504-lacp/td-p/4273518

3

Thank you for the link https://www.firewall.cx/cisco-technical-knowledgebase/cisco-wireless/1223-how-to-configure-wlc-lag-and-port-channel-with-nexus-catalyst-switches.html, but as you have seen the port-channel must be ON on the Mikrotik side and I don’t think that Mikrotik supports that since I haven’t been able to find any documentation about it.

I will try tomorrow to disable LAG and have the WLC connected over a simple trunk port. I don’t see any other solution, but it would be a pitty to have 4 links that can be aggregated but unusable because Mikrotik doesn’t support port-channel mode ON.

4

port-channel mode is CISCO only Protocol, is like saying it is pity that I cannot use a catalyst 7500 chase, full of Cisco hardware because it does not know EOIP.

5

Nope, but I was under the impression that LACP mode ON is under the open source protocol 802.3ad but it seems like is not. Therefore, I’ll give it a try with the WLC being configured without LAG and the SW with a trunk port and see if it works.
