Hi, I wonder if the LEDs of my QSFP+ ports work correctly?
I have 2 DAC (breakout-cables 1x 40g to 4x 10g) attached.
Port 2 goes as a bond (2x 10g) to my router and another bond (2x 10g) goes to my Proxmox.
Port 1 has only one bond (2x 10g) to my NAS, the other 2 breakout-cables are no in use.

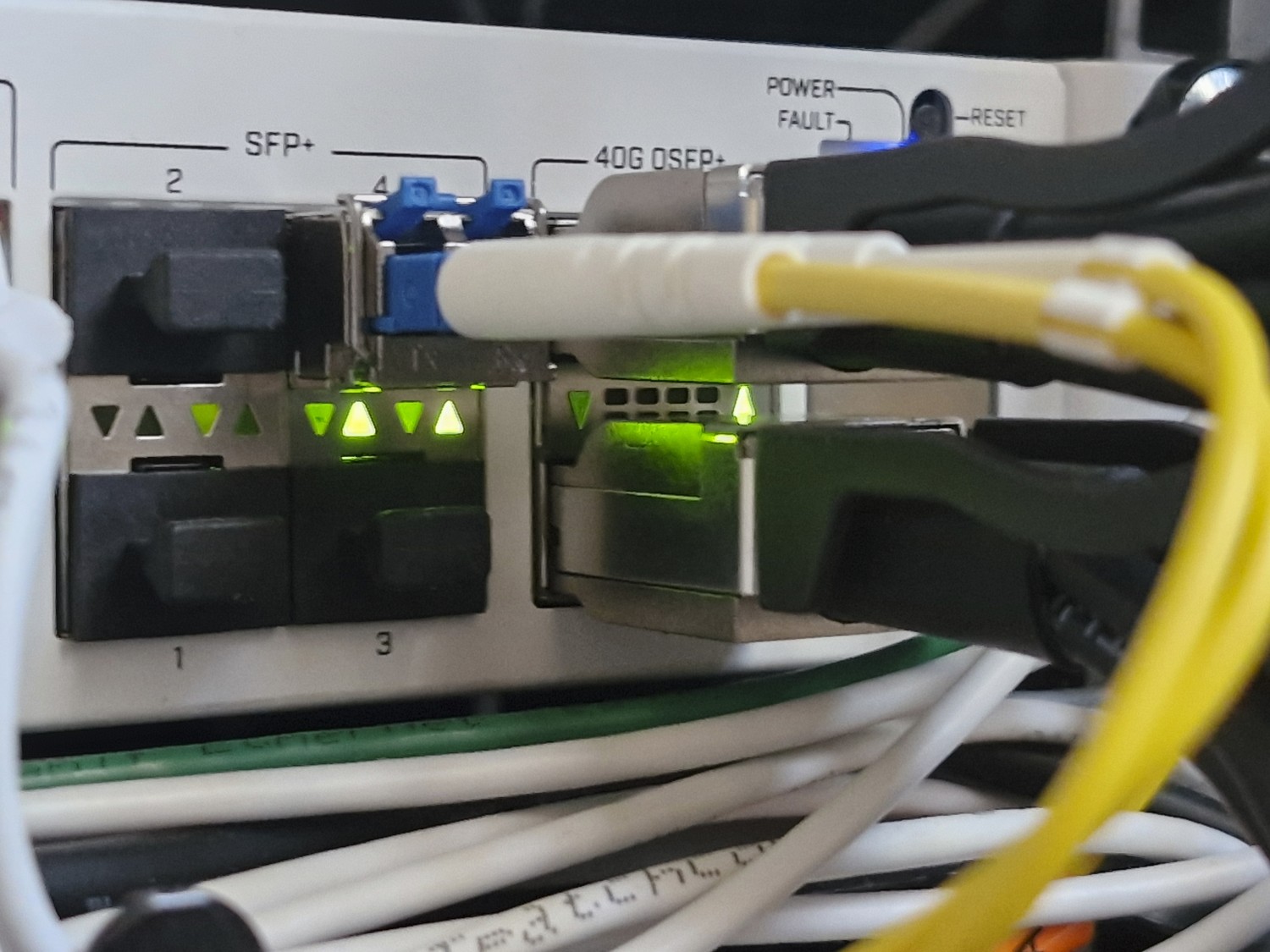

This is how my ports look:
The big "UP Arrow" (port 2) is lit and blinks, the "DOWN Arrow" (port 1) is not lit.
The smaller "10g lane"-LEDs are all unlit. For my understanding, they repesent the qsfpplus1-1 to 1-4 and 2-1 to 2-4 lanes. All 4 should be lit for port 2 and 2 should be lit for port 1.
In general I find it strange that the big "DOWN arrow" is not lit, but 2 lanes (1-3 and 1-4) of it are connected to my NAS?
Is my switch broken or is there some Mikrotik-logic behind?
