Hello everyone, im using our CSS with 2.14 Firmware, im trying to add more of 64 VLAN, no error shows, no CPU high, 1ms of ping, everything its ok, but you know how to add more of 64 VLANS?. Thanks!!

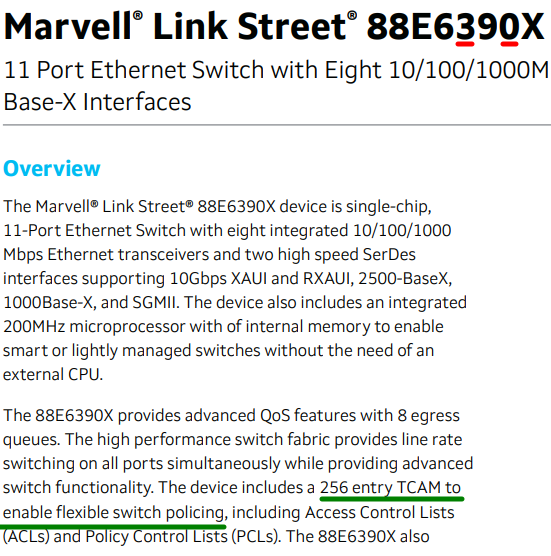

Judging from https://www.servethehome.com/mikrotik-css610-8g-2sin-review-10gbe/ it’s said to be using 88E6193X. Googling gives slightly different chip number, but it sounds similar. Not sure how these values translate to VLANs, but maybe it’s a hardware limitation? Like 4 TCAM entries to create one VLAN? Or other 192 reserved for ACLs etc:
https://www.marvell.com/content/dam/marvell/en/public-collateral/switching/marvell-switching-link-street-88e6390x-product-brief-2015-05.pdf
The CSS610 page in the help section says it supports up to 250 VLANs. Maybe open a support case?
Yeah, can you help me to make a Support case? Thx
Click “Contact Support” and create an account to submit tickets. I would give them as much information as possible, and of course a few days to answer.

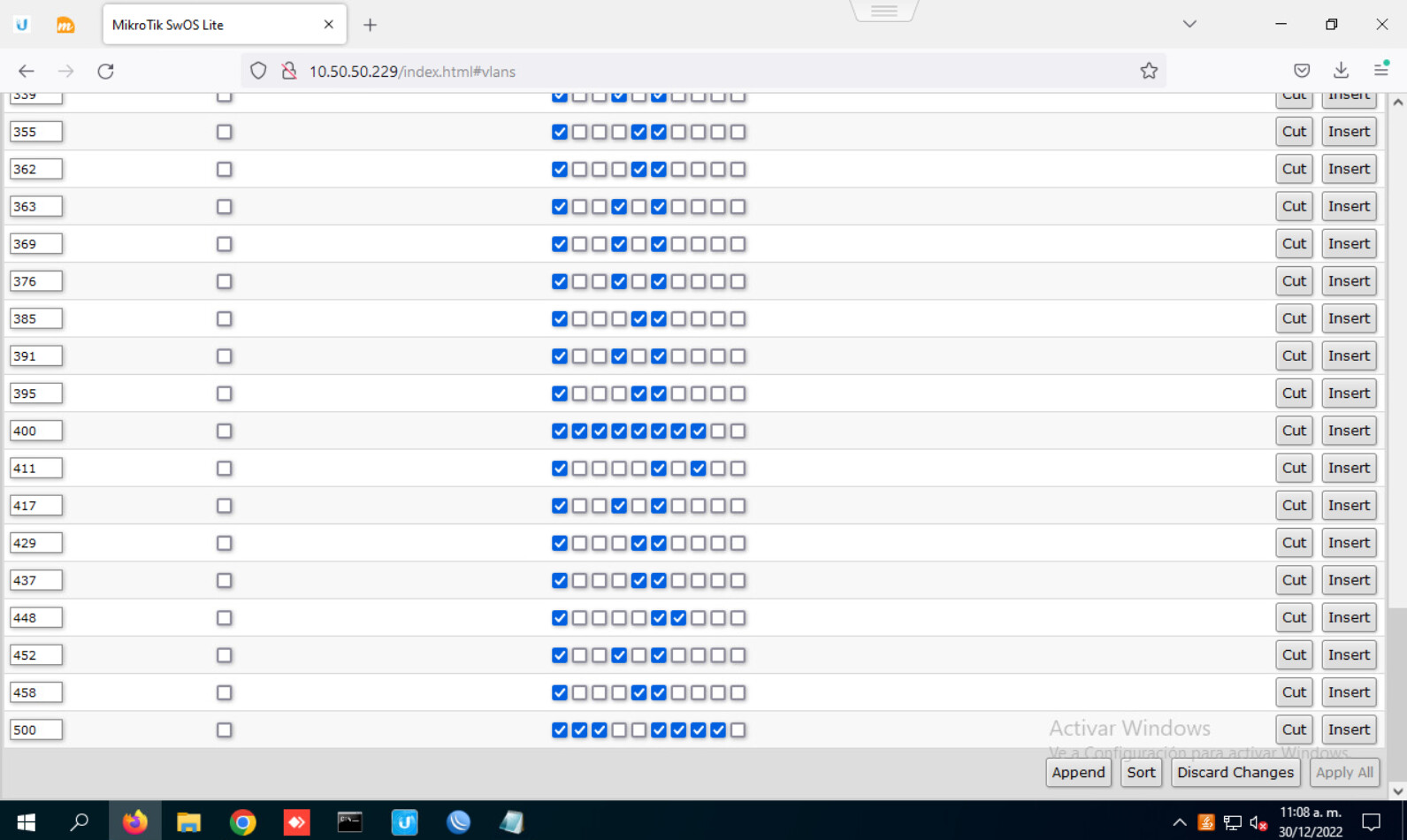

What indication do you get when you try to add a 65th VLAN? Nothing shows as a problem in your screen capture.
