Hi! how are you?
I’m new on this forum, In this case I’ve a customer trying to have the PCI DSS certification in zerorisk.io website.

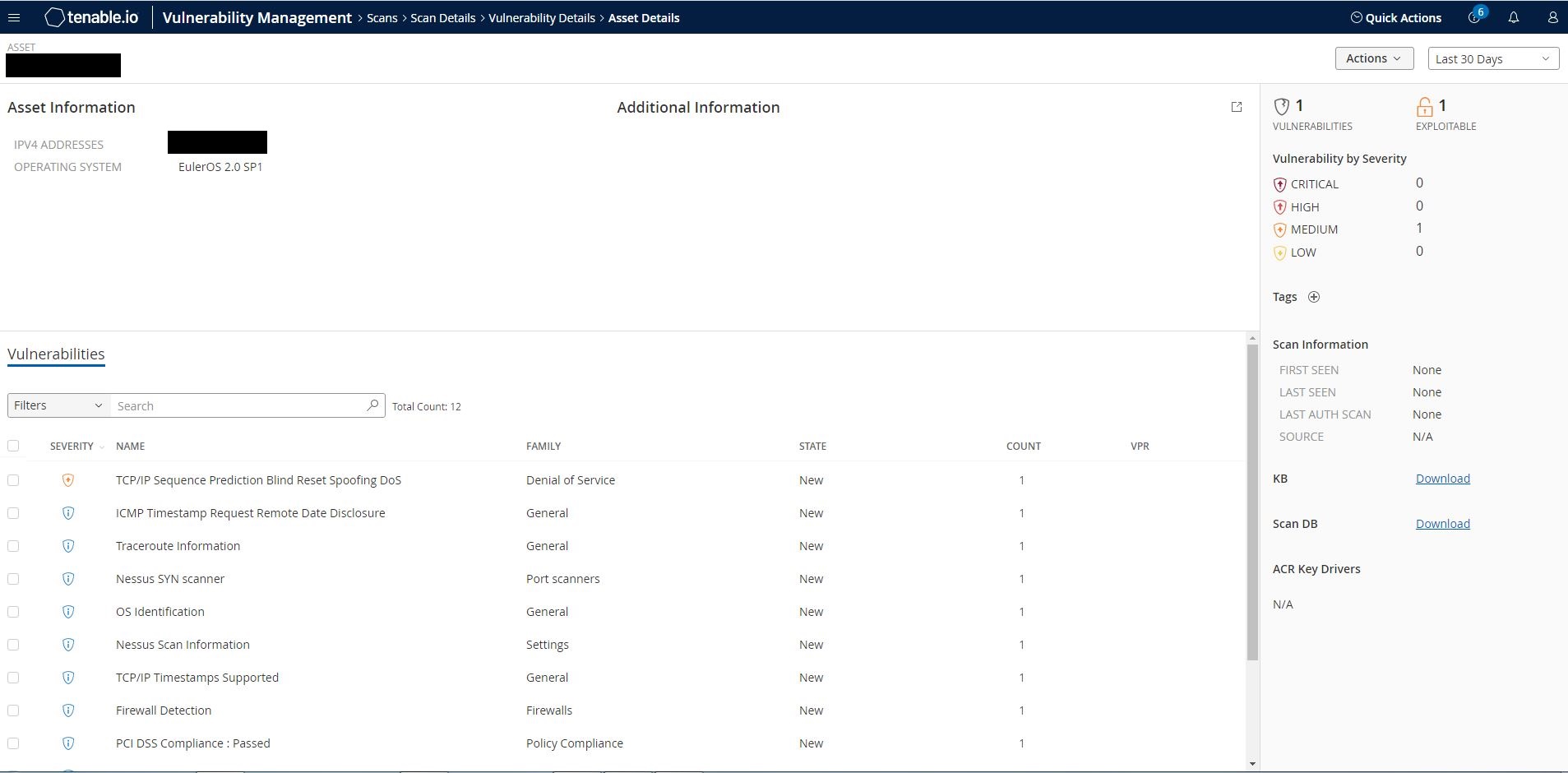

After finish the test, I have this result where as you can see I have a vulnerability which does not permit me to fully pass the test CVE-2004-0230
I’ve search but I couldn’t find some solution, article, help, etc. This is my device RB952Ui-5ac2nD.
Could you help me please?
This is the detail:
Vulnerability Title: TCP Sequence Number Approximation Based Denial of Service
CVE ID: CVE-2004-0230
Impact:
Successful exploitation of this issue could lead to denial of service attacks on the TCP based services of target hosts.
Threat:
TCP provides stateful communications between hosts on a network. TCP sessions are established by a
three-way handshake and use random 32-bit sequence and acknowledgement numbers to ensure the
validity of traffic. A vulnerability was reported that may permit TCP sequence numbers to be more easily
approximated by remote attackers. This issue affects products released by multiple vendors.
The cause of the vulnerability is that affected implementations will accept TCP sequence numbers within a
certain range, known as the acknowledgement range, of the expected sequence number for a packet in the
session. This is determined by the TCP window size, which is negotiated during the three-way handshake
for the session. Larger TCP window sizes may be set to allow for more throughput, but the larger the TCP
window size, the more probable it is to guess a TCP sequence number that falls within an acceptable range.
It was initially thought that guessing an acceptable sequence number was relatively difficult for most
implementations given random distribution, making this type of attack impractical. However, some
implementations may make it easier to successfully approximate an acceptable TCP sequence number,
making these attacks possible with a number of protocols and implementations.
This is further compounded by the fact that some implementations may support the use of the TCP Window
Scale Option, as described in RFC 1323, to extend the TCP window size to a maximum value of 1 billion.
This vulnerability will permit a remote attacker to inject a SYN or RST packet into the session, causing it to
be reset and effectively allowing for denial of service attacks. An attacker would exploit this issue by sending
a packet to a receiving implementation with an approximated sequence number and a forged source IP
address and TCP port.
There are a few factors that may present viable target implementations, such as those which depend on
long-lived TCP connections, those that have known or easily guessed IP address endpoints and those
implementations with easily guessed TCP source ports. It has been noted that Border Gateway Protocol
(BGP) is reported to be particularly vulnerable to this type of attack, due to the use of long-lived TCP
sessions and the possibility that some implementations may use the TCP Window Scale Option. As a result,
this issue is likely to affect a number of routing platforms.
Another factor to consider is the relative difficulty of injecting packets into TCP sessions, as a number of
receiving implementations will reassemble packets in order, dropping any duplicates. This may make some
implementations more resistant to attacks than others.
It should be noted that while a number of vendors have confirmed this issue in various products,
investigations are ongoing and it is likely that many other vendors and products will turn out to be vulnerable as the issue is investigated further.
Solution:
Please first check the results section below for the port number on which this vulnerability was detected. If
that port number is known to be used for port-forwarding, then it is the backend host that is really vulnerable.
Various implementations and products including Check Point, Cisco, Cray Inc, Hitachi, Internet Initiative
Japan, Inc (IIJ), Juniper Networks, NEC, Polycom, and Yamaha are currently undergoing review. Contact
the vendors to obtain more information about affected products and fixes. NISCC Advisory 236929 -
Vulnerability Issues in TCP details the vendor patch status as of the time of the advisory, and identifies
resolutions and workarounds.
Refer to US-CERT Vulnerability Note VU#415294 and OSVDB Article 4030 to obtain a list of vendors
affected by this issue and a note on resolutions (if any) provided by the vendor.
For Microsoft: Refer to MS05-019 and MS06-064 for further details.
For SGI IRIX: Refer to SGI Security Advisory 20040905-01-P
For SCO UnixWare 7.1.3 and 7.1.1: Refer to SCO Security Advisory SCOSA-2005.14
For Solaris (Sun Microsystems): The vendor has acknowledged the vulnerability; however a patch is not
available. Refer to Sun Microsystems, Inc. Information for VU#415294 to obtain additional details. Also, refer
to TA04-111A for detailed mitigating strategies against these attacks.
For NetBSD: Refer to NetBSD-SA2004-006
For Cisco: Refer to cisco-sa-20040420-tcp-ios.shtml.
For Red Hat Linux: There is no fix available.
Workaround:
The following BGP-specific workaround information has been provided.
For BGP implementations that support it, the TCP MD5 Signature Option should be enabled. Passwords
that the MD5 checksum is applied to should be set to strong values and changed on a regular basis.
Secure BGP configuration instructions have been provided for Cisco and Juniper at these locations:
Secure Cisco IOS BGP Template
JUNOS Secure BGP Template
