DHCP and Switch Question

RouterOS General
1

Hello

I have one question. I have one RB750G-2HnD.
I tried to use the Switch all Ports and activate the DHCP Server.

But without success. I set all ether1 as master.

[admin@MikroTik] >> interface ethernet print
Flags: X - disabled, R - running, S - slave

NAME MTU MAC-ADDRESS ARP MASTER-PORT SWITCH

0 RS ether1 1500 D4:CA:6D:29:86:36 enabled none switch1
1 S ether2 1500 D4:CA:6D:29:86:37 enabled ether1 switch1
2 RS ether3 1500 D4:CA:6D:29:86:38 enabled ether1 switch1
3 S ether4 1500 D4:CA:6D:29:86:39 enabled ether1 switch1
4 S ether5 1500 D4:CA:6D:29:86:3A enabled ether1 switch1

then I enabled the DHCP Server on ether1.

[admin@MikroTik] >> ip dhcp-server print
Flags: X - disabled, I - invalid

NAME INTERFACE RELAY ADDRESS-POOL LEASE-TIME ADD-ARP

0 I dhcp1 ether1 192.168.10.1 dhcp_pool1 3d

But I dont get any IP Address. Why?

Its the first time that I use the Switch Menu. Normaly I use the Bridge but now I need wire speed :wink:

2

Is that an ‘I’ (invalid) preceeding the dhcp server name? If so, you should find out why.

[admin@MikroTik] >> ip dhcp-server print
Flags: X - disabled, I - invalid

NAME INTERFACE RELAY ADDRESS-POOL LEASE-TIME ADD-ARP

0 I dhcp1 ether1 192.168.10.1 dhcp_pool1 3d

Why is there a relay entry of 192.168.10.1?

3

dhcp-relay

[admin@MikroTik] > ip dhcp-relay print
Flags: X - disabled, I - invalid

NAME INTERFACE DHCP-SERVER LOCAL-ADDRESS

0 relay1 ether1 192.168.10.1 192.168.10.1

and the DHCP Server

[admin@MikroTik] /ip dhcp-server> print
Flags: X - disabled, I - invalid

NAME INTERFACE RELAY ADDRESS-POOL LEASE-TIME ADD-ARP

0 dhcp1 ether1 192.168.10.1 dhcp_pool1 3d

my PC is connected to ether3

4

So 192.168.10.1 is the dhcp server for your network?
http://wiki.mikrotik.com/wiki/Manual:IP/DHCP_Relay

5

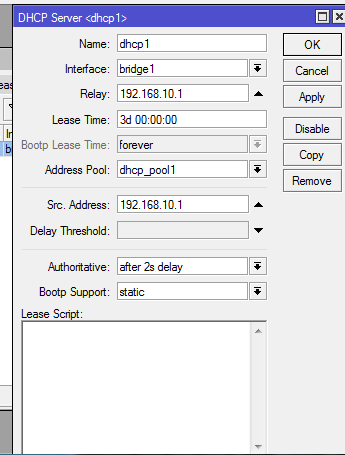

My DHCP Server

6

Set the relay and src. address settings to 0.0.0.0.

7

the the DHCP Server gets invalid

[admin@MikroTik] /ip dhcp-server> print
Flags: X - disabled, I - invalid

NAME INTERFACE RELAY ADDRESS-POOL LEASE-TIME ADD-ARP

0 I dhcp1 ether1 dhcp_pool1 3d

8

Do you have an ip is the same segment on ether1
