Did our mikrotik O.S detect USB LAN card???

Hi friends good morning,

can you guys tell me did our mikrotik O.S detect USB LAN card? :question: to my server there is no possibility to attach external LAN card so i am going to USB.


Thank you. :smiley:

The Apple usb to ethernet adapter works fine with ROS 5.x

Hi

Thanks for your valuable reply.

Can you please send me a image.

http://www.mikrotik-routeros.com/2013/04/apple-usb-ethernet-adaptor-routeros-success/

Hi to all

Except the Apple adapter, does anyone know if any other brand can work in that way ?
If you can point me some other adapters that can work fine on Ros would be fine.

Thanks
George

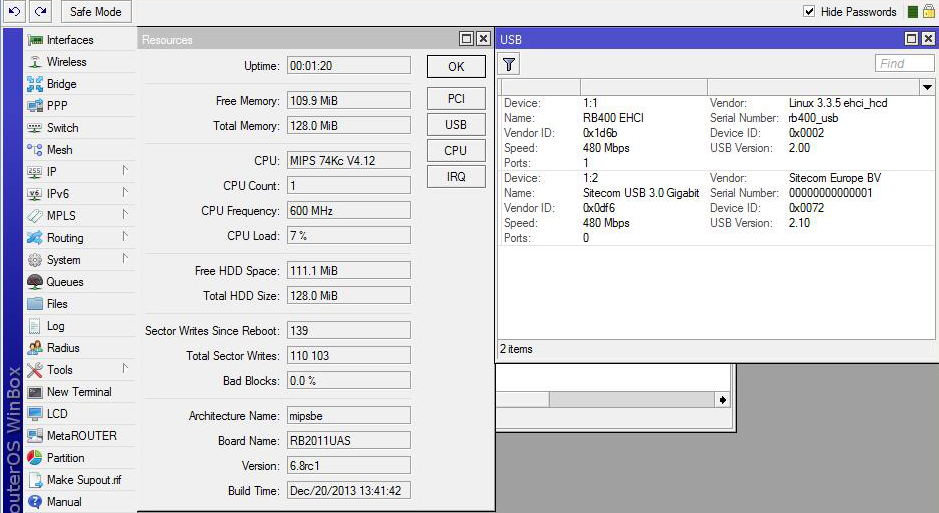

Sitecom LN-032 V1-001 USB 3.0

This adapter works NOT :frowning:
Try RouterOs 6.7, 5.26, and 6.8rc

So, Sitecom= black list :confused:

Any one else ?

Usb with realtek chip yes I m using them since OS 3.x on x86

similar to this
http://www.dhgate.com/store/product/viewcon-ve091-usb-to-10-100-mbps-fast-ethernet/96591558.html

Have you tested any thing with USB 2 (for more than 100Mbps) ?

Not yet but if hardware is supported it should work " probably " :slight_smile:

http://wiki.mikrotik.com/wiki/Supported_Hardware

Its not so easy.
I have try one with chip AX88179 (USB-3 to 1Gbps), and the OS dont see it at all :frowning:

The router board recognized that do but there appears no ethernet port.
Even though I have the router board reboot

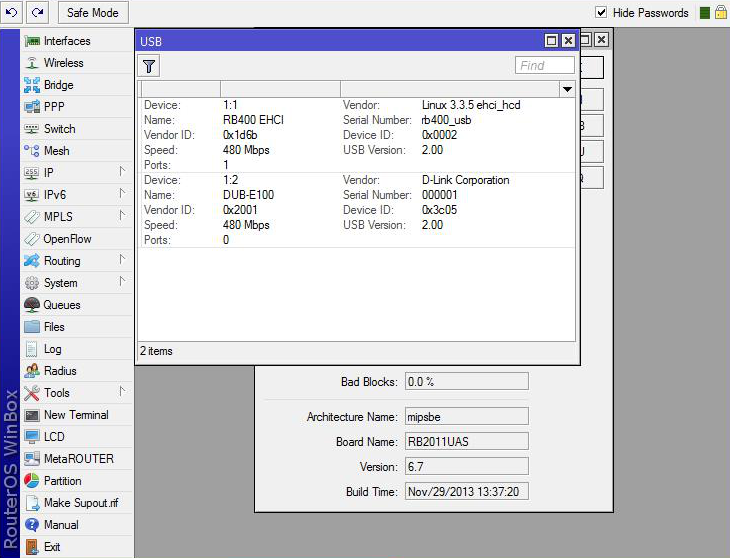

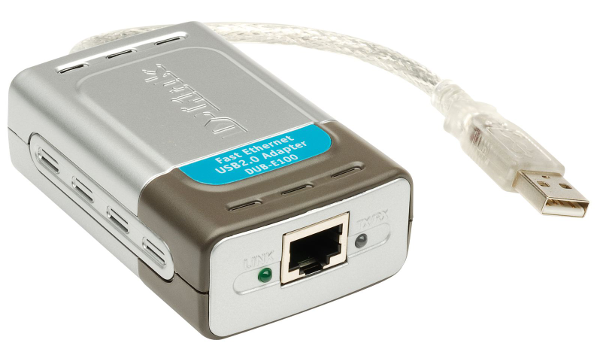

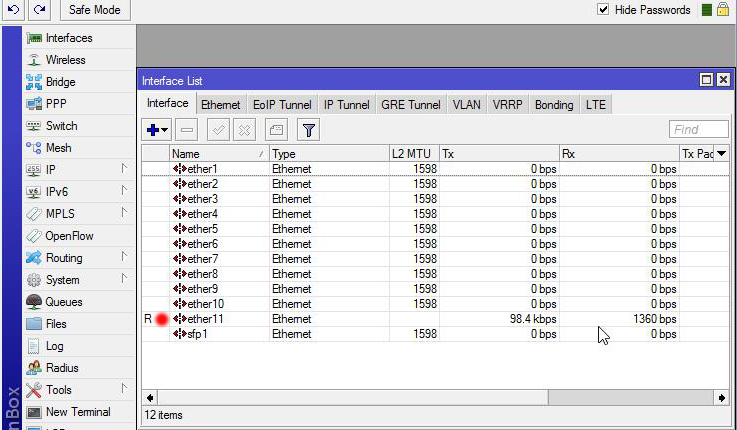

The D-link DUB-E100 works fine.
Plug in and thats all
Tested on rb 2011 UAS-RM and RouterOs 6.7 and rb 751G-HnD with RouterOS 6.7
100 Mbit

The point is if anyone tested a USB 2 for 100Mbps+ data rates.
We have one option working with the Apple adapter.

@plisken
Have you tested the Dlink with the BTest on local network to see the max data rates ??

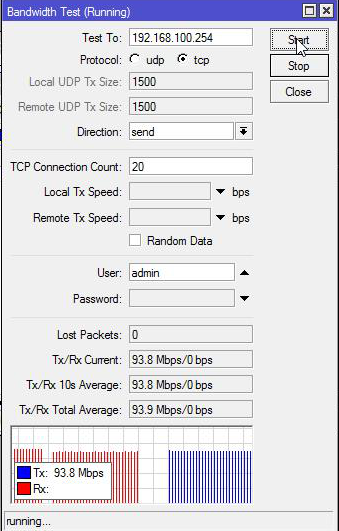

Yes i tested with D-link see printscreen

A-link Gigabit USB2.0 work with ROS 6.8

transfer in lab 250Mbit

http://www.netra.cz/images/LS.jpg

I cant find it on there site.
I want to see the specifications.

http://www.atcomp.cz/zbozi/a-link-usb-sitovy-adapter-10-100-1000-na1gu/detail.aspx?p=z:126652

Quite impressive adapter for 250Mbps :wink:
Can you see the chip on USB info ?
Can you post the BT ?

BTW:
The one i have tested and not working at all, is this one :

http://uk.connectland.eu/products/fiche/id/914/name/usb-v3-0-gigabit-ethernet-adapter

Let us create a list of these that are compatible and not. And speed
