Different speeds to the same router.

RouterOS Beginner Basics
1

Hi

There are 2 mikrotik routers connected between over isp fiber 1Gbit/s link. I launched the eoip tunnel on them. On both side I create bridge interface without any phisical interfaces added to it only for tunnel connection. If I test bandwidth speed from one to another to bridge ip I get result:
when I do the same but to IP on local interface
Why those results are so different?

2

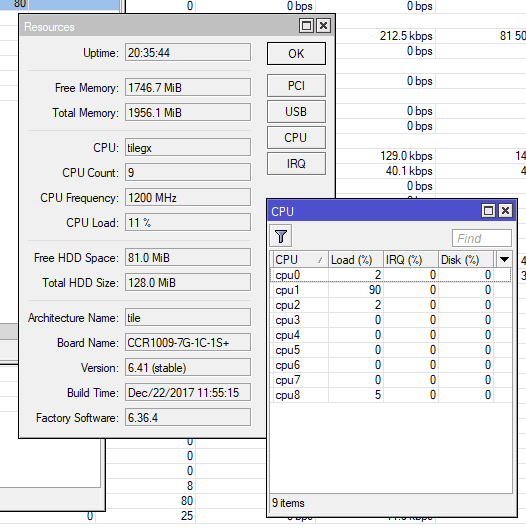

CPU usage is most likely the cause as it only uses a single core. This bandwidth tool should not be used as an accurate measure.

3

at 950Mbit/s
at 75Mbit/s

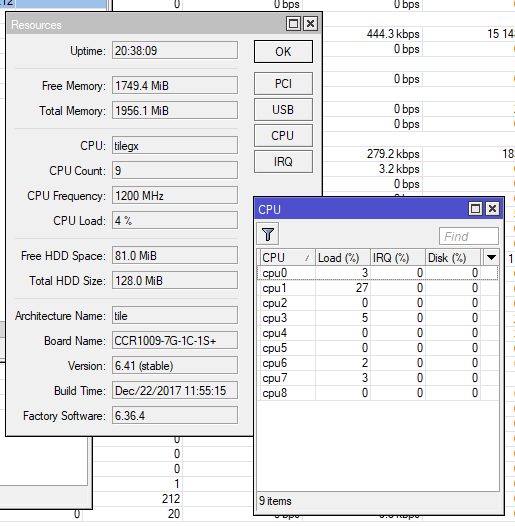

Ii is not a cpu problem. Take me a while, I will draw how it is connected.

4

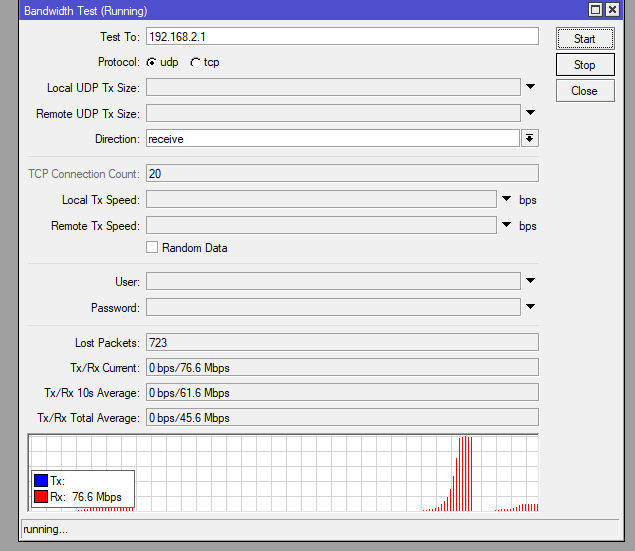

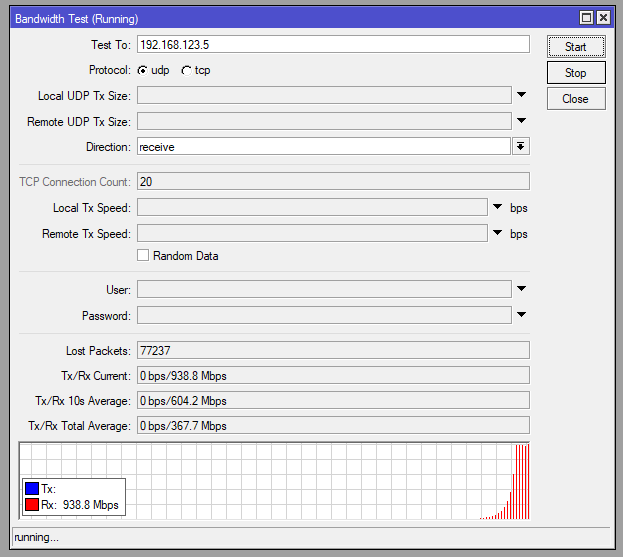

speed from CCR1016 to IP 192.168.123.5 is full to IP 192.168.2.1 is only 76Mbit/s
Also copying files from one PC behind router A to another PC behind router B is very slow.
Here is a draft:
WodaLan.pdf (71.5 KB)
