Problem: speeds diminished.

when I do a wired speed test on my switch I get 190 Mbps, no problem.

with my HAP Lite connected to the same switch I only get 80 Mbps going through the HAP Lite.

anyone have any ideas why?
how can I improve the speeds the HAP lite.

Thanks for your help

2

Have you noticed that hAP lite has 100M ports only?

3

As far as I know it’s a 10/100/1000 device.

the model is RB951G-2HnD

Thanks.

4

https://routerboard.com/RB951Ui-2nD

10/100 Ethernet ports 5

5

HI dgnevans

the model is RB951G-2HnD.

Thanks

6

sorry my bad miss read the model number.
what service you running on the RB. can you post screen shot of status page of port connected to switch also config page of port.

7

Well, in the first post you said you have hAP lite, which has the model number RB941-2nD. And this board has 10/100M ports only.

As to RB951G-2HnD, it should be capable of handling 190M throughput without problem. Please provide more info about your setup and configuration.

8

I am unable to insert image, does anyone know how i can insert image, screen saver or green shot does not work.

interface-ethernet 10,100,1000 half and full is checked off is all check off and the status-rate 1gbps is checked off.

Thanks

9

i hope these screen shots help

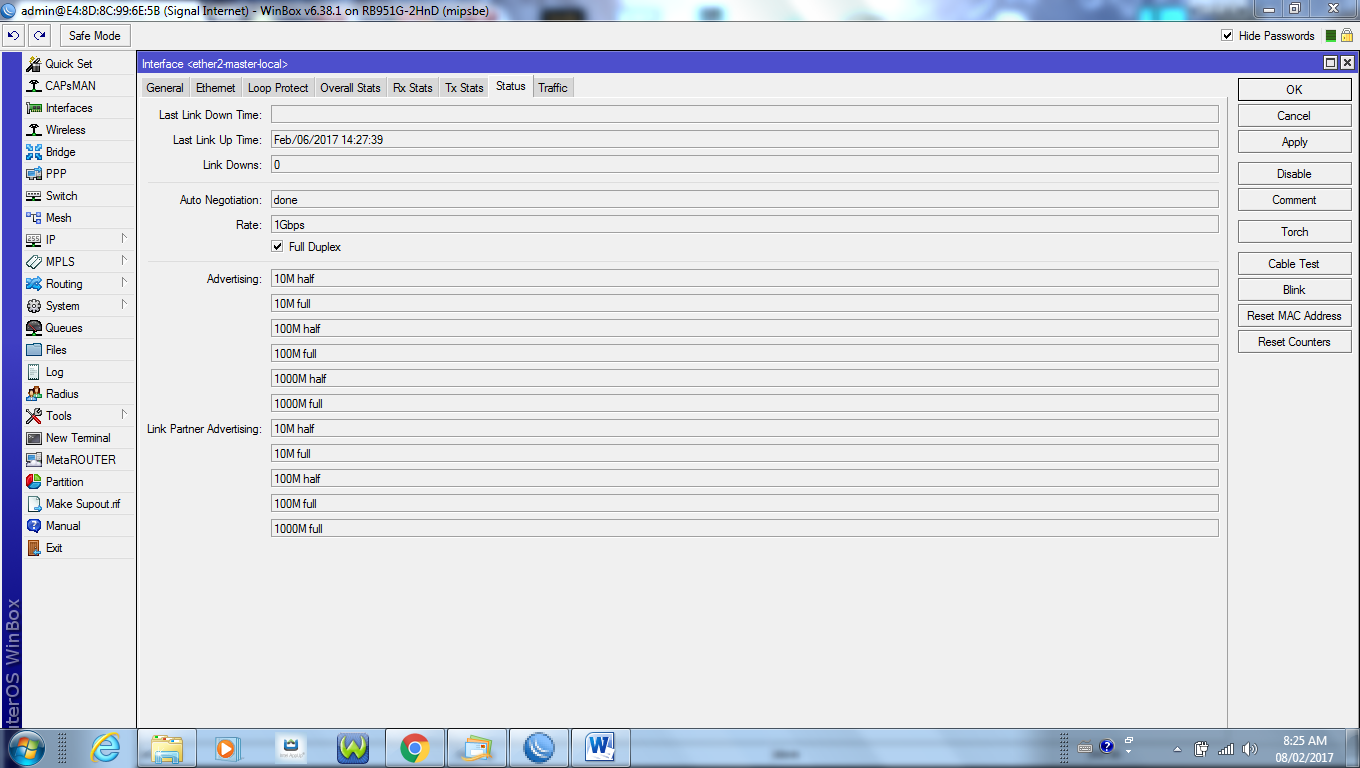

2017-02-08 08_25_52-Greenshot.png

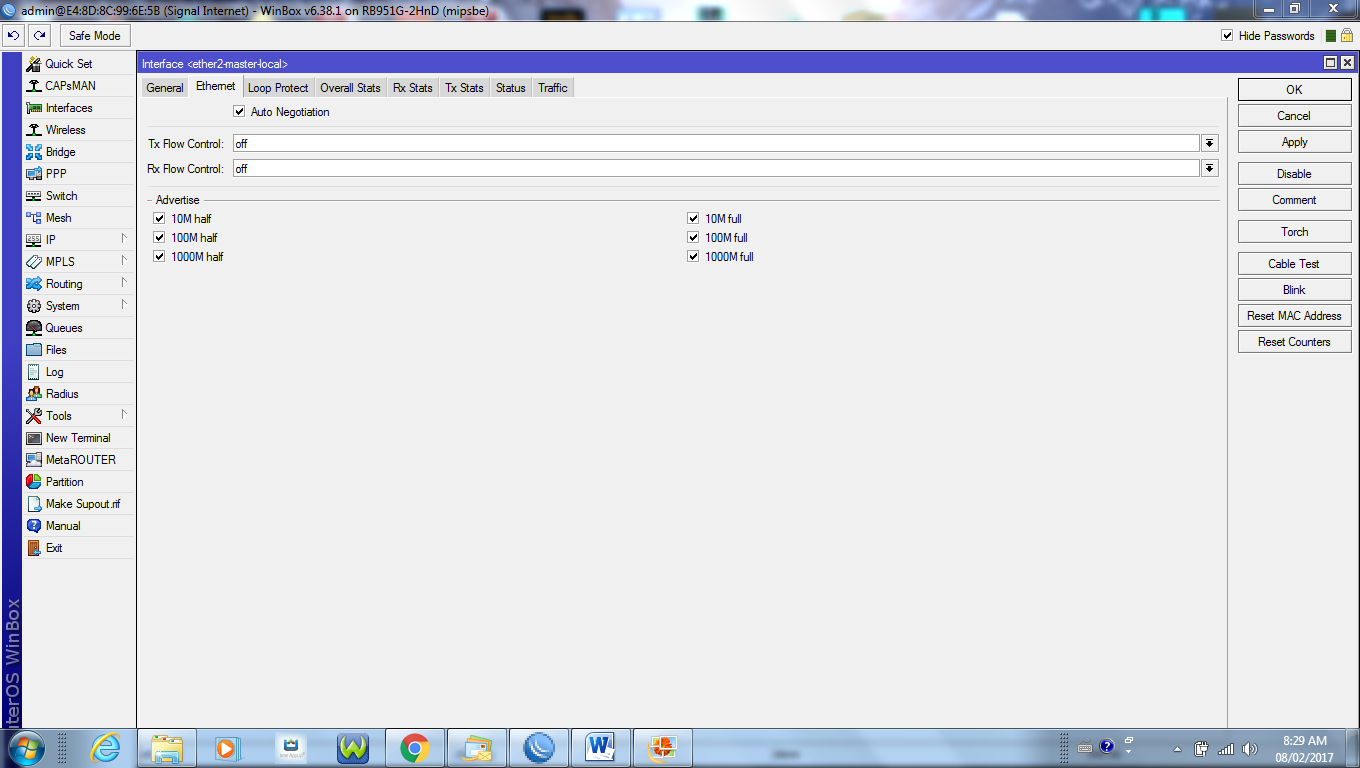

2017-02-08 08_29_18-Greenshot.png

10

How have you configured you RB. Is it acting as a straight switch (all ports bridged)

11

Well, somewhat. Please answer the following.

  1. How do you test? Is it from copper to copper or from wireless to copper?
  2. What /tool profile shows during your test?
  3. Please provide output of the following command: /export hide-sensitive
12

Configured as a bridge .

Testing wired copper

Laptop is plugged into port 2 on the Microtik

Port one from the microtech is plugged into the switch

Switch is plugged into another Microtik

I am not at the office right now I will get the tool profile And the export hide – sensitive Later today

Thanks guys
For your time on this topic

13

Can you also do a screen shot of the ports status that is connected to the switch.

14

I’ve made a mistake
It appears we had some cables crossed here.

the router i am having trouble with is a hap lite, RB952Ui-5ac2nD-us which the specs says is a 10/100 switch.
so it makes sense now.

Problem resolved

Thanks to everyone for trying to help me.

Much appreciated
