I’m not sure if this problem is one of the other ongoing problems with threads here.

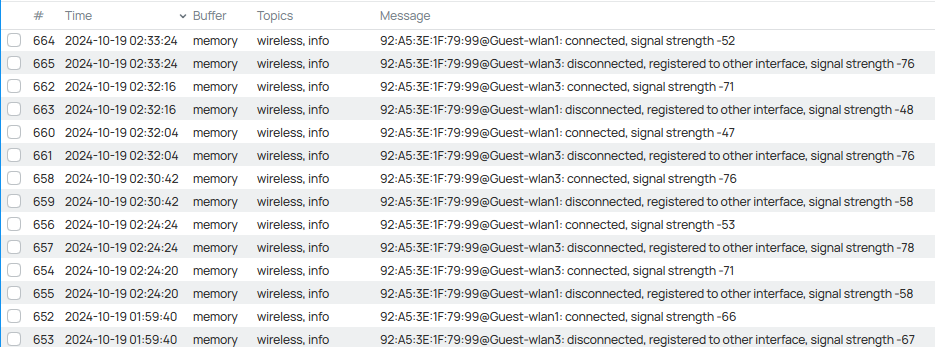

This continues to happens, across devices and locations, and after trying everything suggested in threads here.
I understand that there is an analysis that this is client-caused. And, the problem does only happen with certain clients (typically, Apple devices).
Does anyone have a solution?
.
Could you share your config?
/export file=anynameyoulike
Remove serial and any other private info and post in between code tags by using the </> button.
Current config:
# 2024-10-19 08:57:00 by RouterOS 7.16.1
# software id = 80FK-6837
#
# model = RBD53iG-5HacD2HnD
# serial number = E72C0
/interface bridge add admin-mac=2C:C8:1B:95:46:68 auto-mac=no comment=defconf name=bridge port-cost-mode=short
/interface ethernet set [ find default-name=ether5 ] poe-out=off
/interface eoip add allow-fast-path=no disabled=yes ipsec-secret=secret mac-address=02:A6:C1:08:12:E2 name=eoip-tunnel-to-212 remote-address=XXXXXX.mynetname.net tunnel-id=629
/interface wireguard add listen-port=51821 mtu=1420 name=wireguard1 private-key=XXXXXgsBPktdV7TjYbIF+cqfiRjVU="
/interface list add comment=defconf name=WAN
/interface list add comment=defconf name=LAN
/interface lte apn set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles set [ find default=yes ] supplicant-identity=MikroTik
/interface wireless security-profiles add authentication-types=wpa2-psk disable-pmkid=yes group-ciphers=tkip,aes-ccm mode=dynamic-keys name=629 supplicant-identity="" unicast-ciphers=tkip,aes-ccm wpa-pre-shared-key=blueberry1! wpa2-pre-shared-key=blueberry1!
/interface wireless security-profiles add authentication-types=wpa2-psk disable-pmkid=yes group-ciphers=tkip,aes-ccm mode=dynamic-keys name=Guest supplicant-identity="" unicast-ciphers=tkip,aes-ccm wpa2-pre-shared-key=blueberry
/interface wireless set [ find default-name=wlan1 ] band=2ghz-b/g/n channel-width=20/40mhz-eC country="united states2" disabled=no disconnect-timeout=15s distance=indoors frequency=2462 installation=indoor mode=ap-bridge security-profile=629 ssid=MikroTik-95466C-2.4ghz wireless-protocol=802.11
/interface wireless set [ find default-name=wlan2 ] band=5ghz-a/n/ac channel-width=20/40/80mhz-eCee disabled=no disconnect-timeout=15s distance=indoors frequency=auto installation=indoor mode=ap-bridge security-profile=629 ssid=MikroTik-95466D-5ghz wireless-protocol=802.11
/interface wireless add disabled=no keepalive-frames=disabled mac-address=2E:C8:1B:95:46:6C master-interface=wlan1 multicast-buffering=disabled name=Guest-wlan1 security-profile=Guest ssid=Guest wds-cost-range=0 wds-default-cost=0 wps-mode=disabled
/interface wireless add disabled=no keepalive-frames=disabled mac-address=2E:C8:1B:95:46:6D master-interface=wlan2 multicast-buffering=disabled name=Guest-wlan3 security-profile=Guest ssid=Guest wds-cost-range=0 wds-default-cost=0 wps-mode=disabled
/ip pool add name=default-dhcp ranges=192.168.20.10-192.168.20.140
/ip dhcp-server add address-pool=default-dhcp interface=bridge lease-script="\
\n/system\
\n:local cdate [clock get date] \
\n:local yyyy [:pick \$cdate 0 4]\
\n:local MM [:pick \$cdate 5 7]\
\n:local dd [:pick \$cdate 8 10]\
\n\
\n:local thistime [/system clock get time]\
\n:local thishour [:pick \$thistime 0 2]\
\n:local thisminute [:pick \$thistime 3 5]\
\n:local thissecond [:pick \$thistime 6 8]\
\n:local identitydatetime \"\$[identity get name]_\$yyyy-\$MM-\$dd_\$thishour:\$thisminute:\$thissecond\"\
\n:local datetime \"\$yyyy-\$MM-\$dd_\$thishour:\$thisminute:\$thissecond\"\
\n:local systemname \"\$[identity get name]\"\
\n\
\n:if (\$leaseBound=1) do={\
\n\
\n :if ([/ip dhcp-server lease find where dynamic mac-address=\$leaseActMAC]!=\"\") do={\
\n\
\n# :log info \"testing after condition DYNAMIC\"\
\n}\
\n\
\n:local recipient \"jXXXXX@domain.com\"\
\n\
\n :if ((\$leaseBound=1) && ([/ip dhcp-server lease find where dynamic mac-address=\$leaseActMAC]!=\"\") && ([/ip dhcp-server lease find where comment mac-address=\$leaseActMAC]=\"\")) do={\
\n\
\n# :log info \"testing after conditions BOUND and DYNAMIC and EMPTY COMMENT\" \
\n\
\n :tool e-mail send to=\$recipient subject=\"\$systemname DHCP Lease Assigned to \$leaseActMAC\" body=\"MAC address \$leaseActMAC received IP address \$leaseActIP with a hostname of \$[/ip/dhcp-server/lease/get value-name=host-name [find where mac-address=\$leaseActMAC]] from DHCP Server \$leaseServerName on \$datetime from \$systemname with comment \$[/ip/dhcp-server/lease/get value-name=comment [find where mac-address=\$leaseActMAC]]\"\
\n\
\n# :log info \"Sent DHCP alert for MAC \$leaseActMAC\"\
\n\
\n }\
\n}\
\n" lease-time=1d name=defconf
/ip smb users set [ find default=yes ] disabled=yes
/routing bgp template set default disabled=no output.network=bgp-networks
/routing ospf instance add disabled=no name=default-v2
/routing ospf area add disabled=yes instance=default-v2 name=backbone-v2
/system logging action set 3 remote=192.168.0.13
/system logging action add name=logserver remote=192.168.0.112 remote-port=51400 target=remote
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=ether2 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=ether3 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=ether4 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=ether5 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=wlan1 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge comment=defconf ingress-filtering=no interface=wlan2 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge interface=Guest-wlan1 internal-path-cost=10 path-cost=10
/interface bridge port add bridge=bridge interface=Guest-wlan3 internal-path-cost=10 path-cost=10
/ip firewall connection tracking set udp-timeout=10s
/ip neighbor discovery-settings set discover-interface-list=all
/ipv6 settings set disable-ipv6=yes max-neighbor-entries=8192
/interface list member add comment=defconf interface=bridge list=LAN
/interface list member add comment=defconf interface=ether1 list=WAN
/interface list member add interface=wireguard1 list=LAN
/interface ovpn-server server set auth=sha1,md5
/interface wireguard peers add allowed-address=10.10.100.1/24,192.168.2.0/24 comment=212 endpoint-address=XXXXX.dyndns.org endpoint-port=51820 interface=wireguard1 name=212 persistent-keepalive=40s public-key=XXXXXUo/op1OqXrW4Ds="
/interface wireguard peers add allowed-address=10.10.100.60/32,192.168.1.0/24 comment=255 endpoint-address=XXXXX.dyndns.org endpoint-port=51835 interface=wireguard1 name=255 persistent-keepalive=40s public-key=XXXXXzZ0aWPK0PMwbRc="
/interface wireguard peers add allowed-address=10.10.90.0/24,192.168.88.0/24 comment="WG client on BI PC" endpoint-port=51820 interface=wireguard1 name=peer4 public-key=XXXXXUr5iBSC0jt9TV4="
/interface wireguard peers add allowed-address=10.10.100.8/32 comment=Laptop interface=wireguard1 name=peer5 public-key=XXXXXorKJBrljQqFSxc="
/interface wireguard peers add allowed-address=10.10.100.50/32,192.168.0.1/24 comment="355 hEX UDM " endpoint-address=XXXXX.dyndns.org endpoint-port=51833 interface=wireguard1 name=355 persistent-keepalive=40s public-key=XXXXXrycOWg5omLZq3g="
/interface wireguard peers add allowed-address=192.168.40.0/24,10.10.100.2/32,10.10.100.40/32 comment=371 endpoint-address=XXXXX.dyndns.org endpoint-port=52820 interface=wireguard1 name=371 persistent-keepalive=40s public-key=XXXXXLAxn4pMzU5lohI="
/interface wireguard peers add allowed-address=10.0.0.1/24,10.10.100.15/24 comment=AX disabled=yes endpoint-address=10.0.0.1 endpoint-port=51860 interface=wireguard1 name=ax persistent-keepalive=40s public-key=XXXXXtpEw54Qql3LZ04="
/interface wireless access-list add comment="629 Emporia Vue" interface=wlan1 mac-address=10:52:1C:B9:83:84 vlan-mode=no-tag
/interface wireless access-list add comment="629 Sonoff TH10 Temp" interface=wlan1 mac-address=3C:61:05:E2:4A:C4 vlan-mode=no-tag
/interface wireless access-list add comment=Diego mac-address=92:A5:3E:1F:79:99 vlan-mode=no-tag
/ip address add address=192.168.20.1/24 comment=defconf interface=bridge network=192.168.20.0
/ip address add address=10.10.100.12/24 interface=wireguard1 network=10.10.100.0
/ip address add address=192.168.1.100/24 disabled=yes interface=bridge network=192.168.1.0
/ip address add address=192.168.0.1/24 disabled=yes interface=bridge network=192.168.0.0
/ip cloud set ddns-enabled=yes ddns-update-interval=1h
/ip dhcp-client add comment=defconf interface=ether1
/ip dhcp-server lease add address=192.168.20.62 comment="629 Sonoff TH10 Temp" mac-address=3C:61:05:E2:4A:C4 server=defconf
/ip dhcp-server lease add address=192.168.20.61 client-id=1:10:52:1c:b9:83:84 comment="629 Emporia Vue" mac-address=10:52:1C:B9:83:84 server=defconf
/ip dhcp-server lease add address=192.168.20.68 client-id=ff:32:2b:9f:d4:0:3:0:1:44:61:32:2b:9f:d4 comment="630 Ecobee\?" mac-address=44:61:32:2B:9F:D4 server=defconf
/ip dhcp-server lease add address=192.168.20.78 comment=tasmota-DEA607-1543 mac-address=C4:5B:BE:DE:A6:07 server=defconf
/ip dhcp-server lease add address=192.168.20.79 comment=tasmota-DECE8D-3725 mac-address=C4:5B:BE:DE:CE:8D server=defconf
/ip dhcp-server lease add address=192.168.20.80 comment=tasmota-DED149-4425 mac-address=C4:5B:BE:DE:D1:49 server=defconf
/ip dhcp-server lease add address=192.168.20.81 comment=tasmota-DED215-4629 mac-address=C4:5B:BE:DE:D2:15 server=defconf
/ip dhcp-server lease add address=192.168.20.82 comment=tasmota-DED2A9-4777 mac-address=C4:5B:BE:DE:D2:A9 server=defconf
/ip dhcp-server lease add address=192.168.20.83 comment=tasmota-DECE23-3619 mac-address=C4:5B:BE:DE:CE:23 server=defconf
/ip dhcp-server lease add address=192.168.20.84 comment=tasmota-DED00C-4108 mac-address=C4:5B:BE:DE:D0:0C server=defconf
/ip dhcp-server lease add address=192.168.20.30 comment="630 Emporia Vue" mac-address=A8:48:FA:96:5B:CC server=defconf
/ip dhcp-server lease add address=192.168.20.24 comment=630-9-E323D6-0982 mac-address=C4:5B:BE:E3:23:D6 server=defconf
/ip dhcp-server lease add address=192.168.20.23 comment=tasmota-E37507-5383 mac-address=C4:5B:BE:E3:75:07 server=defconf
/ip dhcp-server lease add address=192.168.20.20 comment=tasmota-E37588-5512 mac-address=C4:5B:BE:E3:75:88 server=defconf
/ip dhcp-server lease add address=192.168.20.99 mac-address=20:1F:3B:88:0D:4E server=defconf
/ip dhcp-server lease add address=192.168.20.14 client-id=1:e2:2e:79:50:90:85 comment=Franklin mac-address=E2:2E:79:50:90:85 server=defconf
/ip dhcp-server lease add address=192.168.20.16 client-id=1:72:a3:6b:d:75:7c comment=Esteban mac-address=72:A3:6B:0D:75:7C server=defconf
/ip dhcp-server lease add address=192.168.20.18 client-id=1:c0:49:ef:60:7b:28 comment="630 THR316 5 Water" mac-address=C0:49:EF:60:7B:28 server=defconf
/ip dhcp-server lease add address=192.168.20.10 client-id=1:8c:aa:ce:62:44:68 mac-address=8C:AA:CE:62:44:68 server=defconf
/ip dhcp-server lease add address=192.168.20.15 client-id=1:e2:db:8f:a5:7f:e5 mac-address=E2:DB:8F:A5:7F:E5 server=defconf
/ip dhcp-server lease add address=192.168.20.26 client-id=1:e2:a4:51:cd:e8:76 mac-address=E2:A4:51:CD:E8:76 server=defconf
/ip dhcp-server lease add address=192.168.20.33 comment="Bath heater 2" mac-address=A8:80:55:F1:DC:74 server=defconf
/ip dhcp-server lease add address=192.168.20.35 comment="Bathroom heater" mac-address=50:8B:B9:3C:3F:AF server=defconf
/ip dhcp-server lease add address=192.168.20.19 client-id=1:a2:29:38:62:d9:c9 mac-address=A2:29:38:62:D9:C9 server=defconf
/ip dhcp-server lease add address=192.168.20.12 client-id=1:3c:e9:e:8a:3a:10 comment="630 THR316 Boiler" mac-address=3C:E9:0E:8A:3A:10 server=defconf
/ip dhcp-server lease add address=192.168.20.11 comment="630 Vue" mac-address=A8:48:FA:A0:4E:CC server=defconf
/ip dhcp-server lease add address=192.168.20.25 client-id=1:d2:d9:25:ce:84:92 mac-address=D2:D9:25:CE:84:92 server=defconf
/ip dhcp-server lease add address=192.168.20.27 client-id=ff:32:80:3:ba:0:3:0:1:44:61:32:80:3:ba comment=Ecobee mac-address=44:61:32:80:03:BA server=defconf
/ip dhcp-server lease add address=192.168.20.63 client-id=1:94:e7:b:29:30:e7 mac-address=94:E7:0B:29:30:E7 server=defconf
/ip dhcp-server lease add address=192.168.20.32 client-id=1:92:a5:3e:1f:79:99 comment="Diego phone" mac-address=92:A5:3E:1F:79:99 server=defconf
/ip dhcp-server network add address=192.168.20.0/24 comment=defconf dns-server=192.168.20.1 gateway=192.168.20.1
/ip dns set allow-remote-requests=yes servers=1.1.1.1,8.8.8.8,9.9.9.9,8.8.4.4
/ip dns static add address=192.168.20.1 comment=defconf name=629.local type=A
/ip dns static add address=10.10.100.12 name=629.10.10.100.12.local type=A
/ip dns static add address=192.168.20.99 comment="automatic-from-dhcp (magic comment)" name=Chromecast.629.local ttl=15m type=A
/ip dns static add address=192.168.20.30 comment="automatic-from-dhcp (magic comment)" name=Emporia.629.local ttl=15m type=A
/ip dns static add address=192.168.20.62 comment="automatic-from-dhcp (magic comment)" name=ESP_E24AC4.629.local ttl=15m type=A
/ip dns static add address=192.168.20.69 comment="automatic-from-dhcp (magic comment)" name=A54-de-Franklin.629.local ttl=15m type=A
/ip dns static add address=192.168.20.57 comment="automatic-from-dhcp (magic comment)" name=Tab-A7-Lite-de-Franklin.629.local ttl=15m type=A
/ip dns static add address=192.168.20.68 comment="automatic-from-dhcp (magic comment)" name=630.629.local ttl=15m type=A
/ip dns static add address=192.168.20.78 comment="automatic-from-dhcp (magic comment)" name=tasmota-DEA607-1543.629.local ttl=15m type=A
/ip dns static add address=192.168.20.79 comment="automatic-from-dhcp (magic comment)" name=tasmota-DECE8D-3725.629.local ttl=15m type=A
/ip dns static add address=192.168.20.80 comment="automatic-from-dhcp (magic comment)" name=tasmota-DED149-4425.629.local ttl=15m type=A
/ip dns static add address=192.168.20.81 comment="automatic-from-dhcp (magic comment)" name=tasmota-DED215-4629.629.local ttl=15m type=A
/ip dns static add address=192.168.20.82 comment="automatic-from-dhcp (magic comment)" name=tasmota-DED2A9-4777.629.local ttl=15m type=A
/ip dns static add address=192.168.20.83 comment="automatic-from-dhcp (magic comment)" name=tasmota-DECE23-3619.629.local ttl=15m type=A
/ip dns static add address=192.168.20.84 comment="automatic-from-dhcp (magic comment)" name=tasmota-DED00C-4108.629.local ttl=15m type=A
/ip dns static add address=192.168.20.27 comment="automatic-from-dhcp (magic comment)" name=espressif.629.local ttl=15m type=A
/ip dns static add address=192.168.20.24 comment="automatic-from-dhcp (magic comment)" name=tasmota-E323D6-0982.629.local ttl=15m type=A
/ip dns static add address=192.168.20.23 comment="automatic-from-dhcp (magic comment)" name=tasmota-E37507-5383.629.local ttl=15m type=A
/ip dns static add address=192.168.20.20 comment="automatic-from-dhcp (magic comment)" name=tasmota-E37588-5512.629.local ttl=15m type=A
/ip dns static add address=192.168.20.28 comment="automatic-from-dhcp (magic comment)" name=Andres-s-S23-Ultra.629.local ttl=15m type=A
/ip dns static add address=192.168.20.17 comment="automatic-from-dhcp (magic comment)" name=Esteban-s-S23-Ultra.629.local ttl=15m type=A
/ip firewall address-list add address=XXXXX.dyndns.org list=XXXXX
/ip firewall address-list add address=XXXXX.dyndns.org list=212
/ip firewall address-list add address=subnet_1 list=external-access
/ip firewall address-list add address=subnet_2 list=external-access
/ip firewall address-list add address=subnet_XX list=external-access
/ip firewall address-list add address=10.0.100.5 list=external-access
/ip firewall address-list add address=10.0.100.6 list=external-access
/ip firewall address-list add address=IP-local-admin-destkop list=authorized
/ip firewall address-list add address=IP-local-admin-laptop list=authorized
/ip firewall address-list add address=XXXXX.dyndns.org list=dynamic-WANIP
/ip firewall address-list add address=192.168.0.0/16 list=admin
/ip firewall address-list add address=10.10.100.0/24 list=admin
/ip firewall filter add action=accept chain=input comment="REMOVE\?" disabled=yes src-address-list=212
/ip firewall filter add action=accept chain=input dst-port=8291 protocol=tcp src-address-list=212
/ip firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
/ip firewall filter add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
/ip firewall filter add action=accept chain=input comment="GRE for EoIP" protocol=gre
/ip firewall filter add action=accept chain=input comment="allow incoming wireguard connections" dst-port=51821 protocol=udp
/ip firewall filter add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
/ip firewall filter add action=accept chain=input comment="allow LAN originated" in-interface-list=LAN
/ip firewall filter add action=accept chain=input src-address-list=admin
/ip firewall filter add action=drop chain=input comment="drop all else"
/ip firewall filter add action=accept chain=forward comment="defconf: accept in ipsec policy" disabled=yes ipsec-policy=in,ipsec
/ip firewall filter add action=accept chain=forward comment="defconf: accept out ipsec policy" disabled=yes ipsec-policy=out,ipsec
/ip firewall filter add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes
/ip firewall filter add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
/ip firewall filter add action=accept chain=forward comment="For new cameras" disabled=yes dst-address=192.168.1.0/24 log=yes
/ip firewall filter add action=accept chain=forward comment="For new cameras" disabled=yes src-address=192.168.1.0/24
/ip firewall filter add action=accept chain=forward in-interface-list=LAN out-interface-list=WAN
/ip firewall filter add action=accept chain=forward dst-address=10.10.100.0/24
/ip firewall filter add action=accept chain=forward comment="Allow WG to subnet" dst-address=192.168.0.0/16 in-interface=wireguard1
/ip firewall filter add action=accept chain=forward comment="Allow wireguard to subnet" disabled=yes dst-address=192.168.20.0/24 in-interface=wireguard1
/ip firewall filter add action=accept chain=forward comment="Allow subnet to enter WG" out-interface=wireguard1
/ip firewall filter add action=accept chain=forward comment="Allow wireguard to subnet" in-interface=wireguard1
/ip firewall filter add action=accept chain=input comment="Alow wireguard to router" in-interface=wireguard1
/ip firewall filter add action=accept chain=forward in-interface=wireguard1 out-interface=wireguard1
/ip firewall filter add action=accept chain=forward in-interface=wireguard1 protocol=udp
/ip firewall filter add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN
/ip ipsec profile set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip kid-control add fri=0s-1d mon=0s-1d name=Monitor sat=0s-1d sun=0s-1d thu=0s-1d tue=0s-1d wed=0s-1d
/ip route add disabled=no distance=1 dst-address=192.168.2.0/24 gateway=wireguard1 routing-table=main scope=30 suppress-hw-offload=no target-scope=10
/ip route add disabled=no distance=1 dst-address=192.168.0.0/24 gateway=wireguard1 pref-src="" routing-table=main scope=30 suppress-hw-offload=no target-scope=10
/ip route add disabled=no distance=1 dst-address=192.168.1.0/24 gateway=wireguard1 pref-src="" routing-table=main scope=30 suppress-hw-offload=no target-scope=10
/ip route add disabled=no distance=1 dst-address=192.168.5.0/24 gateway=wireguard1 routing-table=main scope=30 suppress-hw-offload=no target-scope=10
/ip route add disabled=no dst-address=192.168.40.0/24 gateway=wireguard1 routing-table=main suppress-hw-offload=no
/ip service set www-ssl disabled=no
/ip smb shares set [ find default=yes ] directory=/pub
/ip ssh set forwarding-enabled=both
/routing bfd configuration add disabled=no
/snmp set enabled=yes trap-version=2
/system clock set time-zone-name=America/New_York
/system identity set name=629hAPac3
/system leds set 0 interface=wlan1 leds=led1,led2,led3,led4,led5 type=wireless-signal-strength
/system leds set 1 leds=poe-led type=poe-out
/system logging set 0 disabled=yes
/system logging add topics=event
/system logging add topics=account
/system logging add disabled=yes topics=firewall
/system logging add disabled=yes topics=wireless
/system logging add disabled=yes topics=interface
/system logging add topics=mqtt
/system logging add disabled=yes topics=wireguard
/system logging add topics=watchdog
/system logging add action=logserver prefix="XXXXX5A MikroTik" topics=hotspot
/system logging add action=logserver prefix="XXXXX5A MikroTik" topics=!debug,!packet,!snmp
/system logging add disabled=yes topics=dhcp
/system logging add action=logserver prefix="XXXXX5A MikroTik" topics=info
/system logging add disabled=yes topics=fetch
/system logging add topics=info
/system logging add action=remote prefix="192.168.20.1 " topics=info
/system note set show-at-login=no
/system ntp client set enabled=yes
/system ntp client servers add address=0.north-america.pool.ntp.org
/system ntp client servers add address=3.pool.ntp.org
/system scheduler add disabled=yes interval=5d name=dyndns on-event=dyndns policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-03-11 start-time=07:40:42
/system scheduler add interval=2d name=export-download on-event=export-download policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-03-11 start-time=07:41:14
/system scheduler add interval=4w2d name="log create upload" on-event=create-upload-log policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-03-11 start-time=09:43:08
/system scheduler add disabled=yes interval=10m name=WG-iface-restart on-event=WG-iface-restart policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-03-11 start-time=14:37:25
/system scheduler add interval=2w name=IPlist on-event=IPlist policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-04-10 start-time=06:50:50
/system scheduler add name=global-scripts on-event="/system/script { run global-config; run global-functions; }" policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-time=startup
/system scheduler add interval=2w name=dynamic-data-rextended on-event=dynamic-data-rextended policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2023-09-30 start-time=02:58:29
/system scheduler add interval=2w name=dhcpleasesftp on-event=dhcpleasesftp policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2024-01-09 start-time=18:26:37
/system scheduler add interval=2w name=DynDNS on-event=DynDNS policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2022-10-18 start-time=02:00:00
/system scheduler add disabled=yes interval=5m name=Data_to_Splunk on-event=Data_to_Splunk_using_Syslog policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-date=2024-08-31 start-time=04:45:39
/system script add dont-require-permissions=no name=export-download owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n\r\
\n/system\r\
\n:local cdate [clock get date] \r\
\n:local yyyy [:pick \$cdate 0 4]\r\
\n:local MM [:pick \$cdate 5 7]\r\
\n:local dd [:pick \$cdate 8 10]\r\
\n:local identitydate \"\$[identity get name]_\$yyyy-\$MM-\$dd\"\r\
\n/export show-sensitive file=\"\$identitydate\"\r\
\n\r\
\n/tool fetch upload=yes mode=ftp ascii=no src-path=\"/\$[\$identitydate].rsc\" dst-path=\"/mikrotik-backups/\$[\$identitydate].rsc\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n/file remove \"\$[\$identitydate].rsc\"\r\
\n\r\
\n:log info (\"Uploaded rsc backup to 192.168.2.22 as \".\$identitydate)\r\
\n"
/system script add dont-require-permissions=no name=create-upload-log owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n/system\r\
\n:local cdate [clock get date] \r\
\n:local yyyy [:pick \$cdate 0 4]\r\
\n:local MM [:pick \$cdate 5 7]\r\
\n:local dd [:pick \$cdate 8 10]\r\
\n:local identitydate \"\$[identity get name]_\$yyyy-\$MM-\$dd\"\r\
\n\r\
\n/log print file=\"\$identitydate.log\"\r\
\n\r\
\n/tool fetch upload=yes mode=ftp ascii=no src-path=\"/\$identitydate.log.txt\" dst-path=\"/mikrotik-backups/\$identitydate.log.txt\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n/file remove \"\$identitydate.log.txt\"\r\
\n\r\
\n\r\
\n"
/system script add dont-require-permissions=no name=script1 owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n:global nowdate do={\r\
\n /system clock\r\
\n :local vdate [get date]\r\
\n :local vtime [get time]\r\
\n :local yyyy [:pick \$vdate 7 11]\r\
\n :local M ([:find \"xxanebarprayunulugepctovecANEBARPRAYUNULUGEPCTOVEC\" [:pick \$vdate 1 3] -1] / 2); :if (\$M>12) do={:set M (\$M - 12)}\r\
\n :local MM [:pick \"0\$M\" 1 3]\r\
\n :local dd [:pick \$vdate 4 6]\r\
\n :local HH [:pick \$vtime 0 2]\r\
\n :local mm [:pick \$vtime 3 5]\r\
\n :local ss [:pick \$vtime 6 8]\r\
\n\r\
\n :return \"\$yyyy-\$MM-\$dd \$HH:\$mm:\$ss\"\r\
\n\r\
\n}\r\
\n\r\
\n/log print file=\"629log-\$[\$nowdate]\"\r\
\n\r\
\n/tool fetch upload=yes mode=ftp ascii=no src-path=\"/log\$[\$nowdate].txt\" dst-path=\"/mikrotik-backups/629log-\$[\$nowdate].txt\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n\r\
\n"
/system script add dont-require-permissions=no name=WG-iface-restart owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source=":foreach i in=[/interface/wireguard/peers/find where disabled=no endpoint-address~\"[a-z]\\\$\"] do={\r\
\n :local LastHandshake [/interface/wireguard/peers/get \$i last-handshake]\r\
\n :if (([:tostr \$LastHandshake] = \"\") or (\$LastHandshake > [:totime \"5m\"])) do={\r\
\n \r\
\n :log info \"WG-iface-restart script found WG peers with last handshake greater than 5 minutes; then reset the endpoint-address to reload dns of endpoint\"\r\
\n\r\
\n /interface/wireguard/peers/set \$i endpoint-address=[/interface/wireguard/peers/get \$i endpoint-address]\r\
\n\r\
\n :local endpoint [/interface/wireguard/peers/get \$i endpoint-address]\r\
\n :log info \"WG-iface-restart script found WG peer with last handshake greater than 5 minutes; then reset the endpoint-address to reload dns of endpoint: \$endpoint\"\r\
\n }\r\
\n}\r\
\n\r\
\n"
/system script add dont-require-permissions=no name="DHCP to DNS" owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="# SPDX-License-Identifier: CC0-1.0\
\n\r\
\n\r\r\r\r\
\n\r\
\n\r\r:local domains [:toarray \"629.local\"]\
\n\r\
\n\r\r:local dnsttl \"15m\"\
\n\r\
\n\r\r\
\n\r\
\n\r\r:local magiccomment \"automatic-from-dhcp (magic comment)\"\
\n\r\
\n\r\r:local activehosts [:toarray \"\"]\
\n\r\
\n\r\r\
\n\r\
\n\r\r:foreach lease in [/ip dhcp-server lease find] do={\
\n\r\
\n\r\r :local hostname [/ip dhcp-server lease get value-name=host-name \$lease]\
\n\r\
\n\r\r :local hostaddr [/ip dhcp-server lease get value-name=address \$lease]\
\n\r\
\n\r\r\
\n\r\
\n\r\r :if ([:len \$hostname] > 0) do={\
\n\r\
\n\r\r :foreach domain in \$domains do={\
\n\r\
\n\r\r :local regdomain \"\$hostname.\$domain\"\
\n\r\
\n\r\r :set activehosts (\$activehosts, \$regdomain)\
\n\r\
\n\r\r\
\n\r\
\n\r\r :if ([:len [/ip dns static find where name=\$regdomain]] = 0) do={\
\n\r\
\n\r\r /ip dns static add name=\$regdomain address=\$hostaddr comment=\$magiccomment ttl=\$dnsttl\
\n\r\
\n\r\r } else={\
\n\r\
\n\r\r :if ([:len [/ip dns static find where name=\$regdomain comment=\$magiccomment]] = 1) do={\
\n\r\
\n\r\r /ip dns static set address=\$hostaddr [/ip dns static find name=\$regdomain comment=\$magiccomment]\
\n\r\
\n\r\r }\
\n\r\
\n\r\r }\
\n\r\
\n\r\r }\
\n\r\
\n\r\r }\
\n\r\
\n\r\r}\
\n\r\
\n\r\r\
\n\r\
\n\r\r:foreach dnsentry in [/ip dns static find where comment=\$magiccomment] do={\
\n\r\
\n\r\r :local hostname [/ip dns static get value-name=name \$dnsentry]\
\n\r\
\n\r\r :if ([:type [:find \$activehosts \$hostname]] = \"nil\") do={\
\n\r\
\n\r\r /ip dns static remove \$dnsentry\
\n\r\
\n\r\r }\
\n\r\
\n\r\r}\
\n\r\
\n\r\r"
/system script add dont-require-permissions=no name="Dynamic Data" owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n/system\r\
\n:local cdate [clock get date] \r\
\n:local yyyy [:pick \$cdate 0 4]\r\
\n:local MM [:pick \$cdate 5 7]\r\
\n:local dd [:pick \$cdate 8 10]\r\
\n:local identitydate \"\$[identity get name]_\$yyyy-\$MM-\$dd\"\r\
\n\r\
\n:local fileup \"dynamicdata-\$[\$identitydate].txt\"\r\
\n\r\
\n/file remove \"\$[\$fileup]\"\r\
\n\r\
\n/ip/cloud print file=\"\$fileup\"\r\
\n\r\
\n/ip/dhcp-server/lease print file=\"dhcpleases-\$[\$identitydate]\"\r\
\n\r\
\n/interface/bridge/host print file=\"629-bridgehosts-\$[\$identitydate]\"\r\
\n\r\
\n/interface/wireless/registration-table print file=\"629-wirelessregistrations-\$[\$identitydate]\"\r\
\n\r\
\n:local filecontents [/file get \$fileup contents]\r\
\n:set filecontents (\$filecontents . \"\\r\\n\")\r\
\n/file set \$fileup contents=\$filecontents\r\
\n\r\
\n/tool fetch upload=yes mode=ftp ascii=no src-path=\"/fileup.txt\" dst-path=\"/mikrotik-backups/fileup.txt\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n"
/system script add dont-require-permissions=no name=global-config owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="#!rsc by RouterOS\
\n# RouterOS script: global-config\
\n# Copyright (c) 2013-2023 Christian Hesse <mail@eworm.de>\
\n# https://git.eworm.de/cgit/routeros-scripts/about/COPYING.md\
\n#\
\n# global configuration\
\n# https://git.eworm.de/cgit/routeros-scripts/about/\
\n\
\n# Set this to 'true' to disable news and change notifications.\
\n:global NoNewsAndChangesNotification false;\
\n\
\n# Add extra text (or emojis) in notification tags.\
\n:global IdentityExtra \"\";\
\n\
\n# This is used in DNS scripts ('ipsec-to-dns' and fallback in 'dhcp-to-dns')\
\n# and backup scripts for file names.\
\n:global Domain \"example.com\";\
\n\
\n# You can send e-mail notifications. Configure the system's mail settings\
\n# (/tool/e-mail), then install the module:\
\n# \$ScriptInstallUpdate mod/notification-email\
\n# The to-address needs to be filled; cc-address can be empty, one address\
\n# or a comma separated list of addresses.\
\n:global EmailGeneralTo \"\";\
\n:global EmailGeneralCc \"\";\
\n#:global EmailGeneralTo \"mail@example.com\";\
\n#:global EmailGeneralCc \"another@example.com,third@example.com\";\
\n\
\n# You can send Telegram notifications. Register a bot\
\n# and add the token and chat ids here, then install the module:\
\n# \$ScriptInstallUpdate mod/notification-telegram\
\n:global TelegramTokenId \"\";\
\n:global TelegramChatId \"\";\
\n#:global TelegramTokenId \"123456:ABCDEF-GHI\";\
\n#:global TelegramChatId \"12345678\";\
\n# Using telegram-chat you have to define trusted chat ids (not group ids!)\
\n# or user names. Groups allow to chat with devices simultaneously.\
\n#:global TelegramChatIdsTrusted {\
\n# \"12345678\";\
\n# \"example_user\";\
\n#};\
\n:global TelegramChatGroups \"(all)\";\
\n#:global TelegramChatGroups \"(all|home|office)\";\
\n# This is whether or not to send Telegram messages with fixed-width font.\
\n:global TelegramFixedWidthFont true;\
\n\
\n# You can send Matrix notifications. Configure these settings and\
\n# install the module:\
\n# \$ScriptInstallUpdate mod/notification-matrix\
\n:global MatrixHomeServer \"\";\
\n:global MatrixAccessToken \"\";\
\n:global MatrixRoom \"\";\
\n#:global MatrixHomeServer \"matrix.org\";\
\n#:global MatrixAccessToken \"123456ABCDEFGHI...\";\
\n#:global MatrixRoom \"!example:matrix.org\";\
\n\
\n# It is possible to override e-mail, Telegram and Matrix setting for every\
\n# script. This is done in arrays, where 'Override' is appended to the\
\n# variable name, like this:\
\n#:global EmailGeneralToOverride {\
\n# \"check-certificates\"=\"override@example.com\";\
\n# \"backup-email\"=\"backup@example.com\";\
\n#}\
\n\
\n# Toggle this to disable symbols in notifications.\
\n:global NotificationsWithSymbols true;\
\n# Toggle this to disable color output in terminal/cli.\
\n:global TerminalColorOutput true;\
\n\
\n# This defines what backups to generate and what password to use.\
\n:global BackupSendBinary false;\
\n:global BackupSendExport true;\
\n:global BackupSendGlobalConfig true;\
\n:global BackupPassword \"v3ry-s3cr3t\";\
\n:global BackupRandomDelay 0;\
\n# These credentials are used to upload backup and config export files.\
\n# SFTP authentication is tricky, you may have to limit authentication\
\n# methods for your SSH server.\
\n:global BackupUploadUrl \"sftp://example.com/backup/\";\
\n:global BackupUploadUser \"mikrotik\";\
\n:global BackupUploadPass \"v3ry-s3cr3t\";\
\n\
\n# This defines the settings for firewall address-lists (fw-addr-lists).\
\n:global FwAddrLists {\
\n# \"allow\"={\
\n# { url=\"https://eworm.de/ros/fw-addr-lists/allow\";\
\n# cert=\"R3\" };\
\n# };\
\n \"block\"={\
\n# { url=\"https://eworm.de/ros/fw-addr-lists/block\";\
\n# cert=\"R3\" };\
\n { url=\"https://feodotracker.abuse.ch/downloads/ipblocklist_recommended.txt\";\
\n cert=\"GlobalSign Atlas R3 DV TLS CA 2022 Q3\" };\
\n { url=\"https://sslbl.abuse.ch/blacklist/sslipblacklist.txt\";\
\n cert=\"GlobalSign Atlas R3 DV TLS CA 2022 Q3\" };\
\n { url=\"https://www.dshield.org/block.txt\"; cidr=\"/24\";\
\n cert=\"R3\" };\
\n# { url=\"https://www.spamhaus.org/drop/drop.txt\";\
\n# cert=\"Cloudflare Inc ECC CA-3\" };\
\n# { url=\"https://www.spamhaus.org/drop/edrop.txt\";\
\n# cert=\"Cloudflare Inc ECC CA-3\" };\
\n };\
\n};\
\n:global FwAddrListTimeOut 1d;\
\n\
\n# This defines what log messages to filter or include by topic or message\
\n# text. Regular expressions are supported. Do *NOT* set an empty string,\
\n# that will filter or include everything!\
\n# These are filters, so excluding messages from forwarding.\
\n:global LogForwardFilter \"(debug|info)\";\
\n:global LogForwardFilterMessage [];\
\n#:global LogForwardFilterMessage \"message text\";\
\n#:global LogForwardFilterMessage \"(message text|another text|...)\";\
\n# ... and another setting with reverse logic. This includes messages even\
\n# if filtered above.\
\n:global LogForwardInclude [];\
\n:global LogForwardIncludeMessage [];\
\n#:global LogForwardInclude \"account\";\
\n#:global LogForwardIncludeMessage \"message text\";\
\n\
\n# Specify an address to enable auto update to version assumed safe.\
\n# The configured channel (bugfix, current, release-candidate) is appended.\
\n:global SafeUpdateUrl \"\";\
\n#:global SafeUpdateUrl \"https://example.com/ros/safe-update/\";\
\n# Allow to install patch updates automatically.\
\n:global SafeUpdatePatch false;\
\n# Allow to install updates automatically if seen in neighbor list.\
\n:global SafeUpdateNeighbor false;\
\n:global SafeUpdateNeighborIdentity \"\";\
\n# Install *ALL* updates automatically!\
\n# Set to all upper-case \"Yes, please!\" to enable.\
\n:global SafeUpdateAll \"no\";\
\n\
\n# These thresholds control when to send health notification\
\n# on temperature and voltage.\
\n:global CheckHealthTemperature {\
\n temperature=50;\
\n cpu-temperature=70;\
\n board-temperature1=50;\
\n board-temperature2=50;\
\n};\
\n# This is deviation on recovery threshold against notification flooding.\
\n:global CheckHealthTemperatureDeviation 3;\
\n:global CheckHealthVoltageLow 115;\
\n:global CheckHealthVoltagePercent 10;\
\n\
\n# Access-list entries matching this comment are updated\
\n# with daily pseudo-random PSK.\
\n:global DailyPskMatchComment \"Daily PSK\";\
\n:global DailyPskQrCodeUrl \"https://www.eworm.de/cgi-bin/cqrlogo-wifi.cgi\";\
\n:global DailyPskSecrets {\
\n { \"Abusive\"; \"Aggressive\"; \"Bored\"; \"Chemical\"; \"Cold\";\
\n \"Cruel\"; \"Curved\"; \"Delightful\"; \"Discreet\"; \"Elite\";\
\n \"Evasive\"; \"Faded\"; \"Flat\"; \"Future\"; \"Grandiose\";\
\n \"Hanging\"; \"Humorous\"; \"Interesting\"; \"Magenta\";\
\n \"Magnificent\"; \"Numerous\"; \"Optimal\"; \"Pathetic\";\
\n \"Possessive\"; \"Remarkable\"; \"Rightful\"; \"Ruthless\";\
\n \"Stale\"; \"Unusual\"; \"Useless\"; \"Various\" };\
\n { \"Adhesive\"; \"Amusing\"; \"Astonishing\"; \"Frantic\";\
\n \"Kindhearted\"; \"Limping\"; \"Roasted\"; \"Robust\";\
\n \"Staking\"; \"Thundering\"; \"Ultra\"; \"Unreal\" };\
\n { \"Belief\"; \"Button\"; \"Curtain\"; \"Edge\"; \"Jewel\";\
\n \"String\"; \"Whistle\" }\
\n};\
\n\
\n# Specify how to assemble DNS names in ipsec-to-dns.\
\n:global HostNameInZone true;\
\n:global PrefixInZone true;\
\n\
\n# Run different commands with multiple mode-button presses.\
\n:global ModeButton {\
\n 1=\"/system/script/run leds-toggle-mode;\";\
\n 2=\":global Identity; :global SendNotification; :global SymbolForNotification; \\\$SendNotification ([ \\\$SymbolForNotification \\\"earth\\\" ] . \\\"Hello...\\\") (\\\"Hello world, \\\" . \\\$Identity . \\\" calling!\\\");\";\
\n 3=\"/system/shutdown;\";\
\n 4=\"/system/reboot;\";\
\n 5=\":global BridgePortVlan; \\\$BridgePortVlan alt;\";\
\n# add more here...\
\n};\
\n# This led gives visual feedback if type is 'on' or 'off'.\
\n:global ModeButtonLED \"user-led\";\
\n\
\n# Run commands on SMS action.\
\n:global SmsAction {\
\n bridge-port-vlan-alt=\":global BridgePortVlan; \\\$BridgePortVlan alt;\";\
\n reboot=\"/system/reboot;\";\
\n shutdown=\"/system/shutdown;\";\
\n# add more here...\
\n};\
\n\
\n# Run commands by hooking into SMS forward.\
\n:global SmsForwardHooks {\
\n { match=\"magic string\";\
\n allowed-number=\"12345678\";\
\n command=\"/system/script/run ...\" };\
\n# add more here...\
\n};\
\n\
\n# This is the address used to send gps data to.\
\n:global GpsTrackUrl \"https://example.com/index.php\";\
\n\
\n# Enable this to fetch scripts from given url.\
\n:global ScriptUpdatesFetch true;\
\n:global ScriptUpdatesBaseUrl \"https://git.eworm.de/cgit/routeros-scripts/plain/\";\
\n# alternative urls - main: stable code - next: currently in development\
\n#:global ScriptUpdatesBaseUrl \"https://raw.githubusercontent.com/eworm-de/routeros-scripts/main/\";\
\n#:global ScriptUpdatesBaseUrl \"https://raw.githubusercontent.com/eworm-de/routeros-scripts/next/\";\
\n#:global ScriptUpdatesBaseUrl \"https://gitlab.com/eworm-de/routeros-scripts/raw/main/\";\
\n#:global ScriptUpdatesBaseUrl \"https://gitlab.com/eworm-de/routeros-scripts/raw/next/\";\
\n:global ScriptUpdatesUrlSuffix \"\";\
\n# use next branch with default url (git.eworm.de)\
\n#:global ScriptUpdatesUrlSuffix \"\?h=next\";\
\n\
\n# Use this for defaults with \$ScriptRunOnce\
\n# Install module with:\
\n# \$ScriptInstallUpdate mod/scriptrunonce\
\n:global ScriptRunOnceBaseUrl \"\";\
\n:global ScriptRunOnceUrlSuffix \"\";\
\n\
\n# This project is developed in private spare time and usage is free of charge\
\n# for you. If you like the scripts and think this is of value for you or your\
\n# business please consider a donation:\
\n# https://git.eworm.de/cgit/routeros-scripts/about/#donate\
\n# Enable this to silence donation hint.\
\n:global IDonate false;\
\n\
\n# Use this for certificate auto-renew\
\n:global CertRenewUrl \"\";\
\n#:global CertRenewUrl \"https://example.com/certificates/\";\
\n:global CertRenewTime 3w;\
\n:global CertRenewPass {\
\n \"v3ry-s3cr3t\";\
\n \"4n0th3r-s3cr3t\";\
\n};\
\n:global CertWarnTime 2w;\
\n:global CertIssuedExportPass {\
\n \"cert1-cn\"=\"v3ry-s3cr3t\";\
\n \"cert2-cn\"=\"4n0th3r-s3cr3t\";\
\n};\
\n\
\n# load custom settings from overlay\
\n# Warning: Do *NOT* copy this code to overlay!\
\n:do {\
\n /system/script/run global-config-overlay;\
\n} on-error={\
\n :log error (\"Loading configuration from overlay failed!\");\
\n}\
\n"
/system script add dont-require-permissions=no name=global-config-overlay owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="# Overlay for global configuration by RouterOS Scripts\
\n# Copyright (c) 2013-2023 Christian Hesse <mail@eworm.de>\
\n# https://git.eworm.de/cgit/routeros-scripts/about/COPYING.md\
\n#\
\n# global configuration, custom overlay\
\n# https://git.eworm.de/cgit/routeros-scripts/about/#editing-configuration\
\n\
\n# Copy relevant configuration from global-config, paste and modify it here.\
\n# https://git.eworm.de/cgit/routeros-scripts/about/global-config.rsc\
\n\
\n\
\n# End of global-config-overlay\
\n"
/system script add dont-require-permissions=no name=global-functions owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="#!rsc by RouterOS\
\n# RouterOS script: global-functions\
\n# Copyright (c) 2013-2023 Christian Hesse <mail@eworm.de>\
\n# Michael Gisbers <michael@gisbers.de>\
\n# https://git.eworm.de/cgit/routeros-scripts/about/COPYING.md\
\n#\
\n# requires RouterOS, version=7.9beta4\
\n#\
\n# global functions\
\n# https://git.eworm.de/cgit/routeros-scripts/about/\
\n\
\n:local 0 \"global-functions\";\
\n\
\n# expected configuration version\
\n:global ExpectedConfigVersion 105;\
\n\
\n# global variables not to be changed by user\
\n:global GlobalFunctionsReady false;\
\n:global FetchUserAgent (\"User-Agent: Mikrotik/\" . [ /system/resource/get version ] . \" Fetch\");\
\n:global Identity [ /system/identity/get name ];\
\n\
\n# global functions\
\n:global CertificateAvailable;\
\n:global CertificateDownload;\
\n:global CertificateNameByCN;\
\n:global CharacterReplace;\
\n:global CleanFilePath;\
\n:global DeviceInfo;\
\n:global Dos2Unix;\
\n:global DownloadPackage;\
\n:global EitherOr;\
\n:global EscapeForRegEx;\
\n:global FormatLine;\
\n:global GetMacVendor;\
\n:global GetRandom20CharAlNum;\
\n:global GetRandom20CharHex;\
\n:global GetRandomNumber;\
\n:global Grep;\
\n:global HexToNum;\
\n:global IfThenElse;\
\n:global IsDefaultRouteReachable;\
\n:global IsDNSResolving;\
\n:global IsFullyConnected;\
\n:global IsMacLocallyAdministered;\
\n:global IsTimeSync;\
\n:global LogPrintExit2;\
\n:global MkDir;\
\n:global NotificationFunctions;\
\n:global ParseDate;\
\n:global ParseKeyValueStore;\
\n:global PrettyPrint;\
\n:global RandomDelay;\
\n:global Read;\
\n:global RequiredRouterOS;\
\n:global ScriptFromTerminal;\
\n:global ScriptInstallUpdate;\
\n:global ScriptLock;\
\n:global SendNotification;\
\n:global SendNotification2;\
\n:global SymbolByUnicodeName;\
\n:global SymbolForNotification;\
\n:global Unix2Dos;\
\n:global UrlEncode;\
\n:global ValidateSyntax;\
\n:global VersionToNum;\
\n:global WaitDefaultRouteReachable;\
\n:global WaitDNSResolving;\
\n:global WaitForFile;\
\n:global WaitFullyConnected;\
\n:global WaitTimeSync;\
\n\
\n# check and download required certificate\
\n:set CertificateAvailable do={\
\n :local CommonName [ :tostr \$1 ];\
\n\
\n :global CertificateDownload;\
\n :global LogPrintExit2;\
\n :global ParseKeyValueStore;\
\n\
\n :if ([ /system/resource/get free-hdd-space ] < 8388608 && \\\
\n [ /certificate/settings/get crl-download ] = true && \\\
\n [ /certificate/settings/get crl-store ] = \"system\") do={\
\n \$LogPrintExit2 warning \$0 (\"This system has low free flash space but \" . \\\
\n \"is configured to download certificate CRLs to system!\") false;\
\n }\
\n\
\n :if ([ :len [ /certificate/find where common-name=\$CommonName ] ] = 0) do={\
\n \$LogPrintExit2 info \$0 (\"Certificate with CommonName \\\"\" . \$CommonName . \"\\\" not available.\") false;\
\n :if ([ \$CertificateDownload \$CommonName ] = false) do={\
\n :return false;\
\n }\
\n }\
\n\
\n :local CertVal [ /certificate/get [ find where common-name=\$CommonName ] ];\
\n :while ((\$CertVal->\"akid\") != \"\" && (\$CertVal->\"akid\") != (\$CertVal->\"skid\")) do={\
\n :if ([ :len [ /certificate/find where skid=(\$CertVal->\"akid\") ] ] = 0) do={\
\n \$LogPrintExit2 info \$0 (\"Certificate chain for \\\"\" . \$CommonName . \\\
\n \"\\\" is incomplete, missing \\\"\" . ([ \$ParseKeyValueStore (\$CertVal->\"issuer\") ]->\"CN\") . \"\\\".\") false;\
\n :if ([ \$CertificateDownload \$CommonName ] = false) do={\
\n :return false;\
\n }\
\n }\
\n :set CertVal [ /certificate/get [ find where skid=(\$CertVal->\"akid\") ] ];\
\n }\
\n :return true;\
\n}\
\n\
\n# download and import certificate\
\n:set CertificateDownload do={\
\n :local CommonName [ :tostr \$1 ];\
\n\
\n :global FetchUserAgent;\
\n :global ScriptUpdatesBaseUrl;\
\n :global ScriptUpdatesUrlSuffix;\
\n\
\n :global CertificateNameByCN;\
\n :global LogPrintExit2;\
\n :global UrlEncode;\
\n :global WaitForFile;\
\n\
\n \$LogPrintExit2 info \$0 (\"Downloading and importing certificate with \" . \\\
\n \"CommonName \\\"\" . \$CommonName . \"\\\".\") false;\
\n :do {\
\n :local LocalFileName (\$CommonName . \".pem\");\
\n :local UrlFileName ([ \$UrlEncode \$CommonName ] . \".pem\");\
\n /tool/fetch check-certificate=yes-without-crl http-header-field=\$FetchUserAgent \\\
\n (\$ScriptUpdatesBaseUrl . \"certs/\" . \$UrlFileName . \$ScriptUpdatesUrlSuffix) \\\
\n dst-path=\$LocalFileName as-value;\
\n \$WaitForFile \$LocalFileName;\
\n /certificate/import file-name=\$LocalFileName passphrase=\"\" as-value;\
\n /file/remove \$LocalFileName;\
\n\
\n :foreach Cert in=[ /certificate/find where name~(\"^\" . \$LocalFileName . \"_[0-9]+\\\$\") ] do={\
\n \$CertificateNameByCN [ /certificate/get \$Cert common-name ];\
\n }\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Failed importing certificate with \" . \\\
\n \"CommonName \\\"\" . \$CommonName . \"\\\"!\") false;\
\n :return false;\
\n }\
\n :delay 1s;\
\n :return true;\
\n}\
\n\
\n# name a certificate by its common-name\
\n:set CertificateNameByCN do={\
\n :local CommonName [ :tostr \$1 ];\
\n\
\n :global CharacterReplace;\
\n\
\n :local Cert [ /certificate/find where common-name=\$CommonName ];\
\n /certificate/set \$Cert \\\
\n name=[ \$CharacterReplace [ \$CharacterReplace [ \$CharacterReplace \$CommonName \"'\" \"-\" ] \" \" \"-\" ] \"---\" \"-\" ];\
\n}\
\n\
\n# character replace\
\n:set CharacterReplace do={\
\n :local String [ :tostr \$1 ];\
\n :local ReplaceFrom [ :tostr \$2 ];\
\n :local ReplaceWith [ :tostr \$3 ];\
\n :local Return \"\";\
\n\
\n :if (\$ReplaceFrom = \"\") do={\
\n :return \$String;\
\n }\
\n\
\n :while ([ :typeof [ :find \$String \$ReplaceFrom ] ] != \"nil\") do={\
\n :local Pos [ :find \$String \$ReplaceFrom ];\
\n :set Return (\$Return . [ :pick \$String 0 \$Pos ] . \$ReplaceWith);\
\n :set String [ :pick \$String (\$Pos + [ :len \$ReplaceFrom ]) [ :len \$String ] ];\
\n }\
\n\
\n :return (\$Return . \$String);\
\n}\
\n\
\n# clean file path\
\n:set CleanFilePath do={\
\n :local Path [ :tostr \$1 ];\
\n\
\n :global CharacterReplace;\
\n\
\n :while (\$Path ~ \"//\") do={\
\n :set \$Path [ \$CharacterReplace \$Path \"//\" \"/\" ];\
\n }\
\n :if ([ :pick \$Path 0 ] = \"/\") do={\
\n :set Path [ :pick \$Path 1 [ :len \$Path ] ];\
\n }\
\n :if ([ :pick \$Path ([ :len \$Path ] - 1) ] = \"/\") do={\
\n :set Path [ :pick \$Path 0 ([ :len \$Path ] - 1) ];\
\n }\
\n\
\n :return \$Path;\
\n}\
\n\
\n# get readable device info\
\n:set DeviceInfo do={\
\n :global ExpectedConfigVersion;\
\n :global Identity;\
\n\
\n :global IfThenElse;\
\n :global FormatLine;\
\n\
\n :local Resource [ /system/resource/get ];\
\n :local RouterBoard;\
\n :do {\
\n :set RouterBoard [[ :parse \"/system/routerboard/get\" ]];\
\n } on-error={ }\
\n :local License [ /system/license/get ];\
\n :local Update [ /system/package/update/get ];\
\n\
\n :return ( \\\
\n [ \$FormatLine \"Hostname\" \$Identity ] . \"\\n\" . \\\
\n [ \$FormatLine \"Board name\" (\$Resource->\"board-name\") ] . \"\\n\" . \\\
\n [ \$FormatLine \"Architecture\" (\$Resource->\"architecture-name\") ] . \"\\n\" . \\\
\n [ \$IfThenElse (\$RouterBoard->\"routerboard\" = true) \\\
\n ([ \$FormatLine \"Model\" (\$RouterBoard->\"model\") ] . \\\
\n [ \$IfThenElse ([ :len (\$RouterBoard->\"revision\") ] > 0) \\\
\n (\" \" . \$RouterBoard->\"revision\") ] . \"\\n\" . \\\
\n [ \$FormatLine \"Serial number\" (\$RouterBoard->\"serial-number\") ] . \"\\n\") ] . \\\
\n [ \$IfThenElse ([ :len (\$License->\"level\") ] > 0) \\\
\n ([ \$FormatLine \"License\" (\$License->\"level\") ] . \"\\n\") ] . \\\
\n \"RouterOS:\\n\" . \\\
\n [ \$FormatLine \" Channel\" (\$Update->\"channel\") ] . \"\\n\" . \\\
\n [ \$FormatLine \" Installed\" (\$Update->\"installed-version\") ] . \"\\n\" . \\\
\n [ \$IfThenElse ([ :typeof (\$Update->\"latest-version\") ] != \"nothing\" && \\\
\n \$Update->\"installed-version\" != \$Update->\"latest-version\") \\\
\n ([ \$FormatLine \" Available\" (\$Update->\"latest-version\") ] . \"\\n\") ] . \\\
\n [ \$IfThenElse (\$RouterBoard->\"routerboard\" = true && \\\
\n \$RouterBoard->\"current-firmware\" != \$RouterBoard->\"upgrade-firmware\") \\\
\n ([ \$FormatLine \" Firmware\" (\$RouterBoard->\"current-firmware\") ] . \"\\n\") ] . \\\
\n \"RouterOS-Scripts:\\n\" . \\\
\n [ \$FormatLine \" Version\" \$ExpectedConfigVersion ]);\
\n}\
\n\
\n# convert line endings, DOS -> UNIX\
\n:set Dos2Unix do={\
\n :local Input [ :tostr \$1 ];\
\n\
\n :global CharacterReplace;\
\n\
\n :return [ \$CharacterReplace \$Input (\"\\r\\n\") (\"\\n\") ];\
\n}\
\n\
\n# download package from upgrade server\
\n:set DownloadPackage do={\
\n :local PkgName [ :tostr \$1 ];\
\n :local PkgVer [ :tostr \$2 ];\
\n :local PkgArch [ :tostr \$3 ];\
\n :local PkgDir [ :tostr \$4 ];\
\n\
\n :global CertificateAvailable;\
\n :global CleanFilePath;\
\n :global LogPrintExit2;\
\n :global MkDir;\
\n :global WaitForFile;\
\n\
\n :if ([ :len \$PkgName ] = 0) do={ :return false; }\
\n :if ([ :len \$PkgVer ] = 0) do={ :set PkgVer [ /system/package/update/get installed-version ]; }\
\n :if ([ :len \$PkgArch ] = 0) do={ :set PkgArch [ /system/resource/get architecture-name ]; }\
\n\
\n :if (\$PkgName = \"system\") do={ :set PkgName \"routeros\"; }\
\n\
\n :local PkgFile (\$PkgName . \"-\" . \$PkgVer . \"-\" . \$PkgArch . \".npk\");\
\n :if (\$PkgArch = \"x86_64\") do={ :set PkgFile (\$PkgName . \"-\" . \$PkgVer . \".npk\"); }\
\n :local PkgDest [ \$CleanFilePath (\$PkgDir . \"/\" . \$PkgFile) ];\
\n\
\n :if ([ \$MkDir \$PkgDir ] = false) do={\
\n \$LogPrintExit2 warning \$0 (\"Failed creating directory, not downloading package.\") false;\
\n :return false;\
\n }\
\n\
\n :if ([ :len [ /file/find where name=\$PkgDest type=\"package\" ] ] > 0) do={\
\n \$LogPrintExit2 info \$0 (\"Package file \" . \$PkgName . \" already exists.\") false;\
\n :return true;\
\n }\
\n\
\n :if ([ \$CertificateAvailable \"R3\" ] = false) do={\
\n \$LogPrintExit2 error \$0 (\"Downloading required certificate failed.\") true;\
\n }\
\n\
\n :local Url (\"https://upgrade.mikrotik.com/routeros/\" . \$PkgVer . \"/\" . \$PkgFile);\
\n \$LogPrintExit2 info \$0 (\"Downloading package file '\" . \$PkgName . \"'...\") false;\
\n \$LogPrintExit2 debug \$0 (\"... from url: \" . \$Url) false;\
\n :local Retry 3;\
\n :while (\$Retry > 0) do={\
\n :do {\
\n /tool/fetch check-certificate=yes-without-crl \$Url dst-path=\$PkgDest;\
\n \$WaitForFile \$PkgDest;\
\n\
\n :if ([ /file/get [ find where name=\$PkgDest ] type ] = \"package\") do={\
\n :return true;\
\n }\
\n } on-error={\
\n \$LogPrintExit2 debug \$0 (\"Downloading package file failed.\") false;\
\n }\
\n\
\n /file/remove [ find where name=\$PkgDest ];\
\n :set Retry (\$Retry - 1);\
\n }\
\n\
\n \$LogPrintExit2 warning \$0 (\"Downloading package file '\" . \$PkgName . \"' failed.\") false;\
\n :return false;\
\n}\
\n\
\n# return either first (if \"true\") or second\
\n:set EitherOr do={\
\n :global IfThenElse;\
\n\
\n :if ([ :typeof \$1 ] = \"num\") do={\
\n :return [ \$IfThenElse (\$1 != 0) \$1 \$2 ];\
\n }\
\n :if ([ :typeof \$1 ] = \"time\") do={\
\n :return [ \$IfThenElse (\$1 > 0s) \$1 \$2 ];\
\n }\
\n :return [ \$IfThenElse ([ :len [ :tostr \$1 ] ] > 0) \$1 \$2 ];\
\n}\
\n\
\n# escape for regular expression\
\n:set EscapeForRegEx do={\
\n :local Input [ :tostr \$1 ];\
\n\
\n :if ([ :len \$Input ] = 0) do={\
\n :return \"\";\
\n }\
\n\
\n :local Return \"\";\
\n :local Chars (\"^.[]\\\$()|*+\?{}\\\\\");\
\n\
\n :for I from=0 to=([ :len \$Input ] - 1) do={\
\n :local Char [ :pick \$Input \$I ];\
\n :if ([ :find \$Chars \$Char ]) do={\
\n :set Char (\"\\\\\" . \$Char);\
\n }\
\n :set Return (\$Return . \$Char);\
\n }\
\n\
\n :return \$Return;\
\n}\
\n\
\n# format a line for output\
\n:set FormatLine do={\
\n :local Key [ :tostr \$1 ];\
\n :local Values [ :toarray \$2 ];\
\n :local Indent [ :tonum \$3 ];\
\n :local Spaces \" \";\
\n :local Return \"\";\
\n\
\n :global EitherOr;\
\n :global FormatLine;\
\n\
\n :set Indent [ \$EitherOr \$Indent 16 ];\
\n\
\n :if ([ :len \$Key ] > 0) do={ :set Return (\$Key . \":\"); }\
\n :if ([ :len \$Key ] > (\$Indent - 2)) do={\
\n :set Return (\$Return . \"\\n\" . [ :pick \$Spaces 0 \$Indent ] . (\$Values->0));\
\n } else={\
\n :set Return (\$Return . [ :pick \$Spaces 0 (\$Indent - [ :len \$Return ]) ] . (\$Values->0));\
\n }\
\n :foreach Value in=[ :pick \$Values 1 [ :len \$Values ] ] do={\
\n :set Return (\$Return . \"\\n\" . [ \$FormatLine \"\" ({\$Value}) \$Indent ]);\
\n }\
\n\
\n :return \$Return;\
\n}\
\n\
\n# get MAC vendor\
\n:set GetMacVendor do={\
\n :local Mac [ :tostr \$1 ];\
\n\
\n :global CertificateAvailable;\
\n :global IsMacLocallyAdministered;\
\n :global LogPrintExit2;\
\n\
\n :if ([ \$IsMacLocallyAdministered \$Mac ] = true) do={\
\n :return \"locally administered\";\
\n }\
\n\
\n :do {\
\n :if ([ \$CertificateAvailable \"R3\" ] = false) do={\
\n \$LogPrintExit2 warning \$0 (\"Downloading required certificate failed.\") true;\
\n }\
\n :local Vendor ([ /tool/fetch check-certificate=yes-without-crl \\\
\n (\"https://api.macvendors.com/\" . [ :pick \$Mac 0 8 ]) output=user as-value ]->\"data\");\
\n :return \$Vendor;\
\n } on-error={\
\n :do {\
\n /tool/fetch check-certificate=yes-without-crl (\"https://api.macvendors.com/\") \\\
\n output=none as-value;\
\n \$LogPrintExit2 debug \$0 (\"The mac vendor is not known in database.\") false;\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Failed getting mac vendor.\") false;\
\n }\
\n :return \"unknown vendor\";\
\n }\
\n}\
\n\
\n# generate random 20 chars alphabetical (A-Z & a-z) and numerical (0-9)\
\n:set GetRandom20CharAlNum do={\
\n :global EitherOr;\
\n\
\n :return [ :rndstr length=[ \$EitherOr [ :tonum \$1 ] 20 ] from=\"ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789\" ];\
\n}\
\n\
\n# generate random 20 chars hex (0-9 and a-f)\
\n:set GetRandom20CharHex do={\
\n :global EitherOr;\
\n\
\n :return [ :rndstr length=[ \$EitherOr [ :tonum \$1 ] 20 ] from=\"0123456789abcdef\" ];\
\n}\
\n\
\n# generate random number\
\n:set GetRandomNumber do={\
\n :global EitherOr;\
\n\
\n :return [ :rndnum from=0 to=[ \$EitherOr [ :tonum \$1 ] 4294967295 ] ];\
\n}\
\n\
\n# return first line that matches a pattern\
\n:set Grep do={\
\n :local Input ([ :tostr \$1 ] . \"\\n\");\
\n :local Pattern [ :tostr \$2 ];\
\n\
\n :if ([ :typeof [ :find \$Input \$Pattern ] ] = \"nil\") do={\
\n :return [];\
\n }\
\n\
\n :do {\
\n :local Line [ :pick \$Input 0 [ :find \$Input \"\\n\" ] ];\
\n :if ([ :typeof [ :find \$Line \$Pattern ] ] = \"num\") do={\
\n :return \$Line;\
\n }\
\n :set Input [ :pick \$Input ([ :find \$Input \"\\n\" ] + 1) [ :len \$Input ] ];\
\n } while=([ :len \$Input ] > 0);\
\n\
\n :return [];\
\n}\
\n\
\n# convert from hex (string) to num\
\n:set HexToNum do={\
\n :local Input [ :tostr \$1 ];\
\n :local Hex \"0123456789abcdef0123456789ABCDEF\";\
\n :local Multi 1;\
\n :local Return 0;\
\n\
\n :for I from=([ :len \$Input ] - 1) to=0 do={\
\n :set Return (\$Return + (([ :find \$Hex [ :pick \$Input \$I ] ] % 16) * \$Multi));\
\n :set Multi (\$Multi * 16);\
\n }\
\n\
\n :return \$Return;\
\n}\
\n\
\n# mimic conditional/ternary operator (condition \? consequent : alternative)\
\n:set IfThenElse do={\
\n :if ([ :tostr \$1 ] = \"true\" || [ :tobool \$1 ] = true) do={\
\n :return \$2;\
\n }\
\n :return \$3;\
\n}\
\n\
\n# check if default route is reachable\
\n:set IsDefaultRouteReachable do={\
\n :if ([ :len [ /ip/route/find where dst-address=0.0.0.0/0 active routing-table=main ] ] > 0) do={\
\n :return true;\
\n }\
\n :return false;\
\n}\
\n\
\n# check if DNS is resolving\
\n:set IsDNSResolving do={\
\n :global CharacterReplace;\
\n\
\n :do {\
\n :resolve \"low-ttl.eworm.de\";\
\n } on-error={\
\n :return false;\
\n }\
\n :return true;\
\n}\
\n\
\n# check if system is is fully connected (default route reachable, DNS resolving, time sync)\
\n:set IsFullyConnected do={\
\n :global IsDefaultRouteReachable;\
\n :global IsDNSResolving;\
\n :global IsTimeSync;\
\n\
\n :if ([ \$IsDefaultRouteReachable ] = false) do={\
\n :return false;\
\n }\
\n :if ([ \$IsDNSResolving ] = false) do={\
\n :return false;\
\n }\
\n :if ([ \$IsTimeSync ] = false) do={\
\n :return false;\
\n }\
\n :return true;\
\n}\
\n\
\n# check if mac address is locally administered\
\n:set IsMacLocallyAdministered do={\
\n :if ([ :tonum (\"0x\" . [ :pick \$1 0 [ :find \$1 \":\" ] ]) ] & 2 = 2) do={\
\n :return true;\
\n }\
\n :return false;\
\n}\
\n\
\n# check if system time is sync\
\n:set IsTimeSync do={\
\n :global IsTimeSyncCached;\
\n :global IsTimeSyncResetNtp;\
\n\
\n :global LogPrintExit2;\
\n\
\n :if (\$IsTimeSyncCached = true) do={\
\n :return true;\
\n }\
\n\
\n :if ([ /system/ntp/client/get enabled ] = true) do={\
\n :if ([ /system/ntp/client/get status ] = \"synchronized\") do={\
\n :set IsTimeSyncCached true;\
\n :return true;\
\n }\
\n\
\n :if ([ :typeof \$IsTimeSyncResetNtp ] = \"nothing\") do={\
\n :set IsTimeSyncResetNtp 0s;\
\n }\
\n :local Uptime [ /system/resource/get uptime ];\
\n :if (\$Uptime - \$IsTimeSyncResetNtp < 3m) do={\
\n :return false;\
\n }\
\n\
\n :set IsTimeSyncResetNtp \$Uptime;\
\n /system/ntp/client/set enabled=no;\
\n :delay 20ms;\
\n /system/ntp/client/set enabled=yes;\
\n :return false;\
\n }\
\n\
\n :if ([ /system/license/get ]->\"level\" = \"free\" || \\\
\n [ /system/resource/get ]->\"board-name\" = \"x86\") do={\
\n \$LogPrintExit2 debug \$0 (\"No ntp client configured, relying on RTC for CHR free license and x86.\") false;\
\n :return true;\
\n }\
\n\
\n :if ([ /ip/cloud/get update-time ] = true) do={\
\n :if ([ :typeof [ /ip/cloud/get public-address ] ] = \"ip\") do={\
\n :set IsTimeSyncCached true;\
\n :return true;\
\n }\
\n :return false;\
\n }\
\n\
\n \$LogPrintExit2 debug \$0 (\"No time source configured! Returning gracefully...\") false;\
\n :return true;\
\n}\
\n\
\n# log and print with same text, optionally exit\
\n:set LogPrintExit2 do={\
\n :local Severity [ :tostr \$1 ];\
\n :local Name [ :tostr \$2 ];\
\n :local Message [ :tostr \$3 ];\
\n :local Exit [ :tostr \$4 ];\
\n\
\n :global PrintDebug;\
\n :global PrintDebugOverride;\
\n\
\n :global EitherOr;\
\n\
\n :local Debug [ \$EitherOr (\$PrintDebugOverride->\$Name) \$PrintDebug ];\
\n\
\n :local PrintSeverity do={\
\n :global TerminalColorOutput;\
\n\
\n :if (\$TerminalColorOutput != true) do={\
\n :return \$1;\
\n }\
\n\
\n :local Color { debug=96; info=97; warning=93; error=91 };\
\n :return (\"\\1B[\" . \$Color->\$1 . \"m\" . \$1 . \"\\1B[0m\");\
\n }\
\n\
\n :local Log ([ \$EitherOr \$Name \"<unknown>\" ] . \": \" . \$Message);\
\n :if (\$Severity ~ (\"^(debug|error|info)\\\$\")) do={\
\n :if (\$Severity = \"debug\") do={ :log debug \$Log; }\
\n :if (\$Severity = \"error\") do={ :log error \$Log; }\
\n :if (\$Severity = \"info\" ) do={ :log info \$Log; }\
\n } else={\
\n :log warning \$Log;\
\n :set Severity \"warning\";\
\n }\
\n\
\n :if (\$Severity != \"debug\" || \$Debug = true) do={\
\n :put ([ \$PrintSeverity \$Severity ] . \": \" . \$Message);\
\n }\
\n\
\n :if (\$Exit = \"true\") do={\
\n :error (\"Hard error to exit.\");\
\n }\
\n}\
\n\
\n# create directory\
\n:set MkDir do={\
\n :local Path [ :tostr \$1 ];\
\n\
\n :global CharacterReplace;\
\n :global CleanFilePath;\
\n :global GetRandom20CharAlNum;\
\n :global LogPrintExit2;\
\n :global WaitForFile;\
\n\
\n :local MkTmpfs do={\
\n :global LogPrintExit2;\
\n :global WaitForFile;\
\n\
\n :if ([ :len [ /disk/find where slot=tmpfs type=tmpfs ] ] = 1) do={\
\n :return true;\
\n }\
\n\
\n \$LogPrintExit2 info \$0 (\"Creating disk of type tmpfs.\") false;\
\n /file/remove [ find where name=\"tmpfs\" type=\"directory\" ];\
\n :do {\
\n /disk/add slot=tmpfs type=tmpfs tmpfs-max-size=([ /system/resource/get total-memory ] / 3);\
\n \$WaitForFile \"tmpfs\";\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Creating disk of type tmpfs failed!\") false;\
\n :return false;\
\n }\
\n :return true;\
\n }\
\n\
\n :set Path [ \$CleanFilePath \$Path ];\
\n\
\n :if (\$Path = \"\") do={\
\n :return true;\
\n }\
\n\
\n :if ([ :len [ /file/find where name=\$Path type=\"directory\" ] ] = 1) do={\
\n :return true;\
\n }\
\n\
\n :if ([ :pick \$Path 0 5 ] = \"tmpfs\") do={\
\n :if ([ \$MkTmpfs ] = false) do={\
\n :return false;\
\n }\
\n }\
\n\
\n :do {\
\n :local File (\$Path . \"/file\");\
\n /file/add name=\$File;\
\n \$WaitForFile \$File;\
\n /file/remove \$File;\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Making directory '\" . \$Path . \"' failed!\") false;\
\n :return false;\
\n }\
\n\
\n :return true;\
\n}\
\n\
\n# prepare NotificationFunctions array\
\n:if ([ :typeof \$NotificationFunctions ] != \"array\") do={\
\n :set NotificationFunctions ({});\
\n}\
\n\
\n# parse the date and return a named array\
\n:set ParseDate do={\
\n :local Date [ :tostr \$1 ];\
\n\
\n :if ([ :pick \$Date 4 5 ] != \"-\") do={\
\n :local Months { \"jan\"=1; \"feb\"=2; \"mar\"=3; \"apr\"=4; \"may\"=5; \"jun\"=6;\
\n \"jul\"=7; \"aug\"=8; \"sep\"=9; \"oct\"=10; \"nov\"=11; \"dec\"=12 };\
\n\
\n :return ({ \"year\"=[ :tonum [ :pick \$Date 7 11 ] ];\
\n \"month\"=(\$Months->[ :pick \$Date 0 3 ]);\
\n \"day\"=[ :tonum [ :pick \$Date 4 6 ] ] });\
\n }\
\n\
\n :return ({ \"year\"=[ :tonum [ :pick \$Date 0 4 ] ];\
\n \"month\"=[ :tonum [ :pick \$Date 5 7 ] ];\
\n \"day\"=[ :tonum [ :pick \$Date 8 10 ] ] });\
\n}\
\n\
\n# parse key value store\
\n:set ParseKeyValueStore do={\
\n :local Source \$1;\
\n :if ([ :typeof \$Source ] != \"array\") do={\
\n :set Source [ :tostr \$1 ];\
\n }\
\n :local Result ({});\
\n :foreach KeyValue in=[ :toarray \$Source ] do={\
\n :if ([ :find \$KeyValue \"=\" ]) do={\
\n :set (\$Result->[ :pick \$KeyValue 0 [ :find \$KeyValue \"=\" ] ]) \\\
\n [ :pick \$KeyValue ([ :find \$KeyValue \"=\" ] + 1) [ :len \$KeyValue ] ];\
\n } else={\
\n :set (\$Result->\$KeyValue) true;\
\n }\
\n }\
\n :return \$Result;\
\n}\
\n\
\n# print lines with trailing carriage return\
\n:set PrettyPrint do={\
\n :local Input [ :tostr \$1 ];\
\n\
\n :global Unix2Dos;\
\n\
\n :put [ \$Unix2Dos \$Input ];\
\n}\
\n\
\n# delay a random amount of seconds\
\n:set RandomDelay do={\
\n :global EitherOr;\
\n :global GetRandomNumber;\
\n\
\n :delay ([ \$GetRandomNumber \$1 ] . [ \$EitherOr \$2 \"s\" ]);\
\n}\
\n\
\n# read input from user\
\n:set Read do={\
\n :return;\
\n}\
\n\
\n# check for required RouterOS version\
\n:set RequiredRouterOS do={\
\n :local Caller [ :tostr \$1 ];\
\n :local Required [ :tostr \$2 ];\
\n :local Warn [ :tostr \$3 ];\
\n\
\n :global IfThenElse;\
\n :global LogPrintExit2;\
\n :global VersionToNum;\
\n\
\n :if (!(\$Required ~ \"^\\\\d+\\\\.\\\\d+((alpha|beta|rc|\\\\.)\\\\d+|)\\\$\")) do={\
\n \$LogPrintExit2 error \$0 (\"No valid RouterOS version: \" . \$Required) false;\
\n :return false;\
\n }\
\n\
\n :if ([ \$VersionToNum \$Required ] > [ \$VersionToNum [ /system/package/update/get installed-version ] ]) do={\
\n :if (\$Warn = \"true\") do={\
\n \$LogPrintExit2 warning \$0 (\"This \" . [ \$IfThenElse ([ :pick \$Caller 0 ] = (\"\\\$\")) \"function\" \"script\" ] . \\\
\n \" '\" . \$Caller . \"' (at least specific functionality) requires RouterOS \" . \$Required . \". Please update!\") false;\
\n }\
\n :return false;\
\n }\
\n :return true;\
\n}\
\n\
\n# check if script is run from terminal\
\n:set ScriptFromTerminal do={\
\n :local Script [ :tostr \$1 ];\
\n\
\n :global LogPrintExit2;\
\n\
\n :foreach Job in=[ /system/script/job/find where script=\$Script ] do={\
\n :set Job [ /system/script/job/get \$Job ];\
\n :while ([ :typeof (\$Job->\"parent\") ] = \"id\") do={\
\n :set Job [ /system/script/job/get [ find where .id=(\$Job->\"parent\") ] ];\
\n }\
\n :if ((\$Job->\"type\") = \"login\") do={\
\n \$LogPrintExit2 debug \$0 (\"Script \" . \$Script . \" started from terminal.\") false;\
\n :return true;\
\n }\
\n }\
\n \$LogPrintExit2 debug \$0 (\"Script \" . \$Script . \" NOT started from terminal.\") false;\
\n\
\n :return false;\
\n}\
\n\
\n# install new scripts, update existing scripts\
\n:set ScriptInstallUpdate do={\
\n :local Scripts [ :toarray \$1 ];\
\n :local NewComment [ :tostr \$2 ];\
\n\
\n :global ExpectedConfigVersion;\
\n :global FetchUserAgent;\
\n :global Identity;\
\n :global IDonate;\
\n :global NoNewsAndChangesNotification;\
\n :global NotificationsWithSymbols;\
\n :global ScriptUpdatesBaseUrl;\
\n :global ScriptUpdatesFetch;\
\n :global ScriptUpdatesUrlSuffix;\
\n\
\n :global CertificateAvailable;\
\n :global EitherOr;\
\n :global Grep;\
\n :global IfThenElse;\
\n :global LogPrintExit2;\
\n :global ParseKeyValueStore;\
\n :global RequiredRouterOS;\
\n :global SendNotification2;\
\n :global SymbolForNotification;\
\n :global ValidateSyntax;\
\n\
\n :if ([ \$CertificateAvailable \"R3\" ] = false) do={\
\n \$LogPrintExit2 warning \$0 (\"Downloading certificate failed, trying without.\") false;\
\n }\
\n\
\n :if ([ \$CertificateAvailable \"E1\" ] = false) do={\
\n \$LogPrintExit2 warning \$0 (\"Downloading certificate failed, trying without.\") false;\
\n }\
\n\
\n :foreach Script in=\$Scripts do={\
\n :if ([ :len [ /system/script/find where name=\$Script ] ] = 0) do={\
\n \$LogPrintExit2 info \$0 (\"Adding new script: \" . \$Script) false;\
\n /system/script/add name=\$Script owner=\$Script source=\"#!rsc by RouterOS\\n\" comment=\$NewComment;\
\n }\
\n }\
\n\
\n :local ExpectedConfigVersionBefore \$ExpectedConfigVersion;\
\n :local ReloadGlobalFunctions false;\
\n :local ReloadGlobalConfig false;\
\n\
\n :foreach Script in=[ /system/script/find where source~\"^#!rsc by RouterOS\\r\?\\n\" ] do={\
\n :local ScriptVal [ /system/script/get \$Script ];\
\n :local ScriptFile [ /file/find where name=(\"script-updates/\" . \$ScriptVal->\"name\") . \".rsc\" ];\
\n :local SourceNew;\
\n :if ([ :len \$ScriptFile ] > 0) do={\
\n :set SourceNew [ /file/get \$ScriptFile contents ];\
\n /file/remove \$ScriptFile;\
\n }\
\n\
\n :foreach Scheduler in=[ /system/scheduler/find where on-event~(\"\\\\b\" . \$ScriptVal->\"name\" . \"\\\\b\") ] do={\
\n :local SchedulerVal [ /system/scheduler/get \$Scheduler ];\
\n :if (\$ScriptVal->\"policy\" != \$SchedulerVal->\"policy\") do={\
\n \$LogPrintExit2 warning \$0 (\"Policies differ for script '\" . \$ScriptVal->\"name\" . \\\
\n \"' and its scheduler '\" . \$SchedulerVal->\"name\" . \"'!\") false;\
\n }\
\n }\
\n\
\n :if ([ :len \$SourceNew ] = 0 && \$ScriptUpdatesFetch = true) do={\
\n :local Comment [ \$ParseKeyValueStore (\$ScriptVal->\"comment\") ];\
\n :if (!(\$Comment->\"ignore\" = true)) do={\
\n :do {\
\n :local BaseUrl \$ScriptUpdatesBaseUrl;\
\n :local UrlSuffix \$ScriptUpdatesUrlSuffix;\
\n :if ([ :typeof (\$Comment->\"base-url\") ] = \"str\") do={ :set BaseUrl (\$Comment->\"base-url\"); }\
\n :if ([ :typeof (\$Comment->\"url-suffix\") ] = \"str\") do={ :set UrlSuffix (\$Comment->\"url-suffix\"); }\
\n :local Url (\$BaseUrl . \$ScriptVal->\"name\" . \".rsc\" . \$UrlSuffix);\
\n\
\n \$LogPrintExit2 debug \$0 (\"Fetching script '\" . \$ScriptVal->\"name\" . \"' from url: \" . \$Url) false;\
\n :local Result [ /tool/fetch check-certificate=yes-without-crl http-header-field=\$FetchUserAgent \\\
\n \$Url output=user as-value ];\
\n :if (\$Result->\"status\" = \"finished\") do={\
\n :set SourceNew (\$Result->\"data\");\
\n }\
\n } on-error={\
\n :if (\$ScriptVal->\"source\" = \"#!rsc by RouterOS\\n\") do={\
\n \$LogPrintExit2 warning \$0 (\"Failed fetching script '\" . \$ScriptVal->\"name\" . \\\
\n \"', removing dummy. Typo on installation\?\") false;\
\n /system/script/remove \$Script;\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"Failed fetching script '\" . \$ScriptVal->\"name\" . \"'!\") false;\
\n }\
\n }\
\n }\
\n }\
\n\
\n :if ([ :len \$SourceNew ] > 0) do={\
\n :if (\$SourceNew != \$ScriptVal->\"source\") do={\
\n :if ([ :pick \$SourceNew 0 18 ] = \"#!rsc by RouterOS\\n\") do={\
\n :local Required ([ \$ParseKeyValueStore [ \$Grep \$SourceNew (\"\\23 requires RouterOS, \") ] ]->\"version\");\
\n :if ([ \$RequiredRouterOS \$0 [ \$EitherOr \$Required \"0.0\" ] false ] = true) do={\
\n :if ([ \$ValidateSyntax \$SourceNew ] = true) do={\
\n \$LogPrintExit2 info \$0 (\"Updating script: \" . \$ScriptVal->\"name\") false;\
\n /system/script/set owner=(\$ScriptVal->\"name\") source=\$SourceNew \$Script;\
\n :if (\$ScriptVal->\"name\" = \"global-config\") do={\
\n :set ReloadGlobalConfig true;\
\n }\
\n :if (\$ScriptVal->\"name\" = \"global-functions\" || \$ScriptVal->\"name\" ~ (\"^mod/.\")) do={\
\n :set ReloadGlobalFunctions true;\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"Syntax validation for script '\" . \$ScriptVal->\"name\" . \\\
\n \"' failed! Ignoring!\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"The script '\" . \$ScriptVal->\"name\" . \"' requires RouterOS \" . \\\
\n \$Required . \", which is not met by your installation. Ignoring!\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"Looks like new script '\" . \$ScriptVal->\"name\" . \\\
\n \"' is not valid (missing shebang). Ignoring!\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 debug \$0 (\"Script '\" . \$ScriptVal->\"name\" . \"' did not change.\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 debug \$0 (\"No update for script '\" . \$ScriptVal->\"name\" . \"'.\") false;\
\n }\
\n }\
\n\
\n :if (\$ReloadGlobalFunctions = true) do={\
\n \$LogPrintExit2 info \$0 (\"Reloading global functions.\") false;\
\n :do {\
\n /system/script/run global-functions;\
\n } on-error={\
\n \$LogPrintExit2 error \$0 (\"Reloading global functions failed!\") false;\
\n }\
\n }\
\n\
\n :if (\$ReloadGlobalConfig = true) do={\
\n \$LogPrintExit2 info \$0 (\"Reloading global configuration.\") false;\
\n :do {\
\n /system/script/run global-config;\
\n } on-error={\
\n \$LogPrintExit2 error \$0 (\"Reloading global configuration failed!\" . \\\
\n \" Syntax error or missing overlay\?\") false;\
\n }\
\n }\
\n\
\n :if (\$ExpectedConfigVersionBefore > \$ExpectedConfigVersion) do={\
\n \$LogPrintExit2 warning \$0 (\"The configuration version decreased from \" . \\\
\n \$ExpectedConfigVersionBefore . \" to \" . \$ExpectedConfigVersion . \\\
\n \". Installed an older version\?\") false;\
\n }\
\n\
\n :if (\$ExpectedConfigVersionBefore < \$ExpectedConfigVersion) do={\
\n :global GlobalConfigChanges;\
\n :global GlobalConfigMigration;\
\n :local ChangeLogCode;\
\n\
\n :do {\
\n :local Url (\$ScriptUpdatesBaseUrl . \"news-and-changes.rsc\" . \$ScriptUpdatesUrlSuffix);\
\n \$LogPrintExit2 debug \$0 (\"Fetching news, changes and migration: \" . \$Url) false;\
\n :local Result [ /tool/fetch check-certificate=yes-without-crl http-header-field=\$FetchUserAgent \\\
\n \$Url output=user as-value ];\
\n :if (\$Result->\"status\" = \"finished\") do={\
\n :set ChangeLogCode (\$Result->\"data\");\
\n }\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Failed fetching news, changes and migration!\") false;\
\n }\
\n\
\n :if ([ :len \$ChangeLogCode ] > 0) do={\
\n :if ([ \$ValidateSyntax \$ChangeLogCode ] = true) do={\
\n :do {\
\n [ :parse \$ChangeLogCode ];\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"The changelog failed to run!\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"The changelog failed syntax validation!\") false;\
\n }\
\n }\
\n\
\n :if ([ :len \$GlobalConfigMigration ] > 0) do={\
\n :for I from=(\$ExpectedConfigVersionBefore + 1) to=\$ExpectedConfigVersion do={\
\n :local Migration (\$GlobalConfigMigration->[ :tostr \$I ]);\
\n :if ([ :typeof \$Migration ] = \"str\") do={\
\n :if ([ \$ValidateSyntax \$Migration ] = true) do={\
\n \$LogPrintExit2 info \$0 (\"Applying migration for change \" . \$I . \": \" . \$Migration) false;\
\n :do {\
\n [ :parse \$Migration ];\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"Migration code for change \" . \$I . \" failed to run!\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"Migration code for change \" . \$I . \" failed syntax validation!\") false;\
\n }\
\n }\
\n }\
\n }\
\n\
\n :local NotificationMessage (\"The configuration version on \" . \$Identity . \" increased \" . \\\
\n \"to \" . \$ExpectedConfigVersion . \", current configuration may need modification. \" . \\\
\n \"Please review and update global-config-overlay, then re-run global-config.\");\
\n \$LogPrintExit2 info \$0 (\$NotificationMessage) false;\
\n\
\n :if ([ :len \$GlobalConfigChanges ] > 0) do={\
\n :set NotificationMessage (\$NotificationMessage . \"\\n\\nChanges:\");\
\n :for I from=(\$ExpectedConfigVersionBefore + 1) to=\$ExpectedConfigVersion do={\
\n :local Change (\$GlobalConfigChanges->[ :tostr \$I ]);\
\n :set NotificationMessage (\$NotificationMessage . \"\\n \" . \\\
\n [ \$IfThenElse (\$NotificationsWithSymbols = true) (\"\\E2\\97\\8F\") \"*\" ] . \" \" . \$Change);\
\n \$LogPrintExit2 info \$0 (\"Change \" . \$I . \": \" . \$Change) false;\
\n }\
\n } else={\
\n :set NotificationMessage (\$NotificationMessage . \"\\n\\nNews and changes are not available.\");\
\n }\
\n\
\n :if (\$NoNewsAndChangesNotification != true) do={\
\n :local Link;\
\n :if (\$IDonate != true) do={\
\n :set NotificationMessage (\$NotificationMessage . \\\
\n \"\\n\\n==== donation hint ====\\n\" . \\\
\n \"This project is developed in private spare time and usage is \" . \\\
\n \"free of charge for you. If you like the scripts and think this is \" . \\\
\n \"of value for you or your business please consider a donation.\");\
\n :set Link \"https://git.eworm.de/cgit/routeros-scripts/about/#donate\";\
\n }\
\n\
\n \$SendNotification2 ({ origin=\$0; \\\
\n subject=([ \$SymbolForNotification \"pushpin\" ] . \"News and configuration changes\"); \\\
\n message=\$NotificationMessage; link=\$Link });\
\n }\
\n\
\n :set GlobalConfigChanges;\
\n :set GlobalConfigMigration;\
\n }\
\n}\
\n\
\n# lock script against multiple invocation\
\n:set ScriptLock do={\
\n :local Script [ :tostr \$1 ];\
\n :local DoReturn \$2;\
\n :local WaitMax ([ :tonum \$3 ] * 10);\
\n\
\n :global GetRandom20CharAlNum;\
\n :global IfThenElse;\
\n :global LogPrintExit2;\
\n\
\n :global ScriptLockOrder;\
\n :if ([ :typeof \$ScriptLockOrder ] = \"nothing\") do={\
\n :set ScriptLockOrder ({});\
\n }\
\n :if ([ :typeof (\$ScriptLockOrder->\$Script) ] = \"nothing\") do={\
\n :set (\$ScriptLockOrder->\$Script) ({});\
\n }\
\n\
\n :local JobCount do={\
\n :local Script [ :tostr \$1 ];\
\n\
\n :return [ :len [ /system/script/job/find where script=\$Script ] ];\
\n }\
\n\
\n :local TicketCount do={\
\n :local Script [ :tostr \$1 ];\
\n\
\n :global ScriptLockOrder;\
\n\
\n :local Count 0;\
\n :foreach Ticket in=(\$ScriptLockOrder->\$Script) do={\
\n :if ([ :typeof \$Ticket ] != \"nothing\") do={\
\n :set Count (\$Count + 1);\
\n }\
\n }\
\n :return \$Count;\
\n }\
\n\
\n :local IsFirstTicket do={\
\n :local Script [ :tostr \$1 ];\
\n :local Check [ :tostr \$2 ];\
\n\
\n :global ScriptLockOrder;\
\n\
\n :foreach Ticket in=(\$ScriptLockOrder->\$Script) do={\
\n :if (\$Ticket = \$Check) do={ :return true; }\
\n :if ([ :typeof \$Ticket ] != \"nothing\" && \$Ticket != \$Check) do={ :return false; }\
\n }\
\n :return false;\
\n }\
\n\
\n :local AddTicket do={\
\n :local Script [ :tostr \$1 ];\
\n :local Add [ :tostr \$2 ];\
\n\
\n :global ScriptLockOrder;\
\n\
\n :while (true) do={\
\n :local Pos [ :len (\$ScriptLockOrder->\$Script) ];\
\n :set (\$ScriptLockOrder->\$Script->\$Pos) \$Add;\
\n :delay 10ms;\
\n :if ((\$ScriptLockOrder->\$Script->\$Pos) = \$Add) do={ :return true; }\
\n }\
\n }\
\n\
\n :local RemoveTicket do={\
\n :local Script [ :tostr \$1 ];\
\n :local Remove [ :tostr \$2 ];\
\n\
\n :global ScriptLockOrder;\
\n\
\n :foreach Id,Ticket in=(\$ScriptLockOrder->\$Script) do={\
\n :while ((\$ScriptLockOrder->\$Script->\$Id) = \$Remove) do={\
\n :set (\$ScriptLockOrder->\$Script->\$Id);\
\n :delay 10ms;\
\n }\
\n }\
\n }\
\n\
\n :local CleanupTickets do={\
\n :local Script [ :tostr \$1 ];\
\n\
\n :global ScriptLockOrder;\
\n\
\n :foreach Ticket in=(\$ScriptLockOrder->\$Script) do={\
\n :if ([ :typeof \$Ticket ] != \"nothing\") do={\
\n :return false;\
\n }\
\n }\
\n\
\n :set (\$ScriptLockOrder->\$Script) ({});\
\n }\
\n\
\n :if ([ :len [ /system/script/find where name=\$Script ] ] = 0) do={\
\n \$LogPrintExit2 error \$0 (\"A script named '\" . \$Script . \"' does not exist!\") true;\
\n }\
\n\
\n :if ([ \$JobCount \$Script ] = 0) do={\
\n \$LogPrintExit2 error \$0 (\"No script '\" . \$Script . \"' is running!\") true;\
\n }\
\n\
\n :if ([ \$TicketCount \$Script ] >= [ \$JobCount \$Script ]) do={\
\n \$LogPrintExit2 error \$0 (\"More tickets than running scripts '\" . \$Script . \"', resetting!\") false;\
\n :set (\$ScriptLockOrder->\$Script) ({});\
\n /system/script/job/remove [ find where script=\$Script ];\
\n }\
\n\
\n :local MyTicket [ \$GetRandom20CharAlNum 6 ];\
\n \$AddTicket \$Script \$MyTicket;\
\n\
\n :local WaitCount 0;\
\n :while (\$WaitMax > \$WaitCount && ([ \$IsFirstTicket \$Script \$MyTicket ] = false || [ \$TicketCount \$Script ] < [ \$JobCount \$Script ])) do={\
\n :set WaitCount (\$WaitCount + 1);\
\n :delay 100ms;\
\n }\
\n\
\n :if ([ \$IsFirstTicket \$Script \$MyTicket ] = true && [ \$TicketCount \$Script ] = [ \$JobCount \$Script ]) do={\
\n \$RemoveTicket \$Script \$MyTicket;\
\n \$CleanupTickets \$Script;\
\n :return false;\
\n }\
\n\
\n \$RemoveTicket \$Script \$MyTicket;\
\n \$LogPrintExit2 info \$0 (\"Script '\" . \$Script . \"' started more than once\" . [ \$IfThenElse (\$WaitCount > 0) \\\
\n \" and timed out waiting for lock\" \"\" ] . \"... Aborting.\") [ \$IfThenElse (\$DoReturn = true) false true ];\
\n :return true;\
\n}\
\n\
\n# send notification via NotificationFunctions - expects at least two string arguments\
\n:set SendNotification do={\
\n :global SendNotification2;\
\n\
\n \$SendNotification2 ({ subject=\$1; message=\$2; link=\$3; silent=\$4 });\
\n}\
\n\
\n# send notification via NotificationFunctions - expects one array argument\
\n:set SendNotification2 do={\
\n :local Notification \$1;\
\n\
\n :global NotificationFunctions;\
\n\
\n :foreach FunctionName,Discard in=\$NotificationFunctions do={\
\n (\$NotificationFunctions->\$FunctionName) \\\
\n (\"\\\$NotificationFunctions->\\\"\" . \$FunctionName . \"\\\"\") \\\
\n \$Notification;\
\n }\
\n}\
\n\
\n# return UTF-8 symbol for unicode name\
\n:set SymbolByUnicodeName do={\
\n :local Symbols {\
\n \"abacus\"=\"\\F0\\9F\\A7\\AE\";\
\n \"alarm-clock\"=\"\\E2\\8F\\B0\";\
\n \"calendar\"=\"\\F0\\9F\\93\\85\";\
\n \"card-file-box\"=\"\\F0\\9F\\97\\83\";\
\n \"chart-decreasing\"=\"\\F0\\9F\\93\\89\";\
\n \"chart-increasing\"=\"\\F0\\9F\\93\\88\";\
\n \"cloud\"=\"\\E2\\98\\81\";\
\n \"cross-mark\"=\"\\E2\\9D\\8C\";\
\n \"earth\"=\"\\F0\\9F\\8C\\8D\";\
\n \"fire\"=\"\\F0\\9F\\94\\A5\";\
\n \"floppy-disk\"=\"\\F0\\9F\\92\\BE\";\
\n \"high-voltage-sign\"=\"\\E2\\9A\\A1\";\
\n \"incoming-envelope\"=\"\\F0\\9F\\93\\A8\";\
\n \"link\"=\"\\F0\\9F\\94\\97\";\
\n \"lock-with-ink-pen\"=\"\\F0\\9F\\94\\8F\";\
\n \"memo\"=\"\\F0\\9F\\93\\9D\";\
\n \"mobile-phone\"=\"\\F0\\9F\\93\\B1\";\
\n \"pushpin\"=\"\\F0\\9F\\93\\8C\";\
\n \"scissors\"=\"\\E2\\9C\\82\";\
\n \"sparkles\"=\"\\E2\\9C\\A8\";\
\n \"speech-balloon\"=\"\\F0\\9F\\92\\AC\";\
\n \"up-arrow\"=\"\\E2\\AC\\86\";\
\n \"warning-sign\"=\"\\E2\\9A\\A0\";\
\n \"white-heavy-check-mark\"=\"\\E2\\9C\\85\"\
\n }\
\n\
\n :return ((\$Symbols->\$1) . \"\\EF\\B8\\8F\");\
\n}\
\n\
\n# return symbol for notification\
\n:set SymbolForNotification do={\
\n :global NotificationsWithSymbols;\
\n :global SymbolByUnicodeName;\
\n\
\n :if (\$NotificationsWithSymbols != true) do={\
\n :return \"\";\
\n }\
\n :local Return \"\";\
\n :foreach Symbol in=[ :toarray \$1 ] do={\
\n :set Return (\$Return . [ \$SymbolByUnicodeName \$Symbol ]);\
\n }\
\n :return (\$Return . \" \");\
\n}\
\n\
\n# convert line endings, UNIX -> DOS\
\n:set Unix2Dos do={\
\n :local Input [ :tostr \$1 ];\
\n\
\n :global CharacterReplace;\
\n\
\n :return [ \$CharacterReplace [ \$CharacterReplace \$Input \\\
\n (\"\\n\") (\"\\r\\n\") ] (\"\\r\\r\\n\") (\"\\r\\n\") ];\
\n}\
\n\
\n# url encoding\
\n:set UrlEncode do={\
\n :local Input [ :tostr \$1 ];\
\n\
\n :if ([ :len \$Input ] = 0) do={\
\n :return \"\";\
\n }\
\n\
\n :local Return \"\";\
\n :local Chars (\"\\n\\r !\\\"#\\\$%&'()*+,:;<=>\?@[\\\\]^`{|}~\");\
\n :local Subs { \"%0A\"; \"%0D\"; \"%20\"; \"%21\"; \"%22\"; \"%23\"; \"%24\"; \"%25\"; \"%26\"; \"%27\";\
\n \"%28\"; \"%29\"; \"%2A\"; \"%2B\"; \"%2C\"; \"%3A\"; \"%3B\"; \"%3C\"; \"%3D\"; \"%3E\"; \"%3F\";\
\n \"%40\"; \"%5B\"; \"%5C\"; \"%5D\"; \"%5E\"; \"%60\"; \"%7B\"; \"%7C\"; \"%7D\"; \"%7E\" };\
\n\
\n :for I from=0 to=([ :len \$Input ] - 1) do={\
\n :local Char [ :pick \$Input \$I ];\
\n :local Replace [ :find \$Chars \$Char ];\
\n\
\n :if ([ :typeof \$Replace ] = \"num\") do={\
\n :set Char (\$Subs->\$Replace);\
\n }\
\n :set Return (\$Return . \$Char);\
\n }\
\n\
\n :return \$Return;\
\n}\
\n\
\n# basic syntax validation\
\n:set ValidateSyntax do={\
\n :local Code [ :tostr \$1 ];\
\n\
\n :do {\
\n [ :parse (\":local Validate do={\\n\" . \$Code . \"\\n}\") ];\
\n } on-error={\
\n :return false;\
\n }\
\n :return true;\
\n}\
\n\
\n# convert version string to numeric value\
\n:set VersionToNum do={\
\n :local Input [ :tostr \$1 ];\
\n :local Multi 0x1000000;\
\n :local Return 0;\
\n\
\n :global CharacterReplace;\
\n\
\n :set Input [ \$CharacterReplace \$Input \".\" \",\" ];\
\n :foreach I in={ \"alpha\"; \"beta\"; \"rc\" } do={\
\n :set Input [ \$CharacterReplace \$Input \$I (\",\" . \$I . \",\") ];\
\n }\
\n\
\n :foreach Value in=([ :toarray \$Input ], 0) do={\
\n :local Num [ :tonum \$Value ];\
\n :if (\$Multi = 0x100) do={\
\n :if ([ :typeof \$Num ] = \"num\") do={\
\n :set Return (\$Return + 0xff00);\
\n :set Multi (\$Multi / 0x100);\
\n } else={\
\n :if (\$Value = \"alpha\") do={ :set Return (\$Return + 0x3f00); }\
\n :if (\$Value = \"beta\") do={ :set Return (\$Return + 0x5f00); }\
\n :if (\$Value = \"rc\") do={ :set Return (\$Return + 0x7f00); }\
\n }\
\n }\
\n :if ([ :typeof \$Num ] = \"num\") do={ :set Return (\$Return + (\$Value * \$Multi)); }\
\n :set Multi (\$Multi / 0x100);\
\n }\
\n\
\n :return \$Return;\
\n}\
\n\
\n# wait for default route to be reachable\
\n:set WaitDefaultRouteReachable do={\
\n :global IsDefaultRouteReachable;\
\n\
\n :while ([ \$IsDefaultRouteReachable ] = false) do={\
\n :delay 1s;\
\n }\
\n}\
\n\
\n# wait for DNS to resolve\
\n:set WaitDNSResolving do={\
\n :global IsDNSResolving;\
\n\
\n :while ([ \$IsDNSResolving ] = false) do={\
\n :delay 1s;\
\n }\
\n}\
\n\
\n# wait for file to be available\
\n:set WaitForFile do={\
\n :local FileName [ :tostr \$1 ];\
\n :local WaitTime [ :totime \$2 ];\
\n\
\n :global CleanFilePath;\
\n :global EitherOr;\
\n\
\n :set FileName [ \$CleanFilePath \$FileName ];\
\n :local I 1;\
\n :local Delay ([ :totime [ \$EitherOr \$WaitTime 2s ] ] / 20);\
\n\
\n :while ([ :len [ /file/find where name=\$FileName ] ] = 0) do={\
\n :if (\$I >= 20) do={\
\n :return false;\
\n }\
\n :delay \$Delay;\
\n :set I (\$I + 1);\
\n }\
\n :return true;\
\n}\
\n\
\n# wait to be fully connected (default route is reachable, time is sync, DNS resolves)\
\n:set WaitFullyConnected do={\
\n :global WaitDefaultRouteReachable;\
\n :global WaitDNSResolving;\
\n :global WaitTimeSync;\
\n\
\n \$WaitDefaultRouteReachable;\
\n \$WaitTimeSync;\
\n \$WaitDNSResolving;\
\n}\
\n\
\n# wait for time to become synced\
\n:set WaitTimeSync do={\
\n :global IsTimeSync;\
\n\
\n :while ([ \$IsTimeSync ] = false) do={\
\n :delay 1s;\
\n }\
\n}\
\n\
\n# load modules\
\n:foreach Script in=[ /system/script/find where name ~ \"^mod/.\" ] do={\
\n :local ScriptVal [ /system/script/get \$Script ];\
\n :if ([ \$ValidateSyntax (\$ScriptVal->\"source\") ] = true) do={\
\n :do {\
\n /system/script/run \$Script;\
\n } on-error={\
\n \$LogPrintExit2 error \$0 (\"Module '\" . \$ScriptVal->\"name\" . \"' failed to run.\") false;\
\n }\
\n } else={\
\n \$LogPrintExit2 error \$0 (\"Module '\" . \$ScriptVal->\"name\" . \"' failed syntax validation, skipping.\") false;\
\n }\
\n}\
\n\
\n# signal we are ready\
\n:set GlobalFunctionsReady true;\
\n"
/system script add dont-require-permissions=no name=netwatch-notify owner=netwatch-notify policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="#!rsc by RouterOS\
\n# RouterOS script: netwatch-notify\
\n# Copyright (c) 2020-2023 Christian Hesse <mail@eworm.de>\
\n# https://git.eworm.de/cgit/routeros-scripts/about/COPYING.md\
\n#\
\n# monitor netwatch and send notifications\
\n# https://git.eworm.de/cgit/routeros-scripts/about/doc/netwatch-notify.md\
\n\
\n:local 0 \"netwatch-notify\";\
\n:global GlobalFunctionsReady;\
\n:while (\$GlobalFunctionsReady != true) do={ :delay 500ms; }\
\n\
\n:global NetwatchNotify;\
\n\
\n:global EitherOr;\
\n:global IfThenElse;\
\n:global IsDNSResolving;\
\n:global LogPrintExit2;\
\n:global ParseKeyValueStore;\
\n:global ScriptFromTerminal;\
\n:global ScriptLock;\
\n:global SendNotification2;\
\n:global SymbolForNotification;\
\n\
\n:local NetwatchNotifyHook do={\
\n :local Name [ :tostr \$1 ];\
\n :local Type [ :tostr \$2 ];\
\n :local State [ :tostr \$3 ];\
\n :local Hook [ :tostr \$4 ];\
\n\
\n :global LogPrintExit2;\
\n :global ValidateSyntax;\
\n\
\n :if ([ \$ValidateSyntax \$Hook ] = true) do={\
\n :do {\
\n [ :parse \$Hook ];\
\n } on-error={\
\n \$LogPrintExit2 warning \$0 (\"The \" . \$State . \"-hook for \" . \$Type . \" '\" . \$Name . \\\
\n \"' failed to run.\") false;\
\n :return (\"The hook failed to run.\");\
\n }\
\n } else={\
\n \$LogPrintExit2 warning \$0 (\"The \" . \$State . \"-hook for \" . \$Type . \" '\" . \$Name . \\\
\n \"' failed syntax validation.\") false;\
\n :return (\"The hook failed syntax validation.\");\
\n }\
\n\
\n \$LogPrintExit2 info \$0 (\"Ran hook on \" . \$Type . \" '\" . \$Name . \"' \" . \$State . \": \" . \\\
\n \$Hook) false;\
\n :return (\"Ran hook:\\n\" . \$Hook);\
\n}\
\n\
\n\$ScriptLock \$0;\
\n\
\n:local ScriptFromTerminalCached [ \$ScriptFromTerminal \$0 ];\
\n\
\n:if ([ :typeof \$NetwatchNotify ] = \"nothing\") do={\
\n :set NetwatchNotify ({});\
\n}\
\n\
\n:foreach Host in=[ /tool/netwatch/find where comment~\"notify\" !disabled status!=\"unknown\" ] do={\
\n :local HostVal [ /tool/netwatch/get \$Host ];\
\n :local Type [ \$IfThenElse (\$HostVal->\"type\" ~ \"^(https\?-get|tcp-conn)\\\$\") \"service\" \"host\" ];\
\n :local HostInfo [ \$ParseKeyValueStore (\$HostVal->\"comment\") ];\
\n :local HostDetails (\$HostVal->\"host\" . \\\
\n [ \$IfThenElse ([ :len (\$HostInfo->\"resolve\") ] > 0) (\", \" . \$HostInfo->\"resolve\") ]);\
\n\
\n :if (\$HostInfo->\"notify\" = true && \$HostInfo->\"disabled\" != true) do={\
\n :local Name [ \$EitherOr (\$HostInfo->\"name\") (\$HostVal->\"name\") ];\
\n\
\n :local Metric { \"count-down\"=0; \"count-up\"=0; \"notified\"=false; \"resolve-failcnt\"=0 };\
\n :if ([ :typeof (\$NetwatchNotify->\$Name) ] = \"array\") do={\
\n :set \$Metric (\$NetwatchNotify->\$Name);\
\n }\
\n\
\n :if ([ :typeof (\$HostInfo->\"resolve\") ] = \"str\") do={\
\n :if ([ \$IsDNSResolving ] = true) do={\
\n :do {\
\n :local Resolve [ :resolve (\$HostInfo->\"resolve\") ];\
\n :if (\$Resolve != \$HostVal->\"host\") do={\
\n \$LogPrintExit2 info \$0 (\"Name '\" . \$HostInfo->\"resolve\" . [ \$IfThenElse \\\
\n (\$HostInfo->\"resolve\" != \$HostInfo->\"name\") (\"' for \" . \$Type . \" '\" . \\\
\n \$HostInfo->\"name\") \"\" ] . \"' resolves to different address \" . \$Resolve . \\\
\n \", updating.\") false;\
\n /tool/netwatch/set host=\$Resolve \$Host;\
\n :set (\$Metric->\"resolve-failcnt\") 0;\
\n }\
\n } on-error={\
\n :set (\$Metric->\"resolve-failcnt\") (\$Metric->\"resolve-failcnt\" + 1);\
\n :if (\$Metric->\"resolve-failcnt\" = 3) do={\
\n \$LogPrintExit2 warning \$0 (\"Resolving name '\" . \$HostInfo->\"resolve\" . [ \$IfThenElse \\\
\n (\$HostInfo->\"resolve\" != \$HostInfo->\"name\") (\"' for \" . \$Type . \" '\" . \\\
\n \$HostInfo->\"name\") \"\" ] . \"' failed.\") false;\
\n }\
\n }\
\n }\
\n }\
\n\
\n :if (\$HostVal->\"status\" = \"up\") do={\
\n :local CountDown (\$Metric->\"count-down\");\
\n :if (\$CountDown > 0) do={\
\n \$LogPrintExit2 info \$0 \\\
\n (\"The \" . \$Type . \" '\" . \$Name . \"' (\" . \$HostDetails . \") is up.\") false;\
\n :set (\$Metric->\"count-down\") 0;\
\n }\
\n :set (\$Metric->\"count-up\") (\$Metric->\"count-up\" + 1);\
\n :if (\$Metric->\"notified\" = true) do={\
\n :local Message (\"The \" . \$Type . \" '\" . \$Name . \"' (\" . \$HostDetails . \\\
\n \") is up since \" . \$HostVal->\"since\" . \".\\n\" . \\\
\n \"It was down for \" . \$CountDown . \" checks since \" . (\$Metric->\"since\") . \".\");\
\n :if ([ :typeof (\$HostInfo->\"note\") ] = \"str\") do={\
\n :set Message (\$Message . \"\\n\\nNote:\\n\" . (\$HostInfo->\"note\"));\
\n }\
\n :if ([ :typeof (\$HostInfo->\"up-hook\") ] = \"str\") do={\
\n :set Message (\$Message . \"\\n\\n\" . [ \$NetwatchNotifyHook \$Name \$Type \"up\" \\\
\n (\$HostInfo->\"up-hook\") ]);\
\n }\
\n \$SendNotification2 ({ origin=\$0; silent=(\$HostInfo->\"silent\"); \\\
\n subject=([ \$SymbolForNotification \"white-heavy-check-mark\" ] . \"Netwatch Notify: \" . \\\
\n \$Name . \" up\"); \\\
\n message=\$Message });\
\n }\
\n :set (\$Metric->\"notified\") false;\
\n :set (\$Metric->\"parent\") (\$HostInfo->\"parent\");\
\n :set (\$Metric->\"since\");\
\n } else={\
\n :set (\$Metric->\"count-down\") (\$Metric->\"count-down\" + 1);\
\n :set (\$Metric->\"count-up\") 0;\
\n :set (\$Metric->\"parent\") (\$HostInfo->\"parent\");\
\n :set (\$Metric->\"since\") (\$HostVal->\"since\");\
\n :local CountDown [ \$IfThenElse ([ :tonum (\$HostInfo->\"count\") ] > 0) (\$HostInfo->\"count\") 5 ];\
\n :local Parent (\$HostInfo->\"parent\");\
\n :local ParentUp false;\
\n :while ([ :len \$Parent ] > 0) do={\
\n :set CountDown (\$CountDown + 1);\
\n :set Parent (\$NetwatchNotify->\$Parent->\"parent\");\
\n }\
\n :set Parent (\$HostInfo->\"parent\");\
\n :local ParentNotified false;\
\n :while (\$ParentNotified = false && [ :len \$Parent ] > 0) do={\
\n :set ParentNotified [ \$IfThenElse ((\$NetwatchNotify->\$Parent->\"notified\") = true) \\\
\n true false ];\
\n :set ParentUp (\$NetwatchNotify->\$Parent->\"count-up\");\
\n :if (\$ParentNotified = false) do={\
\n :set Parent (\$NetwatchNotify->\$Parent->\"parent\");\
\n }\
\n }\
\n :if (\$Metric->\"notified\" = false || \$Metric->\"count-down\" % 120 = 0 || \\\
\n \$ScriptFromTerminalCached = true) do={\
\n \$LogPrintExit2 [ \$IfThenElse (\$HostInfo->\"no-down-notification\" != true) info debug ] \$0 \\\
\n (\"The \" . \$Type . \" '\" . \$Name . \"' (\" . \$HostDetails . \") is down for \" . \\\
\n \$Metric->\"count-down\" . \" checks, \" . [ \$IfThenElse (\$ParentNotified = false) [ \$IfThenElse \\\
\n (\$Metric->\"notified\" = true) (\"already notified.\") (\$CountDown - \$Metric->\"count-down\" . \\\
\n \" to go.\") ] (\"parent \" . \$Type . \" \" . \$Parent . \" is down.\") ]) false;\
\n }\
\n :if (((\$CountDown * 2) - (\$Metric->\"count-down\" * 3)) / 2 = 0 && \\\
\n [ :typeof (\$HostInfo->\"pre-down-hook\") ] = \"str\") do={\
\n \$NetwatchNotifyHook \$Name \$Type \"pre-down\" (\$HostInfo->\"pre-down-hook\");\
\n }\
\n :if (\$ParentNotified = false && \$Metric->\"count-down\" >= \$CountDown && \\\
\n (\$ParentUp = false || \$ParentUp > 2) && \$Metric->\"notified\" != true) do={\
\n :local Message (\"The \" . \$Type . \" '\" . \$Name . \"' (\" . \$HostDetails . \\\
\n \") is down since \" . \$HostVal->\"since\" . \".\");\
\n :if ([ :typeof (\$HostInfo->\"note\") ] = \"str\") do={\
\n :set Message (\$Message . \"\\n\\nNote:\\n\" . (\$HostInfo->\"note\"));\
\n }\
\n :if ([ :typeof (\$HostInfo->\"down-hook\") ] = \"str\") do={\
\n :set Message (\$Message . \"\\n\\n\" . [ \$NetwatchNotifyHook \$Name \$Type \"down\" \\\
\n (\$HostInfo->\"down-hook\") ]);\
\n }\
\n :if (\$HostInfo->\"no-down-notification\" != true) do={\
\n \$SendNotification2 ({ origin=\$0; silent=(\$HostInfo->\"silent\"); \\\
\n subject=([ \$SymbolForNotification \"cross-mark\" ] . \"Netwatch Notify: \" . \\\
\n \$Name . \" down\"); \\\
\n message=\$Message });\
\n }\
\n :set (\$Metric->\"notified\") true;\
\n }\
\n }\
\n :set (\$NetwatchNotify->\$Name) {\
\n \"count-down\"=(\$Metric->\"count-down\");\
\n \"count-up\"=(\$Metric->\"count-up\");\
\n \"notified\"=(\$Metric->\"notified\");\
\n \"parent\"=(\$Metric->\"parent\");\
\n \"resolve-failcnt\"=(\$Metric->\"resolve-failcnt\");\
\n \"since\"=(\$Metric->\"since\") };\
\n }\
\n}\
\n"
/system script add dont-require-permissions=no name="Dynamic Data New" owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n/system\r\
\n:local cdate [clock get date] \r\
\n:local yyyy [:pick \$cdate 0 4]\r\
\n:local MM [:pick \$cdate 5 7]\r\
\n:local dd [:pick \$cdate 8 10]\r\
\n:local identitydate \"\$[identity get name]_\$yyyy-\$MM-\$dd\"\r\
\n\r\
\n:local fileup \"\$identitydate-dynamicdata\"\r\
\n\r\
\n/ip/cloud print file=cloud\r\
\n/ip/dhcp-server/lease print file=leases\r\
\n/interface/bridge/host print file=hosts\r\
\n/interface/wireless/registration-table print file=registrations\r\
\n\r\
\n:local cloudcontents [/file get cloud.txt contents]\r\
\n:local leasescontents [/file get leases.txt contents]\r\
\n:local hostscontents [/file get hosts.txt contents]\r\
\n:local registrationscontents [/file get registrations.txt contents]\r\
\n\r\
\n:local fileupcontents \"\$cloudcontents . \$leasescontents . \$hostscontents . \$registrationscontents\"\r\
\n\r\
\n/file print file=\"\$fileup\" \r\
\n/file set \$fileup contents=\$fileupcontents\r\
\n\r\
\n#/tool fetch upload=yes mode=ftp ascii=no src-path=\"/\$fileup\" dst-path=\"/mikrotik-backups/\$fileup\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n/file remove [find name=\$fileup]\r\
\n\r\
\n#/file remove \"\$fileup\"\r\
\n"
/system script add dont-require-permissions=no name=dynamic-data-rextended owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="/system\r\
\n:local identitydate \"\$[identity get name]_\$[clock get date]\"\r\
\n:local stringexec \"/system iden print; :put \\\"\\\\r\\\\n\\\"; /ip cloud pri; :put \\\"\\\\r\\\\n\\\"; /ip dhcp-server lease pri det; :put \\\"\\\\r\\\\n\\\"; /int bridge host pri det\"\r\
\n\r\
\n:if ([:len [/system package find where name=\"wifiwave2\"]] > 1) do={\r\
\n :set stringexec \"\$stringexec; :put \\\"\\\\r\\\\n\\\" /int wifiwave2 reg pri det\"\r\
\n} \r\
\n\r\
\n:if ([:len [/system package find where name=\"wifiwave2\"]] > 1) do={\r\
\n :set stringexec \"\$stringexec; :put \\\"\\\\r\\\\n\\\" /int wireless reg pri det\"\r\
\n}\r\
\n\r\
\n\r\
\n/file remove [find where name=tmpresults.txt]\r\
\n:delay 1s\r\
\n:execute \$stringexec file=tmpresults.txt\r\
\n:delay 2s\r\
\n\r\
\n/tool fetch upload=yes mode=ftp ascii=no address=192.168.2.22 port=21 user=mikrotik password=XXXXX \\\r\
\n src-path=tmpresults.txt dst-path=\"/mikrotik-backups/\$identitydate-dynamicdata.txt\"\r\
\n\r\
\n/file remove [find where name=tmpresults.txt]"
/system script add dont-require-permissions=no name=dhcpleasesftp owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n/file remove [find where name=temp3.txt]\r\
\n\r\
\n/system\r\
\n\r\
\n:local identitydate \"\$[identity get name]\"\r\
\n\r\
\n:local stringexec \"/ip dhcp-server lease; :foreach i in=[find] do={ :put ([get \\\$i address].\\\",\\\".[get \\\$i comment].\\\",\\\",[get \\\$i mac-address].\\\",\\\".[get \\\$i host-name] ) }\"\r\
\n\r\
\n\r\
\n:execute \$stringexec file=temp3\r\
\n\r\
\n:delay 60\r\
\n\r\
\n/tool fetch address=192.168.2.22 port=21 user=mikrotik password=XXXXX src-path=temp3.txt mode=ftp dst-path=\"/mikrotik-backups/\$identitydate-leases.txt\" upload=yes ascii=no\r\
\n\r\
\n\r\
\n\r\
\n\r\
\n"
/system script add dont-require-permissions=no name=DynDNS owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n/system\r\
\n:local cdate [clock get date] \r\
\n:local yyyy [:pick \$cdate 0 4]\r\
\n:local MM [:pick \$cdate 5 7]\r\
\n:local dd [:pick \$cdate 8 10]\r\
\n:local identitydate \"\$[identity get name]_\$yyyy-\$MM-\$dd\"\r\
\n#/export show-sensitive file=\"\$identitydate\"\r\
\n\r\
\n# Export public IP and mail it\r\
\n\r\
\n#/ip/address print file=\"\$identitydate-IP\"\r\
\n\r\
\n#/tool fetch upload=yes mode=ftp ascii=no src-path=\"\$[\$identitydate]-IP.txt\" dst-path=\"/mikrotik-backups/\$[\$identitydate]-IP.txt\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n#/file remove \"\$identitydate-IP.txt\"\r\
\n\r\
\n# Set needed variables\r\
\n\t:local username \"josephXXXXX\"\r\
\n\t:local clientkey XXXXX788e206873aa78bc3\"\r\
\n\t:local hostname \"XXXXX.dyndns.org\"\r\
\n\r\
\n\t:global dyndnsForce\r\
\n\t:global previousIP\r\
\n\r\
\n# get the current IP address from the internet (in case of double-nat)\r\
\n\t/tool fetch mode=http address=\"checkip.dyndns.org\" src-path=\"/\" dst-path=\"/dyndns.checkip.html\"\r\
\n\t:delay 1\r\
\n\t:local result [/file get dyndns.checkip.html contents]\r\
\n\r\
\n# parse the current IP result\r\
\n\t:local resultLen [:len \$result]\r\
\n\t:local startLoc [:find \$result \": \" -1]\r\
\n\t:set startLoc (\$startLoc + 2)\r\
\n\t:local endLoc [:find \$result \"</body>\" -1]\r\
\n\t:local currentIP [:pick \$result \$startLoc \$endLoc]\r\
\n\t:log info \"UpdateDynDNS: currentIP = \$currentIP\"\r\
\n\r\
\n# Remove the # on next line to force an update every single time - useful for debugging,\r\
\n# but you could end up getting blacklisted by DynDNS!\r\
\n\r\
\n#:set dyndnsForce true\r\
\n\r\
\n# Determine if dyndns update is needed\r\
\n# more dyndns updater request details https://help.dyn.com/remote-access-api/perform-update/\r\
\n\t:log info \"UpdateDynDNS: previousIP = \$previousIP\"\r\
\n\t:if (\$dyndnsForce = true) do={ :log warning \"UpdateDynDNS: Forced update on\" }\r\
\n\r\
\n\t:if ((\$currentIP != \$previousIP) || (\$dyndnsForce = true)) do={\r\
\n\t\t:set dyndnsForce false\r\
\n\t\t:set previousIP \$currentIP\r\
\n\r\
\n\t\t/tool fetch mode=https \\\r\
\n\t\turl=\"https://\$username:\$clientkey XXXXXg/v3/update\?hostname=\$hostname&myip=\$currentIP\" \\ \r\
\n\t\tdst-path=\"/dyndns.txt\"\r\
\n\r\
\n\t\t:delay 1\r\
\n\t\t:local result [/file get dyndns.txt contents]\r\
\n\t\t:log info (\"UpdateDynDNS: Dyndns update needed\")\r\
\n\t\t:log info (\"UpdateDynDNS: Dyndns Update Result: \".\$result)\r\
\n\t\t:put (\"Dyndns Update Result: \".\$result)\r\
\n\r\
\n /ip/address print file=\"\$identitydate-IP\"\r\
\n\r\
\n /tool fetch upload=yes mode=ftp ascii=no src-path=\"\$[\$identitydate]-IP.txt\" dst-path=\"/mikrotik-backups/\$[\$identitydate]-IP.txt\" address=192.168.2.22 port=21 user=mikrotik password=XXXXX\r\
\n\r\
\n /file remove \"\$identitydate-IP.txt\"\r\
\n\r\
\n\r\
\n\t} else={\r\
\n\t\t:log info (\"UpdateDynDNS: No dyndns update needed\")\r\
\n\t}\r\
\n\r\
\n"
/system script add dont-require-permissions=no name=Data_to_Splunk_using_Syslog owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="# Collect information from Mikrotik RouterOS\r\
\n# Jotne 2024\r\
\n# Script name=Data_to_Splunk_using_Syslog\r\
\n:log info message=\"script=version ver=5.6\"\r\
\n# ----------------------------------\r\
\n\r\
\n# Auto update syslog server. 5.3-5.4.\r\
\n# Change <your syslog dns name> to the dns of your syslog server.\r\
\n# The update is disabled by default. Remove the # from the two next line to use it.\r\
\n\r\
\n#:local mySyslog [resolve <your syslog dns name>]\r\
\n#/system/logging/action/set [find where name=\"logserver\"] remote=\$mySyslog\r\
\n\r\
\n\r\
\n# What data to collect. Set to false to skip the section \r\
\n# ----------------------------------\r\
\n:local SystemResource true\r\
\n:local SystemInformation true\r\
\n:local SystemHealth true\r\
\n:local TrafficData true\r\
\n:local AccountData true\r\
\n:local uPnP true\r\
\n:local Wireless true\r\
\n:local AddressLists true\r\
\n:local DHCP true\r\
\n:local Neighbor true\r\
\n:local InterfaceData true\r\
\n:local CmdHistory true\r\
\n:local CAPsMANN false\r\
\n\r\
\n:local Routing true\r\
\n:local OSPF false\r\
\n:local BGP false\r\
\n\r\
\n:local PPP true\r\
\n:local IPSEC true\r\
\n\r\
\n# Get RouterOS main version (used to run different script on different version)\r\
\n:local train [:tonum [:pick [/system resource get version] 0 1]] \r\
\n\r\
\n# Collect system resource\r\
\n# ----------------------------------\r\
\n:if (\$SystemResource) do={\r\
\n\t/system resource\r\
\n\t:local cpuload [get cpu-load]\r\
\n\t:local freemem ([get free-memory]/1048576)\r\
\n\t:local totmem ([get total-memory]/1048576)\r\
\n\t:local freehddspace ([get free-hdd-space]/1048576)\r\
\n\t:local totalhddspace ([get total-hdd-space]/1048576)\r\
\n\t:local up [get uptime]\r\
\n\t:local sector [get write-sect-total]\r\
\n\t:log info message=\"script=resource free_memory=\$freemem MB total_memory=\$totmem MB free_hdd_space=\$freehddspace MB total_hdd_space=\$totalhddspace MB cpu_load=\$cpuload uptime=\$up write-sect-total=\$sector\"\r\
\n}\r\
\n\r\
\n\r\
\n# Make some part only run every hours\r\
\n# ----------------------------------\r\
\n:global Hour\r\
\n:local run false\r\
\n:local hour [:pick [/system clock get time] 0 2]\r\
\n:if (\$Hour != \$hour) do={\r\
\n\t:global Hour \$hour\r\
\n\t:set run true\r\
\n}\r\
\n\r\
\n\r\
\n# Get NTP status\r\
\n# ----------------------------------\r\
\n:local ntpstatus \"\"\r\
\n:if ([:len [/system package find where !disabled and name=ntp]] > 0 or [:tonum [:pick [/system resource get version] 0 1]] > 6) do={\r\
\n :set ntpstatus [/system ntp client get status]\r\
\n} else={\r\
\n :if ([:typeof [/system ntp client get last-update-from]] = \"nil\") do={\r\
\n :set ntpstatus \"using-local-clock\"\r\
\n } else={\r\
\n :set ntpstatus \"synchronized\"\r\
\n }\r\
\n}\r\
\n:log info message=\"script=ntp status=\$ntpstatus\" \r\
\n\r\
\n\r\
\n# Get interface traffic data for all interface\r\
\n# ----------------------------------\r\
\n:if (\$TrafficData) do={\r\
\n\t:foreach id in=[/interface find] do={\r\
\n\t\t:local output \"\$[/interface print stats as-value where .id=\$id]\"\r\
\n\t\t:set ( \"\$output\"->\"script\" ) \"if_traffic\"\r\
\n\t\t:log info message=\"\$output\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Get traffic data v2 (Kid Control)\r\
\n# ----------------------------------\r\
\n:if (\$AccountData) do={\r\
\n\t:foreach logline in=[/ip kid-control device find] do={\r\
\n\t\t:local output \"\$[/ip kid-control device get \$logline]\"\r\
\n\t\t:set ( \"\$output\"->\"script\" ) \"kids\"\r\
\n\t\t:log info message=\"\$output\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Finding dynmaic lines used in uPnP\r\
\n# ----------------------------------\r\
\n:if (\$uPnP) do={\r\
\n\t:foreach logline in=[/ip firewall nat find where dynamic=yes and comment~\"^upnp \"] do={\r\
\n\t\t:local output \"\$[/ip firewall nat print as-value from=\$logline]\"\r\
\n\t\t:set ( \"\$output\"->\"script\" ) \"upnp\"\r\
\n\t\t:log info message=\"\$output\" \r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Collect system information 5.5 added ID for non routerBoard 5.6 Remvoed serial\r\
\n# ----------------------------------\r\
\n:local model na\r\
\n:local ffirmware na\r\
\n:local cfirmware na\r\
\n:local ufirmware na\r\
\n:if (\$SystemInformation and \$run) do={\r\
\n\t:local version ([/system resource get version])\r\
\n\t:local board ([/system resource get board-name])\r\
\n\t:local identity ([/system identity get name])\r\
\n\t:do {\r\
\n\t\t:if (\$board!=\"CHR\" OR \$board!=\"x86\") do={\r\
\n\t\t\t/system routerboard\r\
\n\t\t\t:set model ([get model])\r\
\n\t\t\t:set ffirmware ([get factory-firmware])\r\
\n\t\t\t:set cfirmware ([get current-firmware])\r\
\n\t\t\t:set ufirmware ([get upgrade-firmware])\r\
\n\t\t}\r\
\n\t} on-error={}\r\
\n\t:log info message=\"script=sysinfo version=\\\"\$version\\\" board-name=\\\"\$board\\\" model=\\\"\$model\\\" identity=\\\"\$identity\\\" factory-firmware=\\\"\$ffirmware\\\" current-firmware=\\\"\$cfirmware\\\" upgrade-firmware=\\\"\$ufirmware\\\"\"\r\
\n}\r\
\n\r\
\n\r\
\n# Collect system health\r\
\n# ----------------------------------\r\
\n:if (\$train > 6 and \$SystemHealth) do={\r\
\n\t# New version (RouterOS >6)\r\
\n\t:foreach id in=[/system health find] do={\r\
\n\t\t:local health \"\$[/system health get \$id]\"\r\
\n\t\t:set ( \"\$health\"->\"script\" ) \"health\"\r\
\n\t\t:log info message=\"\$health\"\r\
\n\t}\r\
\n} else={\r\
\n\t# Old version (RouterOS 6 or older)\r\
\n\t:if (!([/system health get]~\"(state=disabled|^\\\$)\")) do={\r\
\n\t\t:local health \"\$[/system health get]\"\r\
\n\t\t:set ( \"\$health\"->\"script\" ) \"health\"\r\
\n\t\t:log info message=\"\$health\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n\r\
\n# Sends wireless client data to log server \r\
\n# ----------------------------------\r\
\n:if (\$Wireless && [:len [/int find where type=wlan]]>0) do={\r\
\n\t/interface wireless registration-table\r\
\n\t:foreach i in=[find] do={\r\
\n\t\t:log info message=\".id=\$i;ap=\$([get \$i ap]);interface=\$([get \$i interface]);mac-address=\$([get \$i mac-address]);signal-strength=\$([get \$i signal-strength]);tx-rate=\$([get \$i tx-rate]);uptime=\$([get \$i uptime]);script=wifi\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Count IP in address-lists\r\
\n#----------------------------------\r\
\n:if (\$AddressLists) do={\r\
\n\t:local array [ :toarray \"\" ]\r\
\n\t:local addrcntdyn [:toarray \"\"] \r\
\n\t:local addrcntstat [:toarray \"\"] \r\
\n\t:local test\r\
\n\t:foreach id in=[/ip firewall address-list find] do={\r\
\n\t\t:local rec [/ip firewall address-list get \$id]\r\
\n\t\t:local listname (\$rec->\"list\")\r\
\n\t\t:local listdynamic (\$rec->\"dynamic\")\r\
\n\t\t:if (!(\$array ~ \$listname)) do={ :set array (\$array , \$listname) }\r\
\n\t\t:if (\$listdynamic = true) do={\r\
\n\t\t\t:set (\$addrcntdyn->\$listname) (\$addrcntdyn->\$listname+1)\r\
\n\t\t} else={\r\
\n\t\t\t:set (\$addrcntstat->\$listname) (\$addrcntstat->\$listname+1)}\r\
\n\t}\r\
\n\t:foreach k in=\$array do={\r\
\n\t\t:log info message=(\"script=address_lists list=\$k dynamic=\".((\$addrcntdyn->\$k)+0).\" static=\".((\$addrcntstat->\$k)+0))}\r\
\n}\r\
\n\r\
\n\r\
\n# Get MNDP (CDP) Neighbors\r\
\n# ----------------------------------\r\
\n:if (\$Neighbor and \$run) do={\r\
\n\t:foreach neighborID in=[/ip neighbor find] do={\r\
\n\t\t:local nb [/ip neighbor get \$neighborID]\r\
\n\t\t:local id [:pick (\"\$nb\"->\".id\") 1 99]\r\
\n\t\t:foreach key,value in=\$nb do={\r\
\n\t\t\t:local newline [:find \$value \"\\n\"]\r\
\n\t\t\t:if ([\$newline]>0) do={\r\
\n\t\t\t\t:set value [:pick \$value 0 \$newline]\r\
\n\t\t\t}\r\
\n\t\t\t:log info message=\"script=neighbor nid=\$id \$key=\\\"\$value\\\"\"\r\
\n\t\t}\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Collect DHCP Pool information\r\
\n# ----------------------------------\r\
\n:if (\$DHCP and \$run) do={\r\
\n\t/ip pool {\r\
\n\t\t:local poolname\r\
\n\t\t:local pooladdresses\r\
\n\t\t:local poolused\r\
\n\t\t:local minaddress\r\
\n\t\t:local maxaddress\r\
\n\t\t:local findindex\r\
\n\r\
\n# Iterate through IP Pools\r\
\n\t\t:foreach pool in=[find] do={\r\
\n\t\t\t:set poolname [get \$pool name]\r\
\n\t\t\t:set pooladdresses 0\r\
\n\t\t\t:set poolused 0\r\
\n\r\
\n# Iterate through current pool's IP ranges\r\
\n\t\t\t:foreach range in=[:toarray [get \$pool range]] do={\r\
\n\r\
\n# Get min and max addresses\r\
\n\t\t\t\t:set findindex [:find [:tostr \$range] \"-\"]\r\
\n\t\t\t\t:if ([:len \$findindex] > 0) do={\r\
\n\t\t\t\t\t:set minaddress [:pick [:tostr \$range] 0 \$findindex]\r\
\n\t\t\t\t\t:set maxaddress [:pick [:tostr \$range] (\$findindex + 1) [:len [:tostr \$range]]]\r\
\n\t\t\t\t} else={\r\
\n\t\t\t\t\t:set minaddress [:tostr \$range]\r\
\n\t\t\t\t\t:set maxaddress [:tostr \$range]\r\
\n\t\t\t\t}\r\
\n\r\
\n# Calculate number of ip in one range\r\
\n\t\t\t\t:set pooladdresses (\$maxaddress - \$minaddress)\r\
\n\r\
\n# /foreach range\r\
\n\t\t\t}\r\
\n\r\
\n# Test if pools is used in DHCP or VPN and show leases used\r\
\n\t\t\t:local dname [/ip dhcp-server find where address-pool=\$poolname]\r\
\n\t\t\t:if ([:len \$dname] = 0) do={\r\
\n# No DHCP server found, assume VPN\r\
\n\t\t\t\t:set poolused [:len [used find pool=[:tostr \$poolname]]]\r\
\n\t\t\t} else={\r\
\n# DHCP server found, count leases\r\
\n\t\t\t\t:local dname [/ip dhcp-server get [find where address-pool=\$poolname] name]\r\
\n\t\t\t\t:set poolused [:len [/ip dhcp-server lease find where server=\$dname]]}\r\
\n\r\
\n# Send data\r\
\n\t\t\t:log info message=(\"script=pool pool=\$poolname used=\$poolused total=\$pooladdresses\")\r\
\n\r\
\n# /foreach pool\r\
\n\t\t}\r\
\n# /ip pool\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Get detailed command history RouterOS >= v7\r\
\n# ----------------------------------\r\
\n:if (\$train > 6 and \$CmdHistory) do={\r\
\n\t:global cmd\r\
\n\t:local f 0\r\
\n\t:foreach i in=[/system history find] do={\r\
\n\t\t:if (\$i = \$cmd) do={ :set f 1 }\r\
\n\t\t:if (\$f != 1) do={\r\
\n\t\t\t:log info message=\"StartCMD\"\r\
\n\t\t\t:log info message=[/system history get \$i]\r\
\n\t\t\t:log info message=\"EndCMD\"\r\
\n\t\t}\r\
\n\t}\r\
\n\t:global cmd [:pick [/system history find] 0]\r\
\n}\r\
\n\r\
\n\r\
\n# Test if CAPsMANN is installed and run script 5.5\r\
\n# ----------------------------------\r\
\n:if ( ([:len [/interface find where type=\"cap\"]] > 0) and \$CAPsMANN) do={ \r\
\n\t/system script run CAPsMANN\r\
\n}\r\
\n\r\
\n\r\
\n\r\
\n# Collect routing information\r\
\n# ----------------------------------\r\
\n:if (\$Routing) do={\r\
\n\t/ip route\r\
\n\t:foreach id in=[find] do={\r\
\n\t\t:local route \"\$[get \$id]\"\r\
\n\t\t:set ( \"\$route\"->\"script\" ) \"route\"\r\
\n\t\t:log info message=\"\$route\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n:if (\$OSPF) do={\r\
\n\t/routing ospf neighbor\r\
\n\t:foreach id in=[find] do={\r\
\n\t\t:local ospf \"\$[get \$id]\"\r\
\n\t\t:set ( \"\$ospf\"->\"script\" ) \"ospf\"\r\
\n\t\t:log info message=\"\$ospf\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n:if (\$BGP) do={\r\
\n\t/routing bgp session\r\
\n\t:foreach id in=[find] do={\r\
\n\t\t:local bgp \"\$[get \$id]\"\r\
\n\t\t:set ( \"\$bgp\"->\"script\" ) \"bgp\"\r\
\n\t\t:log info message=\"\$bgp\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n\r\
\n# Collect PPP/IPSEC\r\
\n# ----------------------------------\r\
\n:if (\$PPP) do={\r\
\n\t/ppp active\r\
\n\t:foreach id in=[find] do={\r\
\n\t\t:local ppp \"\$[get \$id]\"\r\
\n\t\t:set ( \"\$ppp\"->\"script\" ) \"ppp\"\r\
\n\t\t:log info message=\"\$ppp\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n:if (\$IPSEC) do={\r\
\n\t/ip ipsec active-peers\r\
\n\t:foreach id in=[find] do={\r\
\n\t\t:local ipsec \"\$[get \$id]\"\r\
\n\t\t:set ( \"\$ipsec\"->\"script\" ) \"ipsec\"\r\
\n\t\t:log info message=\"\$ipsec\"\r\
\n\t}\r\
\n}\r\
\n\r\
\n# End Script\r\
\n\r\
\n"
/system script add comment="for Splunk" dont-require-permissions=yes name=Netwatch owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="####################################\r\
\n# Netwatch script\r\
\n#\r\
\n# Used as both up and down script\r\
\n# Created Jotne 2021 v1.5\r\
\n#\r\
\n####################################\r\
\n:local Host \$host\r\
\n/tool netwatch\r\
\n:local Status [get [find where host=\"\$Host\"] status]\r\
\n:local Comment [get [find where host=\"\$Host\"] comment]\r\
\n:local Interval [get [find where host=\"\$Host\"] interval]\r\
\n:local Since [get [find where host=\"\$Host\"] since]\r\
\n:log info \"script=netwatch watch_host=\$Host comment=\\\"\$Comment\\\" status=\$Status interval=\$Interval since=\\\"\$Since\\\"\""
/system watchdog set auto-send-supout=yes ping-start-after-boot=15m ping-timeout=10m send-email-from=jXXXXX@domain.com send-email-to=jXXXXX@domain.com watch-address=192.168.2.2
/tool e-mail set from=jXXXXX@domain.com password=XXXXX port=587 server=smtp.gmail.com tls=starttls user=jXXXXX@domain.com
/tool graphing interface add
/tool graphing interface add interface=wireguard1
/tool graphing interface add interface=bridge
/tool graphing queue add
/tool graphing resource add
/tool netwatch add comment=Netwatch-8.8.4.4-this-box disabled=no down-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox DOWN\" body=( \"\$thisBox DOWN to 1.1.1.1\" )" host=8.8.4.4 http-codes="" interval=5m name=Netwatch-8.8.4.4-this-box test-script="" type=simple up-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox UP\" body=( \"\$thisBox UP to 1.1.1.1\" )"
/tool netwatch add disabled=no down-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox DOWN\" body=( [ :system clock get date ] . \" \" . [ :system clock get time ] . \"\$thisBox DOWN to 192.168.0.21\" )" host=192.168.20.21 http-codes="" interval=30s name=Netwatch-192.168.20.21-this-box test-script="" type=simple up-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox DOWN\" body=( [ :system clock get date ] . \" \" . [ :system clock get time ] . \"\$thisBox UP to 192.168.0.21\" )"
/tool netwatch add disabled=no down-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox DOWN\" body=( \"\$thisBox DOWN to 192.168.0.5\" )" host=192.168.20.5 http-codes="" interval=30s name=Netwatch-192.168.20.5-this-box test-script="" type=simple up-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox UP\" body=( \"\$thisBox UP to 192.168.0.5\" )"
/tool netwatch add disabled=no down-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox DOWN\" body=( \"\$thisBox DOWN to 192.168.0.22\" )" host=192.168.20.22 http-codes="" interval=30s name=Netwatch-192.168.20.22-this-box test-script="" type=simple up-script=":local thisBox [/system identity get name];\r\
\n\r\
\n:tool e-mail send to=jXXXXX@domain.com subject=\"\$thisBox UP\" body=( \"\$thisBox UP to 192.168.0.22\" )"
/tool netwatch add comment=WG-Tunnel-355 disabled=no down-script=Netwatch host=192.168.0.11 http-codes="" interval=30s name=Netwatch-192.168.0.11 test-script="" type=simple up-script=Netwatch
/tool netwatch add comment=WG-Tunnel-212 disabled=no down-script=Netwatch host=192.168.2.2 http-codes="" interval=30s name=Netwatch-192.168.2.2 test-script="" type=simple up-script=Netwatch
/tool netwatch add comment=Netwatch-1.1.1.1 disabled=no down-script=Netwatch host=1.1.1.1 http-codes="" interval=1m name=Netwatch-1.1.1.1 test-script="" type=simple up-script=Netwatch
/tool romon set enabled=yes
/tool sniffer set filter-mac-address=92:A5:3E:1F:79:99/FF:FF:FF:FF:FF:FF filter-operator-between-entries=and memory-limit=10000KiB
Most threads nowadays are about the wifi-qcom(-ac) driver. You are still using the legacy/old wireless driver. So…no, I don’t see a lot of threads nowadays about this driver.
For security settings, start with basic before using more advanced stuff:
/ interface wireless security-profiles set default authentication-types=wpa2-psk wpa2-pre-shared-key=blueberry1!
It always hurts my eyes seeing 40MHz bandwidth used on the 2.4GHz band. That is the complete bandwidth available and you have to share it with all kinds off stuff, apart from other wireless networks. Also using 802.11b should be avoided if possible.
/interface wireless set [ find default-name=wlan1 ] band=2ghz-g/n channel-width=20mhz country="united states2" disabled=no disconnect-timeout=15s distance=indoors frequency=2462 installation=indoor mode=ap-bridge security-profile=629 ssid=MikroTik-95466C-2.4ghz wireless-protocol=802.11
Same for 5GHz interface, does it require 802.11a?
At last…you might want to consider using the wifi-qcom-ac driver instead of the wireless driver. But be aware that you have to redo the wireless (wifi) configuration.
Update: you might want to turn on wireless debug logging to get some more insights.
Thank you very much!
I didn't know I could use the wifi-qcom(-ac) drivers on the ac. Is it just a matter of putting the wifi-qcom for arm package in the files and rebooting (and then configuring wifi)?
As far as the current settings, for the 2ghz bank I have changed to "channel-width=20mhz"
What is wrong with allowing 802.11b for 2ghz?
And what is wrong with allowing 802.11a for 5ghz?
You have to upload wifi-qcom-ac package (the one without -ac is for AX devices). Also disable (for now) wireless package to avoid any potential race conditiins between wifi-qcom-ac and wireless drivers. After you get wifi-qcom-ac driver up and running (and you’re satisfied with how it works), you can uninstall wireless package to save a few MB of storage space.
As to support for legacy WiFi radio standards (a and b): when enabled, minimum rates (broadcast etc.) get downgraded so that also those legacy devices (if connected to AP) could use it. If your wireless network won’t see any so hopelessly outdated clients (note that even a not-yet-authorized client can make AP to fall back to slow speeds), you can safely disable support for those legacy radio standards.
Note that in new wifi drivers it’s not possible to disable legacy radio standards, it’s only possible to cap it to certain radio standards and disable newest ones (yes, sometimes this can be necessary).
Not a direct answer to your question, but I have read in multiple places how having b enabled slows down connection.
I don’ t think it is really-really true, in the sense that having it enabled AND having a b device connected does slow it a bit, but having it just enabled (with no b devices connected to it) should be fine.
Conversely I have read - specifically related to Mikrotik - that if you happen to have some devices that only “talk” b (typically some IOT devices manufactured before the IOT definition came out, like old thermometers/heating or conditioning systems) that it is advised to set the “main” wlan without the b and create a slave wlan with just it:
http://forum.mikrotik.com/t/802-11b-required-for-me-but-missing-in-ros7-wifi/174900/1
http://forum.mikrotik.com/t/802-11b-required-for-me-but-missing-in-ros7-wifi/174900/1
Thank you again everyone. As much as I try, not a day goes by that I don’t learn new things
Does this correct:
/interface wifi
set [ find default-name=wifi1 ] channel.band=2ghz-g .width=20mhz configuration.mode=ap .ssid=\
MikroTik-95466C-2.4ghz disabled=no name=wifi1-2ghz security=629 security.authentication-types=wpa2-psk \
.passphrase=blueberry1!
set [ find default-name=wifi2 ] channel.band=5ghz-ac .width=20/40/80mhz configuration.mode=ap .ssid=\
MikroTik-95466D-5ghz disabled=no name=wifi2-5ghz security=629 security.authentication-types=wpa2-psk \
.passphrase=blueberry1!
add configuration.mode=ap .ssid=Guest disabled=no mac-address=2E:C8:1B:95:46:6C master-interface=wifi1-2ghz \
name=Guest-wifi1 security=Guest security.authentication-types=wpa2-psk .passphrase=blueberry
add configuration.mode=ap .ssid=Guest disabled=no mac-address=2E:C8:1B:95:46:6D master-interface=wifi2-5ghz \
name=Guest-wifi2 security=Guest security.authentication-types=wpa2-psk .passphrase=blueberry
It depends on what you want to do.
As mkx wrote
and according to this:
http://forum.mikrotik.com/t/whats-with-the-wifi-bands/172503/1
those channel values are “telescopic” i.e. channel.band=2ghz-g means both “b and g” and channel.band=2ghz-n means “b, g and n”
Very interesting and informative thread.
Other than the standards, does the config looks okay?
