Dissasembly RB mAP lite 2nD

Hardware MikroTik hardware general
1

Hello,

Does anyone know how to dissasembly RB mAP lite 2nD? I need to replace ethernet port. I’ve got broken pins. :frowning:

2

I assume you need to apply the right amount of force to right part of mAP to “unclick” the white part from gray part. :wink: I just didn’t find the exact details yet. All I can tell is that being gentle does not work, both parts hold together very well. I’m sure that bigger force would work, but I’d hate to cause unrepairable damage to this nice little device.

3

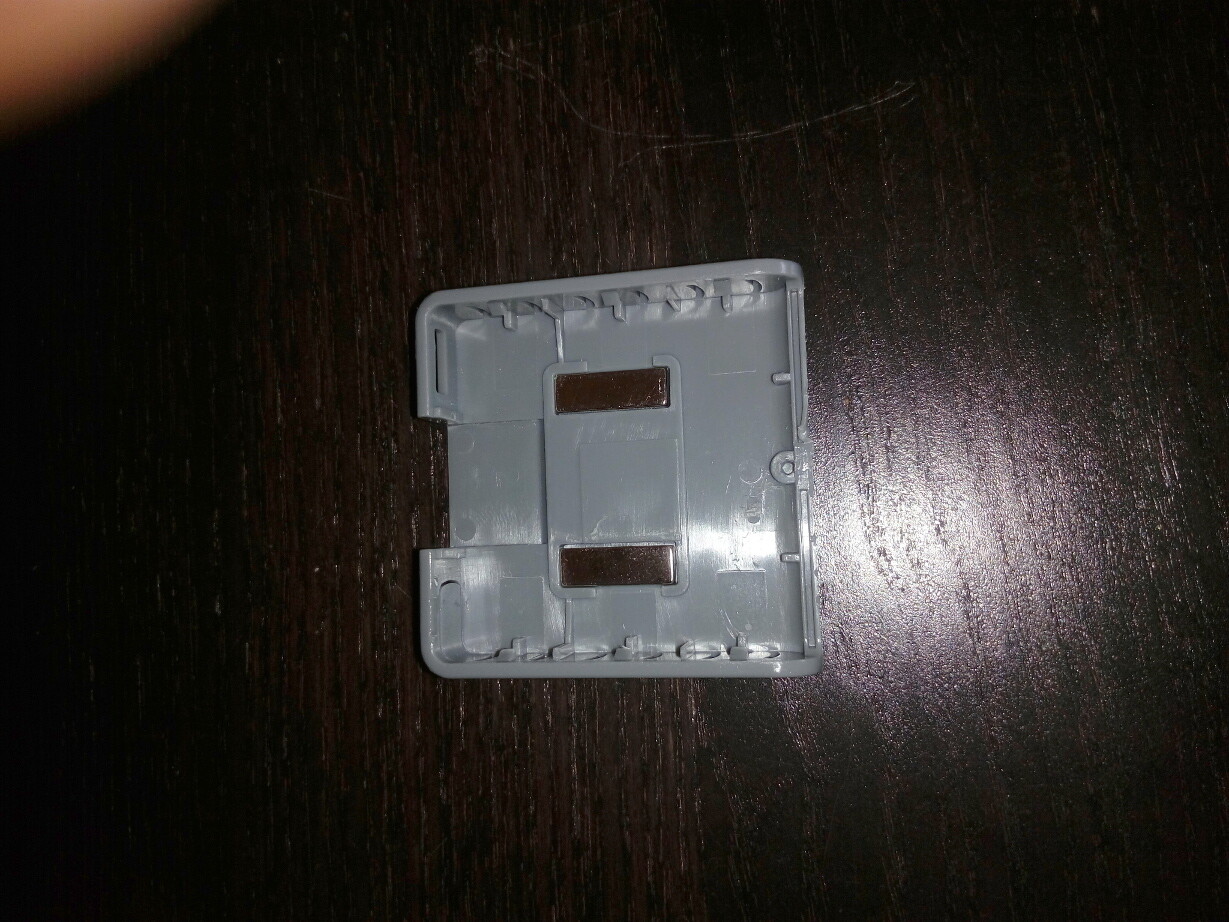

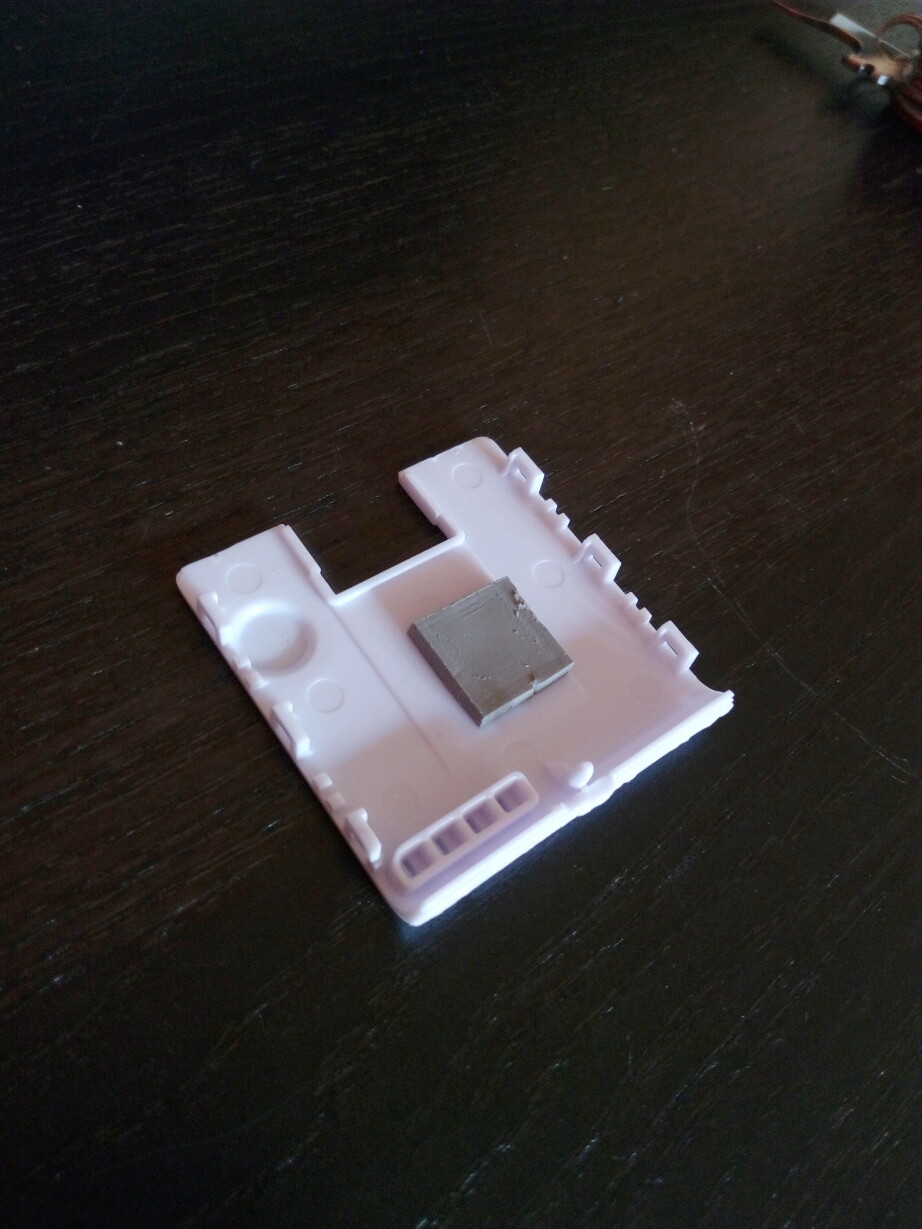

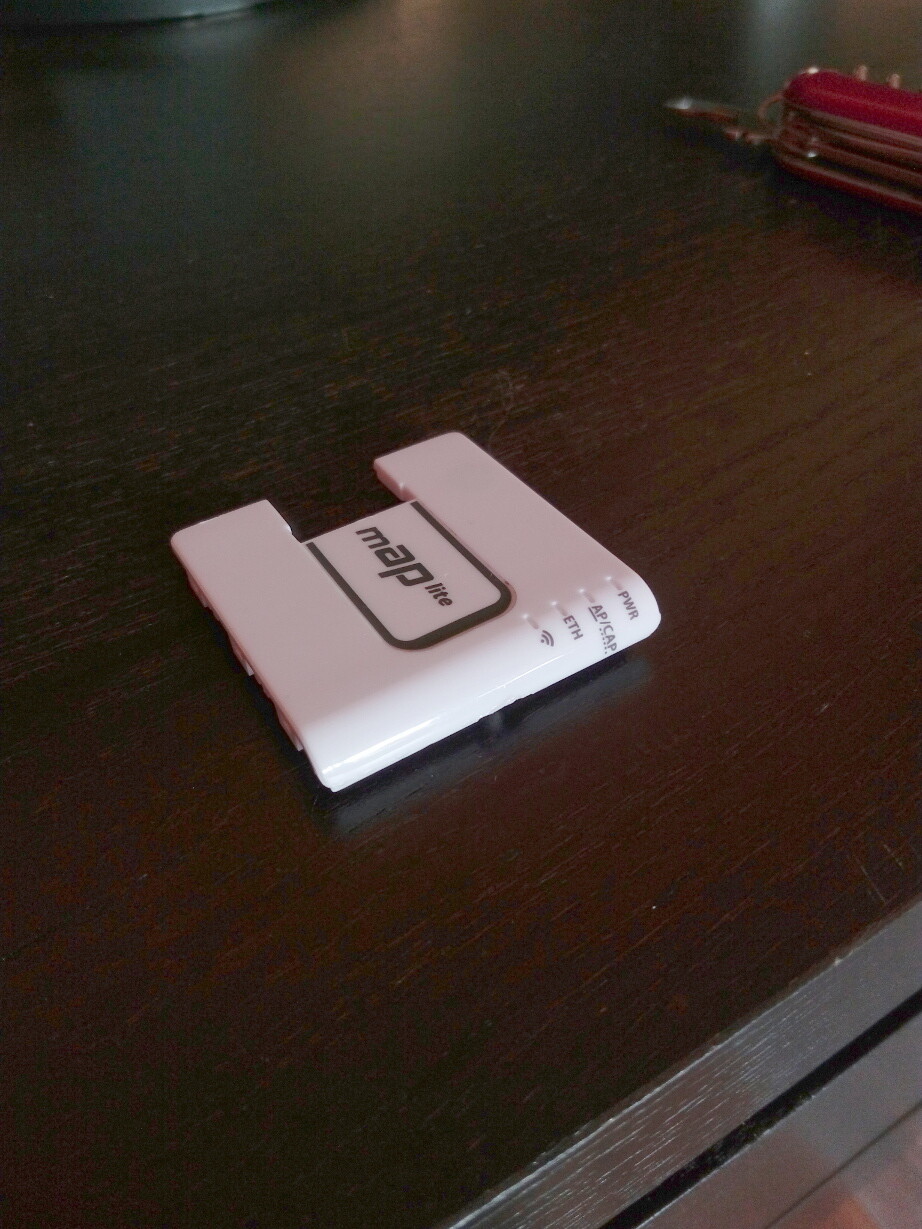

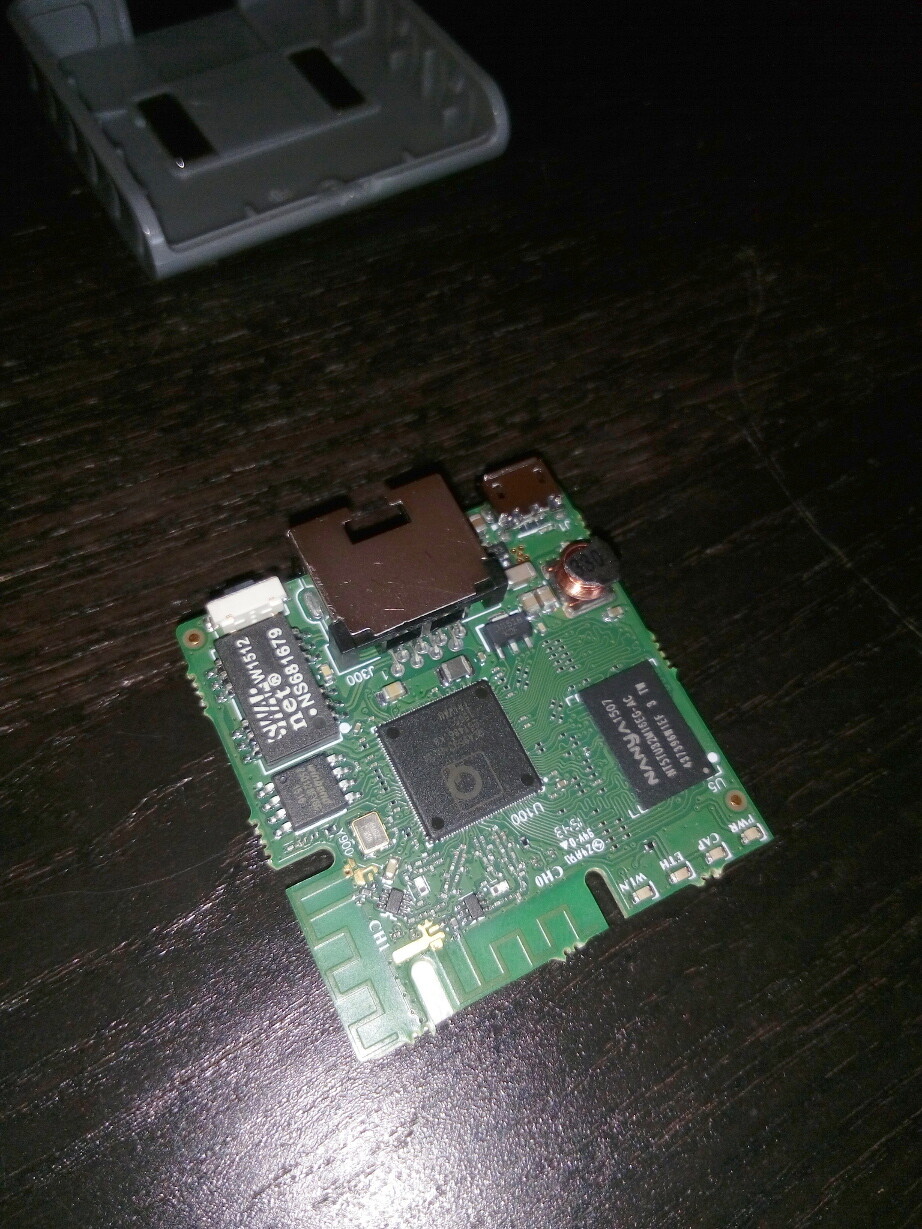

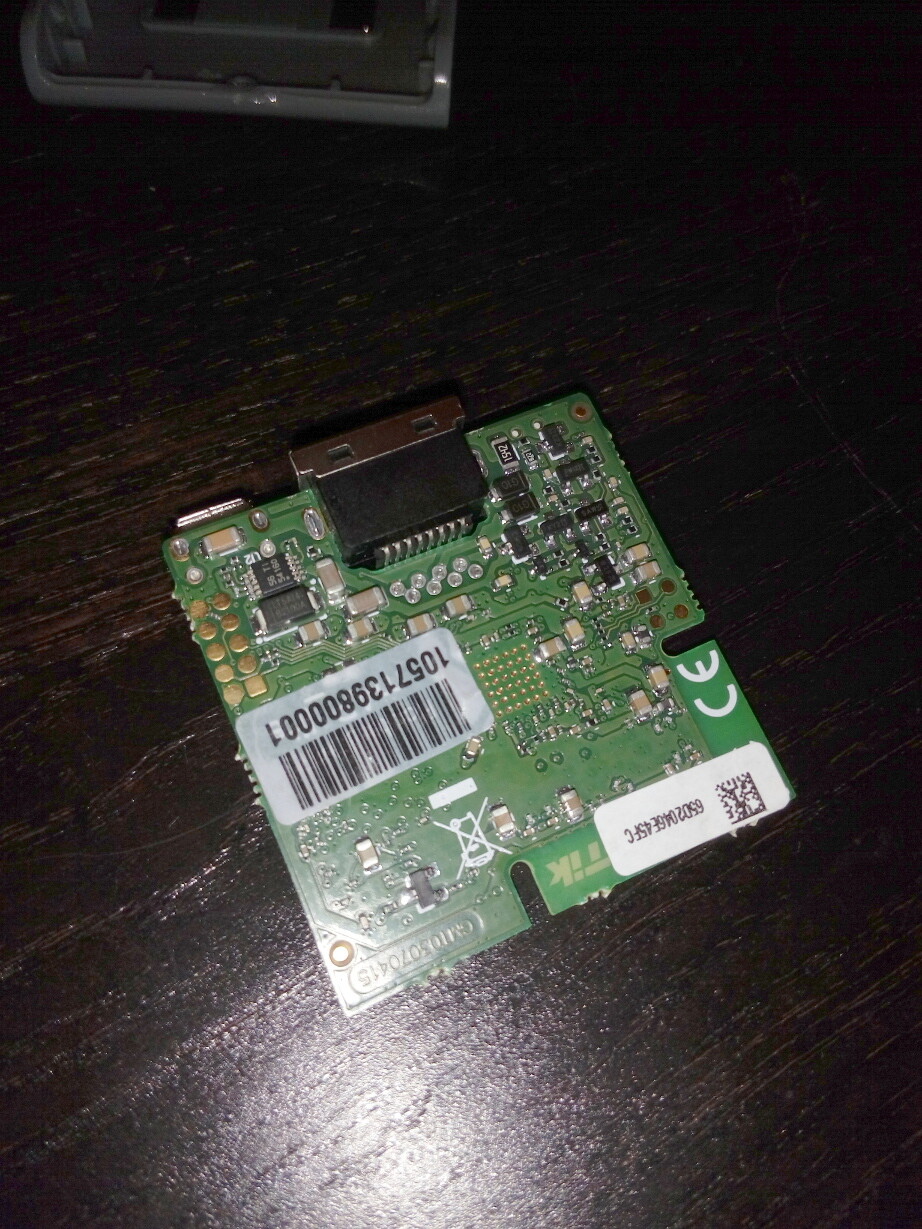

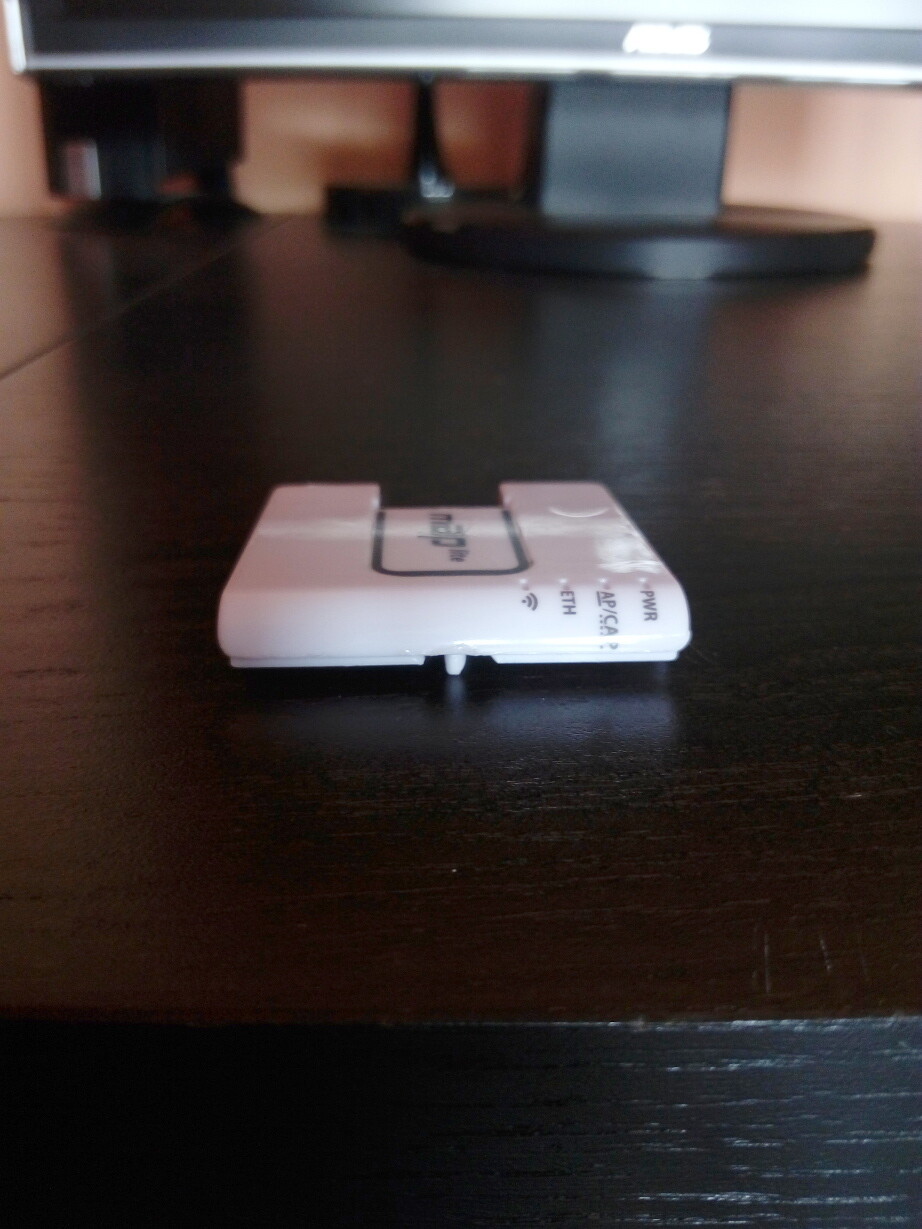

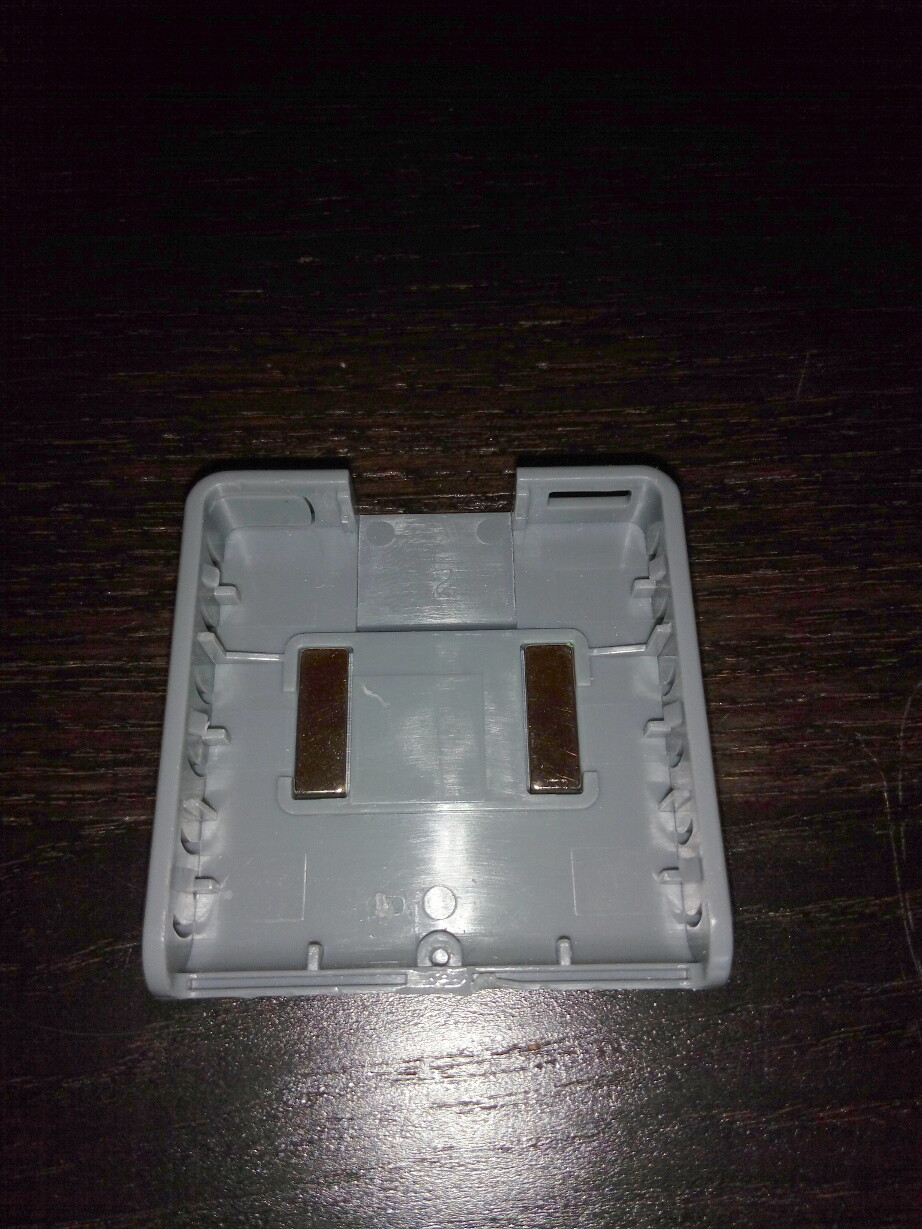

I have opened case. I needed to use a little bit more force and my pocket knife. :wink: Photos below. It isn’t too much wasted. :astonished:

4


5


6

Good work! Seeing in detail, how exactly those pieces that hold it together look like, does help.
