Hello,
There Is one switch CSR226 running on v6.41.3.
Traffic with DSCP 46 entering in Ether 17 Interface and getting tagged with inner vlan on the basis of the destination mac-add associated with the interfaces (iVlan1,2,200). and traffic is further QinQ for the external Vlan 500. finally traffic double tagged is going out by bond3 (sfp-sfpplus1) interface.
Requirement: traffic coming with dscp 46 should be marked dot1p 5 value when going out on the bond3/sfp-sfpplus1 interface.
Please provide the configuration if it possible in the bridge case.

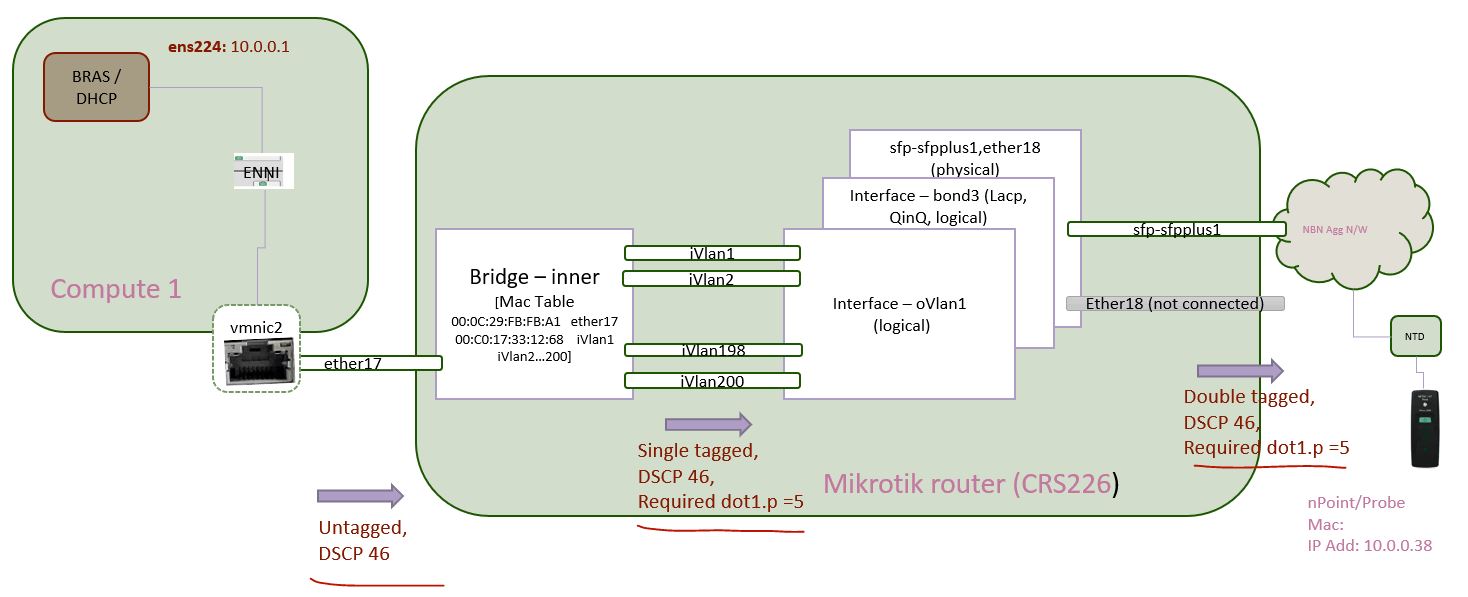

Here is the attached topology.
Thanks
Sunil
