Dual wan

[jaxed8]

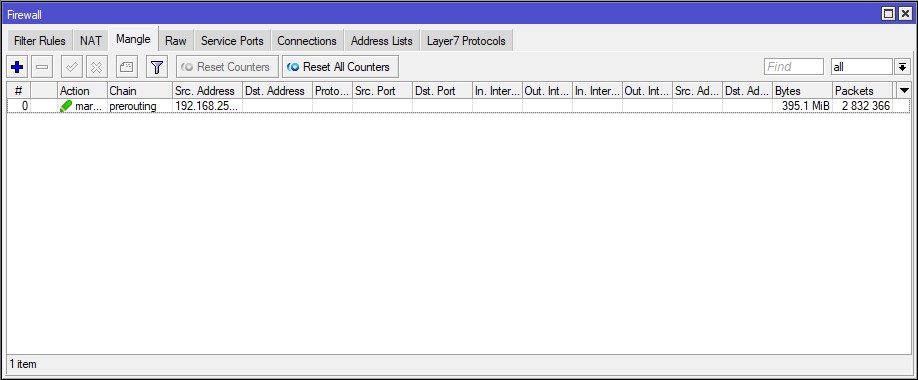

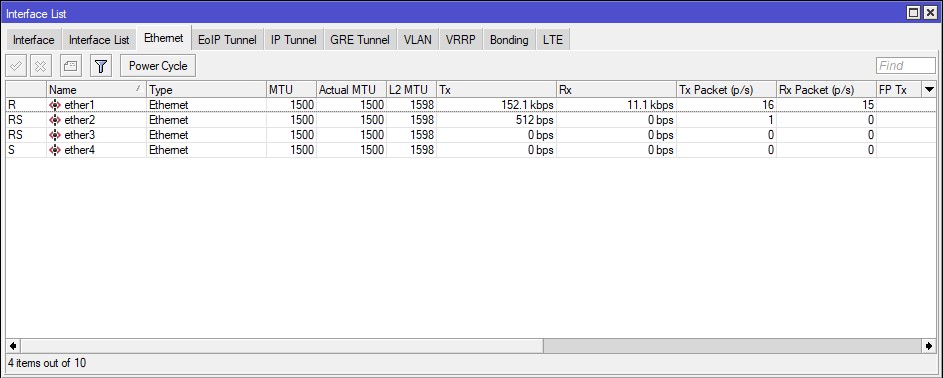

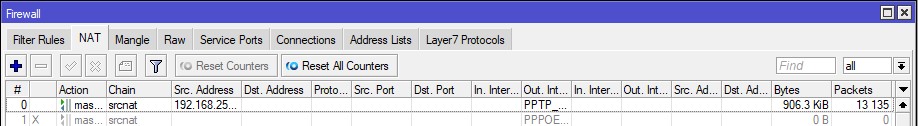

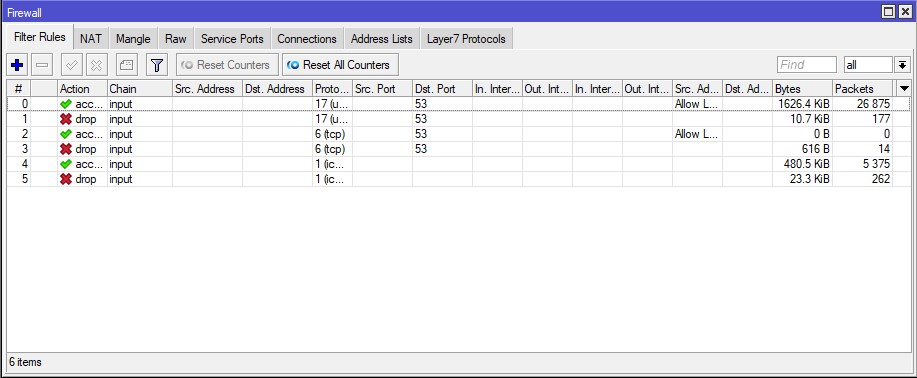

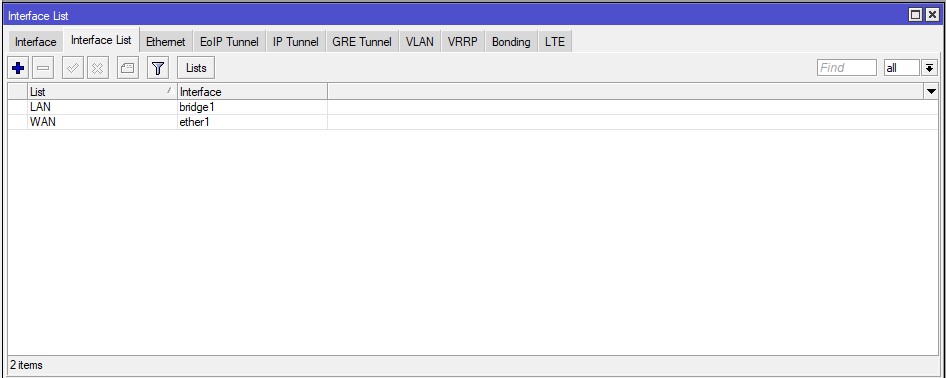

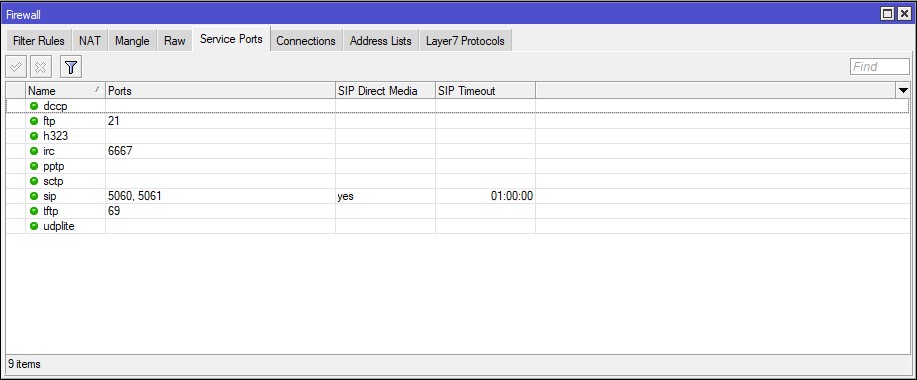

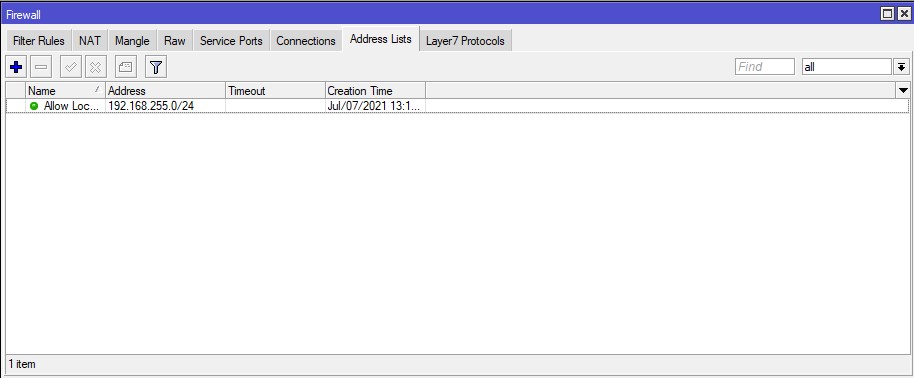

Hey everybody, I’m very new to Mikrotik world so I really appreciate simple explanations maybe with some screenshots of Winbox.
Recently I bought HAP lite for my ASIC miners to have VPN always up and running but WAN 1 (ADSL) got a lot of downtime recently and also the guy that setup and config this is not available for now so I decided to ask for help. What I want is to add second WAN to connect and simultaneously work with WAN 1 so if any of them goes down none of the packages dropped. Also VPN should always be connected and all of the input and output data from all the ports and devices and both WANs should always always just go throughout the VPN (which is already setup and working perfectly).

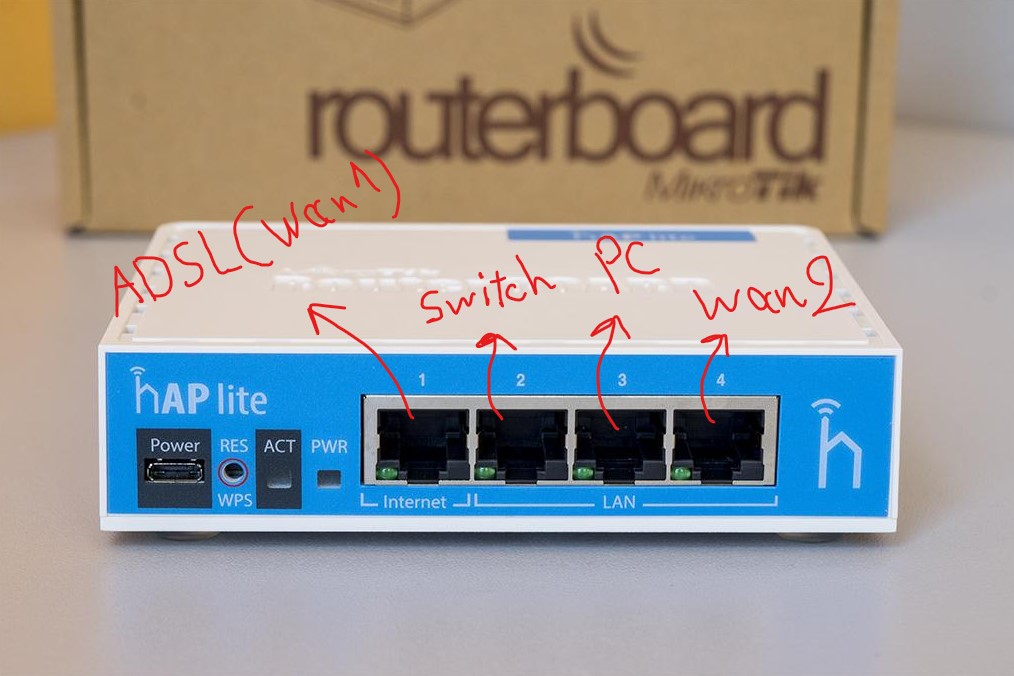

WAN 1 is on bridge mode. but WAN 2 does not need this.

[jaxed8]

Why it’s not been approved?

[andriys]

Because nobody moderates the forum 24/7. Your post was approved when one of the moderators had time to do that.

[anav]

haplite is underpowered for vpn work and there is no way to recover packets when you change WANs if one goes down.

[rextended]

WARNING for other users: I reply without considering bonding or similar…

As for the SMIPS devices, for me do not have any sufficient use power

What I want is

1. to add second WAN to connect and simultaneously work with WAN 1
2. so if any of them goes down none of the packages packet dropped
3. Also VPN should always be connected
4. and all of the input and output data from all the ports and devices and both WANs should always just go throughout the VPN

1a) For failover: OK, for distribuite bandwidth: OK
1b) for work simultaneously what mean?: increase speed: NO, for high availability: NO, keep same link alive: NO
2) Impossible
3) If is intended if the WAN used by VPN go down: Impossible, can use other WAN but is disconnected first.
4a) If is intended use VLAN for provide connection trough VLAN to the all device on LAN, is possible
4b) Other strange meanings: NO

[jaxed8]

Because nobody moderates the forum 24/7. Your post was approved when one of the moderators had time to do that.

I’m sorry, I thought the post had issue.

[jaxed8]

haplite is underpowered for vpn work and there is no way to recover packets when you change WANs if one goes down.

What models do you suggest?

[jaxed8]

WARNING for other users: I reply without considering bonding or similar...

As for the SMIPS devices, for me do not have any sufficient use power

What I want is

1. to add second WAN to connect and simultaneously work with WAN 1
2. so if any of them goes down none of the packages packet dropped
3. Also VPN should always be connected
4. and all of the input and output data from all the ports and devices and both WANs should always just go throughout the VPN

1a) For failover: OK, for distribuite bandwidth: OK
1b) for work simultaneously what mean?: increase speed: NO, for high availability: NO, keep same link alive: NO
2) Impossible
3) If is intended if the WAN used by VPN go down: Impossible, can use other WAN but is disconnected first.
4a) If is intended use VLAN for provide connection trough VLAN to the all device on LAN, is possible
4b) Other strange meanings: NO

Thanks for your reply
The guy who config and install all the things bought the router so if it's not powerful enough please suggest another model I will change it soon.

1. failover will do fine, but how much time it will take to detect and change?
2. sorry about the typo.
3. what I meant is no data without VPN to internet. doesn't matter if it's disconnect or reconnect or what ever just never send or receive anything without VPN.
4. I think it is and also the guy setup something that he said will just send or receive when VPN is connected not without it.

[rextended]

4a) If is intended use VLAN for provide connection trough VLAN to the all device on LAN, is possible
4b) Other strange meanings: NO

Thanks for your reply

1. failover will do fine, but how much time it will take to detect and change?
2. sorry about the typo.
3. what I meant is no data without VPN to internet. doesn’t matter if it’s disconnect or reconnect or what ever just never send or receive anything without VPN.
4. I think it is and also the guy setup something that he said will just send or receive when VPN is connected not without it.

1. 10 seconds
2. No problem, I have understand
3. Yes can be do, but (only) the RuterBOARD is still capable to go to Internet for connect the VPN…
4. Ok

[jaxed8]

4a) If is intended use VLAN for provide connection trough VLAN to the all device on LAN, is possible
4b) Other strange meanings: NO

Thanks for your reply

1. failover will do fine, but how much time it will take to detect and change?
2. sorry about the typo.
3. what I meant is no data without VPN to internet. doesn't matter if it's disconnect or reconnect or what ever just never send or receive anything without VPN.
4. I think it is and also the guy setup something that he said will just send or receive when VPN is connected not without it.

1. 10 seconds
2. No problem, I have understand
3. Yes can be do, but (only) the RuterBOARD is still capable to go to Internet for connect the VPN....
4. Ok

So, how do I config the router?

[jaxed8]

up!
