Hello everyone, I recently encountered a problem, I have read a lot of posts, it should be the problem of hairpin nat, but my situation may be a bit special, I hope to get answers

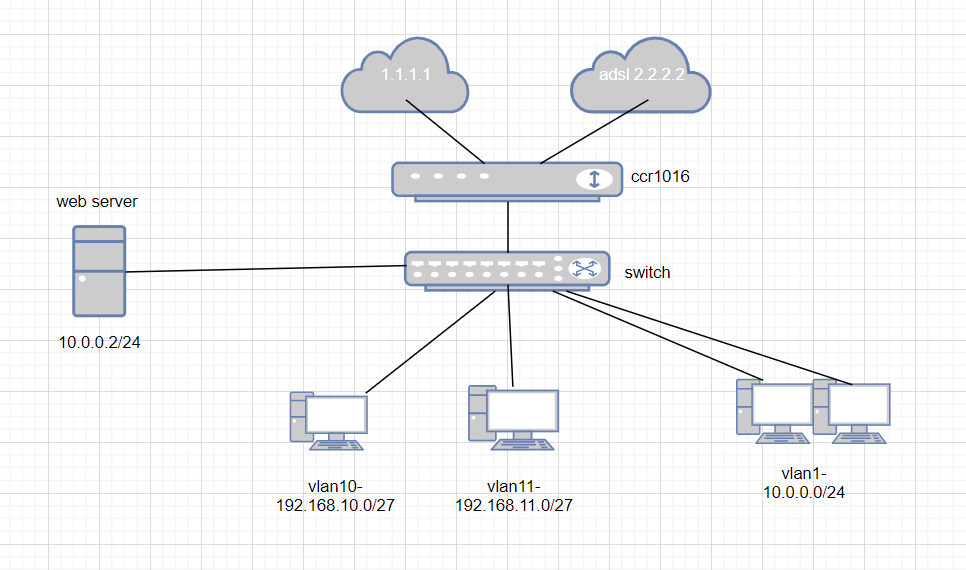

My network configuration is roughly as shown in the figure. There are 2 Internet access lines, one is a static IP: 1.1.1.1, and the other is a dynamic adsl line 2.2.2.2.
The internal network is divided into multiple VLANs through Layer 2 switch ports. The default VLAN is 10.0.0.0/24. There is a web server for external services, http://1.1.1.1:8888.
vlan10 and 11 use the 2.2.2.2 line to access the Internet. The default vlan1 uses 1.1.1.1 static IP lines to access the Internet.
The current situation is that the default vlan1 can access the web service through the internal network http://10.0.0.2:8888 and the external network http://1.1.1.1:8888, and other vlan cannot access the web service (http: //10.0.0.2: 8888, http://1.1.1.1:8888 are not accessible)
Excuse me for using google translate in english
It’s not hairpin NAT problem. Only devices in same subnet as server need hairpin NAT. In your case it’s only vlan1. Both vlan10 and vlan11 have diffent subnet, so no hairpin NAT is needed there.
It’s probably your routing. If you mark routing from vlan10 and vlan11 in order to use WAN 2.2.2.2, it’s possible that you “mask” other local networks. Blind guess, this could help:
I gag when I see the use of VLAN1. I would change that to vlan100 or any other number but I doubt it has any thing to do with any of the issues at play.
Followed your prompts, but if the host 10.0.0.253 in the subnet 10.0.0.0/23 is marked as not in the adsl line, you will not be able to access the services of 10.0.0.2. Seems invalid, please ignore the subnet 10.0.0.0/24 drawn in the figure.
There’s no dstnat for port 8888 like you had in original post. Only dstnat going to 10.0.0.2 is port 1514, which can’t work from LAN because it has in-interface=WAN-ether2. But that wouldn’t work not only from vlans, but neither from main 10.0.0.0/23.
And I’m not sure what 10.0.0.253 has to do with it. It’s in same subnet as 10.0.0.2, so direct connections must work. Normally the router would not interfere with it at all. You have for some reason enabled IP firewall for bridge, so router can interfere, but you have no filter rules, so it doesn’t block anything. And even in case it marks routing, the rule would override that.
I tried again and still couldn’t. Well, maybe I didn’t make it clear. I deleted some sensitive information in myconfig. 10.0.0.2: 8888. I just replaced an external service and removed the in-interface = WAN-ether2. I still ca n’t access it. . The main services on this host are UBNT unifi control and unifi video. 10.0.0.253 If this host is set to access from 1.1.1.1, it can access the service of 10.0.0.2, and if it is set to 2.2.2.2 on the adsl line Will not be able to access these services. My question is here, how can I replace the intranet or other VLANs, or specify that I can access the 10.0.0.2. Service from the 2.2.2.2 line exit?
After reading your article about vlan and que, I was very inspired. Vlan1 is actually base vlan, or the default vlan and management vlan. Maybe my habit is not very professional, please do n’t mind this. My problem is mainly multi-line Multi-lan, internal LAN users access to internal services, I hope to get everyone’s help, thank you.
Removing sensitive stuff is ok, but it must not break ability to understand the config. If you ask about port 8888, I need to see dstnat rule for port 8888. Currently it’s not there. If it contains a public address you want to hide, it’s no problem, just replace it with your fake 2.2.2.2. I can look at your other dstnat rules, but I can’t be sure that there isn’t something wrong with the one I’m not seeing.
download and open in notepad++
Remove or put in fake numbers for WANIP or other sensitive stuff that didnt already get blocked
Without the config we are just guessing and thats no fun.
So you want e.g. client 10.0.0.20 to connect to server 1.1.1.1:8180, which would redirect it to 10.0.1.252:8080, correct? It should work:
Client 10.0.0.20 tries to connect to 1.1.1.1:8180.
Mangle rule gives it routing mark “slave_adsl”.
Dstnat changes destination to 10.0.1.252:8080.
Normally the destination would be looked up in routing table “slave_adsl”, which doesn’t contain local 10.0.1.252, so everything would go to internet (gateway=adsl-tx). But routing rule overrides that, so it will find connected route in main table.
There’s nothing in firewall filter that would block it.
Both client and target server are in same subnet, which would be a problem, but you have hairpin NAT rule to fix it.
Server will see connection from 10.0.0.1, so it will send response back to router and it will forward it to client.
In short, I don’t see where could be the problem. But you can verify it step by step (add these at the top before everything else):
step1 - request from client came to router
step2 - request was forwarded to server (check for correct outgoing interface)
step3 - response from server came to router
step4 - response was forwarded to client
The last rule was my mistake, address is changed back only after postrouting, so it couldn’t work. Sorry. But judging by the amount of packets, there’s probably traffic also from other clients, so it’s not very useful. And using action=accept is not exactly correct, because it stops processing in given chain. Unlike action=log, which logs packet, but then continues to following rules, so there’s no change in behaviour.
You can try two things, either more specific rules:
But step3 will be logged also for traffic from other clients. And you definitely want action=log, because you want to see what exactly server sends back (could be ack or rst, which makes a difference).
It will log only the traffic you’re interested in and nothing else. It should log step1-3 for both directions. It’s again not ideal, because action=accept changes behaviour, as decribed before, but as a test it should be ok.
Somehow just fine, I carefully compared the configuration before and after, only
/ ip route rule
add action = lookup-only-in-table dst-address = 10.0.0.0 / 23 table = main
is added later, it may be because the router has not restarted. I set it to restart every Sunday, does this rule need to restart to take effect. Now any intranet can access the services of the intranet. It should be this rule, thank you.
