ethernet questions

RouterOS General
1

how will i fix the errors or were do i start to improve it as from this info somethings not right

[brendanM@Rpia0007(Office)] > interface ethernet print stats
name: ether1-local

driver-rx-byte: 29 622 818 717
driver-rx-packet: 64 713 696
driver-tx-byte: 10 818 568 403
driver-tx-packet: 64 346 399
rx-bytes: 29 931 183 035
rx-packet: 64 930 803
rx-too-short: 0

rx-too-short: 0
rx-too-long: 0
rx-broadcast: 42 692
rx-pause: 0
rx-multicast: 135 333
rx-fcs-error: 197 332
rx-align-error: 17 916
rx-fragment: 2
rx-control: 0
rx-unknown-op: 0
rx-length-error: 222 200
rx-code-error: 0
rx-carrier-error: 0
rx-jabber: 7 092
rx-drop: 222 343
tx-bytes: 10 999 150 705
tx-packet: 64 195 983
tx-too-short: 675 567
tx-too-long: 0
tx-broadcast: 1 884
tx-pause: 0
tx-multicast: 26 668
tx-excessive-collision: 0
tx-multiple-collision: 83 731
tx-single-collision: 629 787
tx-excessive-deferred: 0
tx-deferred: 1 620 575
tx-late-collision: 674 701
tx-total-collision: 813 738
tx-drop: 126
tx-jabber: 0
tx-fcs-error: 0
tx-control: 0
tx-fragment: 0
tx-rx-64: 27 438 582
tx-rx-65-127: 64 711 574
tx-rx-128-255: 9 110 157
tx-rx-256-511: 5 272 645
tx-rx-512-1023: 3 440 551
tx-rx-1024-1518: 18 470 582
tx-rx-1519-max: 0

[brendanM@Rpia0007(Office)] >

2
  1. Change cable :confused: (type of cable and lenght?)
    if continue
  2. Change one of device at the extreme of the cable :frowning:
    if continue
  3. Change unchanged device :sunglasses:
    if continue
  4. Check noise in environment.
3

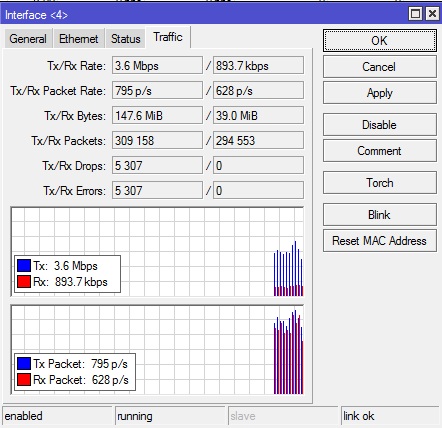

so that will also do the error on the tx as the pic shows as i played around with cable hardware and cards etc

4

You sure to have considered all 5 point?
Are 5 point not 3…

And add this:

  1. All ethernet ports must have same MTU (usually 1500) on BOTH devices.
5

will do more tests on this one then

6

was my switch
