When operating a router with wan fail-over, when NAT is applied to both links, (ex two residential ISP connection), it is possible that “ip leakage” can occur.
This is only relevant for networks bound to specific ranges, such as for residential ISP. This doesn’t apply to situation when dynamic routing protocols are used to route ip traffic (with peering) over best path possible.
In such a residential configuration, on fail-over event packets with wrong ip (=ip of the other ISP) will be forwarded over the fail-over interface as long as the original connection hasn’t timed out.
This is something else than private ip range leakage, as addressed in this presentation: https://mum.mikrotik.com/presentations/US17/presentation_4241_1496042977.pdf, slides 27-31, video: https://youtu.be/D80_a_O86jc.

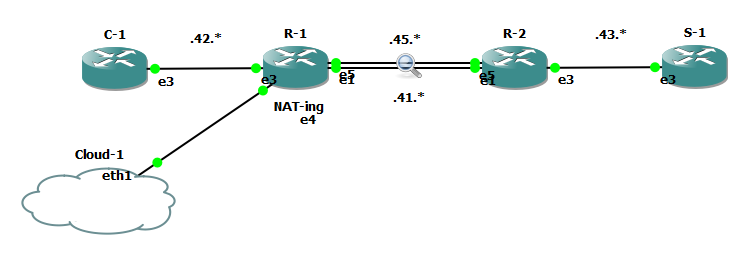

To replicate and analyse the behaviour I’ve setup a test environment in GNS3:
C-1: “client” simulated by Tik instance, with ssh client
R-1: client side router, with fail-over connections and natting on both up-links
R-2: “internet”
S-1: “server” simulated by Tik, with ssh server enabled
Config info of R-1:
- natting of both uplinks, ether1 is primary, ether5 secondary
- ether1 is src-nat-ing, ether5 masquerading
- filter:forward drop invalid is set
Procedure to replicate issue:
- start capture on R-1:eth5<->R-2:eth5 link
- start ssh session from C-1 to S-1 (over primary link R-1:eth1<->R-2:eth1)
- suspend R-1:eth1<->R-2:eth1
- wait and observe leakage on secondary link R-1:eth5<->R-2:eth5
Observation: R-1 transmits packets with ip of eth1 on eth5. On residential ISP connection, this doesn’t make any sense…
Work around:
Looking at the flow (https://wiki.mikrotik.com/wiki/Manual:Packet_Flow_v6), after “Src-Nat” step in Postrouting, actual packet header can’t be consulted, so explicit verification is not possible.
But indirectly could be possible: on state=new in mangle:forward (after routing) mark the connection to indicate chosen route/outgoing interface.
On state=established (for outbound packets only) verify in filter:forward that the outgoing interface still matches the connection mark. If it doesn’t then it’s a case of wrong src ip as observed.
Additional config R-1
/ip firewall mangle
add action=mark-connection chain=forward connection-state=new new-connection-mark=ether1 out-interface=ether1
add action=mark-connection chain=forward connection-state=new new-connection-mark=ether5 out-interface=ether5
/ip firewall filter
add action=passthrough chain=forward connection-mark=!ether1 connection-state=established log=yes log-prefix="Leak: " out-interface=ether1
add action=passthrough chain=forward connection-mark=!ether5 connection-state=established log=yes log-prefix="Leak: " out-interface=ether5
Log entries:
10:35:04 firewall,info Leak: forward: in:ether3 out:ether5, src-mac 0c:27:06:71:89:02, proto TCP (ACK,PSH), 192.168.42.11:34753->192.168.43.2:22, NAT (192.168.42.11:34753->192.168.41.2:34753)->192.168.43.2:22, len 156
10:35:32 firewall,info Leak: forward: in:ether3 out:ether5, src-mac 0c:27:06:71:89:02, proto TCP (ACK,PSH), 192.168.42.11:34753->192.168.43.2:22, NAT (192.168.42.11:34753->192.168.41.2:34753)->192.168.43.2:22, len 156
Notice the “NAT (192.168.42.11:34753->192.168.41.2:34753)”:
- connection tracking knows that NAT is needed
- connection tracking knows what is the associated outing ip
- so verifying that outgoing NAT ip belongs to the used outing interface should be easy to do
Feature request:
Please expose such “connection-nat-ipmismatch” function, so implementing such filtering doesn’t have to go through roundabout way over mangling (with all complications of that, ex when using mangling for QOS).
Thank you
Sebastian
