Feature request - Specify custom SNMP port for the device

[eriitguy]

Dear Mikrotik team,

Please review a possibility to specify a custom SNMP port for the device.
In current Dude implementation it may get SNMP data without specifying a port and it seems that it uses a default,161 UDP port.

In some cases device maybe behind the NAT and we may configure a port forwarding for SNMP. Specifying a custom SNMP port in Dude might help us to monitor such devices.

In general a Dude Agents are dedicated for this purpose, but it is not always an opportunity to use them.


Thank you!

---

Feature request list for Dude v6

Hm....

It seems that this is already implemented in the following way:

1. Create new profile
   Dude --> Settings --> SNMP --> +
   Name:
   Version:
   Port:
   Community:
   --> Ok

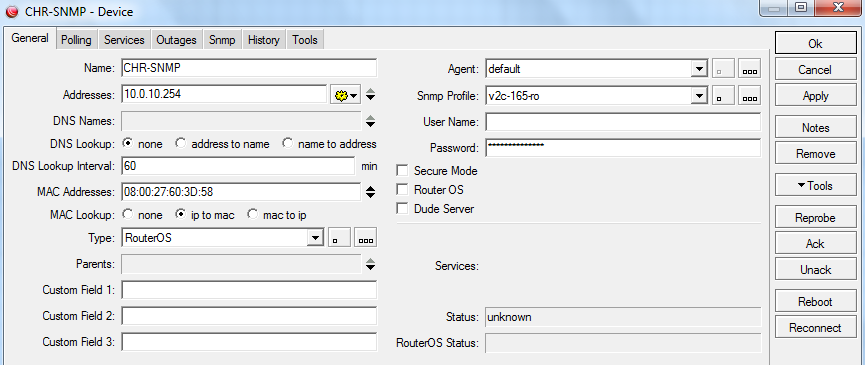

2. Assign created profile to the device
   Device --> Settings --> General --> SNMP Profile --> Select a profile created in step 1 --> Ok

[eriitguy]

Hello!

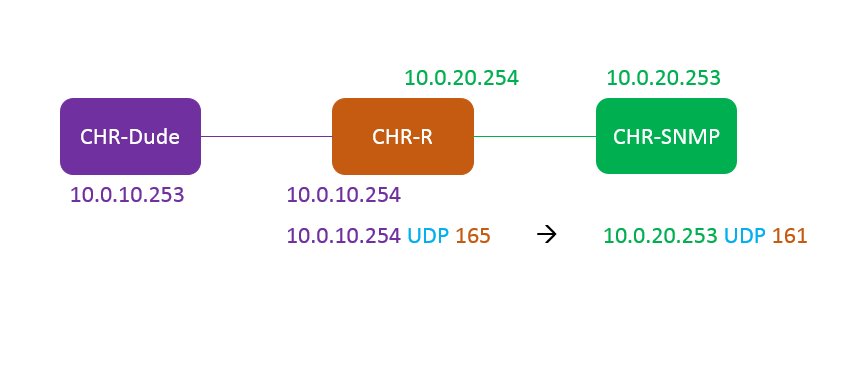

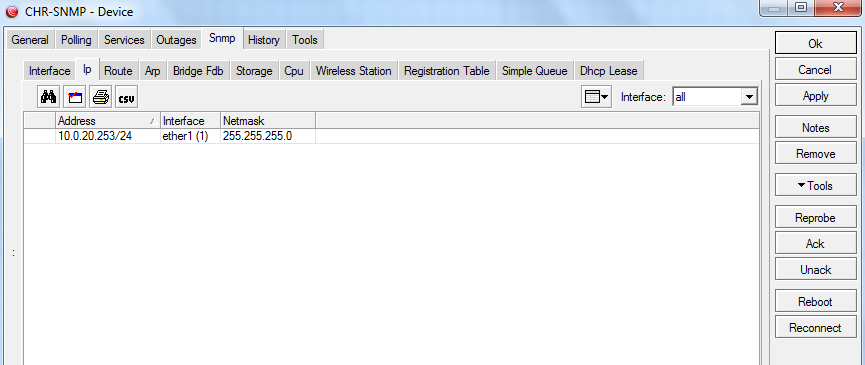

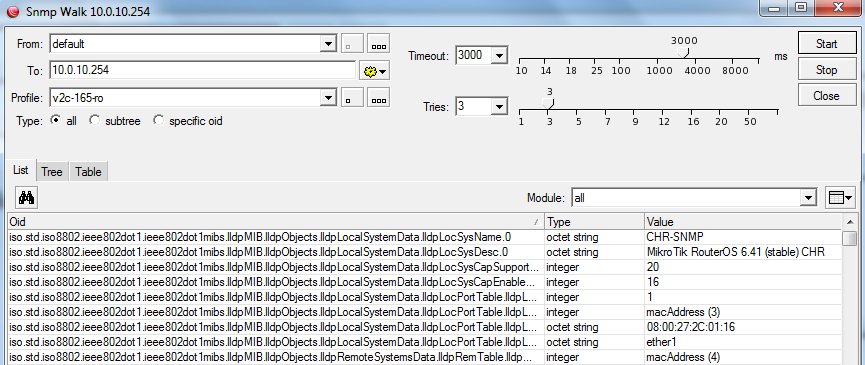

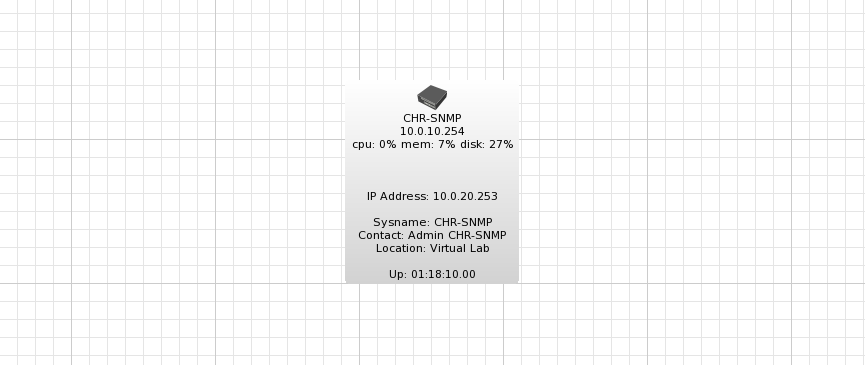

This approach was verified in test environment:





Thank you!

[eriitguy]

Hello!

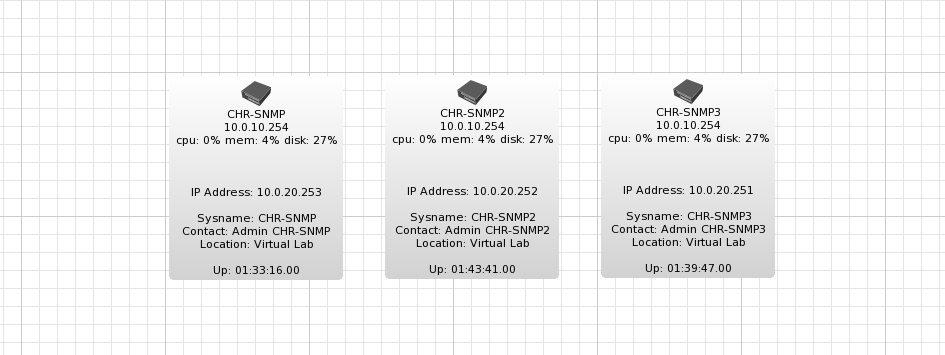

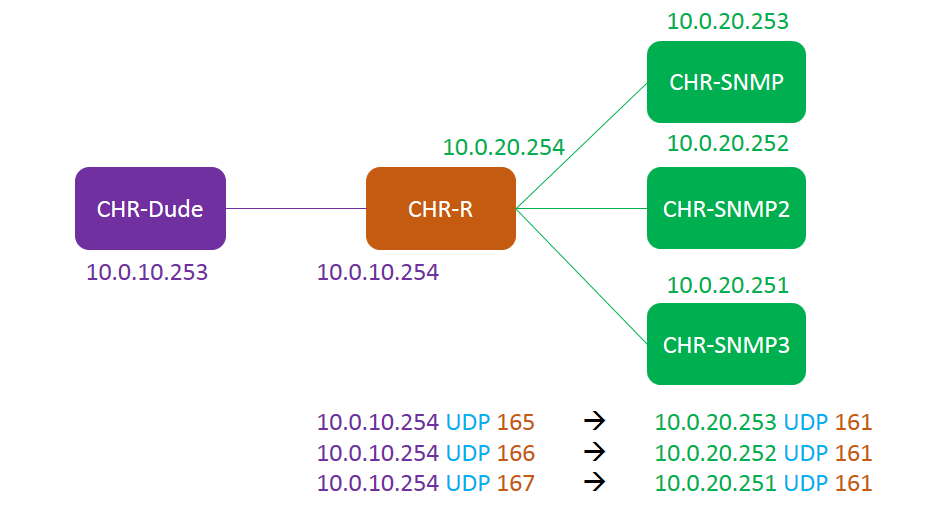

A more complex configuration was verified in test environment:



Thank you!

[eriitguy]

It seems, that at the moment, Dude can’t handle configuration described in the posts above. For more information please see Dude server v.6 - not working with port forwarding.


Thank you!
