Dear fewi
i need help
hope you can help me
i’m using RB450G with software 5.6

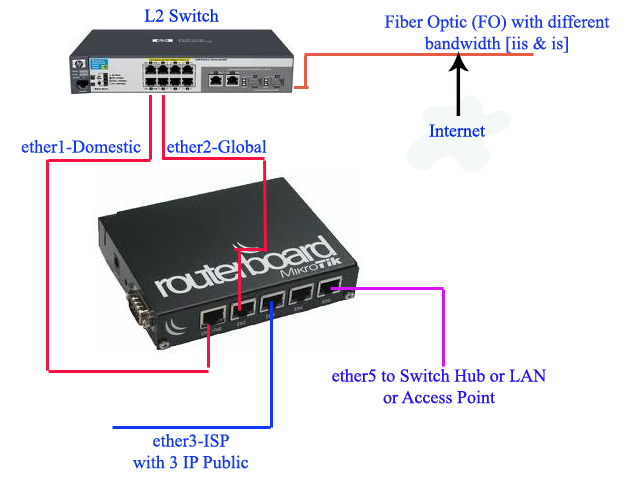

Here TOPOLOGY
i’m using ISP via Fiber Optic connect to L2 Switch. and From L2 Switch have 2 Output Port LAN to my Mikrotik RB450G
from L2 Switch port1 connect to RB450G ether1-Domestic (have up/down 5 Mbps Bandwidth)
from L2 Switch port2 connect to RB450G ether2-Global (have up/down 128 Kbps Bandwidth)
so, i have different Bandwidth came from my ISP and give me 3 IP Public/IP Static
and IP Public already put into ether3-ISP
when i try browsing, is a bit lagging if connection come from ether2-Global
and sometimes i browsing so fast if connection come from ether1-Domestic
when ether3-ISP have no Plug Cable LAN … i’m also can remote into mikrotik RB450G from difference place using IP Static
so, my question is :
- can i just only use connection from ether1-Domestic only ??? (coz, i just need Domestic connection for gaming only)
- i want share my connection using Access Point to another station (client).
- i don’t want give my IP Public to my station (client)
- how can i management bandwidth client (limit bandwidth)
- is it possible i’m connect using ether5 to be my LAN or share connection to my station (client)
i’m forget to say. my ISP using Routing BGP with my private AS Number + BGP Peer
and here setting come from my ISP into my Mikrotik RB450G
/ip address print detail
0 address=192.168.67.94/30 network=192.168.67.92 interface=ether1-Domestic actual-interface=ether1-Domestic
1 address=192.168.67.154/30 network=192.168.67.152 interface=ether2-Global actual-interface=ether2-Global
2 address=118.97.xxx.193/29 network=118.97.xxx.192 interface=ether3-ISP actual-interface=ether3-ISP
Here is Routing BGP with AS Number (sorry i hide my AS Number with xxx)
/routing bgp instance print detail
name="default" as=65xxx router-id=0.0.0.0 redistribute-connected=no redistribute-static=no redistribute-rip=no redistribute-ospf=no redistribute-other-bgp=no out-filter="" client-to-client-reflection=yes ignore-as-path-len=no routing-table=""
/routing bgp peer print detail
name="p2p-Domestic" instance=default remote-address=192.168.67.93 remote-as=17xxx tcp-md5-key="" nexthop-choice=default multihop=no route-reflect=no hold-time=3m ttl=default in-filter="" out-filter="" address-families=ip default-originate=never remove-private-as=no as-override=no passive=no use-bfd=no
name="p2p-Global" instance=default remote-address=192.168.67.153 remote-as=17xxx tcp-md5-key="" nexthop-choice=default multihop=no route-reflect=no hold-time=3m ttl=default in-filter="" out-filter="" address-families=ip default-originate=never remove-private-as=no as-override=no passive=no use-bfd=no
/routing bgp network print detail
network=118.97.xxx.192/29 synchronize=yes
/ip dns print
servers: 203.130.193.74,202.134.0.155,203.130.196.5,203.130.206.250
allow-remote-requests: yes
max-udp-packet-size: 512
cache-size: 4096KiB
cache-max-ttl: 1w
cache-used: 9KiB
if i see IP Route … there have 3 original Route after adding “IP Address”
and the other route if i see is come from “BGP Peer ether1-Domestic and ether2-Global”
please help me … i’m not expert from this -_-
and i’m also a noob (newbie)
please teach me step by step
thanks
