no
this is all the code :
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Linq;
using tik4net.Objects;
using tik4net.Objects.Ip;
using tik4net.Objects.Ip.Dns;
using tik4net.Objects.Ip.Firewall;
using tik4net.Objects.Queue;
using tik4net.Objects.System;
namespace tik4net.examples
{
class ProgramExamples
{
static void Main(string[] args)
{
using (ITikConnection connection = ConnectionFactory.CreateConnection(TikConnectionType.Api))
{
connection.OnReadRow += Connection_OnReadRow; // logging commands to cosole
connection.OnWriteRow += Connection_OnWriteRow; // logging commands to cosole
connection.Open(ConfigurationManager.AppSettings["host"], ConfigurationManager.AppSettings["user"], ConfigurationManager.AppSettings["pass"]);
//------------------------------------------------
// LOW LEVEL API (hint: uncomment any example call and debug)
Identity(connection);
Torch(connection);
Log(connection);
//-------------------------------------------------
// HIGHLEVEL API (hint: uncomment any example call and debug)
PrintAddressList(connection);
CreateOrUpdateAddressList(connection);
PrintAddressList(connection);
CreateOrUpdateAddressList(connection);
PrintAddressList(connection);
DeleteAddressList(connection);
PrintAddressList(connection);
PrintAddressList(connection);
CreateOrUpdateAddressListMulti(connection);
PrintAddressList(connection);
CreateOrUpdateAddressListMulti(connection);
PrintAddressList(connection);
DeleteAddressListMulti(connection);
PrintAddressList(connection);
PrintIpAddresses(connection);
PrintSystemResource(connection);
ModifyIpAccounting(connection);
AddFirewalFilter(connection);
DhcpClientRelease(connection);
DnsCachePrint(connection);
//---------------------------------------------------------
// Advanced merge support (hint: uncomment any example call and debug)
QueueTreeMerge(connection);
FirewallMangleMerge(connection);
Console.WriteLine("Finito - press ENTER");
Console.ReadLine();
}
}
private static void Connection_OnWriteRow(object sender, TikConnectionCommCallbackEventArgs args)
{
Console.BackgroundColor = ConsoleColor.Magenta;
Console.WriteLine(">" + args.Word);
Console.BackgroundColor = ConsoleColor.Black;
}
private static void Connection_OnReadRow(object sender, TikConnectionCommCallbackEventArgs args)
{
Console.BackgroundColor = ConsoleColor.Green;
Console.WriteLine("<" + args.Word);
Console.BackgroundColor = ConsoleColor.Black;
}
private static void Identity(ITikConnection connection)
{
ITikCommand cmd = connection.CreateCommand("/system/identity/print");
var identity = cmd.ExecuteScalar(); //cmd.ExecuteSIngleRow()
Console.WriteLine("Identity: " + /*identity.GetResponseField("name")*/ identity);
Console.WriteLine("Press ENTER");
Console.ReadLine();
}
private static void Torch(ITikConnection connection)
{
ITikCommand torchCmd = connection.CreateCommand("/tool/torch",
connection.CreateParameter("interface", "ether1"),
connection.CreateParameter("port", "any"),
connection.CreateParameter("src-address", "0.0.0.0/0"),
connection.CreateParameter("dst-address", "0.0.0.0/0")
);
torchCmd.ExecuteAsync(response =>
{
Console.WriteLine("Row: " + response.GetResponseField("tx"));
});
Console.WriteLine("Press ENTER");
Console.ReadLine();
torchCmd.CancelAndJoin();
}
private static void Log(ITikConnection connection)
{
var logs = connection.LoadList<Log>();
foreach (Log log in logs)
{
Console.WriteLine("{0}[{1}]: {2}", log.Time, log.Topics, log.Message);
}
}
const string listName = "TEST_LIST";
const string ipAddress = "192.168.1.1";
const string ipAddress2 = "192.168.1.2";
private static void PrintAddressList(ITikConnection connection)
{
var addressLists = connection.LoadList<FirewallAddressList>(
connection.CreateParameter("list", listName));
foreach (FirewallAddressList addressList in addressLists)
{
Console.WriteLine("{0}{1}: {2} {3} ({4})", addressList.Disabled ? "X" : " ", addressList.Dynamic ? "D" : " ", addressList.Address, addressList.List, addressList.Comment);
}
}
private static void CreateOrUpdateAddressList(ITikConnection connection)
{
var existingAddressList = connection.LoadList<FirewallAddressList>(
connection.CreateParameter("list", listName),
connection.CreateParameter("address", ipAddress)).SingleOrDefault();
if (existingAddressList == null)
{
//Create
var newAddressList = new FirewallAddressList()
{
Address = ipAddress,
List = listName,
};
connection.Save(newAddressList);
}
else
{
//Update
existingAddressList.Comment = "Comment update: " + DateTime.Now.ToShortTimeString();
connection.Save(existingAddressList);
}
}
private static void DeleteAddressList(ITikConnection connection)
{
var existingAddressList = connection.LoadList<FirewallAddressList>(
connection.CreateParameter("list", listName),
connection.CreateParameter("address", ipAddress)).SingleOrDefault();
if (existingAddressList != null)
connection.Delete(existingAddressList);
}
private static void CreateOrUpdateAddressListMulti(ITikConnection connection)
{
var existingAddressList = connection.LoadList<FirewallAddressList>(
connection.CreateParameter("list", listName)).ToList();
var listClonedBackup = existingAddressList.CloneEntityList(); //creates clone of all entities in list
if (existingAddressList.Count() <= 0)
{
//Create (just in memory)
existingAddressList.Add(
new FirewallAddressList()
{
Address = ipAddress,
List = listName,
});
existingAddressList.Add(
new FirewallAddressList()
{
Address = ipAddress2,
List = listName,
});
}
else
{
//Update (just in memory)
foreach (var addressList in existingAddressList)
{
addressList.Comment = "Comment update: " + DateTime.Now.ToShortTimeString();
}
}
//save differences into mikrotik (existingAddressList=modified, listClonedBackup=unmodified)
connection.SaveListDifferences(existingAddressList, listClonedBackup);
}
private static void DeleteAddressListMulti(ITikConnection connection)
{
var existingAddressList = connection.LoadList<FirewallAddressList>(
connection.CreateParameter("list", listName)).ToList();
var listClonedBackup = existingAddressList.CloneEntityList(); //creates clone of all entities in list
existingAddressList.Clear();
//save differences into mikrotik (existingAddressList=modified, listClonedBackup=unmodified)
connection.SaveListDifferences(existingAddressList, listClonedBackup);
}
private static void PrintIpAddresses(ITikConnection connection)
{
var ipAddresses = connection.LoadList<IpAddress>();
foreach (var addr in ipAddresses)
{
Console.WriteLine(addr.EntityToString());
}
}
private static void PrintSystemResource(ITikConnection connection)
{
var sysRes = connection.LoadSingle<SystemResource>();
Console.WriteLine(sysRes.EntityToString());
}
private static void QueueTreeMerge(ITikConnection connection)
{
var original = connection.LoadAll<QueueTree>().Where(q => q.Name == "Q1" || q.Name == "Q2" || q.Name.StartsWith("Q3"));
string unique = Guid.NewGuid().ToString();
List<QueueTree> expected = new List<QueueTree>()
{
new QueueTree() { Name = "Q1", Parent = "global", PacketMark = "PM1" },
new QueueTree() { Name = "Q2", Parent = "global", PacketMark = "PM2", Comment = unique }, //always update
new QueueTree() { Name = "Q3 " + unique, Parent = "global", PacketMark = "PM3" }, // always insert + delete from previous run
};
//Merge with Name as key - can not save via SaveListDifferences because all items in 'expected' are new (.id=null) => insert will be done, not CUD
connection.CreateMerge(expected, original)
.WithKey(queue => queue.Name)
.Field(q => q.Parent)
.Field(q => q.PacketMark)
.Field(q => q.Comment)
.Save();
}
private static void FirewallMangleMerge(ITikConnection connection)
{
//manage just subset before rules marked with comment =START= and =END=
//Create subset boundaries if not present
const string startComment = "=START=";
const string endComment = "=END=";
var startMangle = connection.LoadSingleOrDefault<FirewallMangle>(connection.CreateParameter("comment", startComment));
if (startMangle == null)
{
startMangle = new FirewallMangle()
{
Chain = "forward",
Action = FirewallMangle.ActionType.Passthrough,
Comment = startComment,
Disabled = true,
};
connection.Save(startMangle);
};
var endMangle = connection.LoadSingleOrDefault<FirewallMangle>(connection.CreateParameter("comment", endComment));
if (endMangle == null)
{
endMangle = new FirewallMangle()
{
Chain = "forward",
Action = FirewallMangle.ActionType.Passthrough,
Comment = endComment,
Disabled = true,
};
connection.Save(endMangle);
};
//Merge subset between boundaries
string unique = Guid.NewGuid().ToString();
List<FirewallMangle> original = connection.LoadAll<FirewallMangle>().SkipWhile(m => m.Comment != startComment).TakeWhile(m => m.Comment != endComment)
.Concat(new List<FirewallMangle> { endMangle })
.ToList(); //just subset between =START= and =END= (not very elegant but functional and short ;-) )
List<FirewallMangle> expected = new List<FirewallMangle>();
expected.Add(startMangle);
expected.Add(new FirewallMangle()
{
Chain = "forward",
SrcAddress = "192.168.1.1",
Action = FirewallMangle.ActionType.MarkPacket,
NewPacketMark = "mark-001",
Passthrough = false,
});
expected.Add(new FirewallMangle()
{
Chain = "forward",
SrcAddress = "192.168.1.2",
Action = FirewallMangle.ActionType.MarkPacket,
NewPacketMark = "mark-002" + "-" + unique,
Passthrough = false,
});
expected.Add(new FirewallMangle()
{
Chain = "forward",
SrcAddress = "192.168.1.3",
Action = FirewallMangle.ActionType.MarkPacket,
NewPacketMark = "mark-003",
Passthrough = false,
Comment = unique,
});
expected.Add(endMangle);
connection.CreateMerge(expected, original)
.WithKey(mangle => mangle.SrcAddress + ":" + mangle.Comment) //Use src-address as key
.Field(q => q.Chain)
.Field(q => q.SrcAddress) //Do not forget include also key fields !!!
.Field(q => q.Action)
.Field(q => q.NewPacketMark)
.Field(q => q.Passthrough)
.Field(q => q.Comment)
.Save();
}
private static void ModifyIpAccounting(ITikConnection connection)
{
var accounting = connection.LoadSingle<IpAccounting>();
accounting.Threshold = 257;
connection.Save(accounting);
}
private static void AddFirewalFilter(ITikConnection connection)
{
var firewallFilter = new FirewallFilter()
{
Chain = FirewallFilter.ChainType.Forward,
Action = FirewallFilter.ActionType.Accept,
};
connection.Save(firewallFilter);
var loaded = connection.LoadAll<FirewallFilter>().First();
loaded.Comment = "TEST";
connection.Save(loaded);
}
private static void DhcpClientRelease(ITikConnection connection)
{
connection.LoadAll<IpDhcpClient>().First().Release(connection);
}
private static void DnsCachePrint(ITikConnection connection)
{
var cache = connection.LoadAll<DnsCache>();
foreach (var c in cache)
{
Console.WriteLine(c.EntityToString());
}
}
}
}

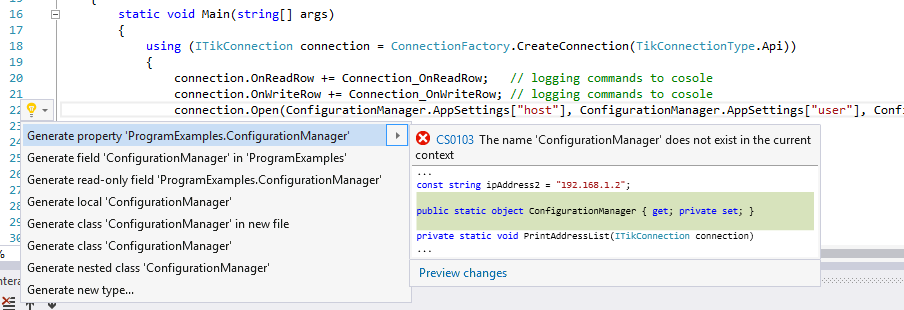

and this is the error I get :
Severity Code Description Project File Line Suppression State
Error CS0103 The name 'ConfigurationManager' does not exist in the current context tik4net.examples C:\Users\Computer\Documents\Visual Studio 2015\Projects\tik4net.examples\tik4net.examples\Program.cs 22 Active
Severity Code Description Project File Line Suppression State
Error CS0103 The name 'ConfigurationManager' does not exist in the current context tik4net.examples C:\Users\Computer\Documents\Visual Studio 2015\Projects\tik4net.examples\tik4net.examples\Program.cs 22 Active
Severity Code Description Project File Line Suppression State
Error CS0103 The name 'ConfigurationManager' does not exist in the current context tik4net.examples C:\Users\Computer\Documents\Visual Studio 2015\Projects\tik4net.examples\tik4net.examples\Program.cs 22 Active
