Get Repeater or signal extender in Spain

WiFi jungle.tiff (707 KB)
Hi
I live in a apartment complex in Spain.

I connect to a MikroTik wifi router with user+ password.

The router is not in my control nor accessible to me. :frowning:

The wifi signal is week and I have almost no connection inside. :frowning:

Can i get a WiFi Repeter device or something like it (buy in store or online) to boost the signal in my apartment.

Bare in mind I do not have access to the actual MikroTik router, and i do not know the model of it.

Here is the info from router I get:
PHY Mode: 802.11g
BSSID: 00:0c:42:39:94:63
Channel: 8
Country Code: ES
Network Type: Infrastructure
Security: None
Signal / Noise: -70 dBm / -87 dBm
Transmit Rate: 5

And the rest from my MacBook:
Card Type: AirPort Extreme (0x14E4, 0xE9)
Firmware Version: Broadcom BCM43xx 1.0 (5.106.98.100.14)
Locale: ETSI
Country Code: ES
Supported PHY Modes: 802.11 a/b/g/n
Supported Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Wake On Wireless: Supported
AirDrop: Supported
Status: Connected
WiFi jungle.tiff (707 KB)

Hola,

you have to use a board like 411AR or a 433 with 2 cards. One card will receive the actual signal (as your MAC does) and the other will create another WIFI network (as a repeater).


best regards,

hi,

does it possible to use single wireless card

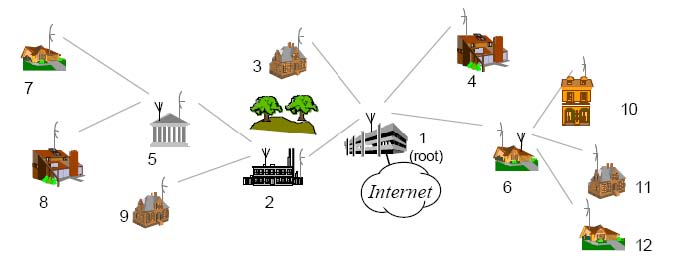

for example , kindly visit for product call VIP 110-24 ( now its VIP 110-58 ) & topology http://eionwireless.com/technology/vine

it uses one wireless card & you can configure as Base / Repe / Client

only the addition is one extra antenna for repe modem

it call Anypoint-to-Multipoint


please find attached file for ref. & snap
VIP Operators Manual.pdf (1.37 MB)
