Hi everyone!
I few months ago i open a topic in this forum to search how to configure a open-vpn. I was starting to deal with mikrotik and now I learned a lot more.
But I still haven’t been able to find a complete solution to my problem.

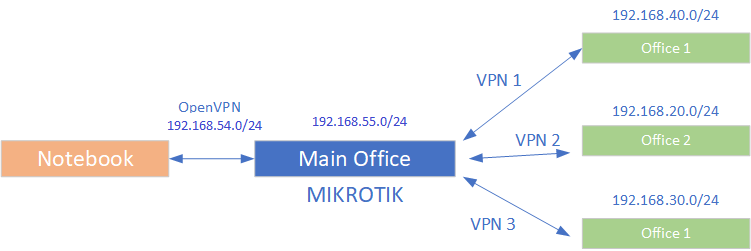

I have the following network topology:
I want to connect to my office network from anywhere using open-vpn. The VPNs between main-office and the others is made through IPSEC tunnel and works fine.

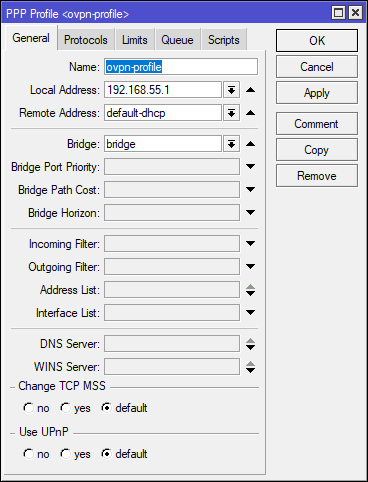

When i configure the open-vpn profile as below, everything works correctly:

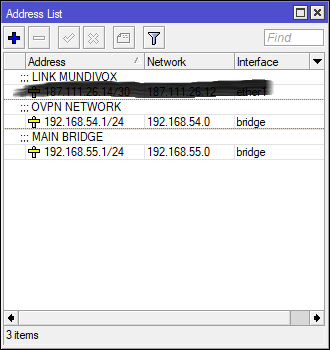

My problem is: That way, users who enter through open-vpn will have the same range of ip at local devices, and i want to use another ip range like 192.168.54.0/24 for users who enter via open-vpn, To try this i created other adderss range in ip-address and another pool and ip-pool:

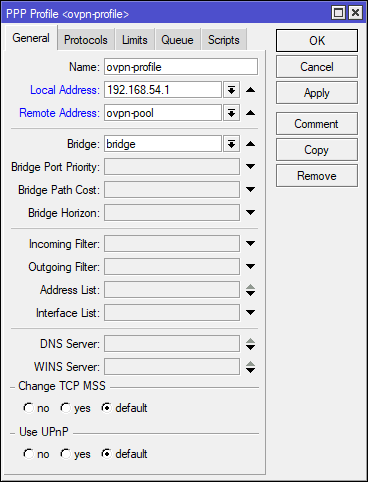

To finish, i reconfigure the ovpn-profile this way:
But it’s not work! I can’t access devices from other offices.

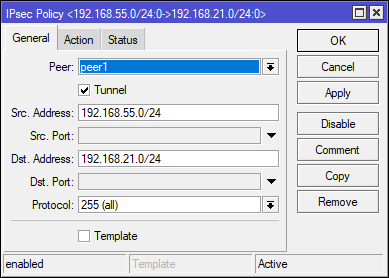

I believe it is a problem with the tunnel because the tunnel is configured as follows:
Exists any way to give another address range to open-vpn users and being able to access devices from other offices while maintaining the current tunnel configuration?
Any sugestion of changes?
Thanks a lot!
