GPeRx4 PoE In & Out (GPER14i)

Hardware MikroTik hardware general
1

Does anyone know the details of GPeRx4’s PoE In/Out capability?

Specifically with regards to active/passive input & output. Does it support input using for instance:

  • Generic 802.3af/at adapters ?
  • Generic 802.3bt adapters ?
  • Passive 8-pin adapters like POE-54V-80W ?

Does PoE Output support active (af/at automatic, default) and passive (forced on, forced off) in SwOS Lite?

Is there voltage/current monitoring in SwOS Lite?

2

From my testing yes you can power these with:

AF/AT compliant injectors
BT compliant injectors
Passive injectors with a pinout 3645+ 1278- (Tested with a Tycon POE-INJ-1000-WTx)

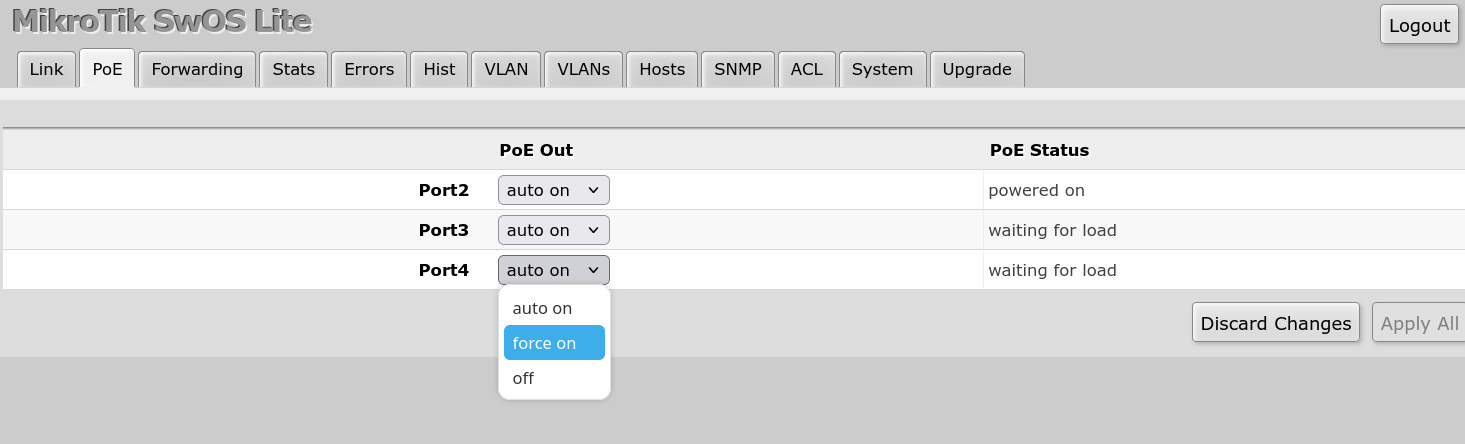

Yes you can force on the outputs:
And there is no voltage/current monitoring unfortunately.

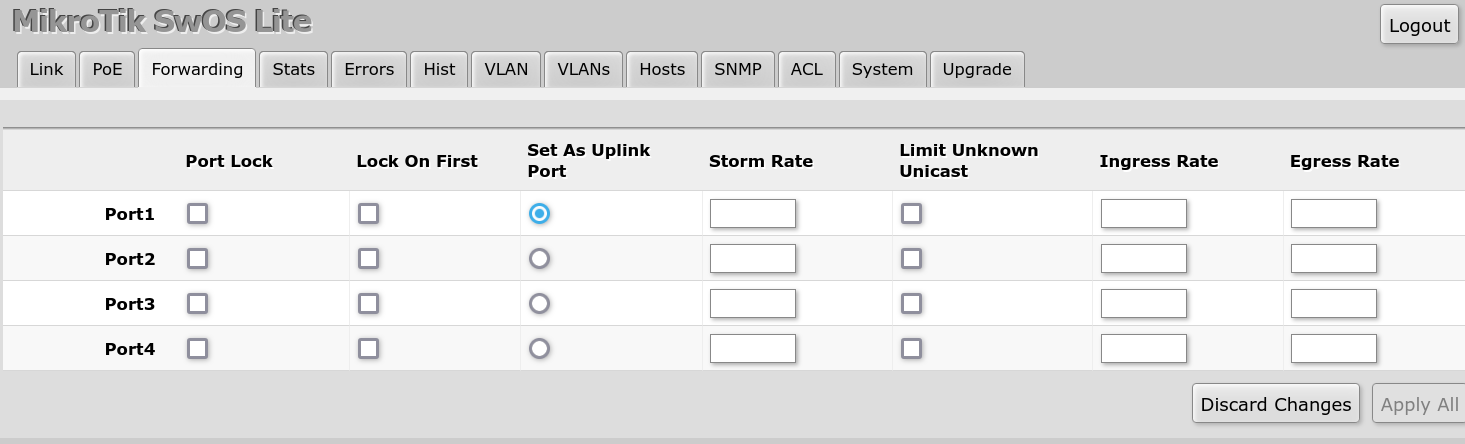

Also like other SwOS lite devices you can select which port is the uplink:

3

I also tested Passive PoE Type-B input:
Model: POE-54V-80W

  • (1,2)(4,5) pins
  • (7,8)(3,6) pins

and it worked fine.
