Graph scale

RouterOS The Dude
1

Hello,

I am testing Dude (installed 3.0 version). I created graph to see bandwidth usage on one port at switch via snmp, but I have a small problem with graph scale.

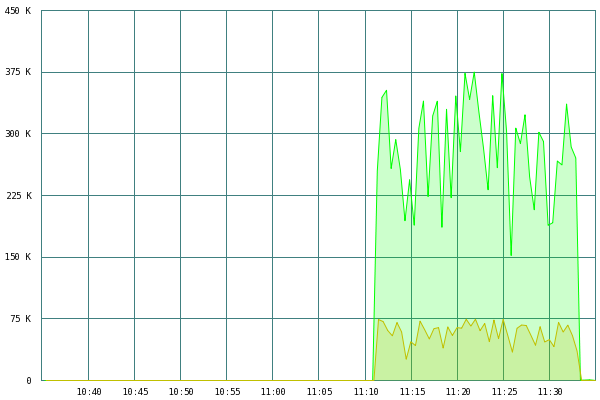

Chart 1: everything is ok

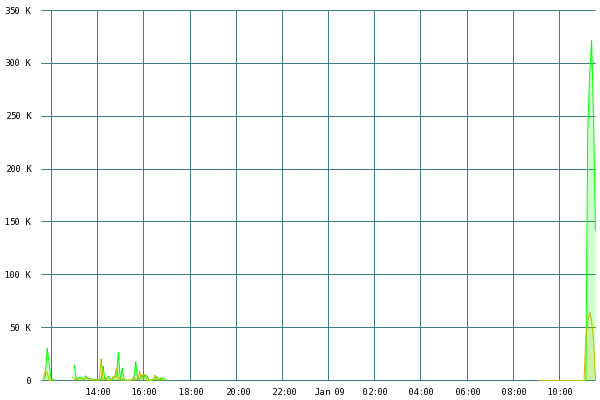

Chart 2: small changes at Y axis (range of values)
Chart 3: Y axis, values are even smaller
I don’t understand why values at Y axis are getting smaller when I choose more general graph.

Thanks for any advice
Milosz

2

the chart range changes to fit the maximum/minimum value. if the values become small for a while, the chart changes to fit them accordingly

3

Thanks. I thought that “chart 3” should also show values around 300 K but now I undarstand that it’s calculated using average during longer period of time.
