Hi,
I’m current working on Groove A-52HPn hardware and noticed that LED5 is not configurable.
RouterOS v6.1
NOTE - this may be a RouterOS6.1 issue with Groove A-52HPn hardware – I have not rolled back to v5.25 to see if the same issue remains – or is only unique to the Groove A-52HPn hardware
On my previous hardware (Groove A-2Hn, RouterOSv6.1) I successfully created a mesh network (with a mesh1 interface) and client interface (on wlan2)
On the mesh portals, I set up LED1 to show mesh1 activity and LED5 to show wlan2 activity - to assist our company techs in debugging.
(I turn off the default signal strength indicators LED1-LED5 to do this )
When I ported the configs to the new Groove A-52HPn hardware, the network worked without issue, but I noticed that my LED5 was not showing any wlan2 interface activity. (set up in 5GHz mode)

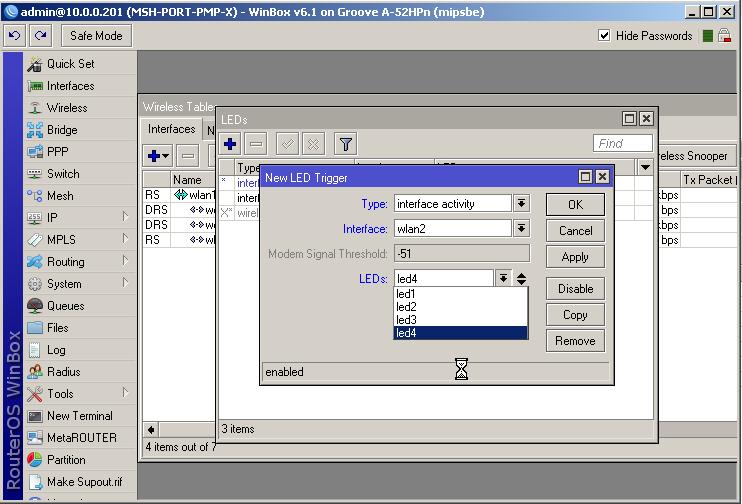

I went to manually configure it (see attached image), and notice LED5 was not available in the dropdown box, only LED1-LED4
So I set LED4 up to show wlan2 activity, and rebooted the router.

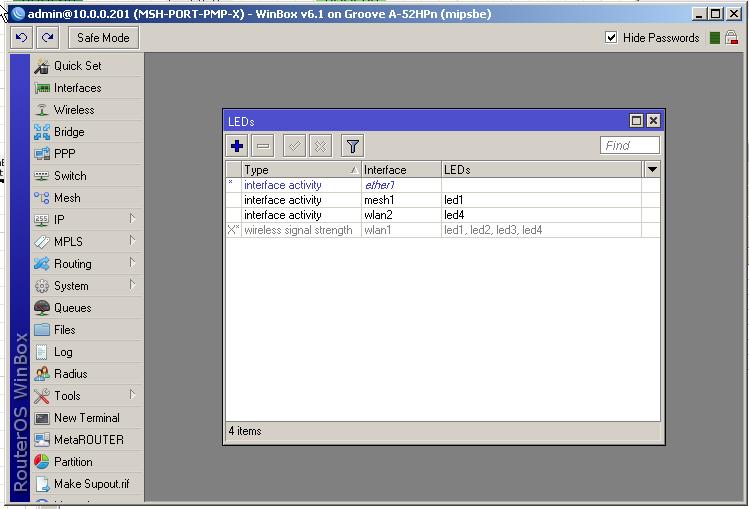

On reboot – BOTH LED4 and LED5 lit up? – showing wlan2 activity…even though ONLY LED4 was configured (see attached image)
The Groove A-52HPn clearly says the LEDs are all configurable – but clearly LED5 is not.
So I am wondering if there is issue in RouterOS or in the hardware?
I am also wondering if LED4 and LED5 both light up when the hardware is used as a client and sees signal strength?
I’m not looking for help, as I can work around this OK, but just wanted to highlight it.
