Hello,
I’m having an issue when attempting to set up a guest wifi using capsman using my hAP ax3 as the router/manager.
as soon as i build the slave configuration, and “provision” to the radios, i start losing devices off my main 2.4ghz wifi.

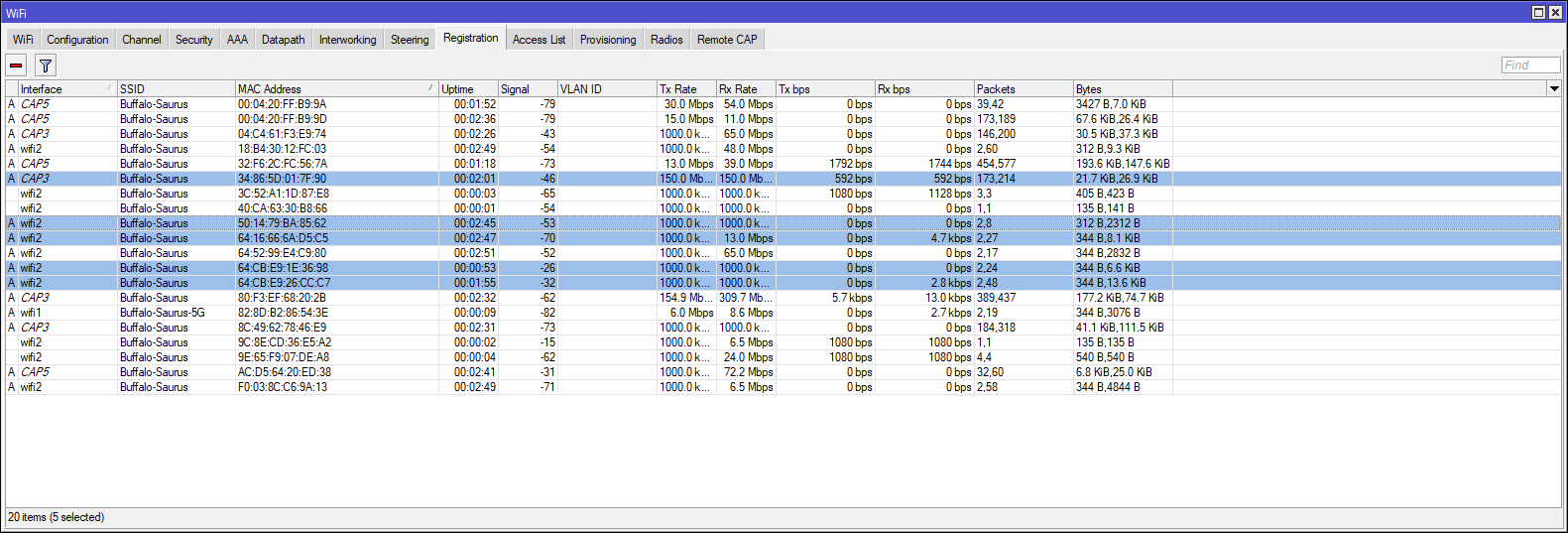

Devices highlighted in the screenshot (registration.png attached) show up in the registration table, but do not receive an IP, and are not accessible on the 2.4 ghz wifi.
These same devices work perfectly as soon as i restore to a previous config.
im hoping someone else has seen this issue, and can assist or point me to a resource that can help solve the problem.
#Config with guest wifi:
# 2024-06-18 16:15:54 by RouterOS 7.15.1
# software id = LED7-UDZ5
#
# model = C53UiG+5HPaxD2HPaxD
# serial number = *****
/interface bridge
add admin-mac=D4:01:C3:44:50:82 auto-mac=no comment=defconf name=bridge \
port-cost-mode=short
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wifi security
add connect-priority=0 disabled=no name=sec1
add disabled=no name=sec2
/interface wifi configuration
add disabled=no name=2Ghz security=sec1 security.connect-priority=0 ssid=\
Buffalo-Saurus
add disabled=no name=5ghz security=sec1 security.connect-priority=0 ssid=\
Buffalo-Saurus-5G
add disabled=no name=cfg1 security=sec2 ssid=BuffaloSaurusGuest
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp interface=bridge lease-time=10m name=defconf
/interface bridge port
add bridge=bridge comment=defconf interface=ether2 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether3 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether4 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether5 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=*6 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=*7 internal-path-cost=10 \
path-cost=10
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wifi capsman
set enabled=yes package-path=/packages require-peer-certificate=no \
upgrade-policy=suggest-same-version
/interface wifi provisioning
add action=create-dynamic-enabled comment=2ghz_prov disabled=no \
master-configuration=2Ghz name-format=CAP slave-configurations=cfg1 \
supported-bands=2ghz-g,2ghz-n,2ghz-ax
add action=create-dynamic-enabled comment=5ghz_prov disabled=no \
master-configuration=5ghz name-format=CAP supported-bands=\
5ghz-n,5ghz-ac,5ghz-ax
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=\
192.168.88.0
/ip dhcp-client
add comment=defconf interface=ether1 use-peer-dns=no
/ip dhcp-server lease
add address=192.168.88.252 client-id=1:14:59:c0:a4:cc:d4 comment=\
"Netgear Front Room" mac-address=14:59:C0:A4:CC:D4 server=defconf
add address=192.168.88.231 client-id=1:f0:0:0:86:3d:36 comment="WGR Cam" \
mac-address=F0:00:00:86:3D:36 server=defconf
add address=192.168.88.230 client-id=1:f0:0:0:89:fc:55 comment="WGF Cam" \
mac-address=F0:00:00:89:FC:55 server=defconf
add address=192.168.88.226 client-id=1:10:da:43:be:37:9c comment=\
"Netgear Office AP" mac-address=10:DA:43:BE:37:9C server=defconf
add address=192.168.88.240 comment="Garage Door Opener" mac-address=\
64:52:99:E4:C9:80 server=defconf
add address=192.168.88.254 client-id=1:0:d8:61:ca:59:b4 comment="Server 2" \
mac-address=00:D8:61:CA:59:B4 server=defconf
add address=192.168.88.199 client-id=1:f0:0:0:88:e:cb comment="Devlin Cam" \
mac-address=F0:00:00:88:0E:CB server=defconf
add address=192.168.88.197 client-id=1:f0:0:0:86:3c:ec comment="Aria Cam" \
mac-address=F0:00:00:86:3C:EC server=defconf
add address=192.168.88.196 client-id=1:0:8f:13:e9:5a:f2 comment=\
"Front East Cam" mac-address=00:8F:13:E9:5A:F2 server=defconf
add address=192.168.88.249 client-id=1:d0:c5:d3:d1:76:5f comment=\
"James Laptop" mac-address=D0:C5:D3:D1:76:5F server=defconf
add address=192.168.88.238 client-id=1:64:16:66:6a:d5:c5 comment=Doorbell \
mac-address=64:16:66:6A:D5:C5 server=defconf
add address=192.168.88.221 client-id=1:ac:d5:64:20:ed:38 comment=\
"Brother Printer" mac-address=AC:D5:64:20:ED:38 server=defconf
add address=192.168.88.10 comment=Chromecast mac-address=D0:E7:82:7B:6D:44 \
server=defconf
add address=192.168.88.247 client-id=1:0:4:20:ff:b9:9a comment="Harmony Hub" \
mac-address=00:04:20:FF:B9:9A server=defconf
add address=192.168.88.45 client-id=1:0:4:20:ff:b9:9d comment=Harmony \
mac-address=00:04:20:FF:B9:9D server=defconf
add address=192.168.88.44 client-id=1:4c:b:be:b9:77:af comment=Xbox \
mac-address=4C:0B:BE:B9:77:AF server=defconf
add address=192.168.88.163 client-id=1:9e:65:f9:7:de:a8 comment="Bond Bridge" \
mac-address=9E:65:F9:07:DE:A8 server=defconf
add address=192.168.88.40 client-id=1:4:d9:f5:f7:b1:2c comment=\
"James Desktop" mac-address=04:D9:F5:F7:B1:2C server=defconf
add address=192.168.88.88 client-id=1:8:0:27:6d:d1:1a comment=HomeAssistant \
mac-address=08:00:27:6D:D1:1A server=defconf
add address=192.168.88.13 client-id=1:ea:e8:af:42:c0:18 comment=\
"Carries Phone" mac-address=EA:E8:AF:42:C0:18 server=defconf
add address=192.168.88.51 client-id=1:48:a9:8a:6f:ad:79 comment="AP Garage" \
mac-address=48:A9:8A:6F:AD:79 server=defconf
add address=192.168.88.54 client-id=1:18:fd:74:fa:bc:44 comment="Backyard AP" \
mac-address=18:FD:74:FA:BC:44 server=defconf
add address=192.168.88.12 client-id=1:8:a1:89:96:14:a1 comment=\
"Front Porch Cam" mac-address=08:A1:89:96:14:A1 server=defconf
add address=192.168.88.18 client-id=1:4:c4:61:f3:e9:74 comment=\
"East Thermostat" mac-address=04:C4:61:F3:E9:74 server=defconf
add address=192.168.88.49 client-id=1:40:ac:bf:9b:bc:b5 comment=\
"Back Yard Cam" mac-address=40:AC:BF:9B:BC:B5 server=defconf
add address=192.168.88.46 client-id=1:8:a1:89:96:14:4a comment="Car Port Cam" \
mac-address=08:A1:89:96:14:4A server=defconf
add address=192.168.88.19 client-id=1:24:32:ae:fa:7d:d7 comment="Patio Cam" \
mac-address=24:32:AE:FA:7D:D7 server=defconf
add address=192.168.88.48 client-id=1:40:ac:bf:4d:6:f4 comment="Driveway Cam" \
mac-address=40:AC:BF:4D:06:F4 server=defconf
add address=192.168.88.41 client-id=1:90:8d:6e:49:24:38 comment=\
"James Work laptop" mac-address=90:8D:6E:49:24:38 server=defconf
add address=192.168.88.58 client-id=1:4:7c:16:b7:3b:2e comment=Cameras \
mac-address=04:7C:16:B7:3B:2E server=defconf
add address=192.168.88.21 comment=Roomba mac-address=50:14:79:BA:85:62 \
server=defconf
add address=192.168.88.23 comment=Fridge mac-address=40:CA:63:30:B8:66 \
server=defconf
add address=192.168.88.25 client-id=1:9c:8e:cd:36:df:c6 comment=\
"Family Room Cam Wifi" mac-address=9C:8E:CD:36:DF:C6 server=defconf
add address=192.168.88.27 client-id=1:32:f6:2c:fc:56:7a comment=\
"Garage ChromeCast" mac-address=32:F6:2C:FC:56:7A server=defconf
add address=192.168.88.11 client-id=1:9c:8e:cd:36:e5:a2 comment=\
"Family Room Cam Wired" mac-address=9C:8E:CD:36:E5:A2 server=defconf
add address=192.168.88.110 comment=Washer mac-address=64:CB:E9:1E:36:98 \
server=defconf
add address=192.168.88.24 client-id=1:8a:2:61:fa:70:e8 comment="James Phone" \
mac-address=8A:02:61:FA:70:E8 server=defconf
add address=192.168.88.63 mac-address=34:51:80:E6:BB:74 server=defconf
add address=192.168.88.103 client-id=1:ea:41:d9:ea:bf:89 comment=\
"Carrie Tablet" mac-address=EA:41:D9:EA:BF:89 server=defconf
add address=192.168.88.102 client-id=1:5e:43:59:7:ad:ec comment="James Phone" \
mac-address=5E:43:59:07:AD:EC server=defconf
add address=192.168.88.17 comment="Kasa Smart Plug" mac-address=\
3C:52:A1:1D:87:E8 server=defconf
add address=192.168.88.26 client-id=1:60:23:a4:8:14:f5 comment=\
"Photo Display" mac-address=60:23:A4:08:14:F5 server=defconf
add address=192.168.88.100 client-id=1:4c:ab:f8:9e:1a:a5 comment=\
"Verizon Network Extender" mac-address=4C:AB:F8:9E:1A:A5 server=defconf
add address=192.168.88.29 client-id=1:0:e0:4c:68:f:ff comment=\
"Carrie USF laptop\
\n" mac-address=00:E0:4C:68:0F:FF server=defconf
add address=192.168.88.117 client-id=1:c8:94:2:ba:6:17 comment=\
"Carrie USF laptop\
\n" mac-address=C8:94:02:BA:06:17 server=defconf
add address=192.168.88.133 client-id=1:b8:69:f4:dc:43:c9 mac-address=\
B8:69:F4:DC:43:C9 server=defconf
add address=192.168.88.28 client-id=1:48:a9:8a:ba:9b:33 mac-address=\
48:A9:8A:BA:9B:33 server=defconf
add address=192.168.88.33 client-id=1:d4:1:c3:67:e3:20 mac-address=\
D4:01:C3:67:E3:20 server=defconf
add address=192.168.88.31 client-id=1:34:86:5d:1:7f:90 mac-address=\
34:86:5D:01:7F:90 server=defconf
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf dns-server=192.168.88.1 gateway=\
192.168.88.1
/ip dns
set allow-remote-requests=yes servers=192.168.88.60
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
ipsec-policy=out,none out-interface-list=WAN
add action=dst-nat chain=dstnat comment="Plex Routing" dst-port=32400 \
protocol=tcp to-addresses=192.168.88.254 to-ports=32400
add action=dst-nat chain=dstnat comment="Camera Routing" dst-port=8080 \
protocol=tcp to-addresses=192.168.88.58 to-ports=81
add action=dst-nat chain=dstnat comment="HomeAssistant Routing" dst-port=8123 \
protocol=tcp to-addresses=192.168.88.88 to-ports=8123
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
33434-33534 protocol=udp
add action=accept chain=input comment=\
"defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=input comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
add action=accept chain=forward comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment=\
"defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=forward comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
/system clock
set time-zone-name=America/Phoenix
/system identity
set name=Router
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=utcnist.colorado.edu
/system scheduler
add interval=1w4h name=schedule1 on-event=" " policy=reboot start-date=\
2024-06-09 start-time=04:00:00
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
#working config - no guest wifi:
# 2024-06-18 16:34:21 by RouterOS 7.15.1
# software id = LED7-UDZ5
#
# model = C53UiG+5HPaxD2HPaxD
# serial number = *****
/interface bridge
add admin-mac=D4:01:C3:44:50:82 auto-mac=no comment=defconf name=bridge \
port-cost-mode=short
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wifi security
add connect-priority=0 disabled=no name=sec1
/interface wifi configuration
add disabled=no name=2Ghz security=sec1 security.connect-priority=0 ssid=\
Buffalo-Saurus
add disabled=no name=5ghz security=sec1 security.connect-priority=0 ssid=\
Buffalo-Saurus-5G
/interface wifi
set [ find default-name=wifi2 ] channel.band=2ghz-ax .skip-dfs-channels=\
10min-cac .width=20/40mhz configuration=2Ghz configuration.mode=ap \
disabled=no name="HAP AX3 2" security.connect-priority=0
set [ find default-name=wifi1 ] channel.band=5ghz-ax .skip-dfs-channels=\
10min-cac .width=20/40/80mhz configuration=5ghz configuration.mode=ap \
disabled=no name="HAP AX3 5" security.connect-priority=0
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp interface=bridge lease-time=10m name=defconf
/interface bridge port
add bridge=bridge comment=defconf interface=ether2 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether3 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether4 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether5 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface="HAP AX3 5" internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface="HAP AX3 2" internal-path-cost=10 \
path-cost=10
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wifi capsman
set enabled=yes package-path=/packages require-peer-certificate=no \
upgrade-policy=suggest-same-version
/interface wifi provisioning
add action=create-dynamic-enabled comment=2ghz_prov disabled=no \
master-configuration=2Ghz name-format=CAP supported-bands=\
2ghz-g,2ghz-n,2ghz-ax
add action=create-dynamic-enabled comment=5ghz_prov disabled=no \
master-configuration=5ghz name-format=CAP supported-bands=\
5ghz-n,5ghz-ac,5ghz-ax
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=\
192.168.88.0
/ip dhcp-client
add comment=defconf interface=ether1 use-peer-dns=no
/ip dhcp-server lease
add address=192.168.88.252 client-id=1:14:59:c0:a4:cc:d4 comment=\
"Netgear Front Room" mac-address=14:59:C0:A4:CC:D4 server=defconf
add address=192.168.88.231 client-id=1:f0:0:0:86:3d:36 comment="WGR Cam" \
mac-address=F0:00:00:86:3D:36 server=defconf
add address=192.168.88.230 client-id=1:f0:0:0:89:fc:55 comment="WGF Cam" \
mac-address=F0:00:00:89:FC:55 server=defconf
add address=192.168.88.226 client-id=1:10:da:43:be:37:9c comment=\
"Netgear Office AP" mac-address=10:DA:43:BE:37:9C server=defconf
add address=192.168.88.240 comment="Garage Door Opener" mac-address=\
64:52:99:E4:C9:80 server=defconf
add address=192.168.88.254 client-id=1:0:d8:61:ca:59:b4 comment="Server 2" \
mac-address=00:D8:61:CA:59:B4 server=defconf
add address=192.168.88.199 client-id=1:f0:0:0:88:e:cb comment="Devlin Cam" \
mac-address=F0:00:00:88:0E:CB server=defconf
add address=192.168.88.197 client-id=1:f0:0:0:86:3c:ec comment="Aria Cam" \
mac-address=F0:00:00:86:3C:EC server=defconf
add address=192.168.88.196 client-id=1:0:8f:13:e9:5a:f2 comment=\
"Front East Cam" mac-address=00:8F:13:E9:5A:F2 server=defconf
add address=192.168.88.249 client-id=1:d0:c5:d3:d1:76:5f comment=\
"James Laptop" mac-address=D0:C5:D3:D1:76:5F server=defconf
add address=192.168.88.238 client-id=1:64:16:66:6a:d5:c5 comment=Doorbell \
mac-address=64:16:66:6A:D5:C5 server=defconf
add address=192.168.88.221 client-id=1:ac:d5:64:20:ed:38 comment=\
"Brother Printer" mac-address=AC:D5:64:20:ED:38 server=defconf
add address=192.168.88.10 comment=Chromecast mac-address=D0:E7:82:7B:6D:44 \
server=defconf
add address=192.168.88.247 client-id=1:0:4:20:ff:b9:9a comment="Harmony Hub" \
mac-address=00:04:20:FF:B9:9A server=defconf
add address=192.168.88.45 client-id=1:0:4:20:ff:b9:9d comment=Harmony \
mac-address=00:04:20:FF:B9:9D server=defconf
add address=192.168.88.44 client-id=1:4c:b:be:b9:77:af comment=Xbox \
mac-address=4C:0B:BE:B9:77:AF server=defconf
add address=192.168.88.163 client-id=1:9e:65:f9:7:de:a8 comment="Bond Bridge" \
mac-address=9E:65:F9:07:DE:A8 server=defconf
add address=192.168.88.40 client-id=1:4:d9:f5:f7:b1:2c comment=\
"James Desktop" mac-address=04:D9:F5:F7:B1:2C server=defconf
add address=192.168.88.88 client-id=1:8:0:27:6d:d1:1a comment=HomeAssistant \
mac-address=08:00:27:6D:D1:1A server=defconf
add address=192.168.88.13 client-id=1:ea:e8:af:42:c0:18 comment=\
"Carries Phone" mac-address=EA:E8:AF:42:C0:18 server=defconf
add address=192.168.88.51 client-id=1:48:a9:8a:6f:ad:79 comment="AP Garage" \
mac-address=48:A9:8A:6F:AD:79 server=defconf
add address=192.168.88.54 client-id=1:18:fd:74:fa:bc:44 comment="Backyard AP" \
mac-address=18:FD:74:FA:BC:44 server=defconf
add address=192.168.88.12 client-id=1:8:a1:89:96:14:a1 comment=\
"Front Porch Cam" mac-address=08:A1:89:96:14:A1 server=defconf
add address=192.168.88.18 client-id=1:4:c4:61:f3:e9:74 comment=\
"East Thermostat" mac-address=04:C4:61:F3:E9:74 server=defconf
add address=192.168.88.49 client-id=1:40:ac:bf:9b:bc:b5 comment=\
"Back Yard Cam" mac-address=40:AC:BF:9B:BC:B5 server=defconf
add address=192.168.88.46 client-id=1:8:a1:89:96:14:4a comment="Car Port Cam" \
mac-address=08:A1:89:96:14:4A server=defconf
add address=192.168.88.19 client-id=1:24:32:ae:fa:7d:d7 comment="Patio Cam" \
mac-address=24:32:AE:FA:7D:D7 server=defconf
add address=192.168.88.48 client-id=1:40:ac:bf:4d:6:f4 comment="Driveway Cam" \
mac-address=40:AC:BF:4D:06:F4 server=defconf
add address=192.168.88.41 client-id=1:90:8d:6e:49:24:38 comment=\
"James Work laptop" mac-address=90:8D:6E:49:24:38 server=defconf
add address=192.168.88.58 client-id=1:4:7c:16:b7:3b:2e comment=Cameras \
mac-address=04:7C:16:B7:3B:2E server=defconf
add address=192.168.88.21 comment=Roomba mac-address=50:14:79:BA:85:62 \
server=defconf
add address=192.168.88.23 comment=Fridge mac-address=40:CA:63:30:B8:66 \
server=defconf
add address=192.168.88.25 client-id=1:9c:8e:cd:36:df:c6 comment=\
"Family Room Cam Wifi" mac-address=9C:8E:CD:36:DF:C6 server=defconf
add address=192.168.88.27 client-id=1:32:f6:2c:fc:56:7a comment=\
"Garage ChromeCast" mac-address=32:F6:2C:FC:56:7A server=defconf
add address=192.168.88.11 client-id=1:9c:8e:cd:36:e5:a2 comment=\
"Family Room Cam Wired" mac-address=9C:8E:CD:36:E5:A2 server=defconf
add address=192.168.88.110 comment=Washer mac-address=64:CB:E9:1E:36:98 \
server=defconf
add address=192.168.88.111 comment=Dryer mac-address=64:CB:E9:26:CC:C7 \
server=defconf
add address=192.168.88.24 client-id=1:8a:2:61:fa:70:e8 comment="James Phone" \
mac-address=8A:02:61:FA:70:E8 server=defconf
add address=192.168.88.63 mac-address=34:51:80:E6:BB:74 server=defconf
add address=192.168.88.103 client-id=1:ea:41:d9:ea:bf:89 comment=\
"Carrie Tablet" mac-address=EA:41:D9:EA:BF:89 server=defconf
add address=192.168.88.102 client-id=1:5e:43:59:7:ad:ec comment="James Phone" \
mac-address=5E:43:59:07:AD:EC server=defconf
add address=192.168.88.17 comment="Kasa Smart Plug" mac-address=\
3C:52:A1:1D:87:E8 server=defconf
add address=192.168.88.26 client-id=1:60:23:a4:8:14:f5 comment=\
"Photo Display" mac-address=60:23:A4:08:14:F5 server=defconf
add address=192.168.88.100 client-id=1:4c:ab:f8:9e:1a:a5 comment=\
"Verizon Network Extender" mac-address=4C:AB:F8:9E:1A:A5 server=defconf
add address=192.168.88.29 client-id=1:0:e0:4c:68:f:ff comment=\
"Carrie USF laptop\
\n" mac-address=00:E0:4C:68:0F:FF server=defconf
add address=192.168.88.117 client-id=1:c8:94:2:ba:6:17 comment=\
"Carrie USF laptop\
\n" mac-address=C8:94:02:BA:06:17 server=defconf
add address=192.168.88.133 client-id=1:b8:69:f4:dc:43:c9 mac-address=\
B8:69:F4:DC:43:C9 server=defconf
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf dns-server=192.168.88.1 gateway=\
192.168.88.1
/ip dns
set allow-remote-requests=yes servers=192.168.88.60
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
ipsec-policy=out,none out-interface-list=WAN
add action=dst-nat chain=dstnat comment="Plex Routing" dst-port=32400 \
protocol=tcp to-addresses=192.168.88.254 to-ports=32400
add action=dst-nat chain=dstnat comment="Camera Routing" dst-port=8080 \
protocol=tcp to-addresses=192.168.88.58 to-ports=81
add action=dst-nat chain=dstnat comment="HomeAssistant Routing" dst-port=8123 \
protocol=tcp to-addresses=192.168.88.88 to-ports=8123
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
33434-33534 protocol=udp
add action=accept chain=input comment=\
"defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=input comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
add action=accept chain=forward comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment=\
"defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=forward comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
/system clock
set time-zone-name=America/Phoenix
/system identity
set name=Router
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=utcnist.colorado.edu
/system scheduler
add interval=1w4h name=schedule1 on-event=" " policy=reboot start-date=\
2024-06-09 start-time=04:00:00
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
