Greeting!

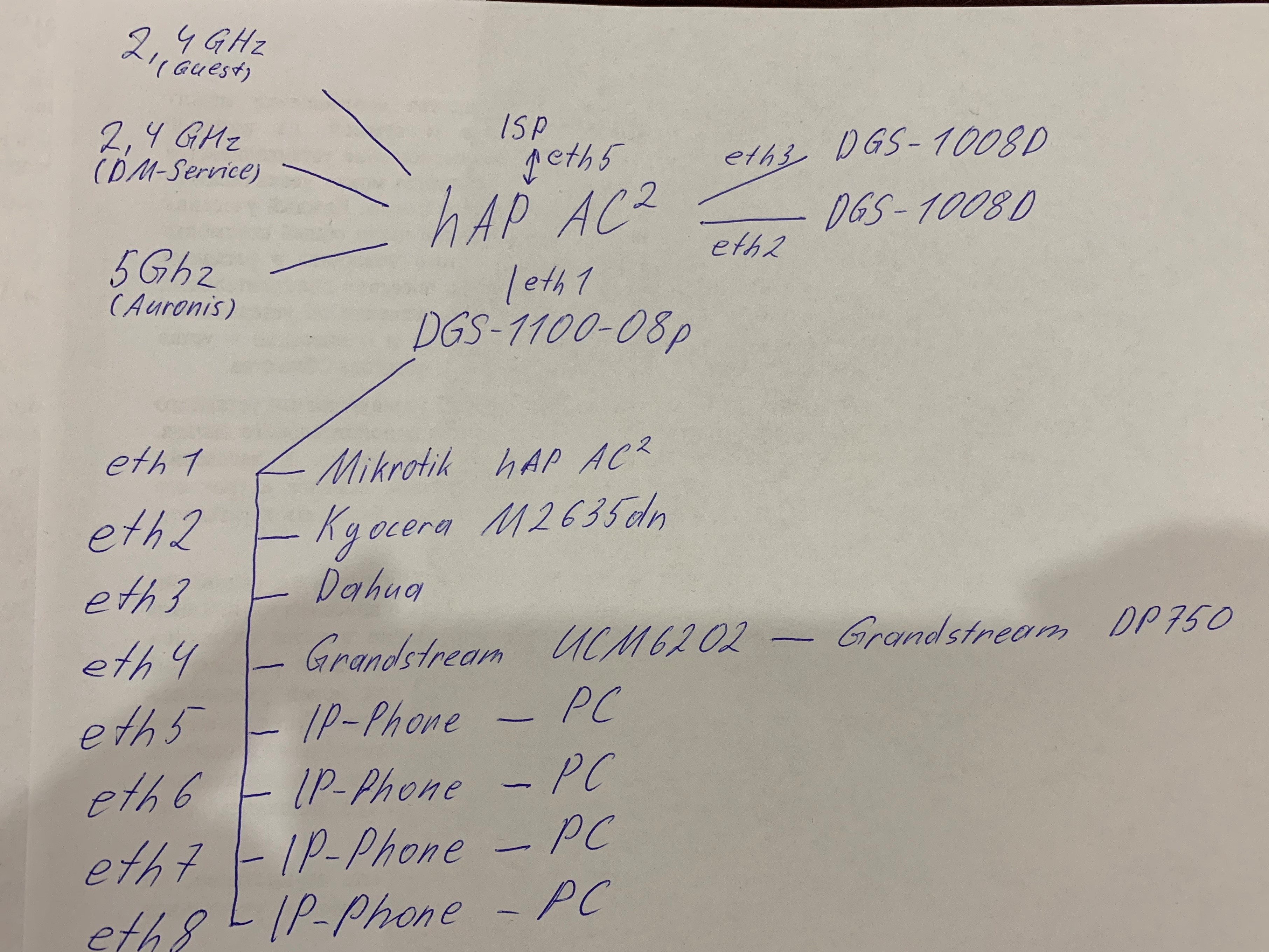

Basically I have:
hAP AC^2
D-Link DGS-1100-08P
I’ve set up the management VLAN on D-Link (VLAN 5) with the tagged port eth1 (to which hAP AC^2) is connected therefore now I can access D-Link’s web interface only through it’s eth1 by traffic tagged as VLAN 5.
On hAP AC^2 I’ve set up:
IP - DHCP Server - Leases - Static DHCP lease to D-Link (192.168.100.10) (it’s showing as working);
Interfaces - VLAN - Management VLAN 5 on interface ether1 (to which D-Link is connected) (it’s enabled and running);
Added Management VLAN to bridge w/ all interfaces;
Bridge - VLAN - Created Bridge VLAN w/ id 5, tagged interface (Management VLAN) and untagged (bridge itself);
IP - Addresses - created address network 192.168.100.10/32 w/ gateway 192.168.100.1;
IP - Routes - created route to 192.168.100.10/32 w/ gateway 192.168.100.1 (reachable via Bridge).
When I try to access 192.168.100.10 I get connected to RouterOS web interface instead of the D-Link web interface and I can’t get where I was wrong during the setup.
Looking forward for your advices!
Yours sincere,
IdeaFixe
