hap ax lite help with brige

[mistiq]

Hello. I have two hap ax, and cant setup ptp brige between

default-name="wifi1" name="wifi1-br" mtu=1500 l2mtu=1560
        mac-address=78:9A:18:1C:BF:EF arp-timeout=auto
        radio-mac=78:9A:18:1C:BF:EF
        configuration.mode=station-bridge .ssid="AREA51-BR" .country=Russia
        .manager=local
        security=sec1-brige
        security.authentication-types=wpa2-psk,wpa3-psk .passphrase="109086613"
        .dh-groups=19,20,21
        channel=channel1
        channel.frequency=2300-7300 .band=2ghz-ax .width=20/40mhz

same configuration at another side

interface status is “Scanning”

[jaclaz]

configuration.mode=station-bridge

>
> same configuration at another side

The two devices should have different modes set, should be station-bridge or station on one side, ap on the other, see here "Configuration properties":
https://help.mikrotik.com/docs/display/ROS/WiFi

> mode (ap | station)
>
> Interface operation mode
>
> ap (default) - interface operates as an access point
> station - interface acts as a client device, scanning for access points advertising the configured SSID
> station-bridge - interface acts as a client device and enables support for a 4-address frame format, so that the interface can be used as a bridge port
>
> The station-bridge mode, as implemented for 'wifi' interfaces, is incompatible with APs running the older 'wireless' package and vice versa.

[mistiq]

PERFECT! It works!
Want to setup brige with max throughput.
which settings I have to choose?

[jaclaz]

An Ax-lite has only a 2.4 GHz radio, so 2.4 GHx AX is correct.
Then it depends on your location, you should choose a channel with the least interferences/other signals, you can use one of your Mikrotik devices:
https://help.mikrotik.com/docs/display/ROS/WiFi#WiFi-Frequencyscan
or use an Android app like wi-fi analyzer:
http://forum.mikrotik.com/t/hap-ax3-wireless-problem/172468/1

then experiment with different width, 20/40Mhz should be slightly faster but is more prone to interferences, if you need more stability go for 20 MHz.

[mistiq]

Between 2 hap in brige mode ~ 2.5 meters without capital objects.
Early brige been on hap AC lite + Nanostation M2, and i get 60-70 Mbps.

[mistiq]

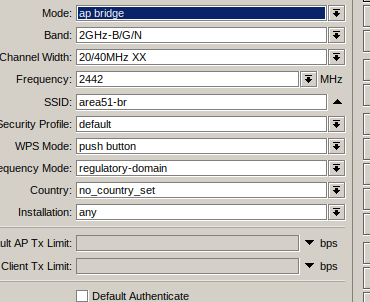

Settings from Old router

[mistiq]

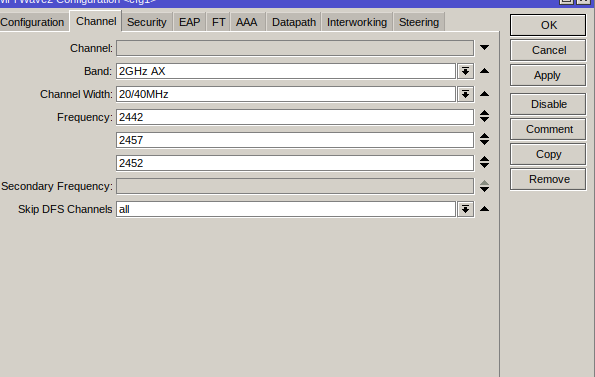

Settings on new routers

[mistiq]

Freq. Scan from new router

[JohnTRIVOLTA]

Use country Japan on both routers for max increasing the signal strength .
