hAP ax2 , All port auto down speed to 10Mbp/10Mbp

RouterOS General
1

Hi all

i have one hAP ax2 meet problem with all Lan port auto down link speed to 10mbps / 10mbps after run 5 minute and can not login and can not search by WinBox. i have try run Netinsall some time with both old ROS and new ROS but result the same, it only run normal with link speed 100/1G in 5 minute and then auto down link speed to 10Mbp and disconnect data, can not connenct winbox again , can not get ipadd . it only can connect when run netinsatll again. Anyone can help me fined root case and rescue this router?

thanks all

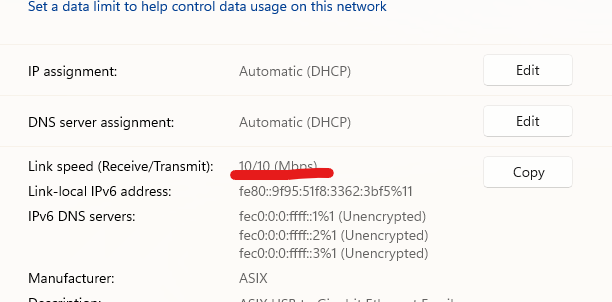

PC connenct .png

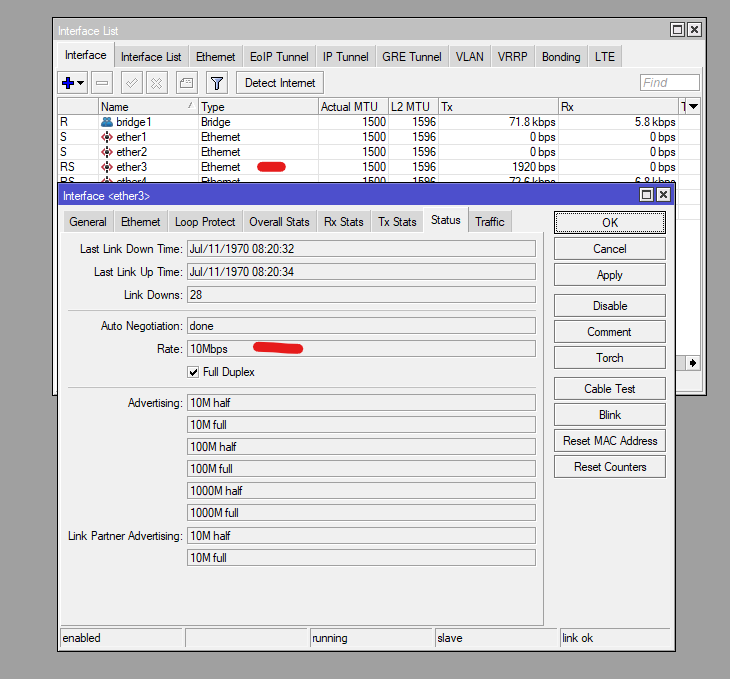

Connect other Router.png

2

What firmware version are you running?
Have you tried using different cables and different devices?

3

Are you sure ALL ports scale down to 10Mb ?
If you add Rate column in interface/ethernet view, you can see them at a glance.

4

i have try fw 7.8, 7.10, 7.10.2 and 7.18 are the same.

5

yes, all port from E1 to E5 the same, all are received 10Mb and can not get data to ping and searching by winbox

6

In that case, see if you can create supout.rif (or of reboot happens, autosupout.rif should be there) and create ticket to support.

7

I would start with other cable. Checked and good one :slight_smile:

8

If all ports at once go down to 10Mb ?
Doesn’t sound like a cable problem then.

Unless we are missing some info…

9

have try other cable is the same. note that it running normal get link speed 100/1000Mb before down speed . and after that it can not login and loss service. it is so strange

10

yes, i was send this file to support mikrotik team. i hope they will find the cause and support me solved

thanks
