hAP Lite RGB modding :)

RouterOS General
1

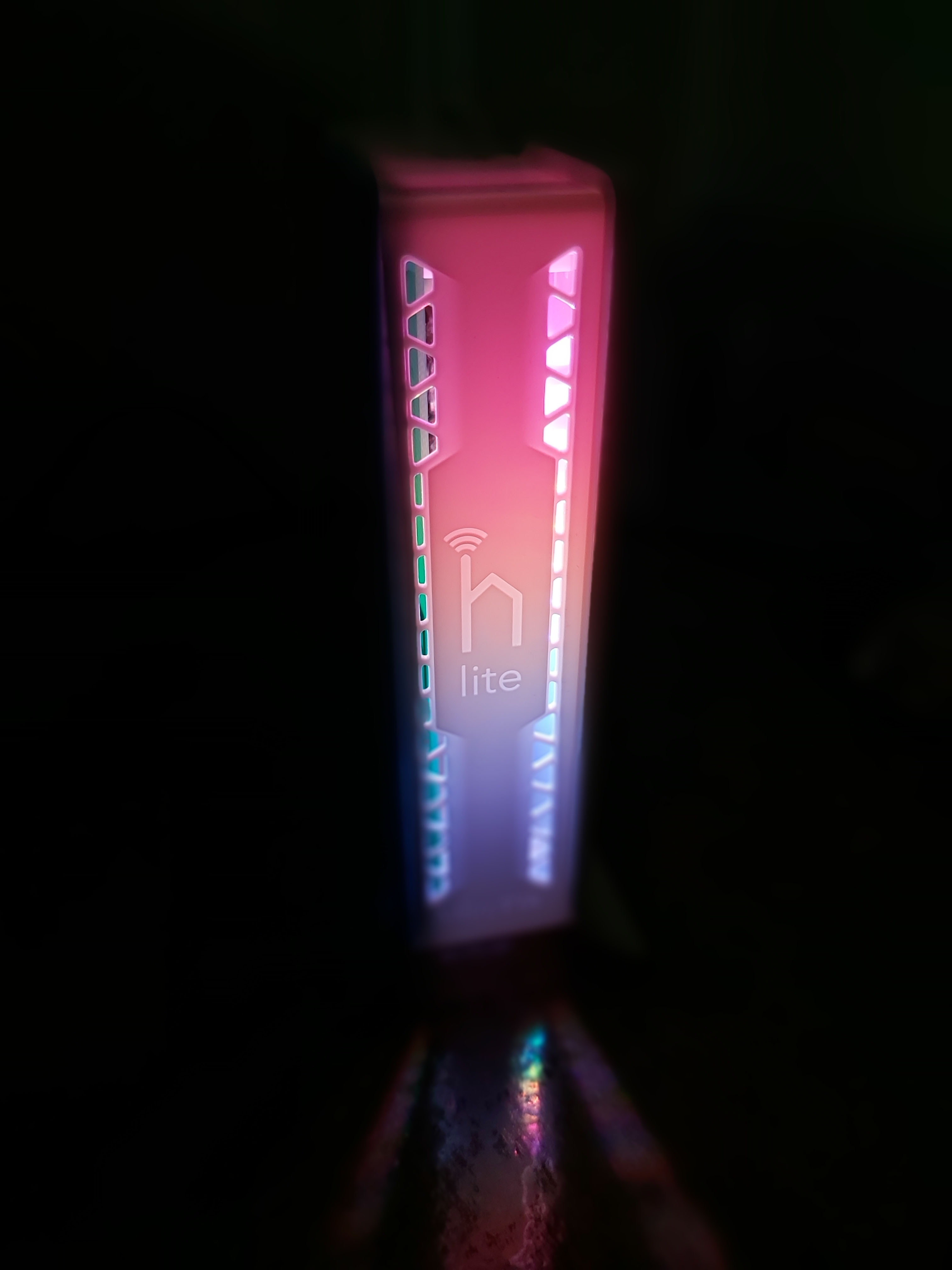

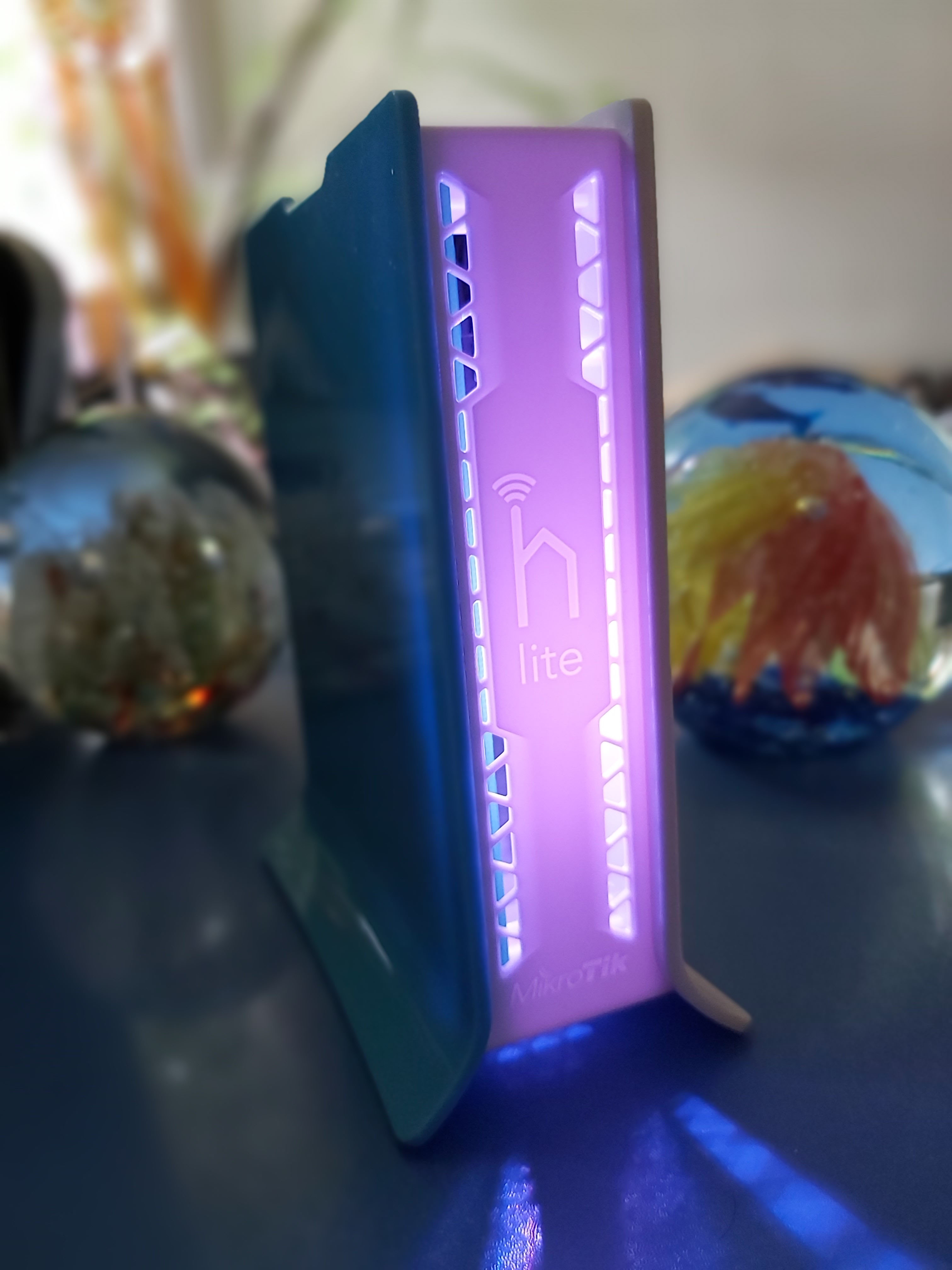

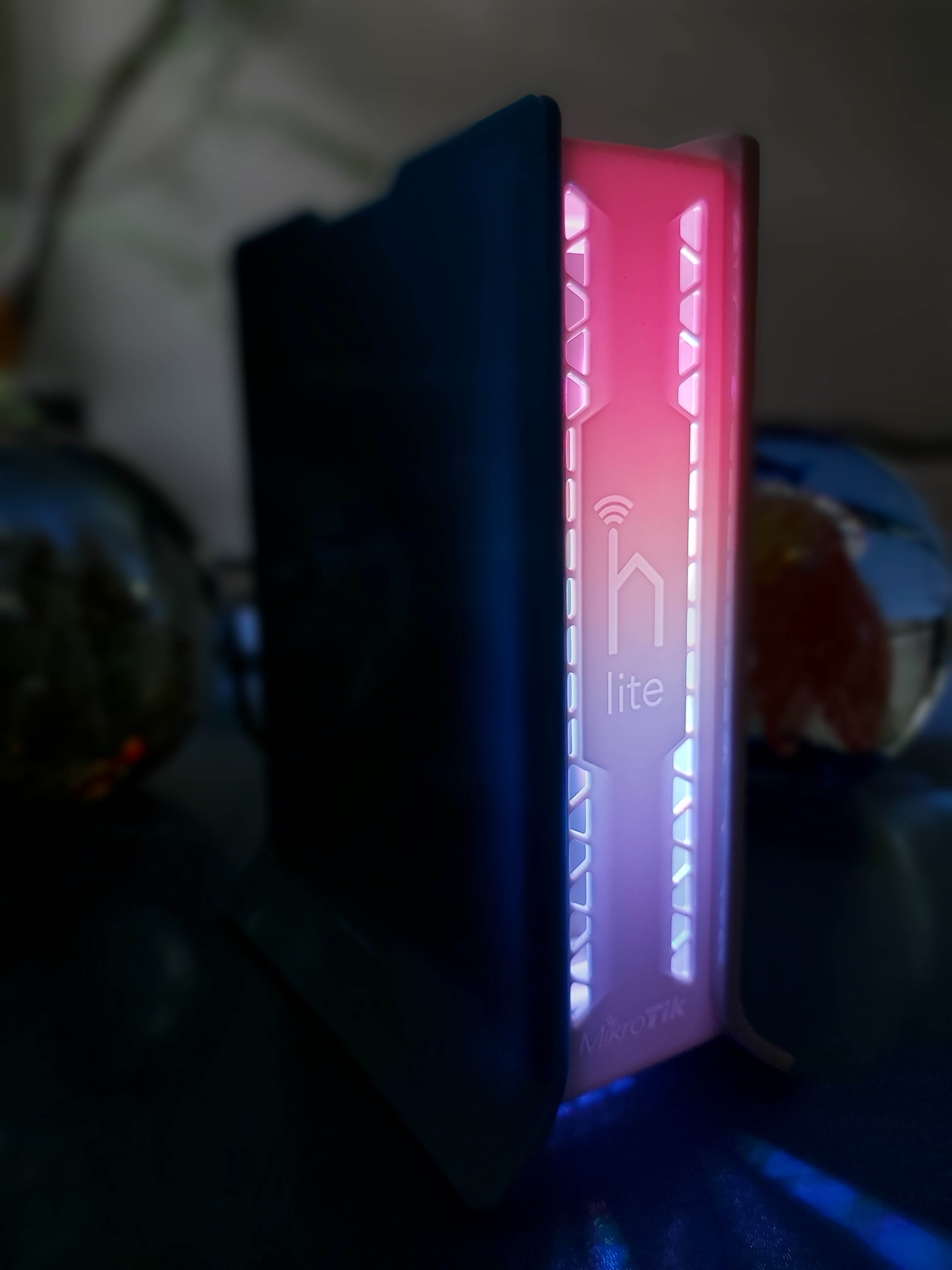

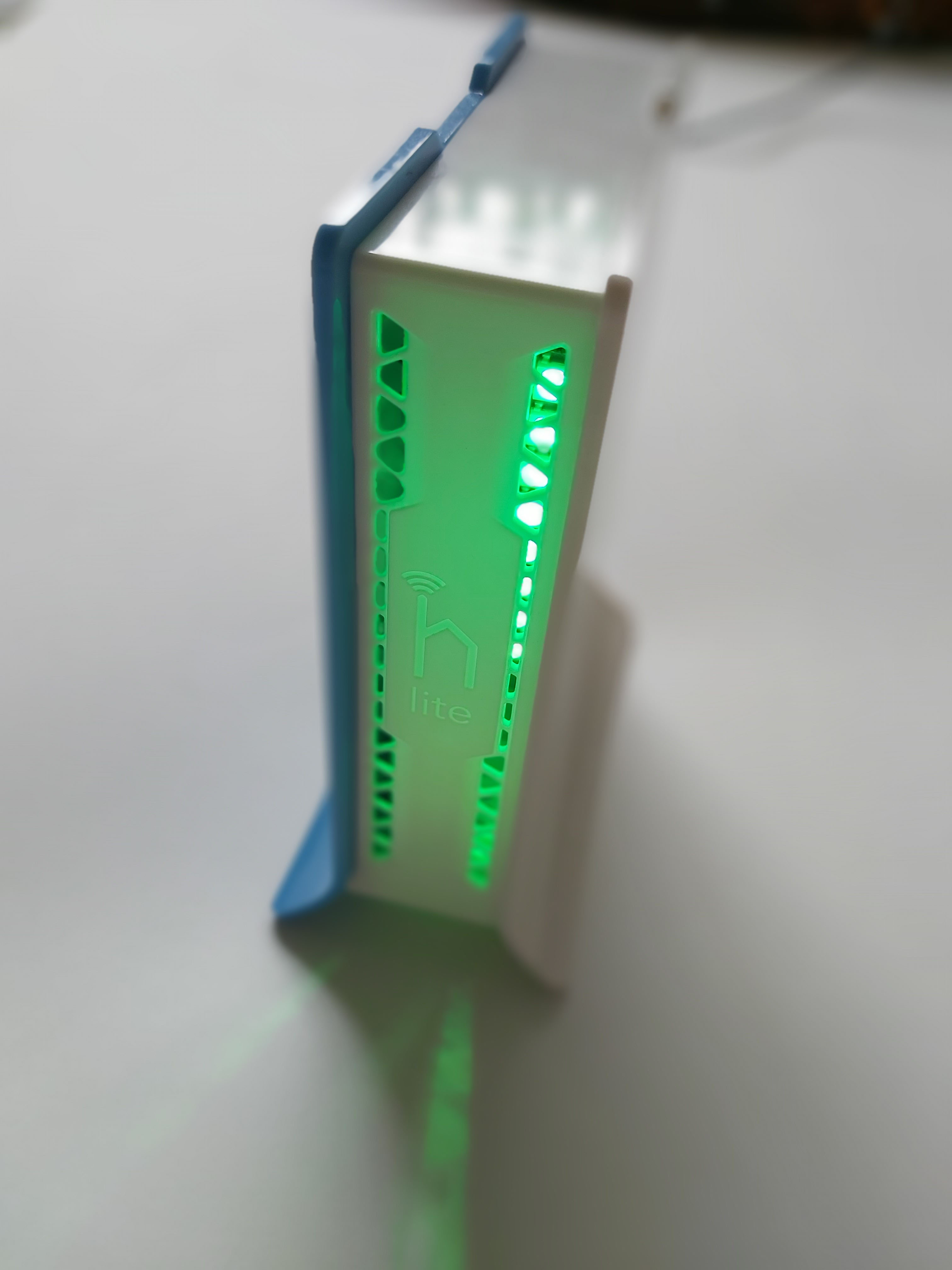

Hi friends. here my hAP Lite RGB modding for Network status. it’s support SNMP protocol to manage the RGB LED for device and network status like firewall, WiFi and more…

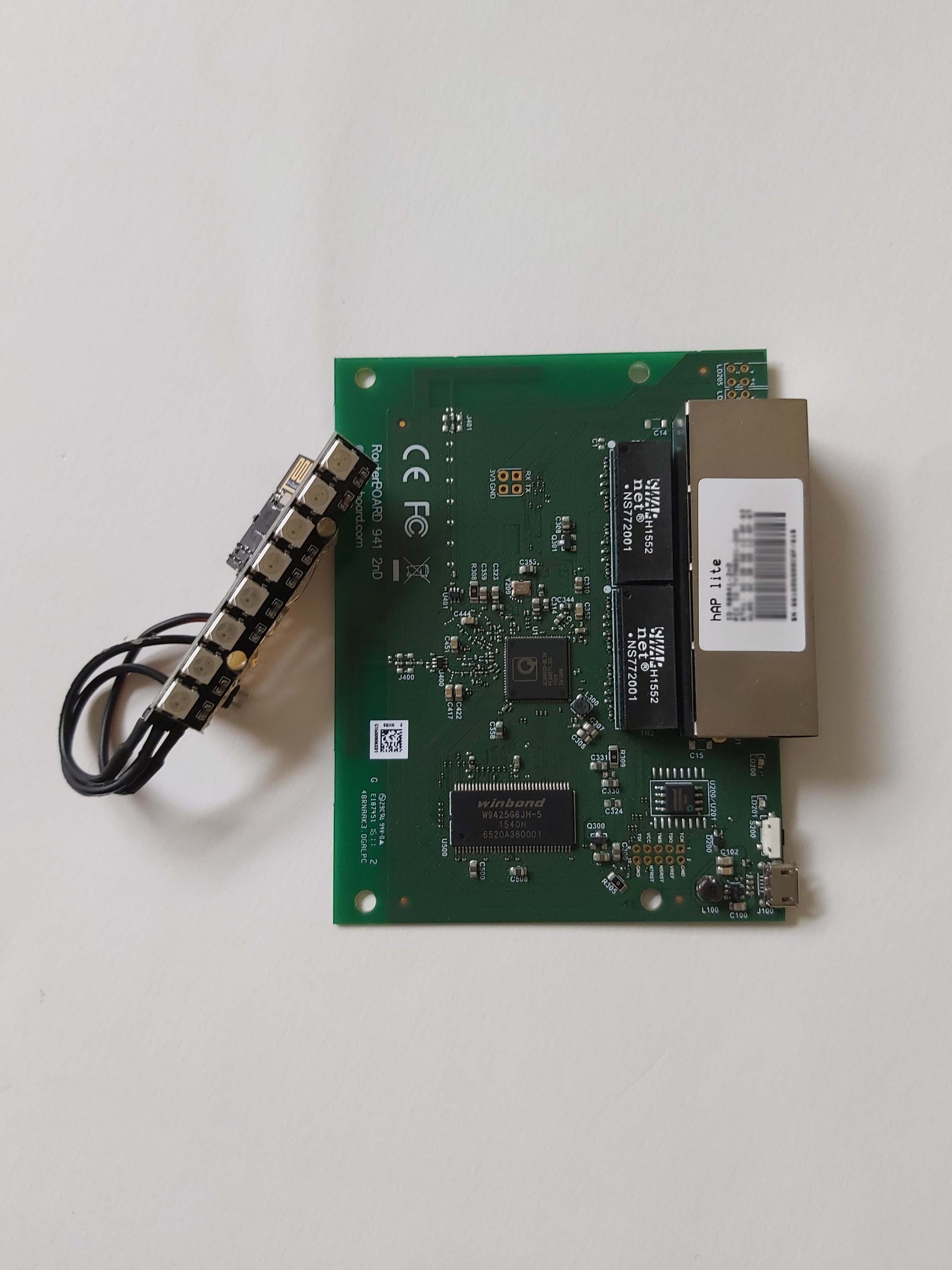

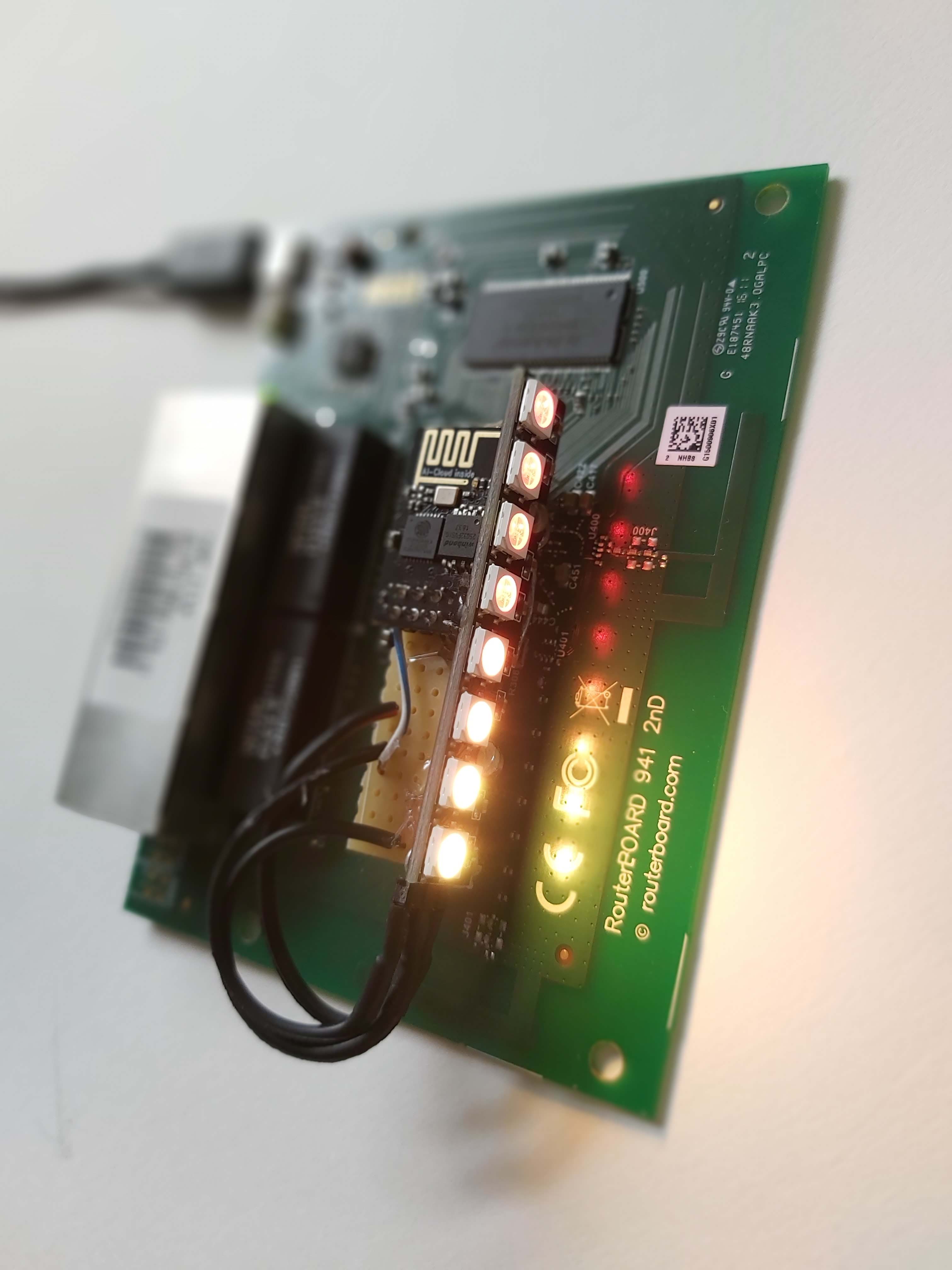

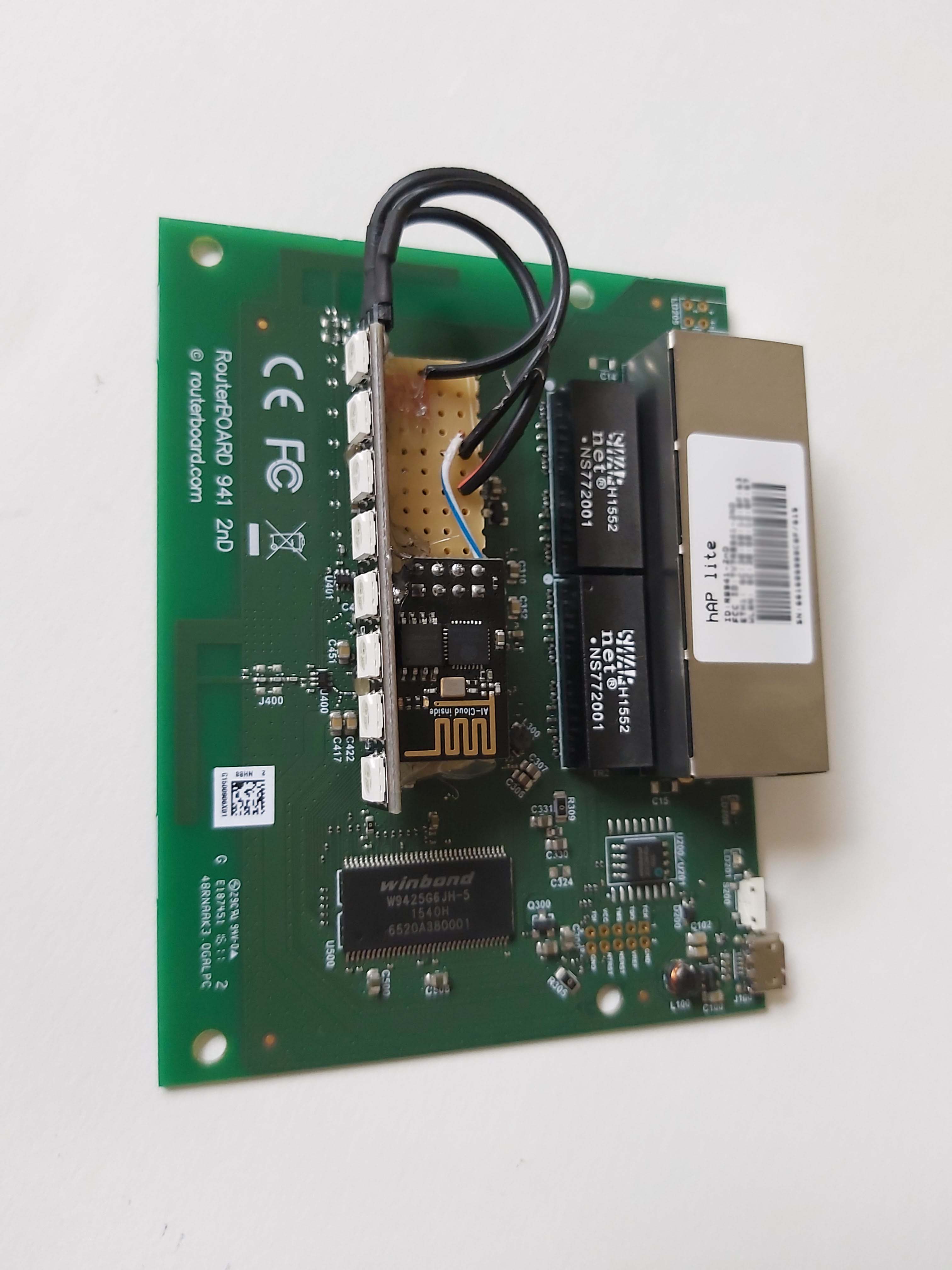

the Microcontroller is ESP8266 ( ESP01 ) and the RGB LED is WS2812B. it’s connected to the onboard routerboard 3.3 volt regulator pins and working without any problem.
it’s web based and easy to change the RGB color and effects :wink:
the video:

https://youtu.be/oNf4lp2b9x4

1 Like
2

That is nice :laughing: :laughing:

3

thanks :smiley:

4

New photos and videos:
DDOS detection LED effect: https://youtu.be/-SQDvPjpPqU

Color Waves effect: https://youtu.be/Y1iczObEtJQ
