Hi all!
I have problem with my home WAN to WLAN bandwidth, which goes no more then ~40 Mb/s, meanwhile all other connections shows great results
*color lines means trials of connection for test.
I already spent arround a week for a various tests and expirements. I tried to disable firewall at all, configuring everything from zero and even fresh netinstall.
Please help find the root cause. Here is different test results:
document direct link https://docs.google.com/spreadsheets/d/1RrNmz28AM50Y0Qi2bfIjUxKR2nd-kgwBiICWI-5PxBw/edit#gid=0
All other wireless devices in network working same way: good upload, terrible download, thats why I need to find a solution for it

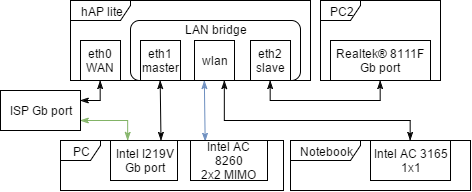

WLAN and ethernet2-5 ports in RSTP bridge. I will post any required configuration options
Thank you in advance!
Seems I have found cause of slow download, but I’m not sure why it was seen only throw wireless
I connected ISP directly to PC and measured packet loss with UDP iperf3 test
This is upload, everything is just fine, packet loss only (0.63%)
.\iperf3.exe -c iperf.volia.net -u -b 940M -O2
Connecting to host iperf.volia.net, port 5201
[ 4] local *.*.*.* port 64288 connected to 82.144.193.18 port 5201
[ ID] Interval Transfer Bandwidth Total Datagrams
[ 4] 0.00-1.00 sec 101 MBytes 846 Mbits/sec 12910 (omitted)
[ 4] 1.00-1.00 sec 113 MBytes 473 Mbits/sec 28876
[ 4] 1.00-2.00 sec 113 MBytes 946 Mbits/sec 14437
[ 4] 2.00-3.00 sec 113 MBytes 946 Mbits/sec 14437
[ 4] 3.00-4.00 sec 113 MBytes 946 Mbits/sec 14438
[ 4] 4.00-5.00 sec 113 MBytes 946 Mbits/sec 14437
[ 4] 5.00-6.00 sec 113 MBytes 946 Mbits/sec 14437
[ 4] 6.00-7.00 sec 113 MBytes 946 Mbits/sec 14438
[ 4] 7.00-8.00 sec 113 MBytes 946 Mbits/sec 14436
[ 4] 8.00-9.00 sec 113 MBytes 946 Mbits/sec 14438
[ 4] 9.00-10.00 sec 113 MBytes 946 Mbits/sec 14437
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams
[ 4] 0.00-10.00 sec 1.10 GBytes 946 Mbits/sec 0.109 ms 910/144371 (0.63%)
[ 4] Sent 144371 datagrams
Here is download:
.\iperf3.exe -c iperf.volia.net -u -b 40M -R
Connecting to host iperf.volia.net, port 5201
Reverse mode, remote host iperf.volia.net is sending
[ 4] local *.*.*.* port 51167 connected to 82.144.193.18 port 5201
[ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams
[ 4] 0.00-1.00 sec 4.09 MBytes 34.3 Mbits/sec 0.140 ms 148/672 (22%)
[ 4] 1.00-2.00 sec 3.77 MBytes 31.6 Mbits/sec 0.142 ms 129/611 (21%)
[ 4] 2.00-3.00 sec 3.66 MBytes 30.6 Mbits/sec 0.117 ms 142/610 (23%)
[ 4] 3.00-4.00 sec 3.54 MBytes 29.7 Mbits/sec 0.116 ms 158/611 (26%)
[ 4] 4.00-5.00 sec 3.49 MBytes 29.3 Mbits/sec 0.111 ms 160/607 (26%)
[ 4] 5.00-6.00 sec 3.65 MBytes 30.6 Mbits/sec 0.159 ms 145/612 (24%)
[ 4] 6.00-7.00 sec 3.45 MBytes 28.9 Mbits/sec 0.118 ms 171/612 (28%)
[ 4] 7.00-8.00 sec 3.56 MBytes 29.9 Mbits/sec 0.154 ms 154/610 (25%)
[ 4] 8.00-9.00 sec 3.52 MBytes 29.6 Mbits/sec 0.130 ms 160/611 (26%)
[ 4] 9.00-10.00 sec 4.06 MBytes 34.1 Mbits/sec 0.137 ms 88/608 (14%)
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams
[ 4] 0.00-10.00 sec 48.2 MBytes 40.4 Mbits/sec 0.137 ms 1455/6164 (24%)
[ 4] Sent 6164 datagrams
iperf Done.
On higher speeds losses rises
On slow speeds 0 loss.
So I have 2 questions:
- Am I write that this packet loss is a root cause for my slow download speed?
- Why slow download was seen only via WLAN? And via LAN it was >90 Mb/s?
Finally seems it is not a cause of my issue, it’s just an iperf3 bug, as with iperf2 this test runs perfrectly, and I also found a lot of forum threads with same problem of iperf3.
So my problem is still present and doesn’t solved, any suggestions? Help me please
i see you are marking with red color mostly the test conducted across wlan.
I think the performance its ok for a 2.4ghz radio
The most strage thing is that WLAN - LAN speed is very good, but the WAN → WLAN speed is less few times
I´ve got the same issue here. Download Speed WAN → LAN 94 MBit/s, Download Speed WAN → WLAN 22 MBit/s.
After switching Wifi to 2Ghz N-only the Download Speed increases up to 48 MBit/s.
